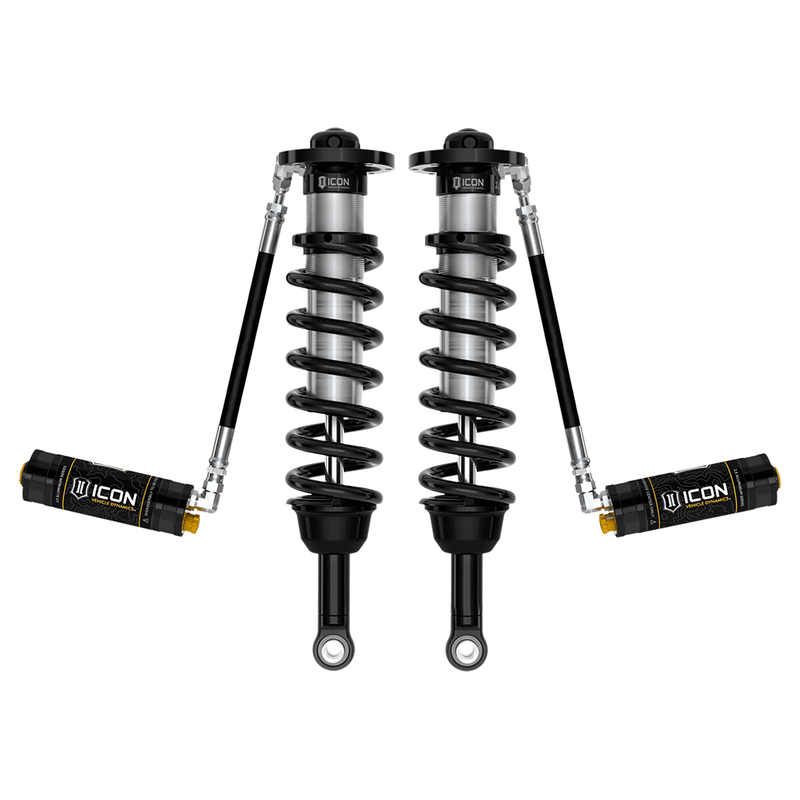

ICON 2024-2025 Toyota Tacoma, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV, Pair

        ICON 2024-2025 Toyota Tacoma, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV, Pair

        Part Number:58780C
        ICON Vehicle Dynamics
        ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
        • Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
        • FK rod end bearings for extended longevity and minimal deflection
        • Fully rebuildable and re-tunable
        • Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
        • Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
        • 2.5" diameter shock bodies with remote reservoirs
        • Remote reservoirs maintain cooler operating temperatures during extended off-road use
        • ICON CDCV equipped for 10 settings of external compression damping adjustment
        • ICON engineered coil springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        Retail price
        • $2,402.35
        Features
        • SKU
          58780C
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Active or Passive Suspension
          Passive
        • Add-On Part
          55160 - 24 TACOMA/24 LC250 DIFF DROP KIT
        • Add-On Part
          58452DJ - 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
        • Add-On Part
          58552DJ - 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
        • Adjustable Compression
          Yes
        • Adjustable Damping
          Yes
        • Adjustable Height
          Yes
        • Adjustable Rebound
          No
        • Body Diameter
          2.5 in.
        • California Prop 65 Warning
          Yes
        • Cylinder Color
          Silver
        • Cylinder Finish
          Cadmium Plated
        • Cylinder Material
          Steel
        • Damping Adjustment Type
          Manual
        • Damping Type
          Oil
        • Dust Shield Included
          No
        • Fitment Note
          Does fit OEM Wheels and Tires
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Housing Material
          Steel
        • Includes Boot
          No
        • Internal Construction Type
          Single Tube
        • Material
          Aluminum
        • Maximum Lift
          3.0 in.
        • Minimum Lift
          1.25 in.
        • Mount Type - Lower
          Eyelet
        • Mount Type - Upper
          Mounting Plate
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          198000 - 2 PIN COILOVER SPANNER WRENCH KIT
        • Recommended Additional Part
          198001 - BILLET SPANNER WRENCH KIT
        • Recommended Additional Part
          252012 - -4 TO -10 HOSE SHIELD KIT
        • Recommended Aftermarket Tires
          33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
        • Recommended Aftermarket Wheels
          ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
        • Recommended Aftermarket Wheels
          ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
        • Remote Reservoir
          Yes
        • Reservoir Style
          Remote
        • Self-Leveling
          No
        • Shaft Diameter
          0.875 in.
        • Shock Absorber Body End Measuring Point
          Top of Upper Mount Plate
        • Shock Absorber Rod End Measuring Point
          Center of Eyelet
        • Spring Color
          Black
        • Spring Material
          Steel
        • Spring Rate Type
          Linear
        • Valving Type
          Digressive
