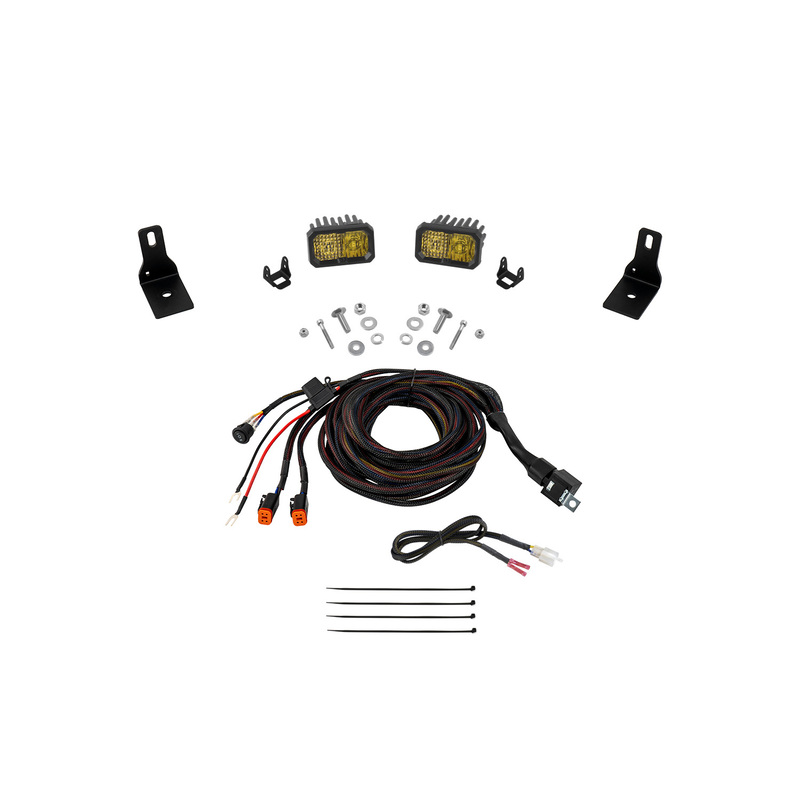

Diode Dynamics - Stage Series Ditch Light Kit for 2022+ Ford Maverick, C2 Pro Yellow Combo

        Diode Dynamics - Stage Series Ditch Light Kit for 2022+ Ford Maverick, C2 Pro Yellow Combo

        Part Number:DD7761
        Diode Dynamics

        Features

        • Bolt-on fitment compatible with Ford Maverick 2022-2024.
        • Allows you to mount two Stage Series LED Pods above the hood.
        • Utilizes existing mounting points for easy installation.
        • Thick-gauge stainless steel construction.
        • Low-profile design.
        • Assembled in USA.

        Overview

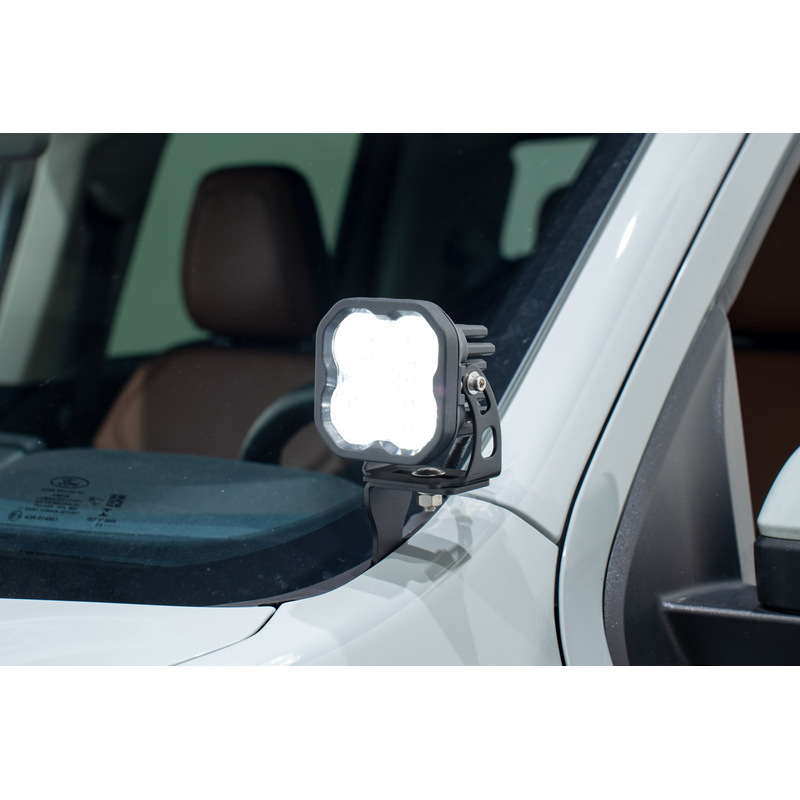

        Perfect fitment. The Stage Series Backlit Ditch Light Kit compatible with the Ford Maverick 2022-2024 allows you to easily mount two SS3 or SSC2 Backlit Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare and will not interfere with raising or lowering the hood.

        Backlight Functionality. Both the SS3 and SSC2 pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light along with the main beam. The backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight use the included harness to tap your desired vehicle function.

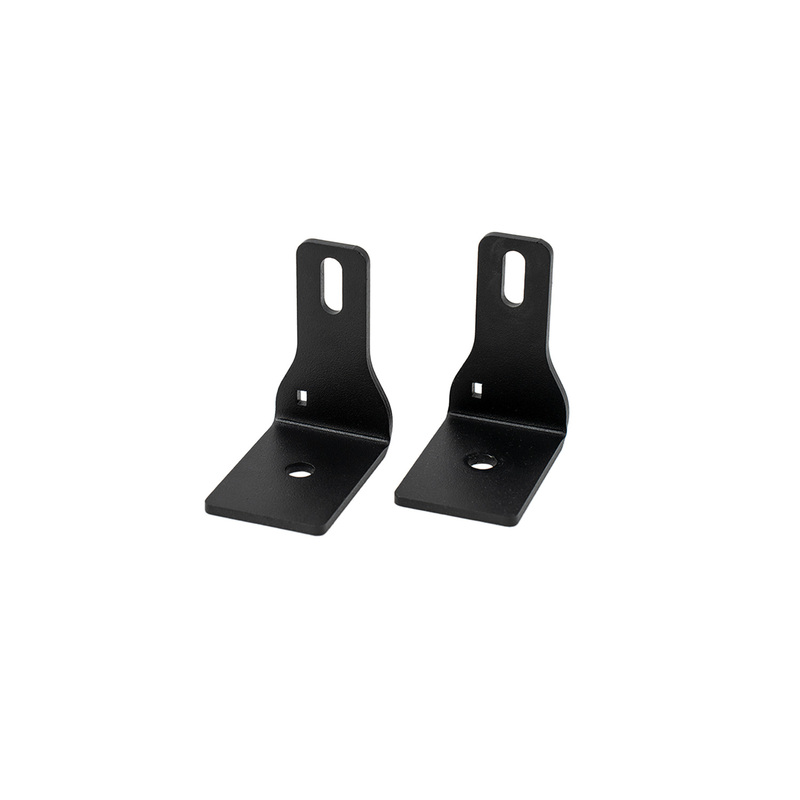

        Built to last. The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction you also won't experience any vibration or bouncing while driving.

        Focused. Optics like reflectors or simple lenses lose light internally and to glare. However the custom-engineered TIR optic in the SS3 and SSC2 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

        • Allows you to mount two Stage Series LED Pods above the hood
        • Intense Focus on Quality
        • Utilizes existing mounting points for easy installation
        • US-Based Company
        • Thick-gauge stainless steel construction
        • Industry Leading Warranties
        • Low-profile design
        • Assembled in USA
        Retail price
        • $389.95
        Features
        • SKU
          DD7761
        • Brand
          Diode Dynamics
        • Add-On
          N/A
        • Base Material
          Steel
        • Bolt Grade
          High
        • Bolt Thread Type
          Medium
        • Color Temperature
          3,000K
        • Compliance Description
          Durability Test
        • Compliance Rating
          SAE J575
        • Housing Color
          Black
        • Housing Finish
          Powdercoat
        • Includes Mounting Hardware
          Yes
        • Installation Method
          Bolt-On
        • Light Beam Pattern
          Combination
        • Lumens
          1,858 lm
        • Luminous Intensity (candela)
          24,000 cd
        • Operating Temperature
          -40C to +80C (-40F to +185F)
        • Prop 65 - Required to list in California with Warning
          No
        • Sheen Level
          Matte
        • Universal Or Specific Fit
          Specific
        • Voltage
          9.0-16.0V DC
        • Wattage
          25.6W
        • Weather Resistant
          Yes
        • Wire Quantity
          2
