2022-2023 Toyota Land Cruiser 300 Series, 2.5 VS Internal Reservoir Coilover Kit, Front

        2022-2023 Toyota Land Cruiser 300 Series, 2.5 VS Internal Reservoir Coilover Kit, Front

        Part Number:58661
        ICON Vehicle Dynamics

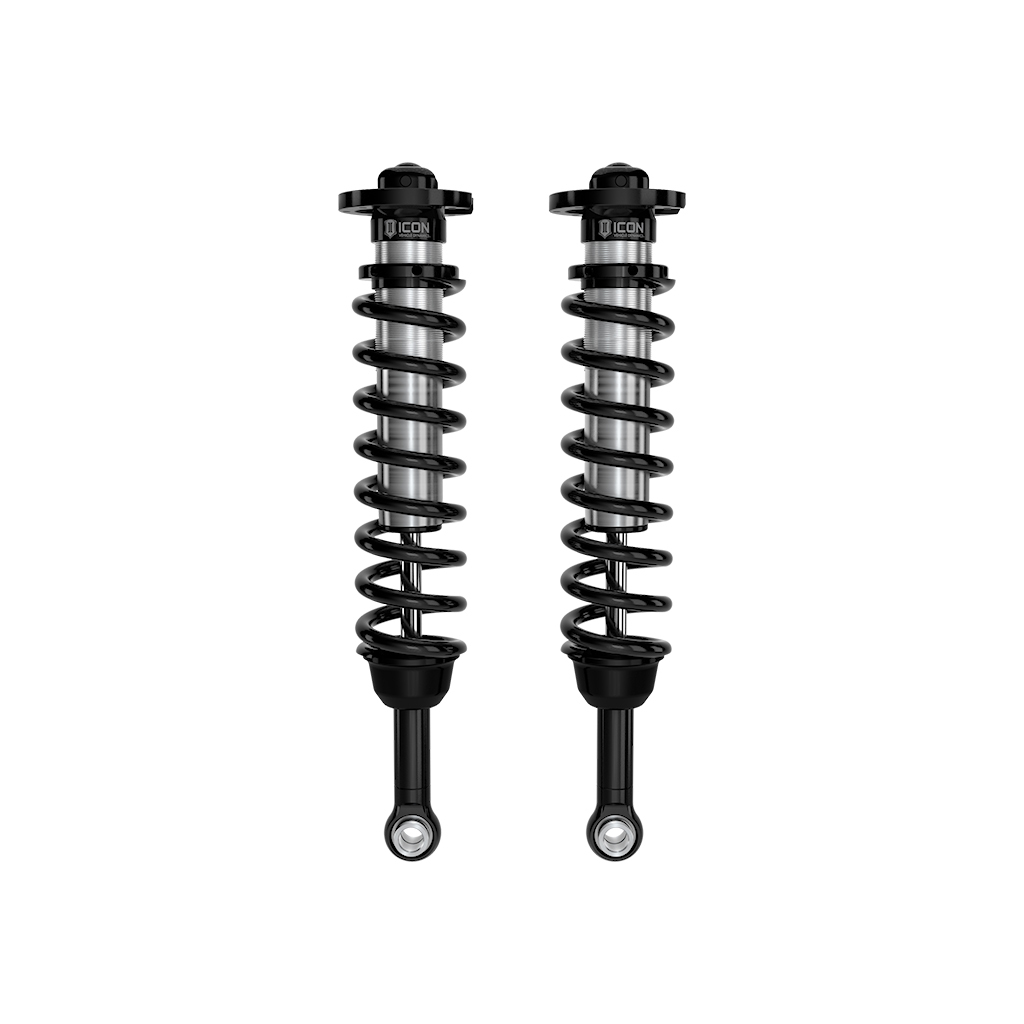

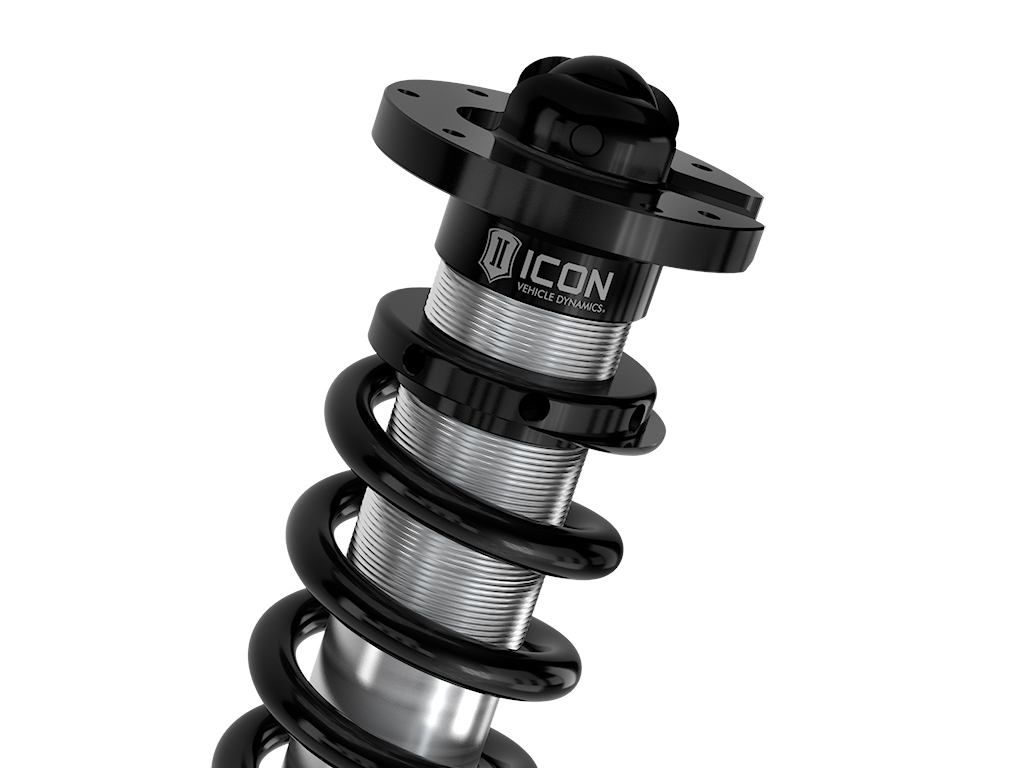

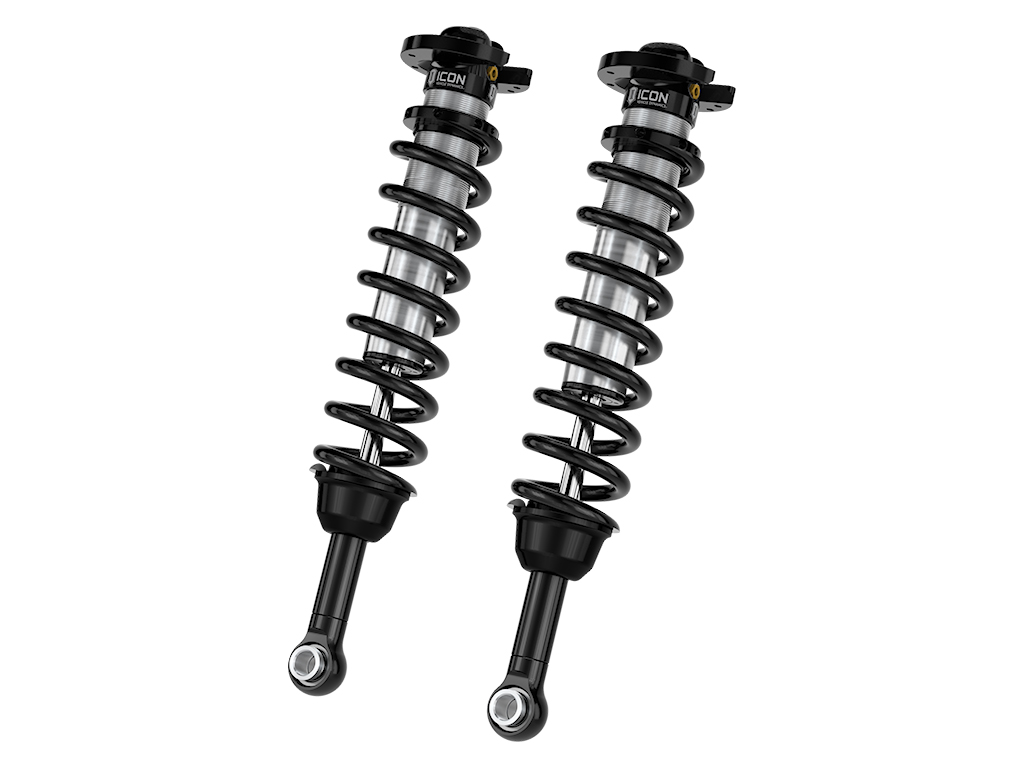

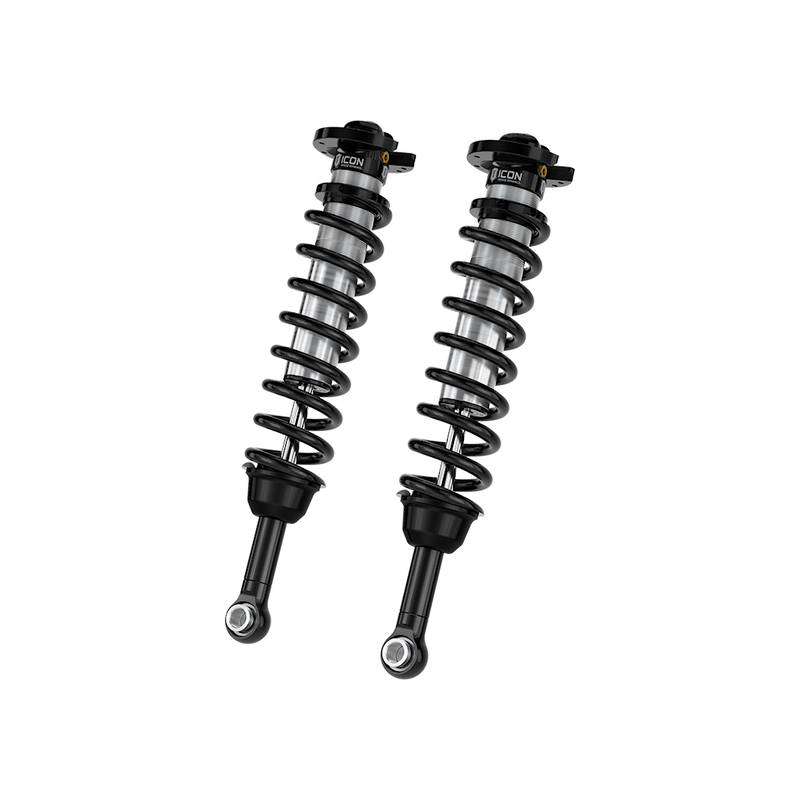

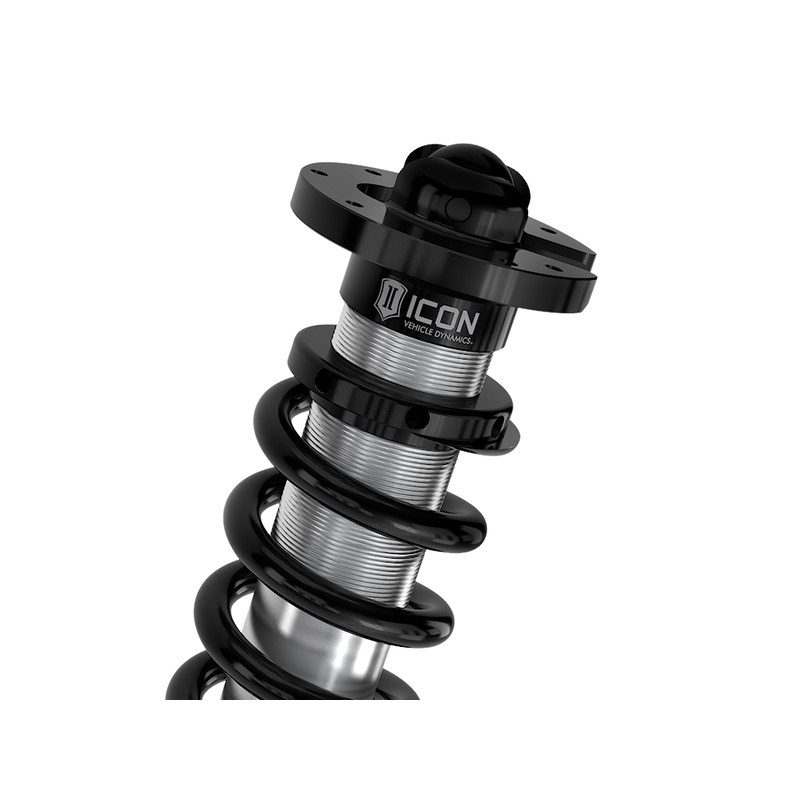

        ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Land Cruiser 300 Series. These adjustable coilovers allow up to 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 300 Series.
        • Increased wheel travel and improved ride quality over stock
        • Vehicle specific tuned for superior shock damping and control
        • Adjustable ride height offers 1-3" of front lift over stock
        • ICON engineered coil springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        • FK rod end bearings for extended longevity and minimal deflection
        • Fully rebuildable and re-tunable
        Retail price
        • $1,747.15
        Features
        • SKU
          58661
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Adjustable Damping
          No
        • Adjustable Height
          Yes
        • Body Diameter
          2.5 in.
        • California Prop 65 Warning
          Yes
        • Damping Type
          Oil
        • Fitment Note
          Does fit OEM Wheels and Tires
        • Gas Charged
          Yes
        • Grade Type
          Performance
        • Housing Material
          Steel
        • Includes Boot
          No
        • Material
          Aluminum
        • Maximum Lift
          3.0 in.
        • Minimum Lift
          1.0 in.
        • Mount Type - Lower
          Eyelet
        • Mount Type - Upper
          Mounting Plate
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
        • Recommended Additional Part
          198000 - 2 PIN COILOVER SPANNER WRENCH KIT
        • Recommended Additional Part
          198001 - BILLET SPANNER WRENCH KIT
        • Recommended Additional Part
          252010 - 2.5 Ifp Rebuild Kit
        • Recommended Aftermarket Wheels
          ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
        • Recommended Aftermarket Wheels
          ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
        • Remote Reservoir
          No
        • Shaft Diameter
          0.875 in.
        • Shock Absorber Body End Measuring Point
          Center of Eyelet
        • Shock Absorber Rod End Measuring Point
          Top of Mounting Plate
        • Spring Color
          Black
        • Spring Material
          Steel
        • Spring Rate Type
          Linear
