ICON 11-16 Ford F250/F350, 2.5-3" Lift, Stage 2 Coilover System w/ Leaf Springs

        ICON 11-16 Ford F250/F350, 2.5-3" Lift, Stage 2 Coilover System w/ Leaf Springs

        Part Number:K63192
        ICON Vehicle Dynamics

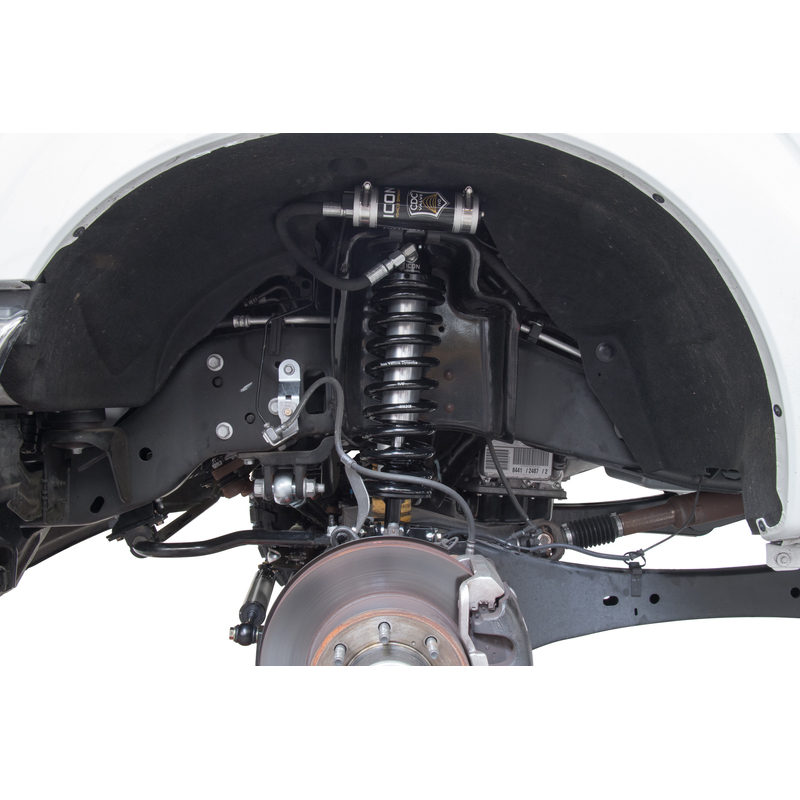

        The ICON 2.5-3” coilover conversion suspension system is a great way to lift your 4WD 2011-2016 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 2 System is comprised of 2.5 Series remote reservoir coilovers that are adjustable from 2.5-3” of front lift over stock, adjustable front track bar with massive FK rod end, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series internal reservoir rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
        • Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3" of front lift over stock
        • Vehicle specific tuned internal reservoir 2.5 Aluminum Series rear shocks
        • On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
        • Application specific alignment Cams ensure proper caster alignment
        • Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
        • Improved ride quality and performance compared to stock with no change in towing capacity
        • Less body-roll than stock
        • Lifetime guarantee that springs won’t sag or break
        • No drive shaft modifications required
        Retail price
        • $5,100.16
        Features
        • SKU
          K63192
        • Brand
          ICON Vehicle Dynamics
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • Add-On Part
          64039 - 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
        • California Prop 65 Warning
          Yes
        • Fitment Note
          Does fit OEM Wheels and Tires
        • Front Coils Quantity
          2
        • Front Spring Rate Type
          Progressive Dual Rate
        • Grade Type
          Performance
        • Includes Bushings
          Yes
        • Includes Mounting Hardware
          Yes
        • Includes Shocks
          Yes
        • Leaf Spring Leaf Quantity
          7
        • Maximum Lift Front
          3.0 in.
        • Maximum Lift Rear
          2 in.
        • Minimum Lift Front
          2.5 in.
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Recommended Additional Part
          198000 - 2 PIN COILOVER SPANNER WRENCH KIT
        • Recommended Additional Part
          198001 - BILLET SPANNER WRENCH KIT
        • Recommended Aftermarket Tires
          35.0 in. X 12.5 in. (Larger Tires may Fit but Fender Trimming and Modifications will be Required.)
        • Recommended Aftermarket Wheels
          ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
        • Recommended Aftermarket Wheels
          ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
        • Recommended Aftermarket Wheels
          ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
        • Spring Color
          Black
        • Spring Material
          Steel
        • Title
          ICON 11-16 Ford F250/F350, 2.5-3" Lift, Stage 2 Coilover System w/ Leaf Springs
