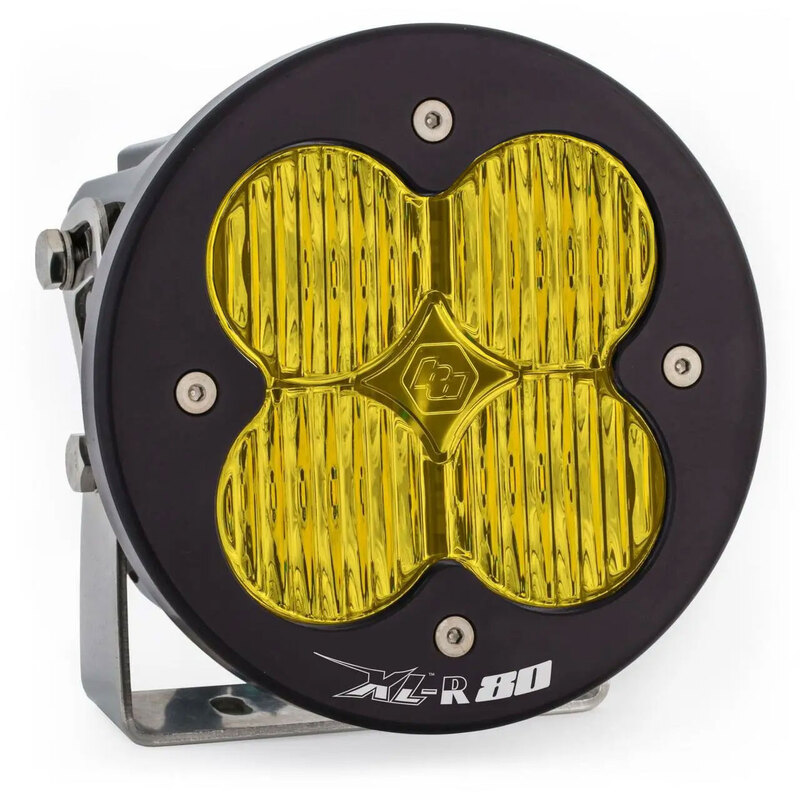

XL-R 80 LED Light Pod (Wide Cornering; Baja Amber)
        Baja Designs

        XL-R 80 LED Light Pod (Wide Cornering; Baja Amber)

        Part Number:760015
        The Baja Designs XL-R80 auxiliary LED light pod will take your off-road lighting to the next level with greater visibility and increased brightness. The XL-R80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light. Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles. Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature,apowder coated housing and an anodized round bezel for that classic round look. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
        • 5000K Daylight – Less Driver Fatigue, Natural Color
        • ClearView – All The Light, Right Where You Need It
        • CopperDrive – Only LED Driven At 100 Percent
        • Limited Lifetime Warranty – Complete Purchase Protection
        • MoistureBlock – Waterproof, Rain Proof, Submersible
        • Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles
        • Satisfaction Guarantee – 30-Day Money Back Guarantee
        • Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature,apowder coated housing and an anodized round bezel for that classic round look
        • The XL-R80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light
        • uService – Replaceable Lenses And Optics
        Retail price
        • $422.95
        Features
        • SKU
          760015
        • Brand
          Baja Designs
        • Amperage Rating
          5.5A
        • Beam Pattern
          Flood
        • Bezel Material
          Billet Machined Aluminum
        • Chip Type
          CREE LED
        • Depth
          3.65 in.
        • Feature Note
          Round; Wide Cornering; Amber
        • Hardware Material
          Stainless Steel
        • Height
          5.24 in.
        • Housing Color
          Black
        • Housing Finish
          Hard Anodized and Powder Coated
        • Includes Mounting Hardware
          Yes
        • Includes Wiring Harness
          No
        • Length
          5.24 in.
        • Lens Color
          Amber
        • Lens Material
          Hardcoated Polycarbonate
        • Life Expectancy
          49,930 hrs.
        • Light Quantity
          1
        • Light Quantity
          4
        • Lighting Modes
          High Beam/Dimming Feature (20%)
        • Lumens
          9,500 lm
        • Material
          Cast Aluminum
        • Mechanical Impact Testing
          IK10 Compliant
        • Mil-Spec Testing
          Exceeds MIL-STD810G
        • Product Type
          XL-R 80 LED Light Pod
        • Projection Direction
          Forward
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          CR
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Protection
          Built-In Overvoltage Protection
        • Recommended Additional Part
          Accessories-660104-Lens Kit (Driving/Combo; Clear)
        • Recommended Additional Part
          Accessories-660105-Lens Kit (Wide Cornering; Clear)
        • Recommended Additional Part
          Accessories-660106-Lens Kit (Spot; Clear)
        • Recommended Additional Part
          Accessories-660107-Lens Kit (Wide Cornering; Amber)
        • Recommended Additional Part
          Accessories-660115-Lens Kit (Driving/Combo; Amber)
        • Recommended Additional Part
          Accessories-668010-Light Cover (Clear)
        • Recommended Additional Part
          Accessories-668011-Rock Guard (Black)
        • Recommended Additional Part
          Accessories-668012-Light Cover (Amber)
        • Recommended Additional Part
          Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
        • Recommended Additional Part
          Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
        • Recommended Additional Part
          Compatible Products-613608-Harness Splitter
        • Recommended Additional Part
          Compatible Products-613609-Harness/Splitter (55 Inch)
        • Recommended Additional Part
          Compatible Products-640094-Upfitter Harness
        • Recommended Additional Part
          Compatible Products-640119-Wiring Harness (Hi/Low)
        • Recommended Additional Part
          Compatible Products-660060-Wiring Harness (Off Road Mode Switch)
        • Universal Or Specific Fit
          Universal
        • Wattage
          80.0W
        • Weight
          2.5 lbs. (1.1 kg)
