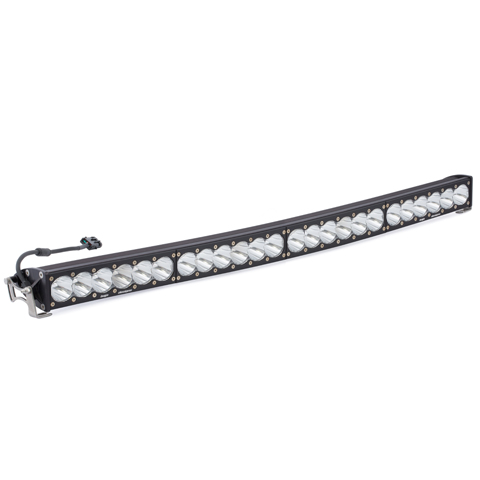

OnX6 Arc LED Light Bar (40 Inch; Spot; Clear)

        OnX6 Arc LED Light Bar (40 Inch; Spot; Clear)

        Part Number:524001
        Baja Designs
        The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
        • Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar
        • NOTE: *This light does NOT come with a harness, the applicable harness is 640119*
        • The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility
        • We use next-generation LEDs that provide 37% greater distance over that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue
        Retail price
        • $1,750.95
        Features
        • SKU
          524001
        • Brand
          Baja Designs
        • Amperage Rating
          26.8A (High); 22.4A (Low)
        • Beam Pattern
          Spot Beam Pattern
        • Bezel Material
          Billet Machined Aluminum
        • Bulb Style
          LED
        • Depth
          4.29 in.
        • Feature Note
          Waterproof up to 9ft and Pressure Washable
        • Finish
          Mil-Spec Hard Anodize
        • Hardware Material
          Stainless Steel
        • Height
          2.69 in.
        • Housing Color
          Black
        • IP Rating
          IP69K
        • Included Mounting Hardware
          Mounting Brackets
        • Includes Mounting Hardware
          Yes
        • Includes Wiring Harness
          No
        • Length
          40.0 in.
        • Lens Color
          Clear
        • Lens Material
          Hardcoated Polycarbonate
        • Life Expectancy
          49,930 hrs.
        • Light Feature
          High Beam/Low Beam
        • Light Quantity
          1
        • Light Quantity
          24
        • Lumens
          39,220 lm (High); 32,760 lm (Low)
        • Material
          Aircraft Grade Aluminum
        • Mechanical Impact Testing
          IK10 Compliant
        • Mil-Spec Testing
          Exceeds MIL-STD810G
        • Product Note
          Arc; Spot; Clear
        • Product Type
          40.0 in. Arc LED Light Bar
        • Projection Direction
          Forward
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          CR
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Protection
          Built-In Overvoltage Protection
        • Recommended Additional Part
          Accessories-458113-Lens Kit (Spot; Clear)
        • Recommended Additional Part
          Accessories-458114-Lens Kit (Driving/Combo; Clear)
        • Recommended Additional Part
          Accessories-458115-Lens Kit (Wide Cornering; Clear)
        • Recommended Additional Part
          Accessories-458116-Lens Kit (Wide Cornering; Amber)
        • Recommended Additional Part
          Accessories-458117-Lens Kit (Driving/Combo; Amber)
        • Recommended Additional Part
          Accessories-458410-Light Cover (Clear)
        • Recommended Additional Part
          Accessories-458411-Rock Guard (Black)
        • Recommended Additional Part
          Accessories-458412-Light Cover (Amber)
        • Recommended Additional Part
          Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
        • Recommended Additional Part
          Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
        • Recommended Additional Part
          Compatible Products-613608-Harness Splitter
        • Recommended Additional Part
          Compatible Products-613609-Harness/Splitter (55 Inch)
        • Recommended Additional Part
          Compatible Products-640094-Upfitter Harness
        • Recommended Additional Part
          Compatible Products-640115-Wiring Harness (On/Off)
        • Recommended Additional Part
          Compatible Products-640119-Wiring Harness (Hi/Low)
        • Recommended Additional Part
          Compatible Products-640163-Harness/Splitter (Hi Beam)
        • Universal Or Specific Fit
          Universal
        • Wattage
          340.0W (High), 284.0W (Low)
        • Weight
          15.1 lbs. (6.8 kg)
        • Wiring Harness Description
          Hi-Low Dongle
