Diode Dynamics - SS6 SAE/DOT LED Lightbar Kit for 2014-2023 Toyota 4Runner, SAE/DOT Amber Wide

        Diode Dynamics - SS6 SAE/DOT LED Lightbar Kit for 2014-2023 Toyota 4Runner, SAE/DOT Amber Wide

        Part Number:DD6758
        Diode Dynamics

        Features

        • Compatible with Toyota 4Runner 2014-2019 and Toyota 4Runner TRD Pro 2014-2023.
        • Allows you to mount two 6in light bars in the upper grille opening.
        • Street legal output as Driving Lights.
        • Utilizes existing mounting points for easy installation - no cutting or drilling required.



        Overview

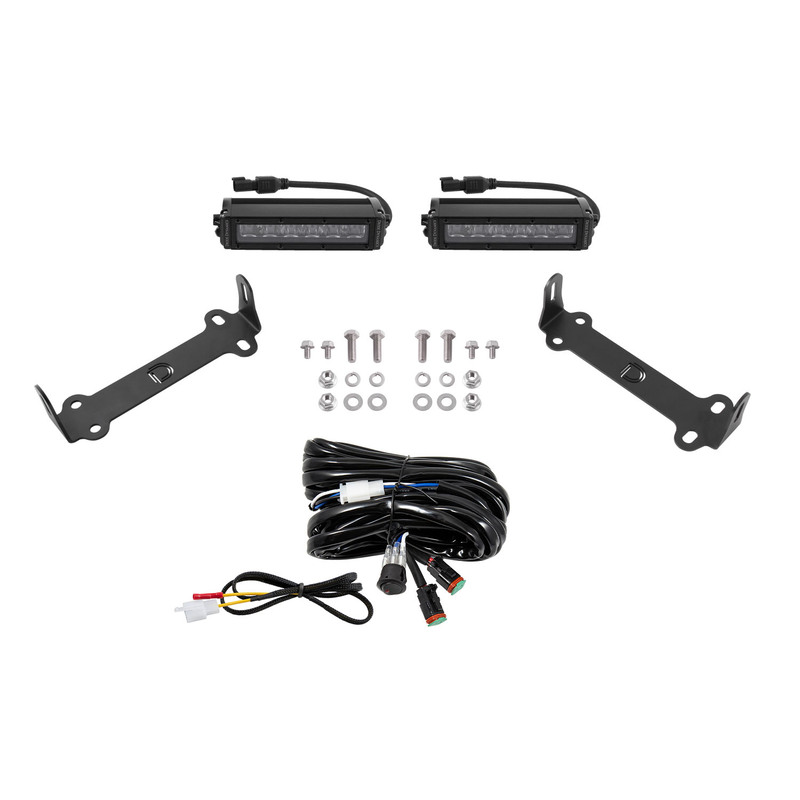

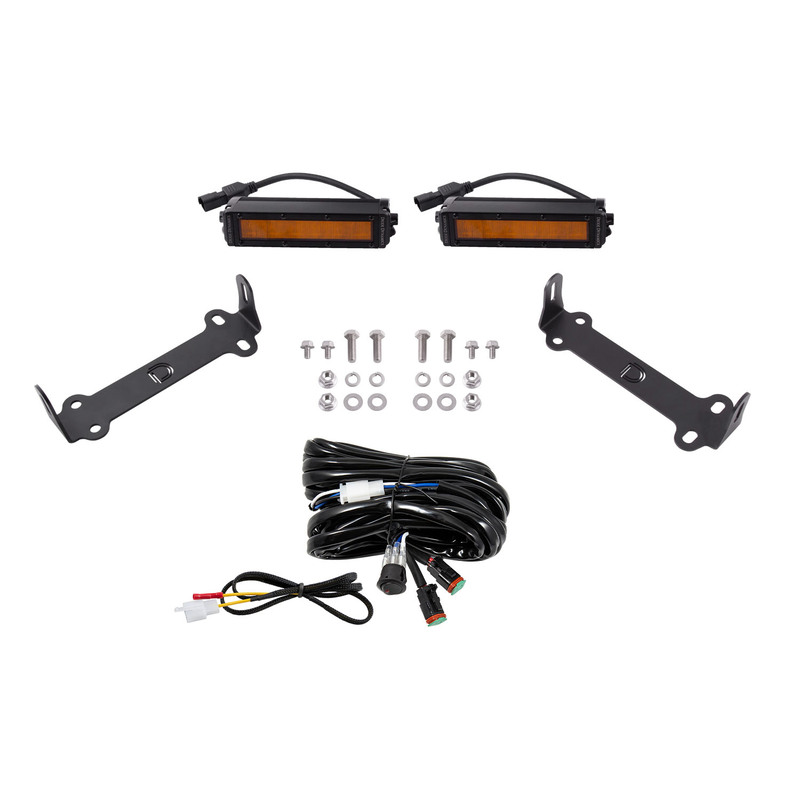

        Perfect Fitment. The SAE/DOT LED Lightbar Kit compatible with the Toyota 4Runner 2014-2023 from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6in Light Bars in the upper grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

        Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming installation and applicability). With the included plug-and-play wiring harness you can control the kit through your toggle switch.

        The Wide provides an extremely wide field of view without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

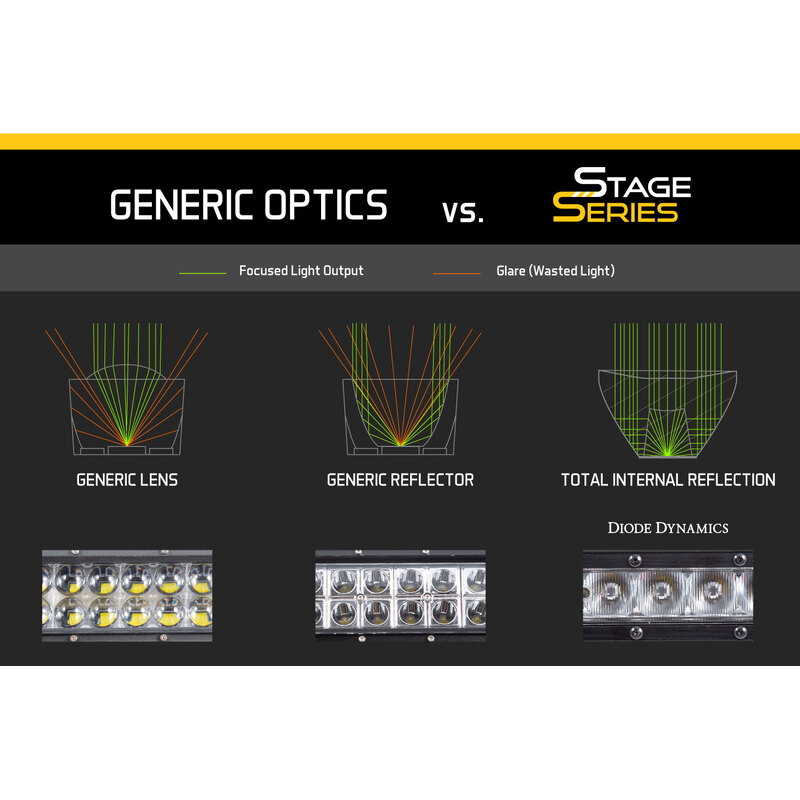

        Designed For Performance. Using optical simulation modeling Diode Dynamics Stage Series light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern much more focused than older LEDs on the market.

        NOTE: Compatible with all Toyota 4Runner 2014-2019 trims but only compatible with 2020-2021 TRD Pro trim package.

        • Advanced TIR optics provide high efficiency and focus
        • Intense Focus on Quality
        • High-intensity automotive-type LEDs with pure white color
        • US-Based Company
        • Slim 42mm housing for low-profile fitment
        • Industry Leading Warranties
        • Durable matte powdercoated extrusion
        Retail price
        • $379.95
        Features
        • SKU
          DD6758
        • Brand
          Diode Dynamics
        • Add-On
          N/A
        • Bracket Color
          Black
        • Bracket Material
          Steel
        • Color Temperature
          2,000K
        • Grade Type
          Specialty
        • Housing Material
          Aluminum
        • IP Rating
          IP68
        • Lens Material
          Polycarbonate
        • Light Housing Color
          Black
        • Light Shape
          Four Sided
        • Lumens
          800 lm
        • Luminous Intensity (candela)
          7,400 cd
        • Operating Temperature
          -40C to +85C (-40F to +185F)
        • Prop 65 - Required to list in California with Warning
          No
        • SAE/DOT Compliant
          Yes
        • Terminal Type
          Pin
        • Universal Or Specific Fit
          Universal
        • Voltage
          9-24V
        • Voltage
          9.0 - 16.0V DC
        • Wattage
          26.6W
