        Engine Cylinder Head Gasket - IAG-ENG-1745

        Part Number:JGJS-IAG-ENG-1745
        IAG Performance

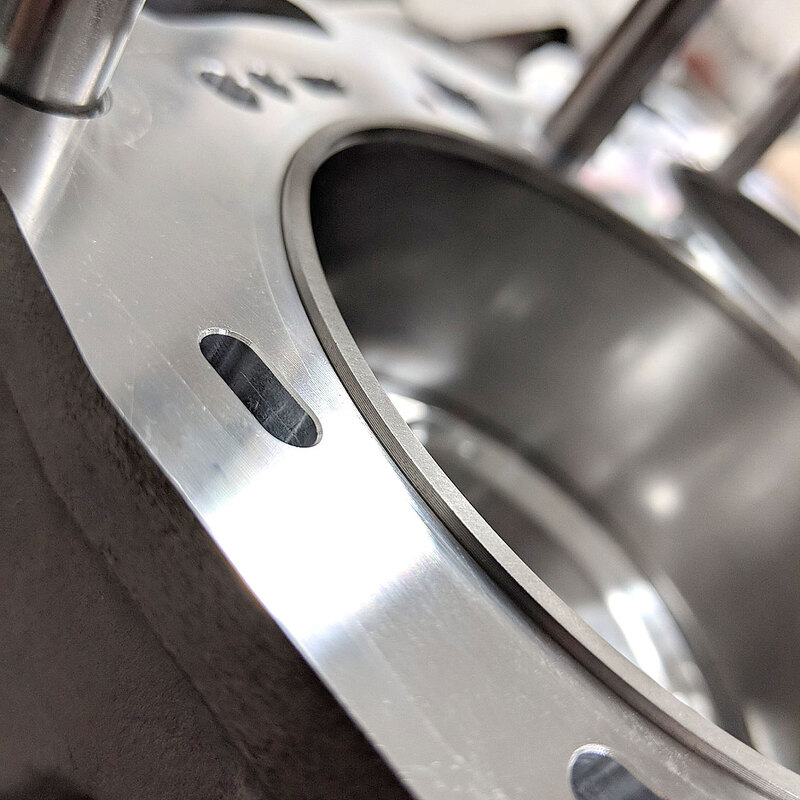

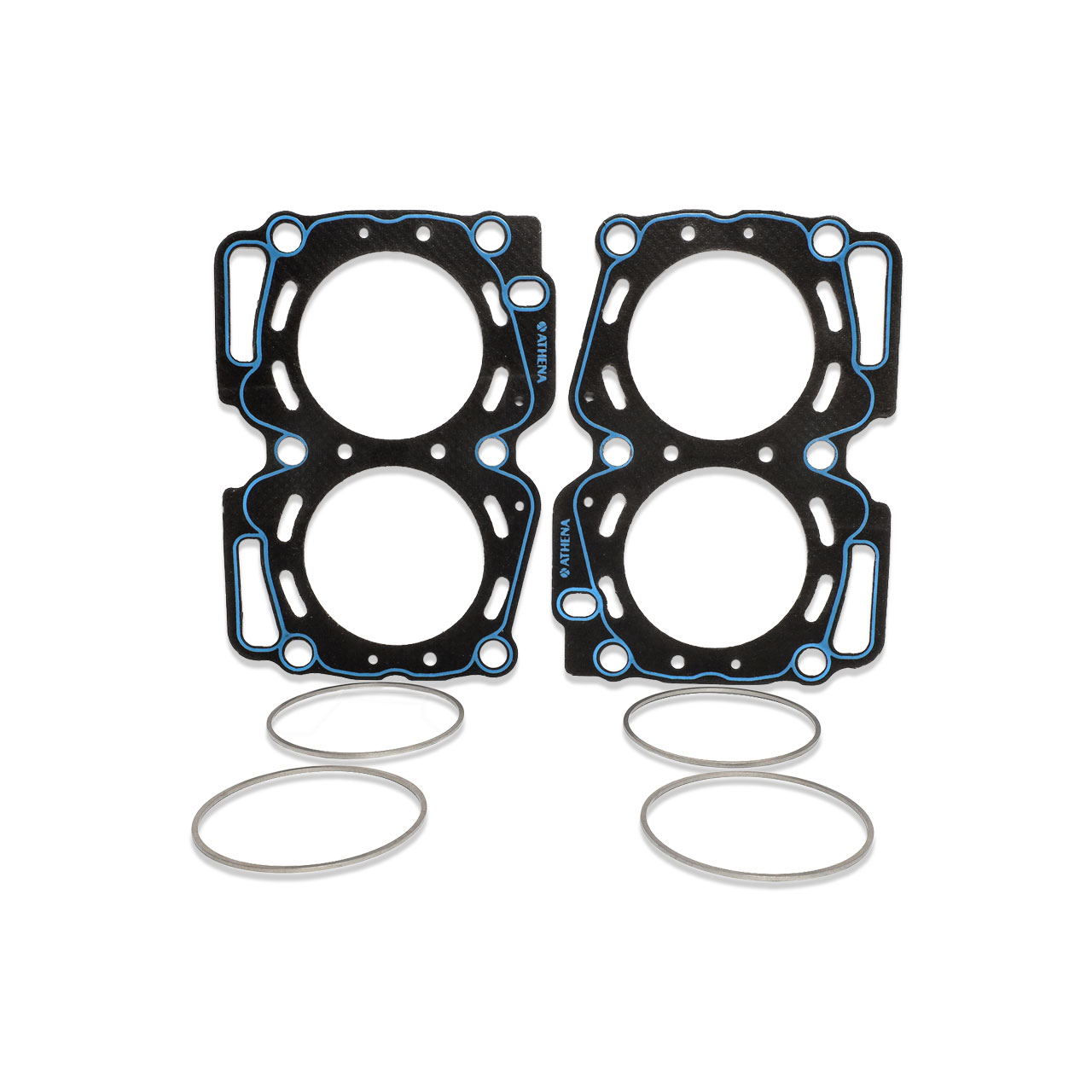

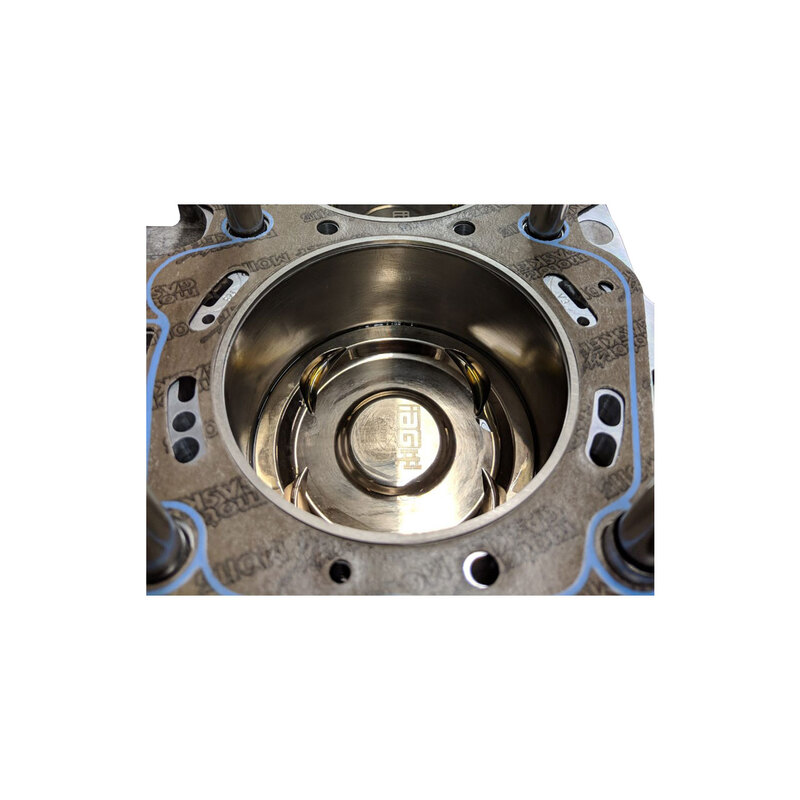

        IAG Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) For 14mm Head Studs Only- Note Machine Work with IAG is REQUIRED. After years of research and development testing, the IAG Performance Fire-Lock head gasket is the newest solution to preventing head gasket failure on high horsepower and high boost Subaru EJ20 engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ20 turbocharged engine. Features: Composite Material IAG-Spec Alloy Ring Specifically designed for 14mm Head Studs, Silicone Beading, 100mm Bore, .051" Thickness, Intended for High Horsepower, High Boost applications .
        • Unique Fire-Lock Rings help contain extreme cylinder pressures. Cylinder liners must be machined to accept the fire-lock rings.
        Retail price
        • $299.99
        Overview
        IAG Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) For 14mm Head Studs Only- Note Machine Work with IAG is REQUIRED. After years of research and development testing, the IAG Performance Fire-Lock head gasket is the newest solution to preventing head gasket failure on high horsepower and high boost Subaru EJ20 engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ20 turbocharged engine. Features: Composite Material IAG-Spec Alloy Ring Specifically designed for 14mm Head Studs, Silicone Beading, 100mm Bore, .051" Thickness, Intended for High Horsepower, High Boost applications .
        • Unique Fire-Lock Rings help contain extreme cylinder pressures. Cylinder liners must be machined to accept the fire-lock rings.
        Features
          • SKU
            JGJS-IAG-ENG-1745
          • Brand
            IAG Performance
        Fitment
        Make Model Submodel Year
        Saab 9-2X Aero 2005
        Subaru Impreza WRX 2002
        Subaru Impreza WRX 2003
        Subaru Impreza WRX 2004
        Subaru Impreza WRX 2005
