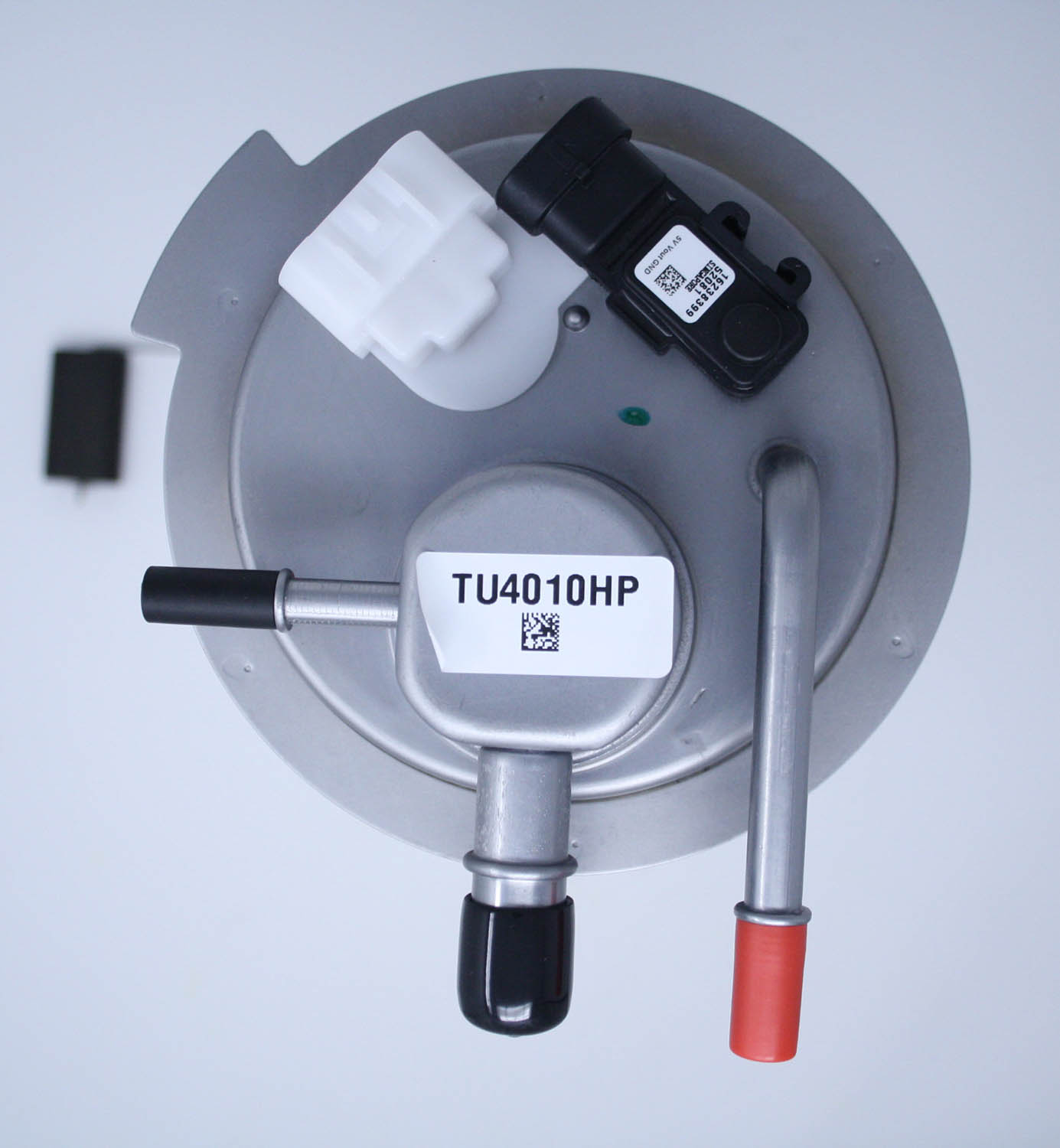

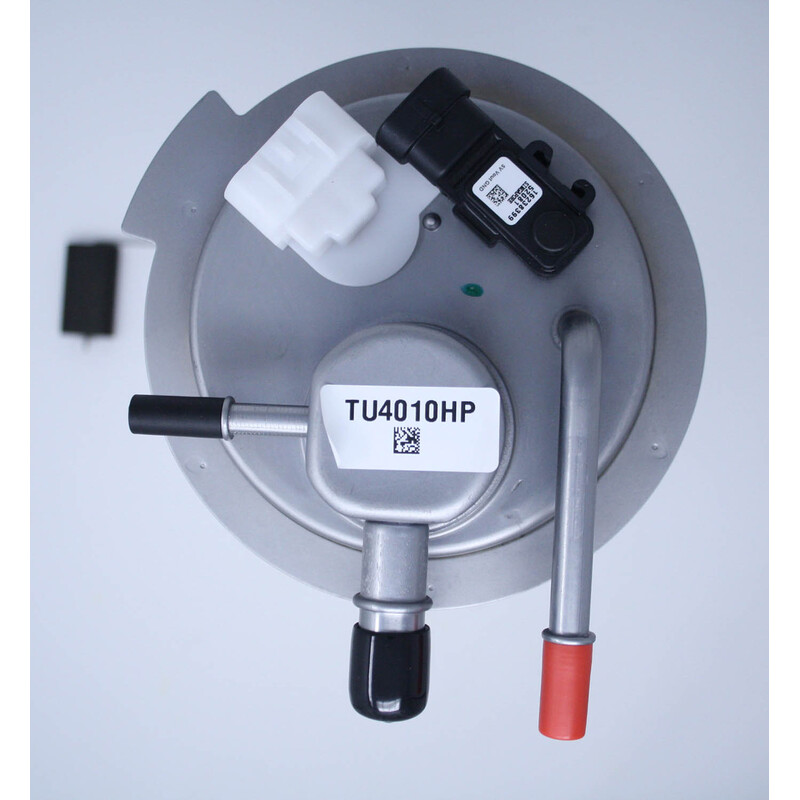

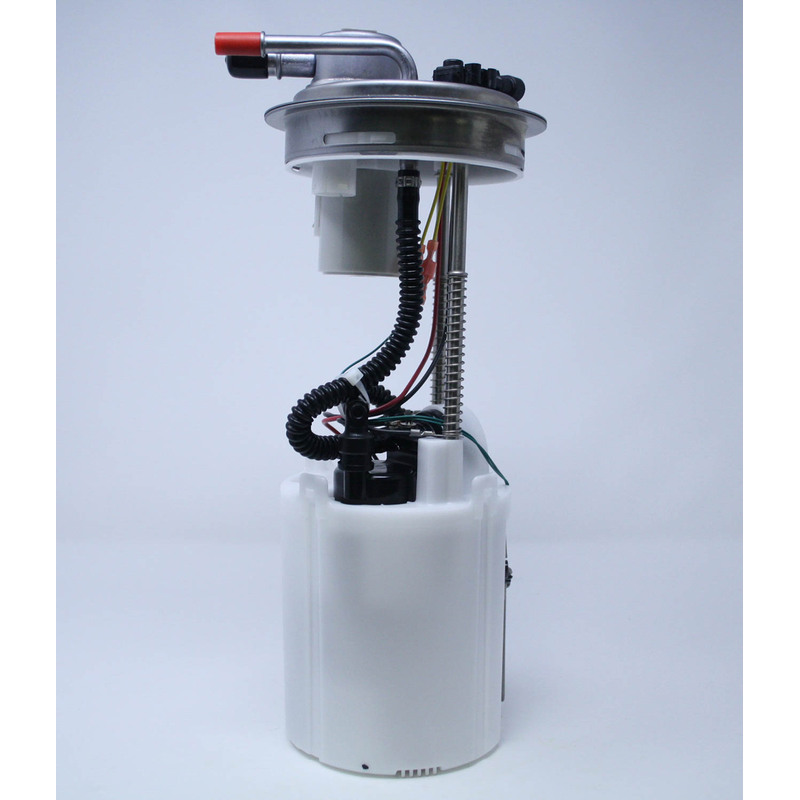

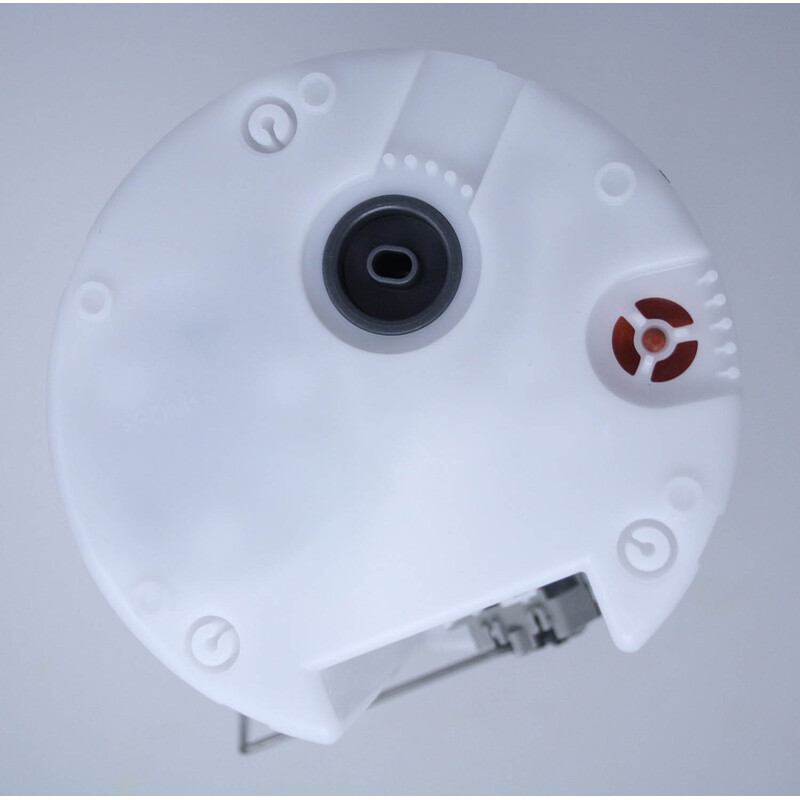

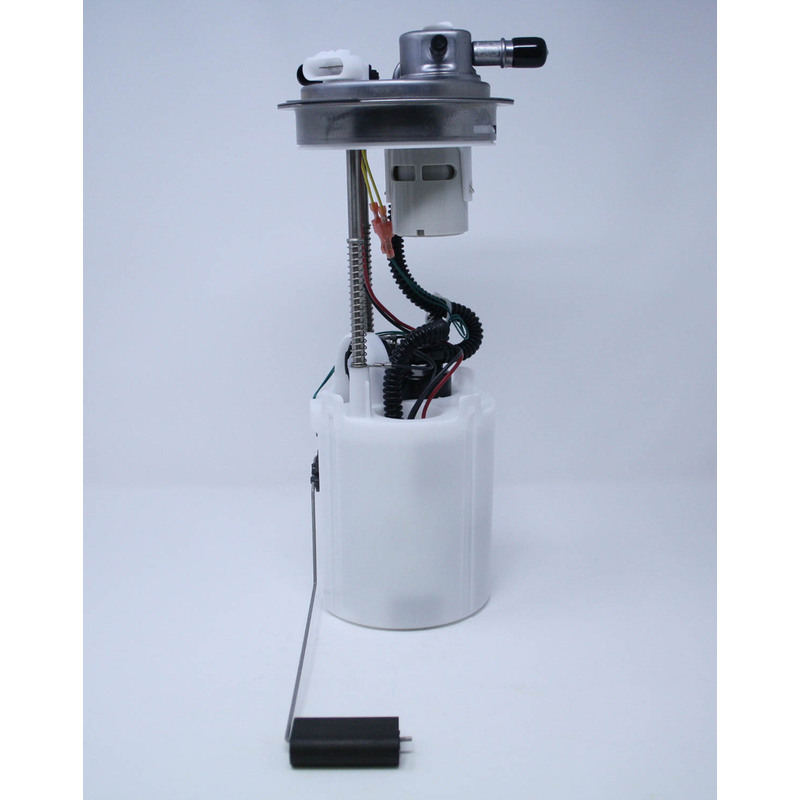

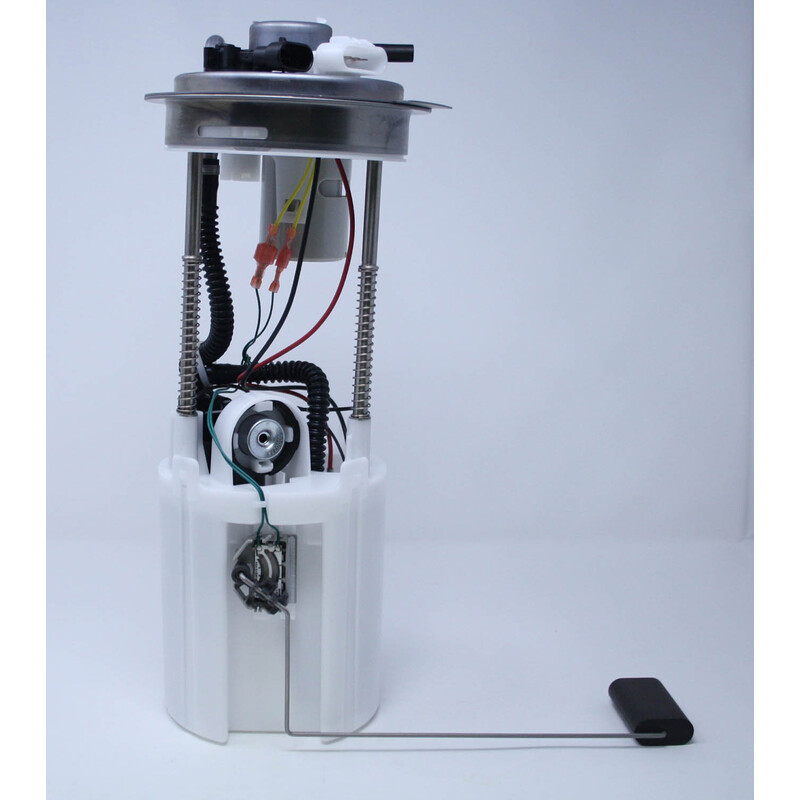

TI Automotive High Performance 255lph; 550hp; Gas; Fuel Module

        TI Automotive High Performance 255lph; 550hp; Gas; Fuel Module

        Part Number:TU4010HP
        TI Automotive
        TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel modules deliver the feed you need for the power you demand. These modules deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. Complete drop-in module assemblies with a high performance fuel pump with filtration, level-sensing and storage. Featuring OE-like fit similar to a traditional replacement module but with high performance flow. Modules designed for use in a wide variety of vehicles from sports cars to pick-ups. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotives Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.

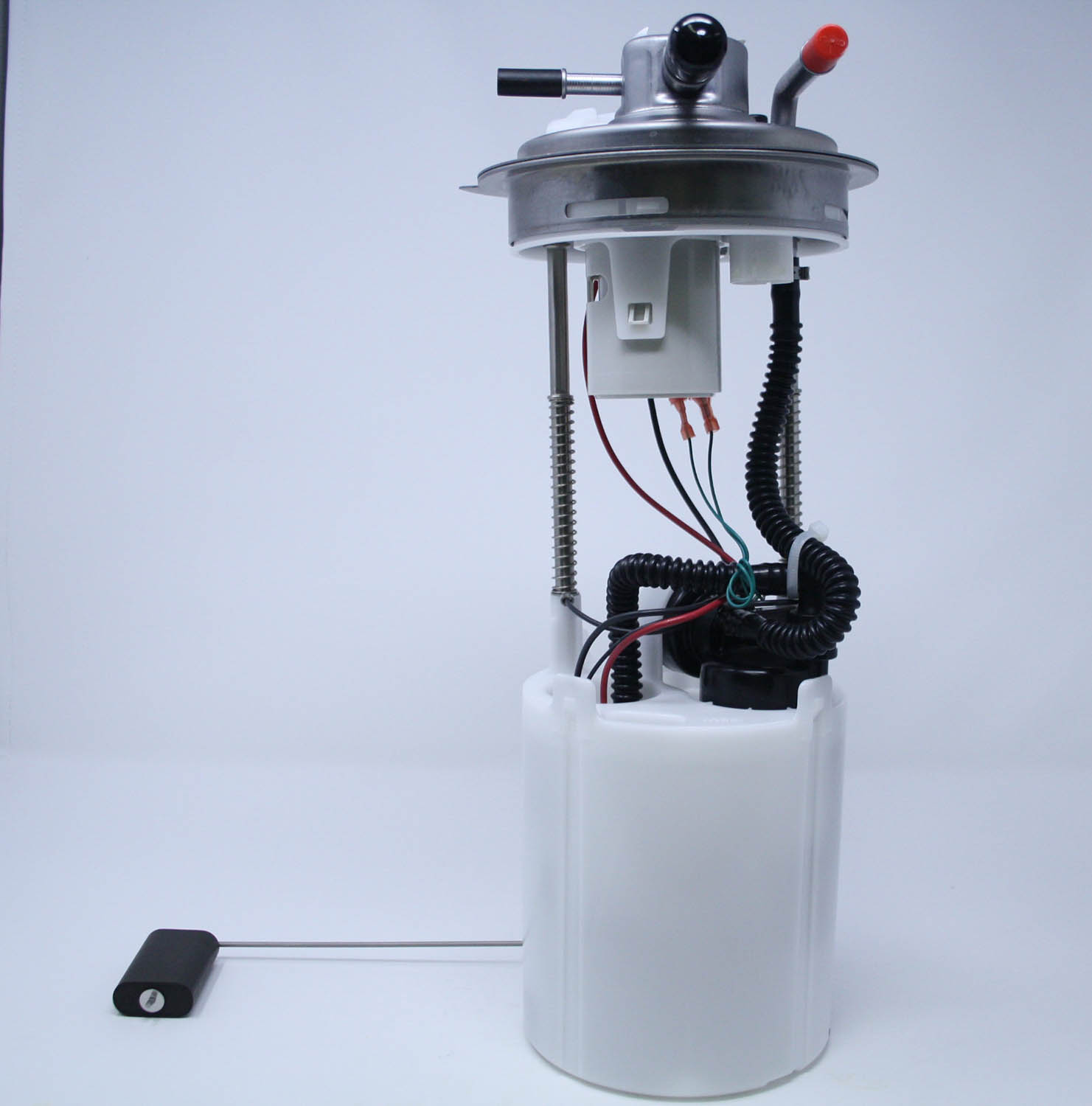

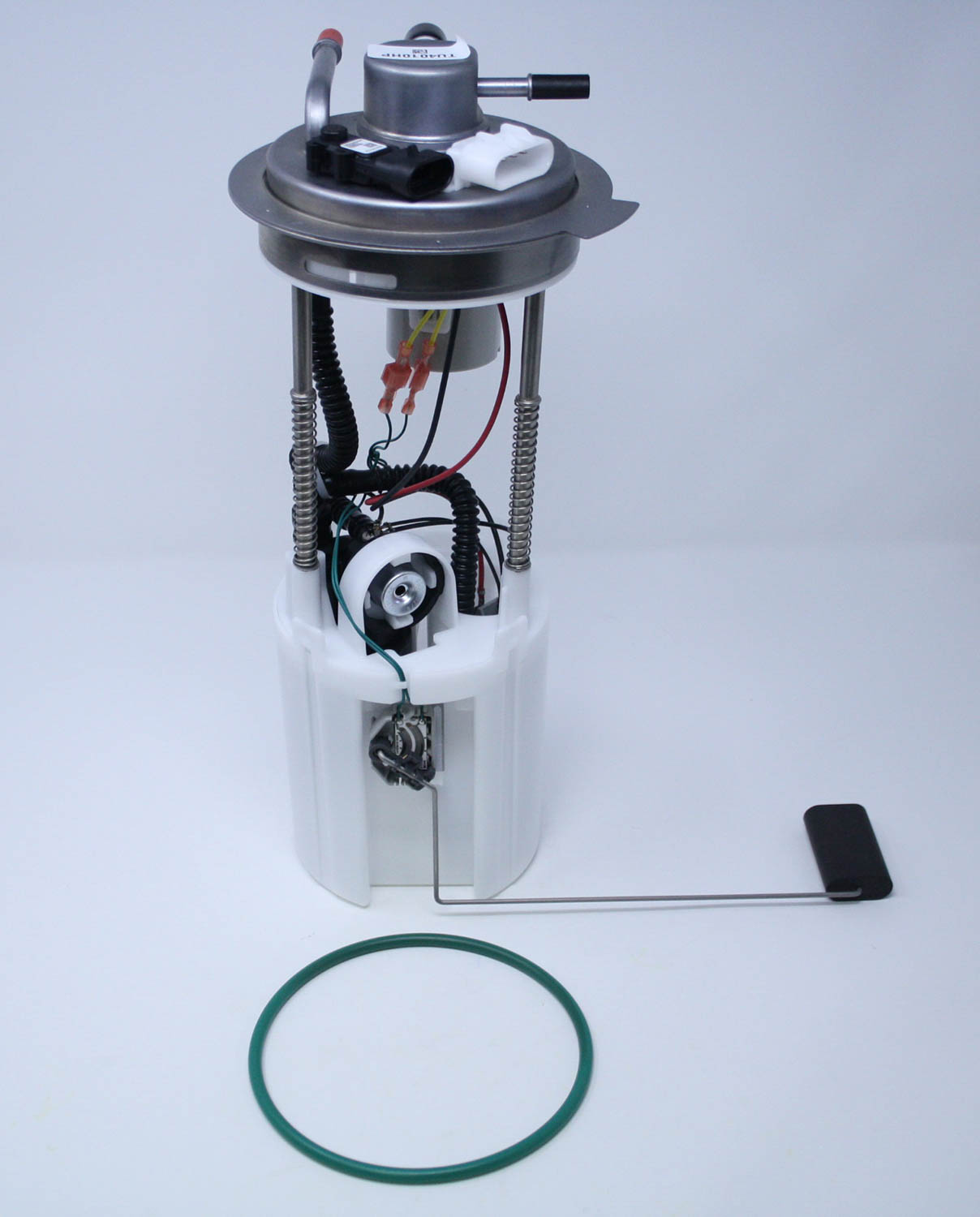

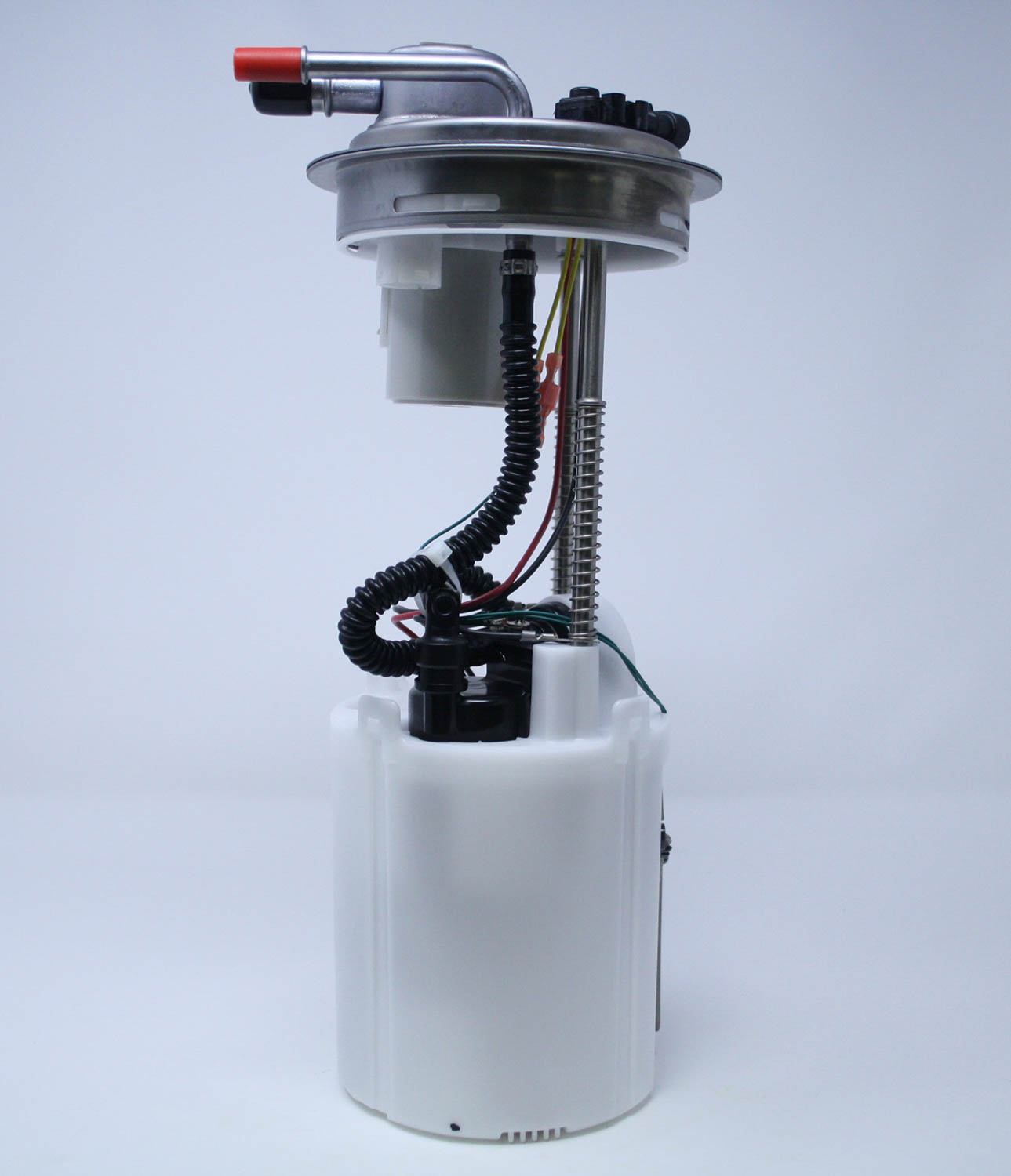

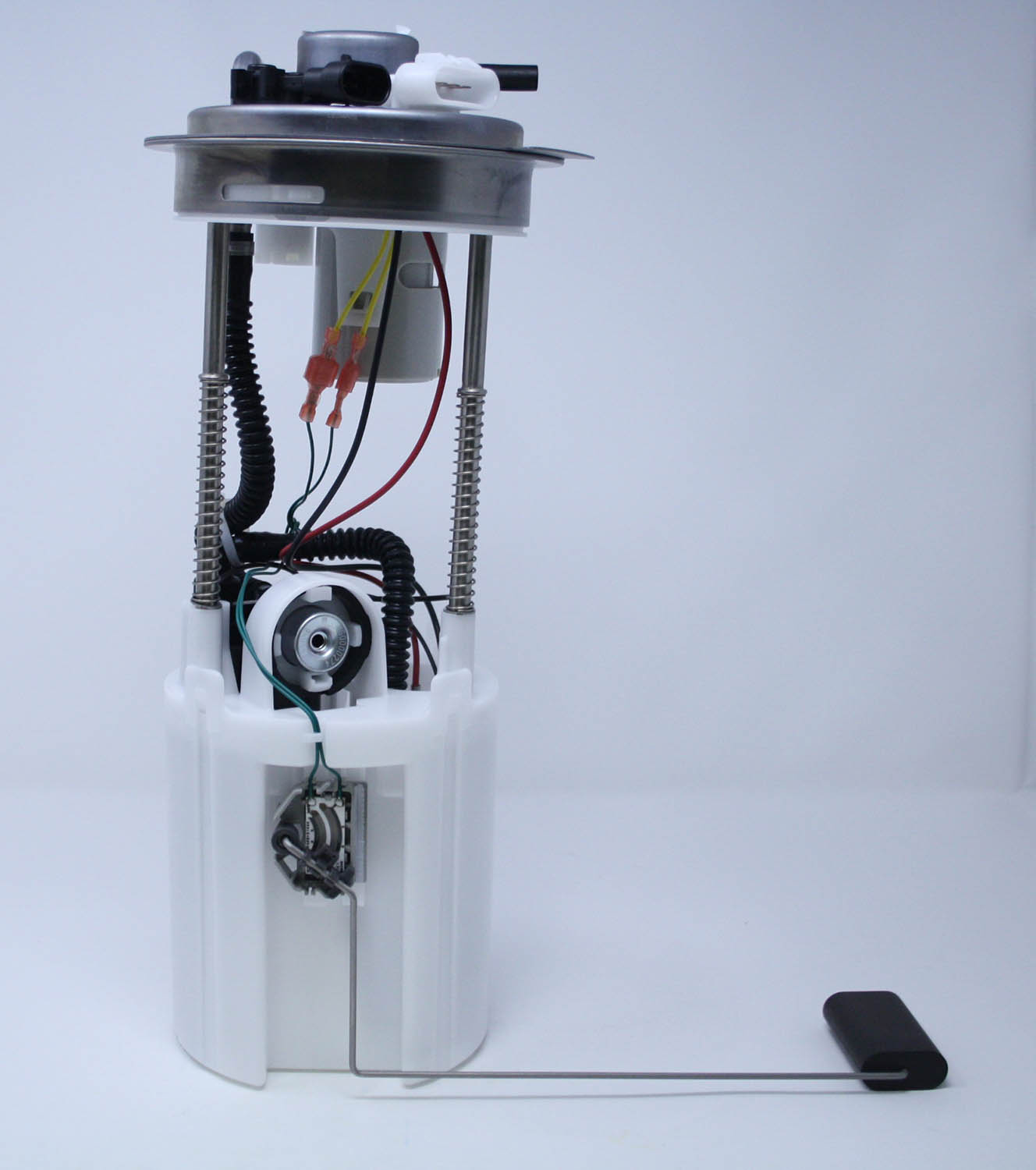

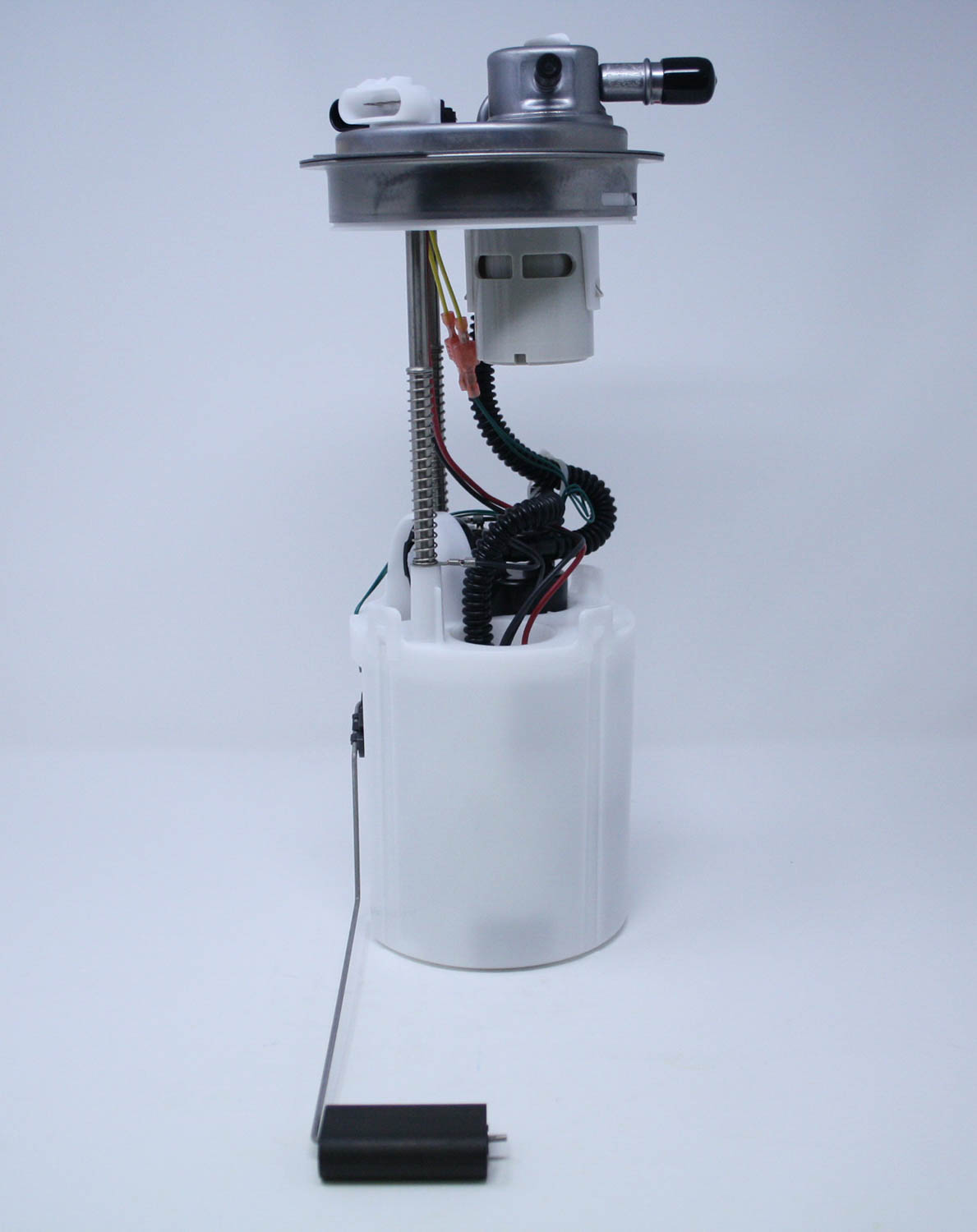

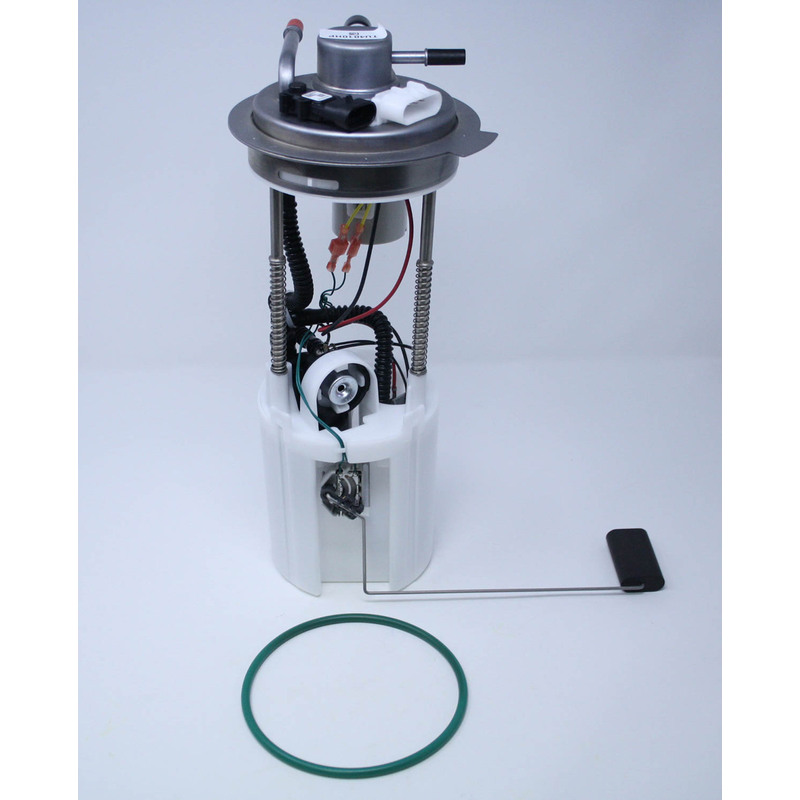

        • Complete fuel pump module assy includes level sender & float arm
        • Drop in installation designed for in-tank use only
        • Pump UAW manufactured in Caro, MI USA
        Retail price
        • $539.01
        Features
        • SKU
          TU4010HP
        • Brand
          TI Automotive
        • Average Current Draw
          17.62
        • Average Flow Rating
          87.4
        • Engine Horsepower Value
          550+
        • Fuel Filter Included
          No
        • Fuel Sending Unit Included
          Yes
        • Fuel Tank Pressure Sensor Included
          Yes
        • Fuel Type
          GAS
        • Grade Type
          Performance
        • Harmonized Tariff Code
          8413301000
        • Height
          295.0
        • In Tank or External
          In Tank
        • Includes Installation Instructions
          Yes
        • Includes Strainer
          Yes
        • Installation Warnings
          Yes
        • Internal Or External Strainer
          Internal
        • Lock Ring Included
          No
        • Maximum Pressure
          50
        • Minimum Flow Rating
          81.3
        • Nafta Code
          B
        • Operating Pressure UOM
          PS
        • Operating Pressure Value
          40
        • Outlet Outside Diameter
          9.525
        • Outlet Type
          SAE Quick Connect
        • Prop 65 - Long Label
          WARNING: This product can expose you to lead. For more information, visit www.P65Warnings.ca.gov
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: This product contains a chemical known to the State of California to cause cancer.
        • Prop 65 - Warning Image Label
          PROP 65 LEAD WARNING.JPG
        • Pump Design
          Turbine pump
        • Pump Type
          Electric
        • Regulator Included
          Yes
        • Resistance Ohms Empty
          250.5
        • Resistance Ohms Full
          40.5
        • Top Mount Diameter
          129.5
        • Universal Or Specific Fit
          Specific
        • Voltage
          13.5
        • Wire Harness Included
          No
