HEDMAN HEDDERS TIGHT TUBE MOPAR SB- BLACK MAXX

        HEDMAN HEDDERS TIGHT TUBE MOPAR SB- BLACK MAXX

        Part Number:78503
        Hedman Hedders

        Hedman Hedders has been manufacturing quality headers in the USA since 1954, and classic musclecars is their specialty. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. These headers use Hedman's patented TIGHT TUBES chamshell-style collector that allows for a low-profile header design, while still providing beneficial exhaust flow improvement over factory manifolds.

        These BLACK-MAXX coated, TIGHT-TUBES headers fit a variety of 1967-1974 MOPAR passenger cars powered by Chrysler'S 273-360 LA engine (inline port port pattern only). Included in this list of popular models are 1970-74 Dodge Challenger, '67-74 Plymouth Barracuda, '66-74 Dodge Charger, '68-74 Plymouth Roadrunner 67-76 Dart, Duster, Super Bee and Valiant (check the application listings for exact fitment). The flat-style collector also makes these headers ideal for SB Chrysler equipped street rods and custom projects. These headers fit both manual and automatic transmission models, however, a mini-starter must be used, and modification to the shift linkage may be required. The smooth 1-5/8 in. tubes flow into the large, yet flat, collector, and provide improved exhaust flow, over factory manifolds, to let your Chrysler 273-360 (LA) engine produce additional horsepower and torque.

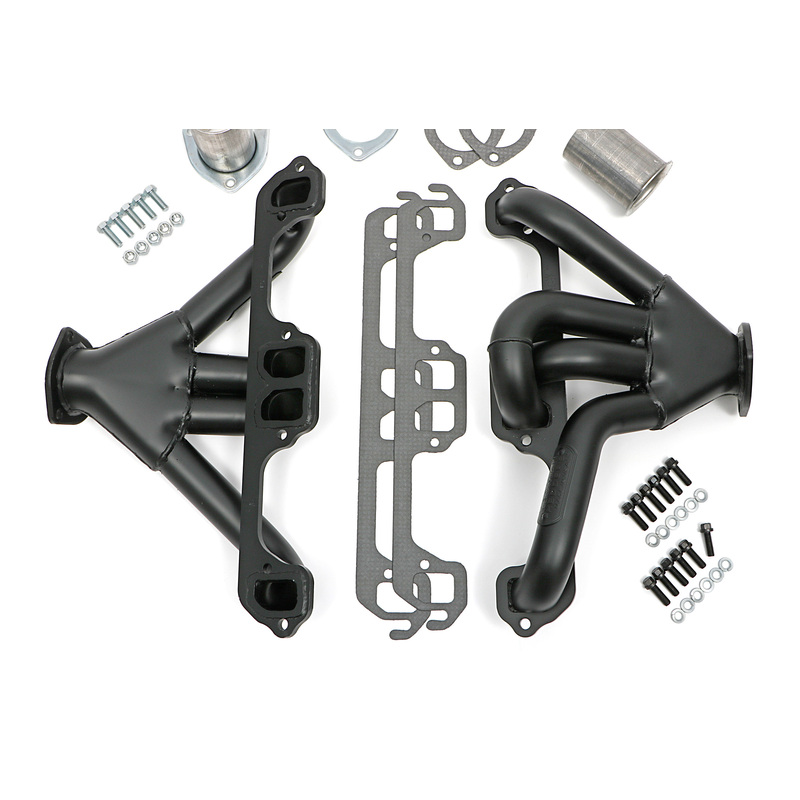

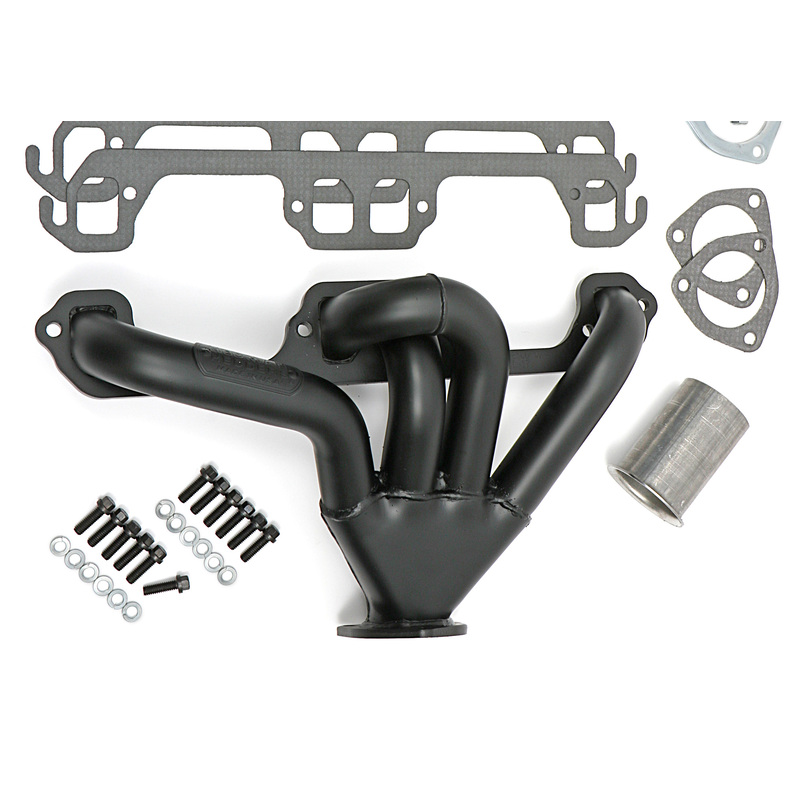

        Each set includes a pair of header and collector gaskets, header flange bolts and collector bolts.

        Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, SATIN-BLACK ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

        • The Lowest Profile Header On The Market
        • The Flat, Clamshell Style Collector Has an Extremely Low Profile So they'll Fit in Nearly Any Street Rod or Custom Build With Little Clearance.
        • The High Volume Flat Collector Offers Improved Exhaust Flow For Far Superior Performance Over Classic Block Hugger Models.
        • Includes Classic, 3-Bolt Gasket-Style Header Collectors, Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $1,469.52
        Features
        • SKU
          78503
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Alternate Variation Part Number
          78500
        • Automatic Transmission - Column
          Yes
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          3-Bolt Gasket Style Flange
        • Color
          Black Maxx
        • Cylinder Head Port Shape
          Rectangle
        • Engine
          Mopar SB 318-360 (inline port pattern only)
        • Engine Notes
          Chrysler LA Engines Only (inline port pattern). Not For A318 Engine
        • Exhaust System Diameter
          2.5 in.
        • Finish
          Satin Ceramic-Metallic
        • Fitment Note
          Fits Stock Profile Heads
        • Fitment Note
          Modification to Shifter Linkage May Be Required.
        • Flange Style
          Standard
        • Flange Thickness
          0.3125 in.
        • Header Style
          Tight Tubes
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Collector Bolts
          Yes
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Header Fasteners
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          Yes
        • Manual Transmission - Floor
          Yes
        • Material
          Mild Steel
        • Material
          Standard-Duty Mild Steel
        • Package Contents
          Headers, Collector Flange Gaskets, Collector Bolts.
        • Package Contents
          Headers, Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Primary Tube Diameter
          1.625 in.
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Replacement Head Flange Gasket Part Number
          27970
        • Replacement Manifold Gasket Part Number
          27970
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS TIGHT TUBE MOPAR SB- BLACK MAXX
        • Tube Design
          Standard
        • Tube Diameter
          1.625 in.
        • Tube Size
          1.625 in.
        • Tube Thickness
          16 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
