HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN
        • HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN
        • HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN
        • HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN
        • HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN

        HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN

        Part Number:69170
        Hedman Hedders
        1-3/4 IN. MID-LENGTH HEADERS For 67-87 2WD GM TRUCKS 396-502
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $828.37
        Features
        • SKU
          69170
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Alternate Variation Part Number
          69176 69173
        • Automatic Transmission - Column
          Yes
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          Ball and Socket (Gasketless)
        • Cylinder Head Port Shape
          Square
        • Exhaust System Diameter
          2.5 in.
        • Finish
          Uncoated
        • Finish Type
          UNCOATED Mild Steel! Shipped with Temporary Paint.
        • Fitment Note
          Fits Manual Transmission
        • Fitment Note
          Fits Stock Profile Heads
        • Fitment Note
          Must Use 1975 and Later Model Clutch Linkage Located at Rear of Engine. (139)
        • Fitment Note
          Must Use Factory Big Block Chevrolet Engine Mounts and Hardware
        • Fitment Note
          NOT For Vehicles with Offset Right Engine Position
        • Fitment Note
          TAILSHAFT Style Crossmember Only. Not for Bellhousing Style Crossmember. (14)
        • Flange Style
          Standard
        • Flange Thickness
          0.375 in.
        • Header Style
          Mid-Length
        • IMPORTANT!
          Vehicle must be setup as if came from the factory with a Big Block Chevy engine.
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Collector Bolts
          Yes
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Header Fasteners
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          Yes
        • Manual Transmission - Floor
          Yes
        • Material
          Mild Steel
        • Material
          Standard-Duty Mild Steel
        • Package Contents

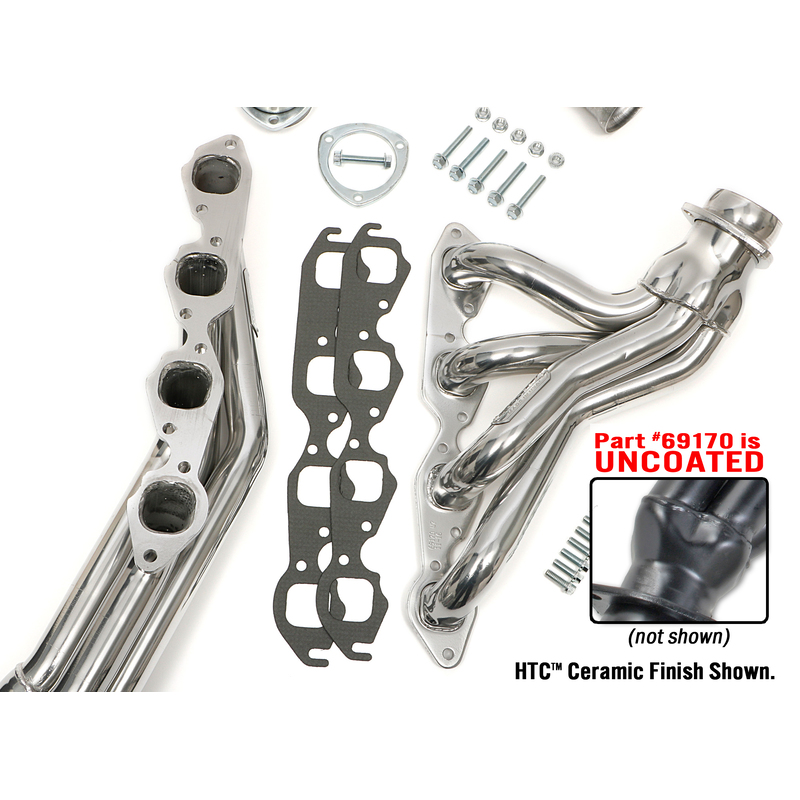

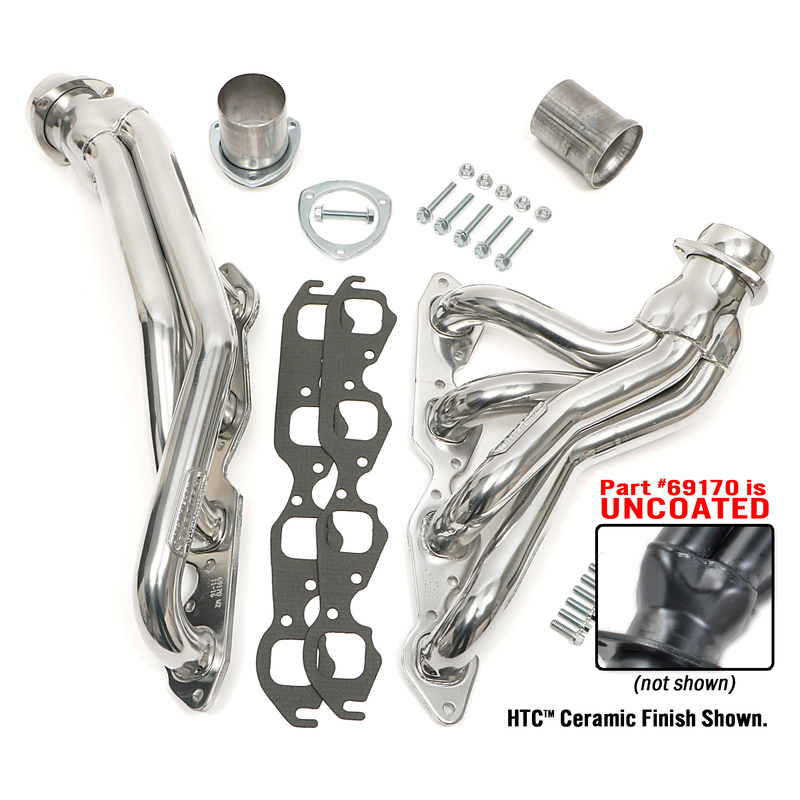

          Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Package Contents
          Headers, Collector Flange Gaskets, Collector Bolts.
        • Primary Tube Diameter
          1.75 in.
        • Prop 65 - Short Label
          WARNING: Cancer - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Replacement Head Flange Gasket Part Number
          27550
        • Replacement Manifold Gasket Part Number
          27550
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN
        • Tube Design
          Standard
        • Tube Diameter
          1.75 in.
        • Tube Size
          1.75 in.
        • Tube Thickness
          16 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
