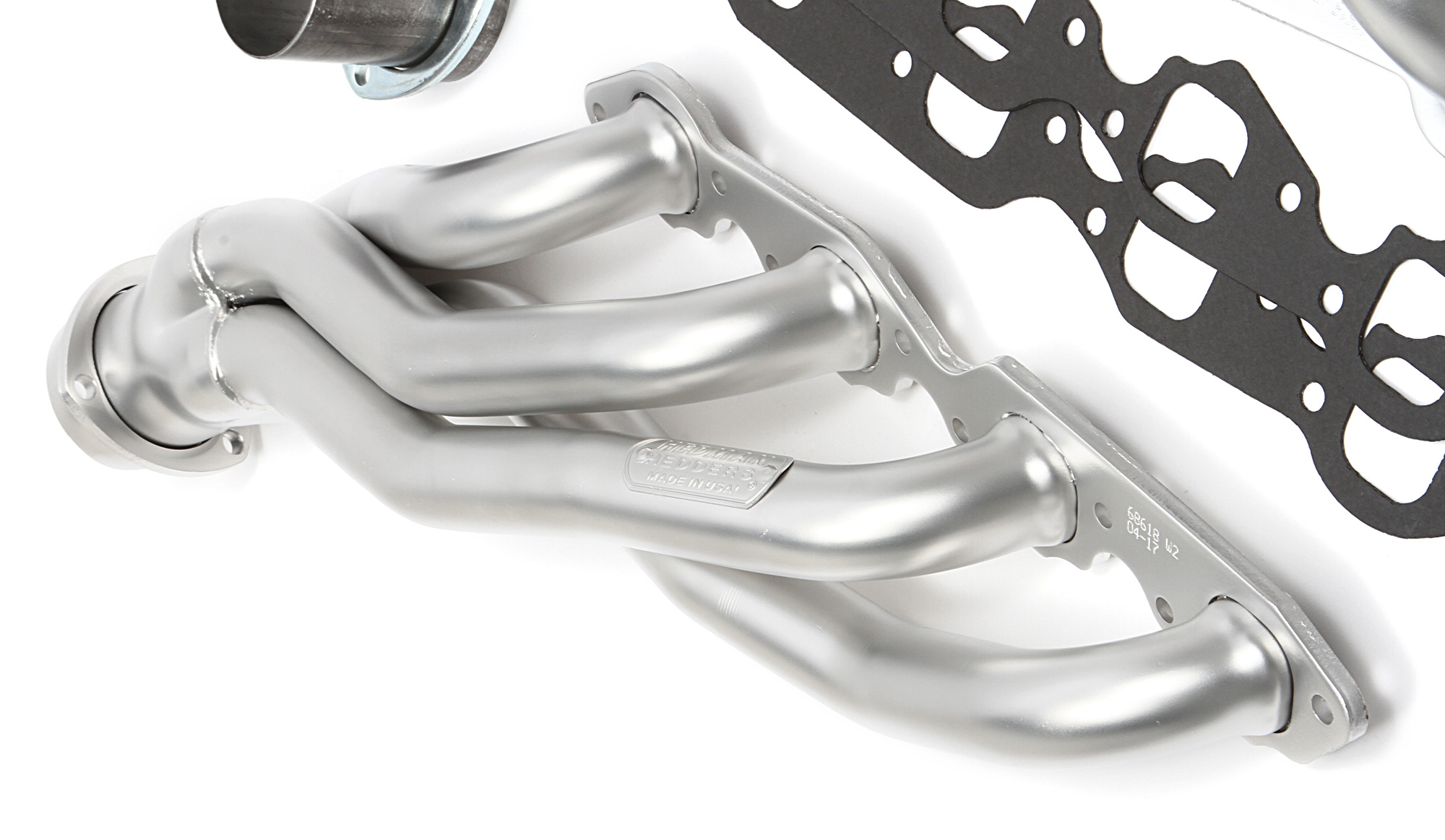

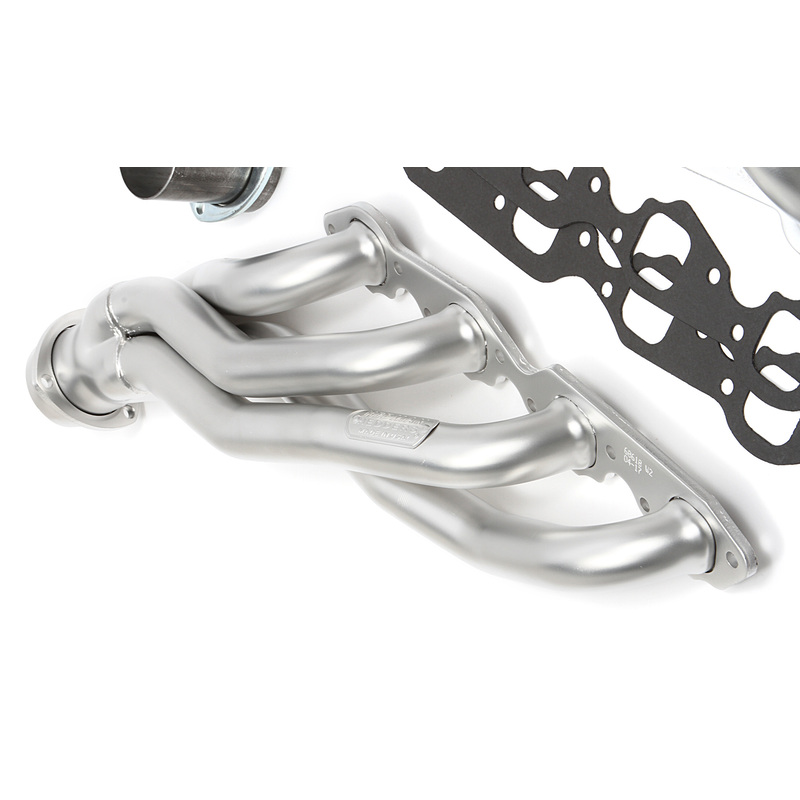

HEDMAN HEDDERS ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

        HEDMAN HEDDERS ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

        Part Number:68618
        Hedman Hedders

        Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

        This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.

        ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.

        These MID-LENGTH headers fit Big Block Chevy V8 powered 1967-81 Chevy Camaros; 1968-1977 GM A-Body vehicles (Chevy Chevelle, El Camino, Monte Carlo, Olds Cutlass, Pontiac Grand Prix); '68-79 Chevy II and Nova. These headers are also compatible with many 1965-74 passenger cars from Chevrolet. The smooth 1-3/4 in tube design provides ample exhaust flow to let your 396-454 BB Chevy engine breathe easy, and improve horsepower and torque over stock manifolds.

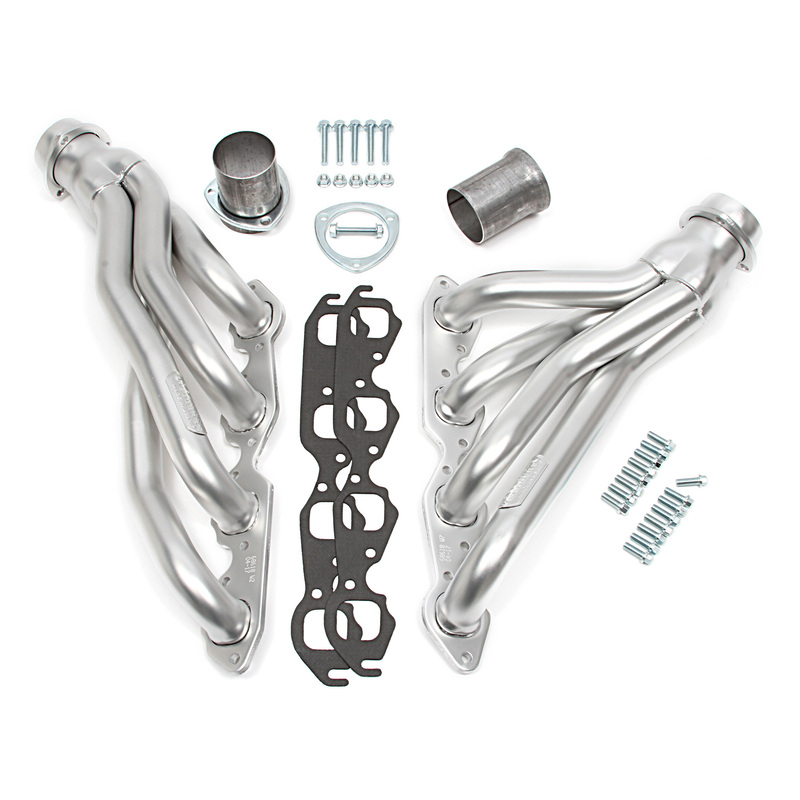

        Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

        Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

        • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
        • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $1,557.50
        Features
        • SKU
          68618
        • Brand
          Hedman Hedders
        • 50-State Street Legal
          Please Refer to Vehicle Fitment Data for CARB EO Information
        • Air Conditioning
          Yes
        • Alternate Variation Part Number
          68616, 68618
        • Automatic Transmission - Column
          No
        • Automatic Transmission - Floor
          Yes
        • Collector Diameter
          3.0 in.
        • Collector Style
          Ball and Socket (Gasketless)
        • Cylinder Head Port Shape
          Oval
        • Exhaust System Diameter
          2.5 in.
        • Feature Note
          Without A.I.R.
        • Finish
          Matte Silver Ceramic-Metallic
        • Fitment Note
          67-81 F; 68-77 A; 68-79 X; 65-74 Chevy Pass. Car 396-502
        • Fitment Note
          Fits Stock Profile Heads
        • Flange Style
          Standard
        • Flange Thickness
          0.375 in.
        • Header Style
          Mid-Length
        • Includes Bolts/Studs
          Yes
        • Includes Catalytic Converters
          No
        • Includes Collector Bolts
          Yes
        • Includes Crossover Pipe
          No
        • Includes Gasket/Seal
          Yes
        • Includes Header Fasteners
          Yes
        • Includes Motor Mounts
          No
        • Includes Mounting Hardware
          Yes
        • Includes Reducers
          Yes
        • Includes Y-Pipe
          No
        • Manual Transmission - Column
          No
        • Manual Transmission - Floor
          Yes
        • Material
          Elite Heavy-Duty Mild Steel
        • Material
          Mild Steel
        • Package Contents
          Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
        • Package Contents
          Headers, New Bolts, Gaskets to Head, Reducers and Hardware, Instructions.
        • Primary Tube Diameter
          1.75 in.
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Reducer Outlet Size
          2.5 in.
        • Replacement Head Flange Gasket Part Number
          27550
        • Replacement Manifold Gasket Part Number
          27550
        • Sold As
          Pair
        • Title
          HEDMAN HEDDERS ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
        • Tube Design
          Standard
        • Tube Diameter
          1.75 in.
        • Tube Size
          1.75 in.
        • Tube Thickness
          14 ga
        • Tuned
          No
        • Weld-Up
          No
        • With A.I.R. System
          No
        • With EGR
          No
        • With Power Steering
          Yes
