Bilstein Shock Absorbers

        Bilstein Shock Absorbers

        Part Number:F4-B46-0210-ZW
        Bilstein

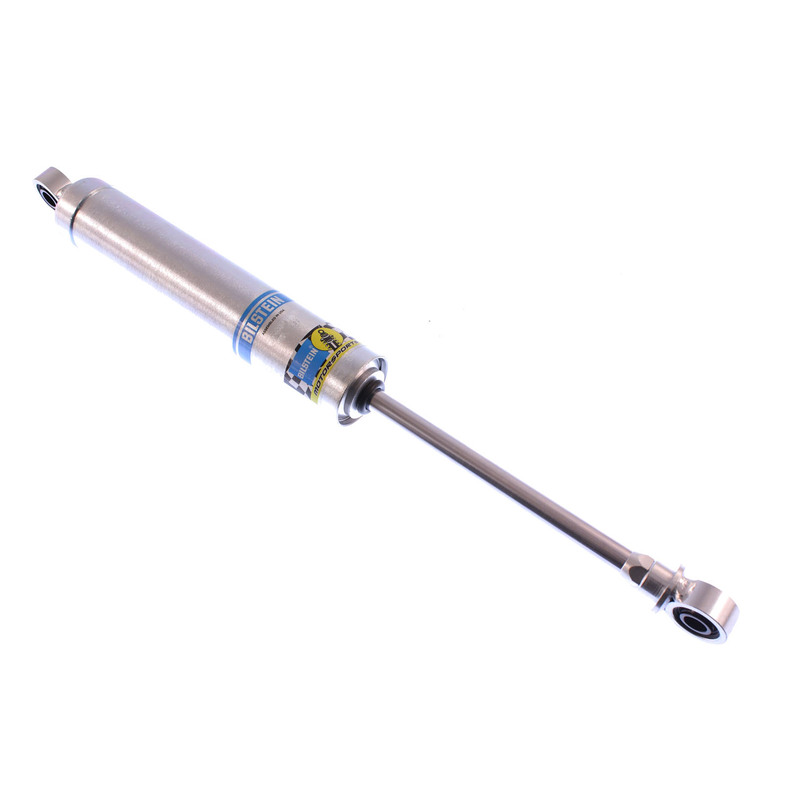

        Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
        • Plated steel body for durability and superior heat dissipation
        • 46mm piston design for maximum damping control
        • Standard 1/2” graphite heims
        Retail price
        • $170.50
        Features
        • SKU
          F4-B46-0210-ZW
        • Brand
          Bilstein
        • Adjustable Damping
          No
        • Body Design
          Smooth Body
        • Body Inside Diameter
          46.0 mm
        • Body Material
          Steel
        • Coilover Type
          Non-Coilover
        • Collapsed Length
          13.15 in.
        • Collapsed Length
          334.0 mm
        • Collapsed Length
          510.0 mm
        • Compression at 0.26 m/s
          1,045.0 N
        • Extended Length
          20.08 in.
        • Finish
          Zinc Plated
        • Includes Boot
          No
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          12.7 mm Heim
        • PartType
          Shocks / Struts
        • Piston Style
          Digressive
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound @0.26m/s
          840
        • Segment
          Motorsports
        • Series
          SZ Series
        • Spring Hardware
          B4-BOA-0000117
        • Spring Max Travel (IN)
          6.93
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          12.7 mm Heim
        • Valving Identifier
          5050
