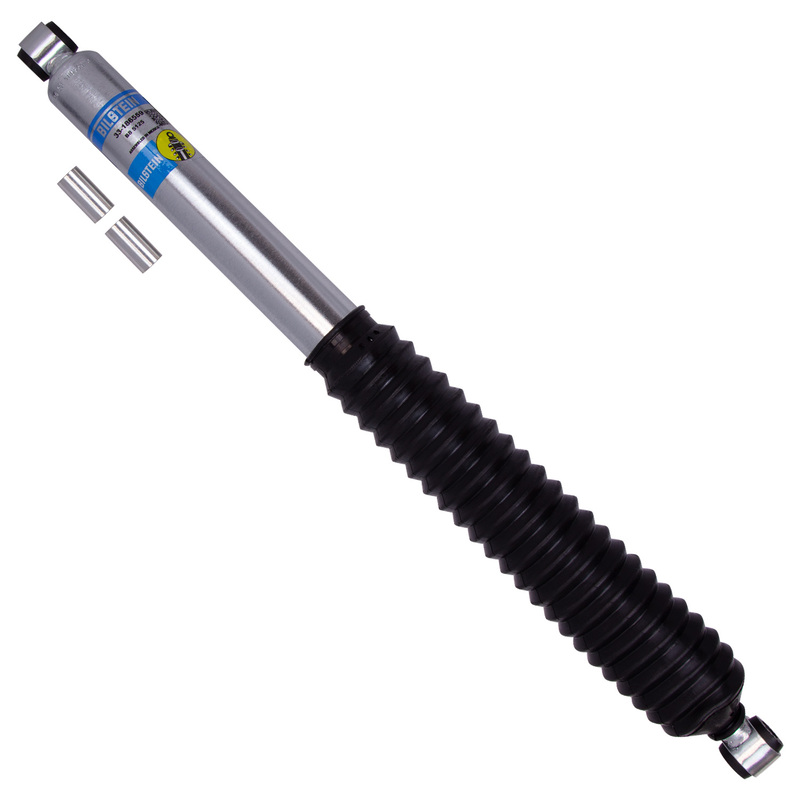

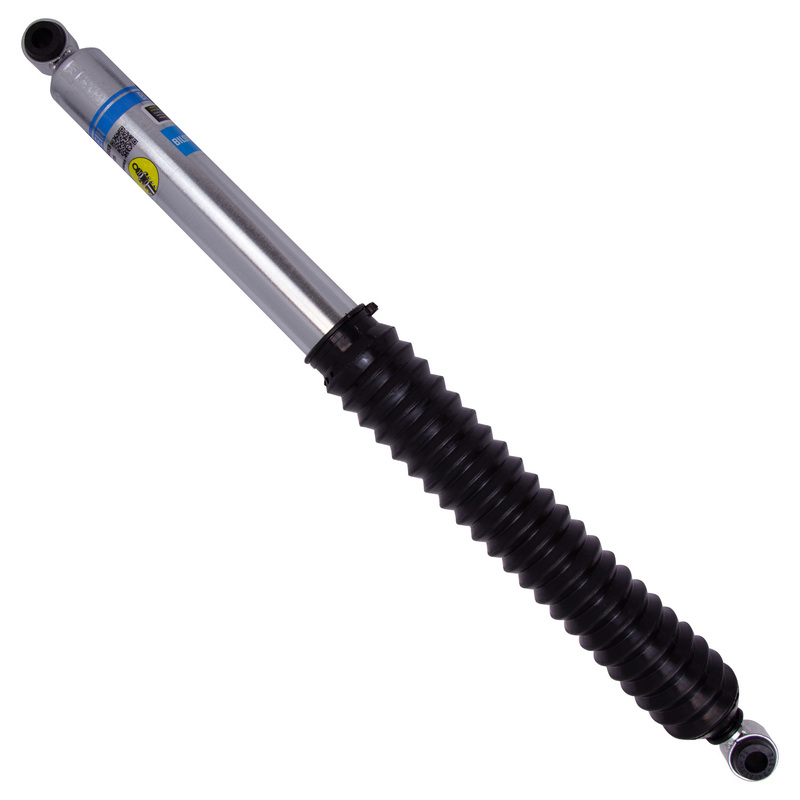

Bilstein Shock Absorbers

        Bilstein Shock Absorbers

        Part Number:33-186559
        Bilstein
        Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
        • 46mm monotube design ensures consistent, fade-free performance in all conditions
        • Patented digressive valving instantly reacts to changing surface conditions
        • Vehicle specific tuning
        Retail price
        • $156.60
        Features
        • SKU
          33-186559
        • Brand
          Bilstein
        • Adjustable Damping
          No
        • Body Design
          Smooth Body
        • Body Inside Diameter
          46.0 mm
        • Coilover Type
          Non-Coilover
        • Collapsed Length
          17.0 in.
        • Collapsed Length
          17.01 in.
        • Collapsed Length
          432.0 mm
        • Compression @0.52m/s
          595
        • Extended Length
          28.0 in.
        • Extended Length
          711.2 mm
        • Feature Note
          Reservoir Not Included
        • Finish
          Zinc Plated
        • Includes Boot
          Black Bellows
        • Includes Spring Seat
          No
        • Internal Design
          Monotube
        • Lower Mount Type
          Eye 15.875 mm
        • Mount End Type
          Eye-To-Eye
        • PartType
          Shocks / Struts
        • Prop 65 (Y/N)
          Y
        • Prop 65 - Short Label
          WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
        • Rebound @0.52m/s
          1810
        • Segment
          Light Truck
        • Series
          B8 5125
        • Spring Max Travel (IN)
          10.99
        • Title
          Bilstein Shock Absorbers
        • Upper Mount Type
          Eye 15.875 mm
