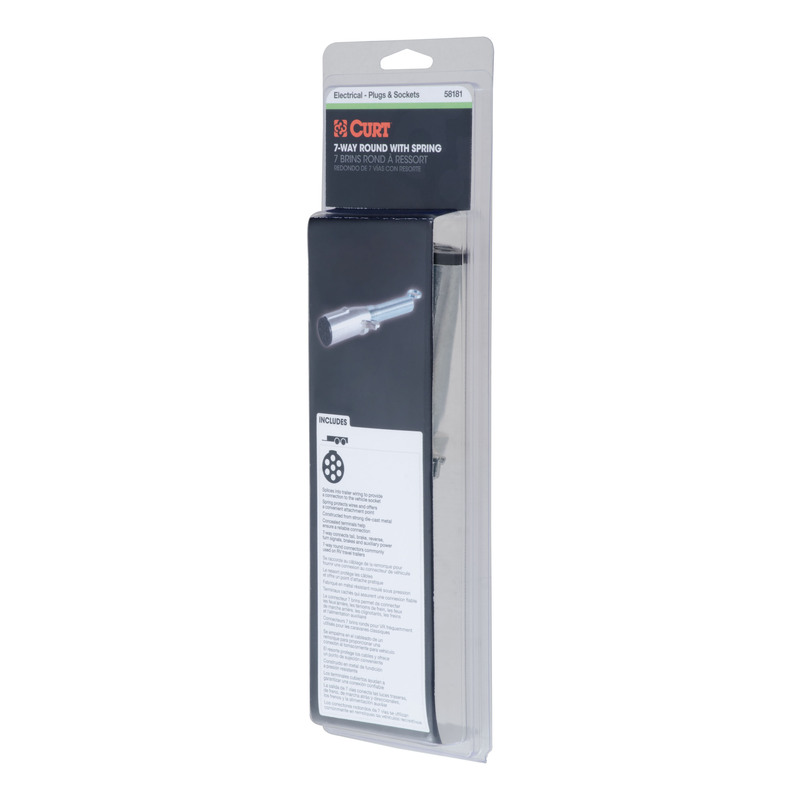

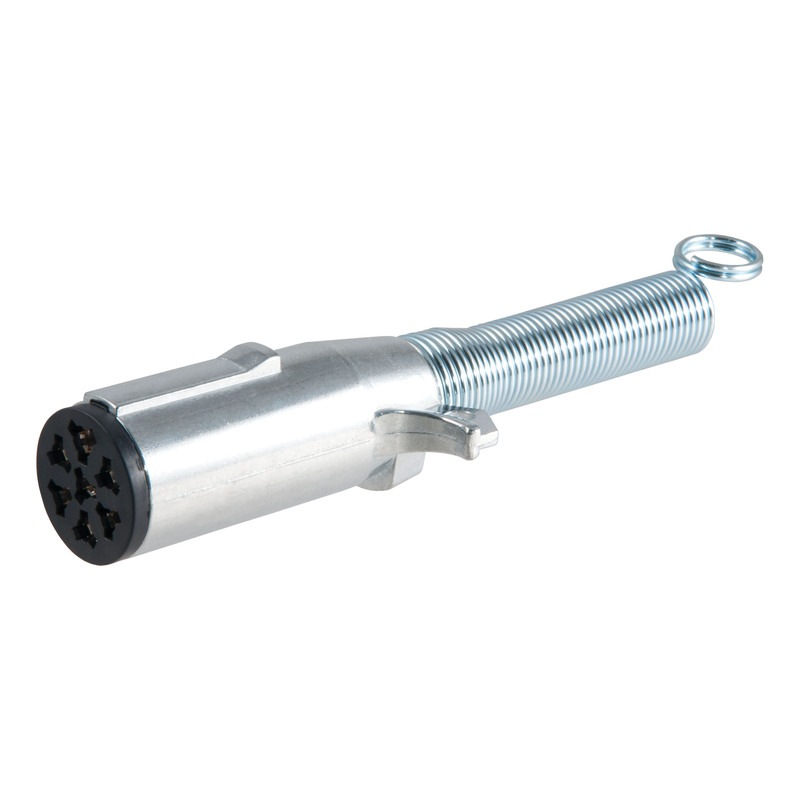

7-Way Round Connector Plug with Spring (Trailer Side, Packaged)

        7-Way Round Connector Plug with Spring (Trailer Side, Packaged)

        Part Number:58181
        CURT
        Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailer's electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road. CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer. This 7-way round connector is designed to supply power for tail lights, turn signals, electric trailer brakes, auxiliary power, reverse lights and brake lights, as well as a ground connection. It features durable die-cast metal construction and is a male-end plug, specifically designed for the trailer side of the connection. It also features a spring attachment to keep wires well protected. 7-way round connectors are commonly used on RV travel trailers, and this particular connector can be easily interchanged with other 7-way RV connectors.

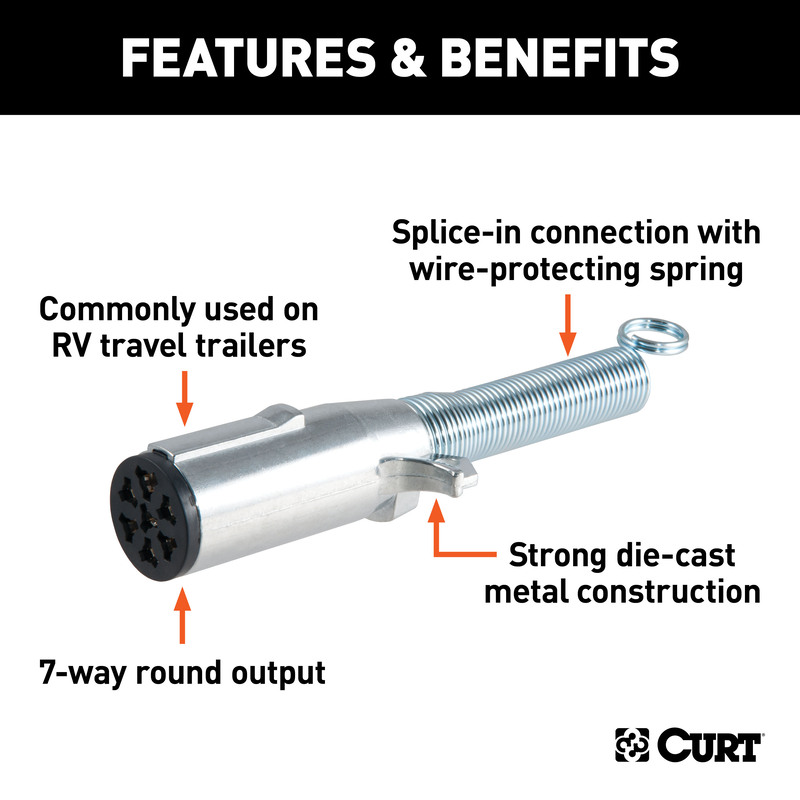

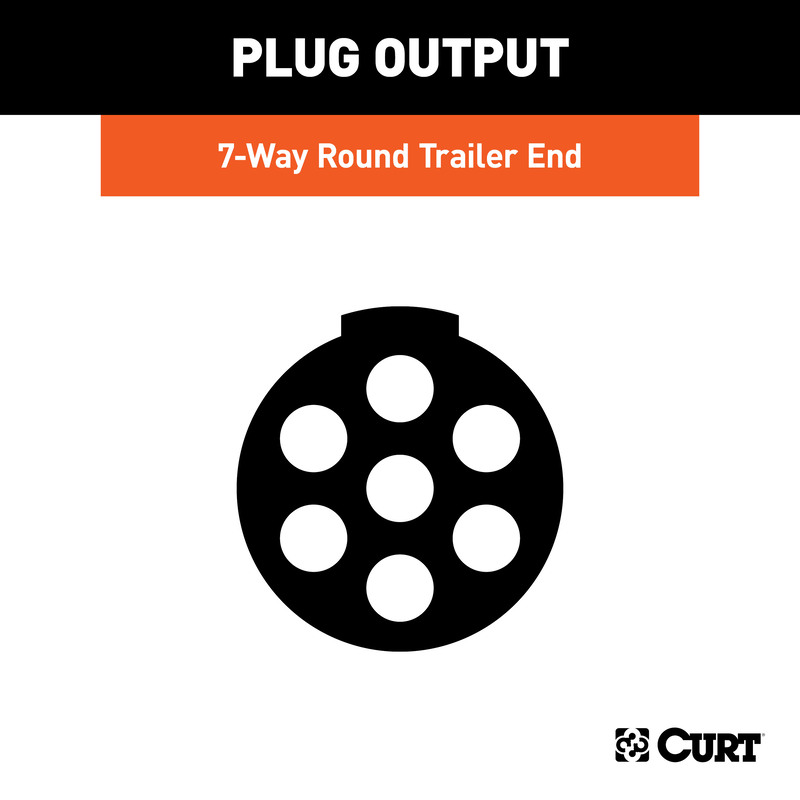

        • 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
        • 7-way round connectors commonly used on RV travel trailers
        • Concealed terminals help ensure a reliable connection
        • Constructed from strong die-cast metal
        • Interchangeable with other 7-way RV connectors

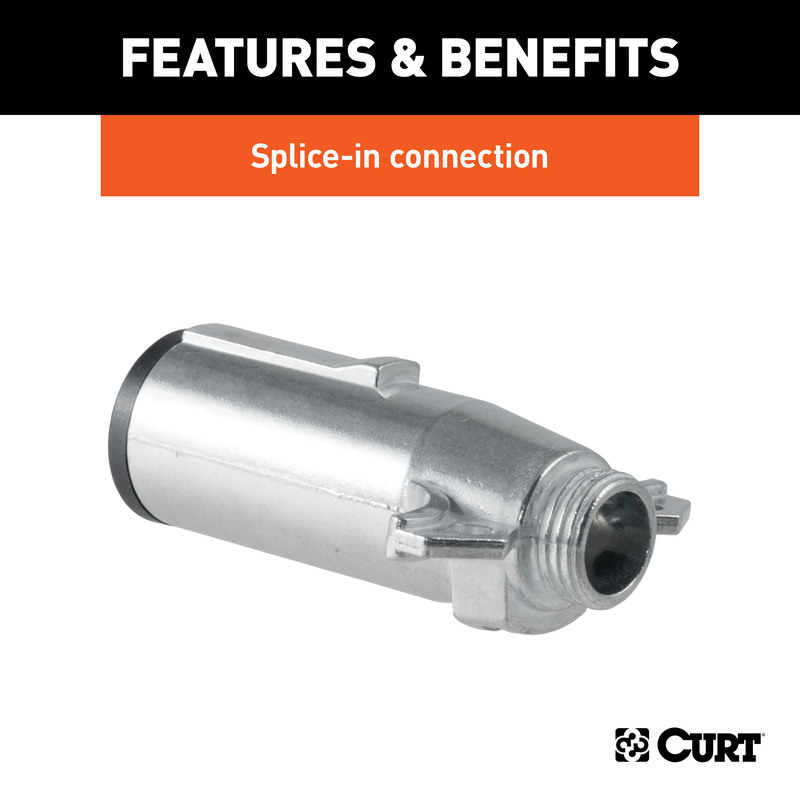

        • Splices into trailer wiring to provide a connection to the vehicle socket
        • Spring protects wires and offers a convenient attachment point
        Retail price
        • $24.95
        Features
        • SKU
          58181
        • Brand
          CURT
        • Class ID
          0
        • Container Cases Qty - XA
          0
        • Container Pallet Qty - XA
          0
        • Container Unit Qty - XA
          0
        • Container Volume Cubic Feet - XA
          0.00000
        • Container Volume Cubic Meter - XA
          0.00000
        • Container Weight KG - XA
          0
        • Container Weight Lbs - XA
          0
        • Electrical Component Location
          Trailer
        • Finish - XA
          N/A

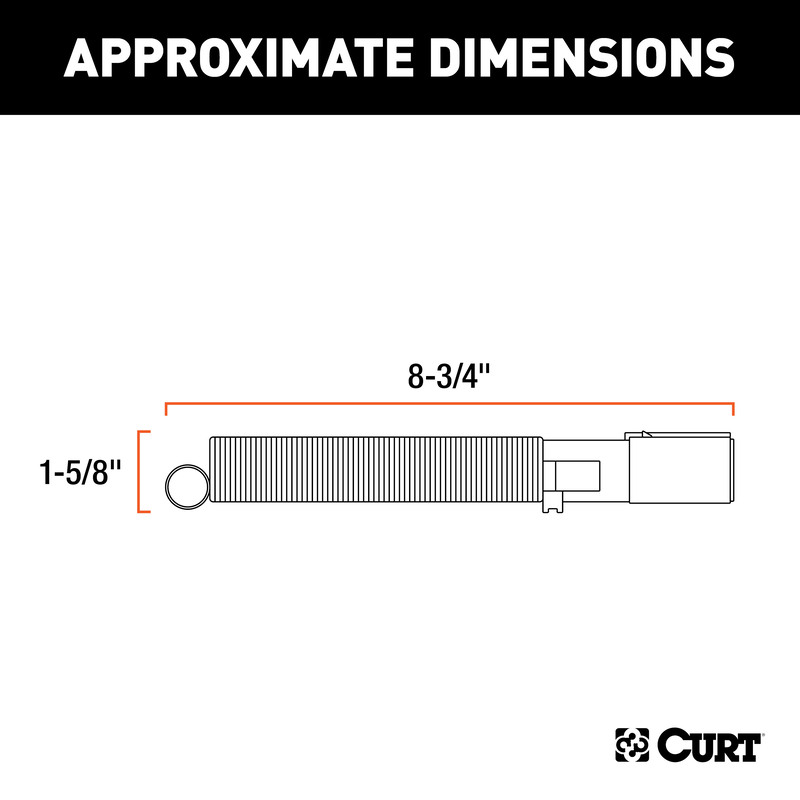

        • Height
          1.75 in.
        • Height - Box 1
          2.0 in.
        • Item Class
          OBS
        • Item Height - XA
          0.000
        • Item Length - XA
          0.000
        • Item Width - XA
          0.000
        • Length - Box 1
          7.0 in.
        • Master Case Height Inches - XA
          17.875
        • Master Case ITF14
          20612314581812
        • Master Case ITF14 - XA
          20612314581812
        • Master Case Inner Pack Qty - XA
          0
        • Master Case Length Inches - XA
          21.250
        • Master Case Qty - XA
          48
        • Master Case Volume Cubic Feet - XA
          0.00000
        • Master Case Weight Lbs - XA
          49.800
        • Master Case Width Inches - XA
          13.500
        • Material - XA
          Blank
        • Mount Type Description - XA
          Blank
        • Pallet Case Per - XA
          0
        • Pallet Case Per Layer - XA
          0
        • Pallet Cases Per - XA
          0
        • Pallet Cases Per Layer - XA
          0
        • Pallet Layer of Cases - XA
          0
        • Pallet Qty - XA
          0.000
        • Pallet Total Height Inches - XA
          0.000
        • Pallet Total Weight Per - XA
          0.000
        • Parcel Allowed
          Yes
        • Product Weight - XA
          0.000
        • Prop 65 Label Text - XA
          Blanks
        • Prop 65 Material - XA
          Unknown
        • Prop 65 Reason - XA
          Unknown
        • Prop 65 Warning Label Type - XA
          Unknown
        • Prop 65 Warning Y/N - XA
          NO
        • Retail Length
          12.38 in.
        • Retail Width
          3.63 in.
        • Sales Family Code - XA
          ELECT
        • Sales Family Description - XA
          ELECTRICAL COMPONENTS
        • Sales Group Description - XA
          WIRNG
        • Shipping Weight - XA
          0.850
        • Side Application Type Description - XA
          Blank
        • Tariff 301
          No
        • Truckload Cases Qty - XA
          0
        • Truckload Pallets Qty - XA
          0
        • Truckload Units Qty - XA
          0
        • Truckload Volume Cubic Feet - XA
          0.00000
        • Truckload Weight - XA
          0
        • Warranty
          One Year Limited
        • Width - Box 1
          4.0 in.
