ACT Twin Disc HD Street Kit

        ACT Twin Disc HD Street Kit

        Part Number:T1S-F09
        Advanced Clutch

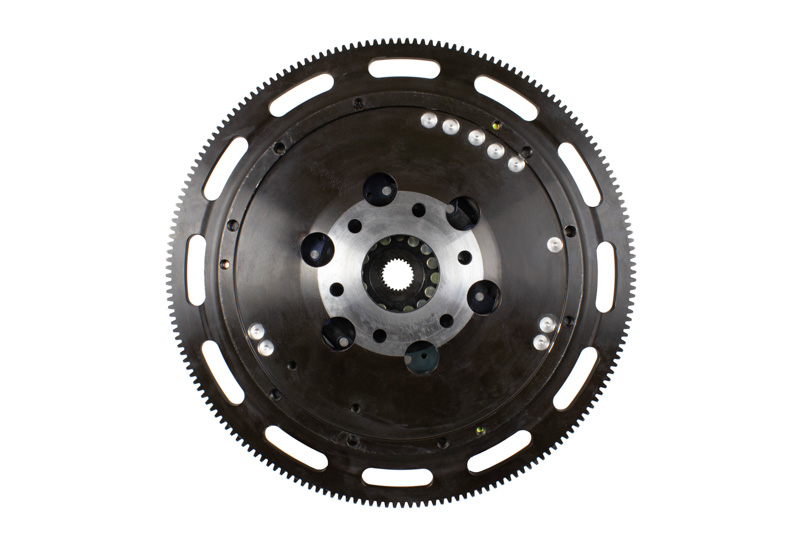

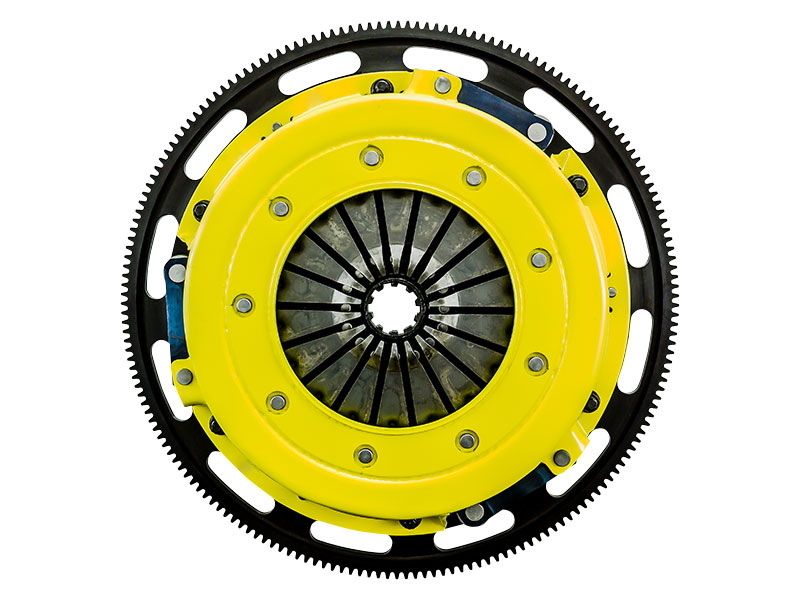

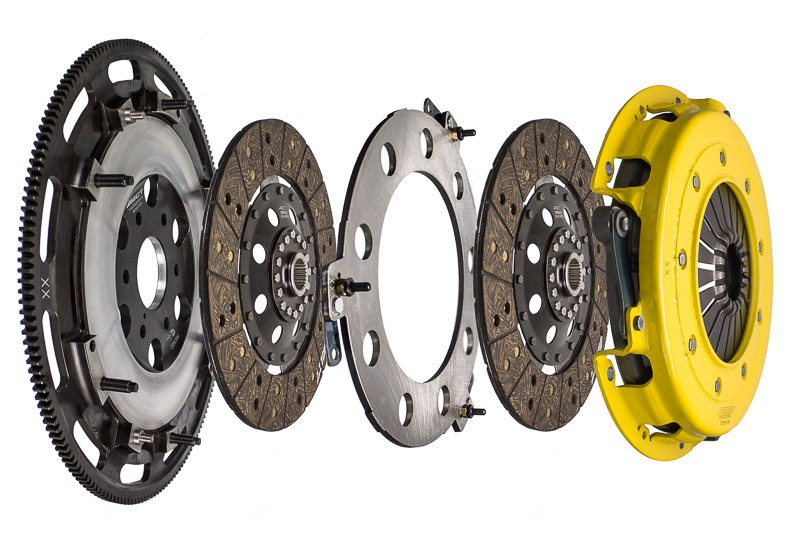

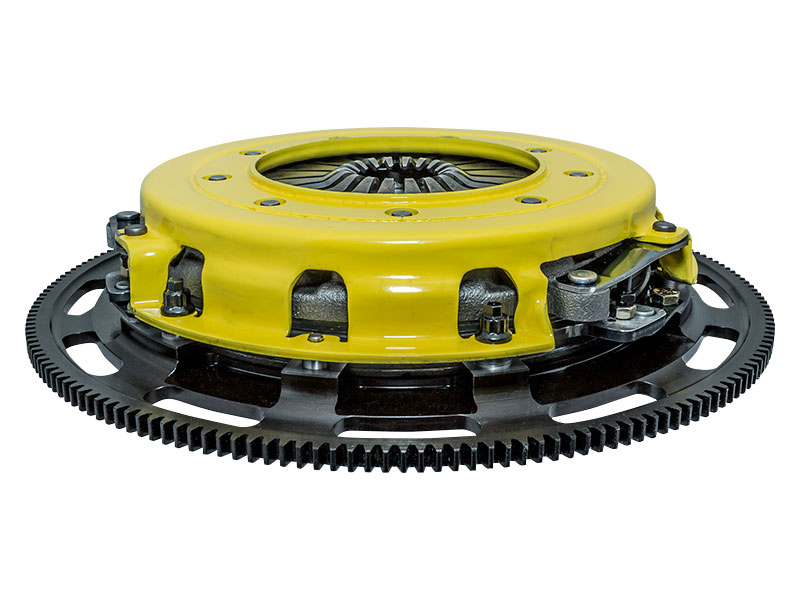

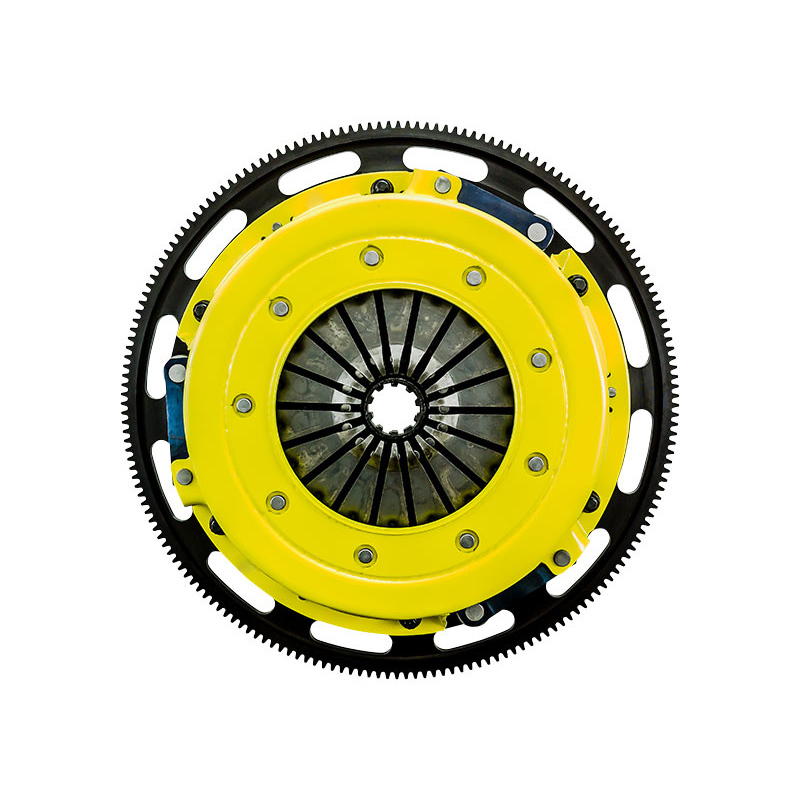

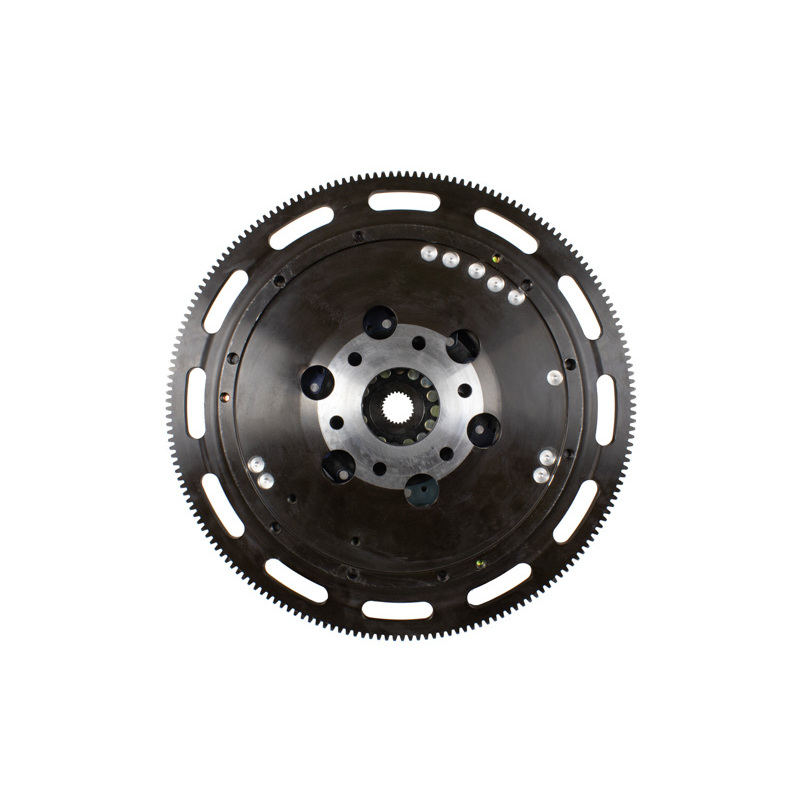

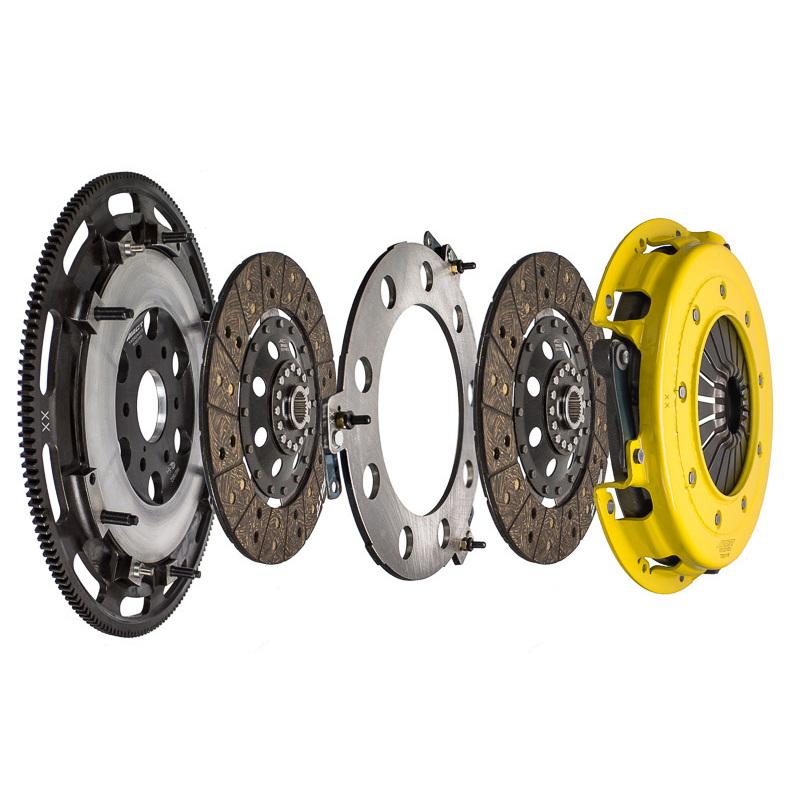

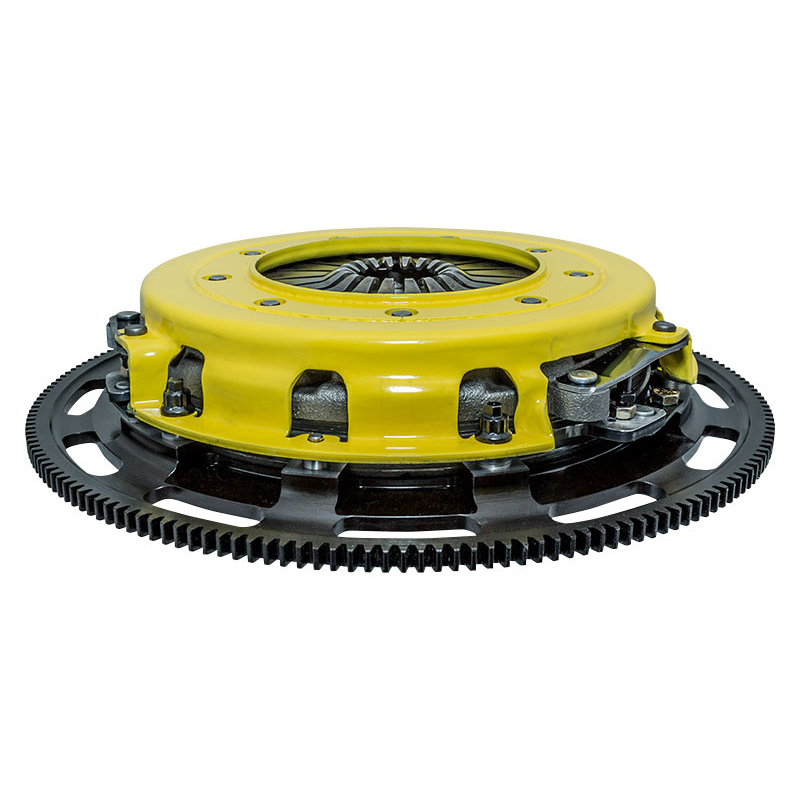

        T1S-F09 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $1,946.00
        Features
        • SKU
          T1S-F09
        • Brand
          Advanced Clutch
        • Clutch Disc Diameter
          10.5 in.
        • Clutch Disc Diameter
          267 mm
        • Clutch Master Cylinder Included
          No
        • Clutch Slave Cylinder Included
          No
        • Disc Material
          Organic
        • Disc Type Sprung Solid
          Solid
        • Flywheel Bolts Included
          No
        • Grade Type
          Performance
        • Grease Included
          Yes
        • Includes Alignment Tool
          Yes
        • Includes Flywheel
          Yes
        • Input Shaft Diameter
          1.375 in.
        • Input Spline Quantity
          10
        • Pilot Bearing Included
          No
        • Pilot Bushing Included
          No
        • Pressure Plate Bolts Included
          No
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 Long Label
          Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
        • Release Bearing Included
          No
        • SFI Certification Rating
          1.2
        • Torque Capacity
          891 ft/lbs.
        • Torque Capacity Percentage Over Stock
          53%
        • Weight
          48.9 lbs. (22.2 kg)
