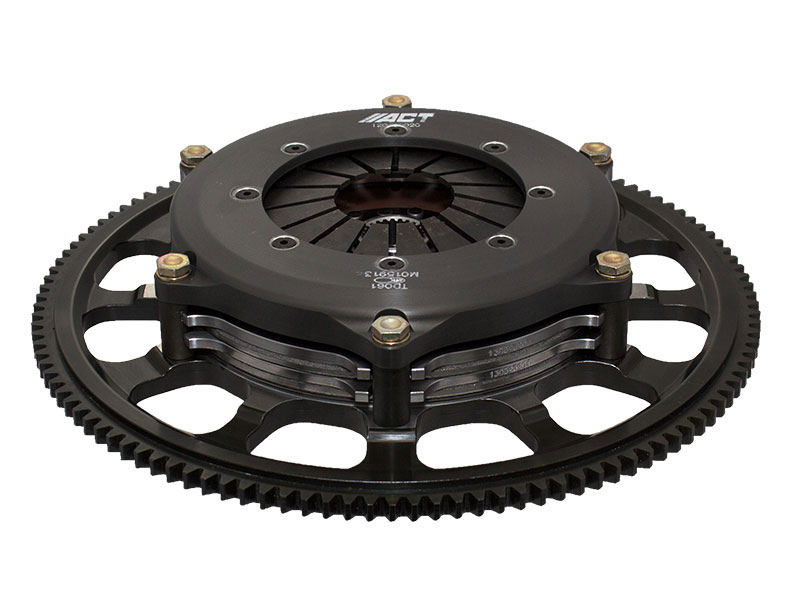

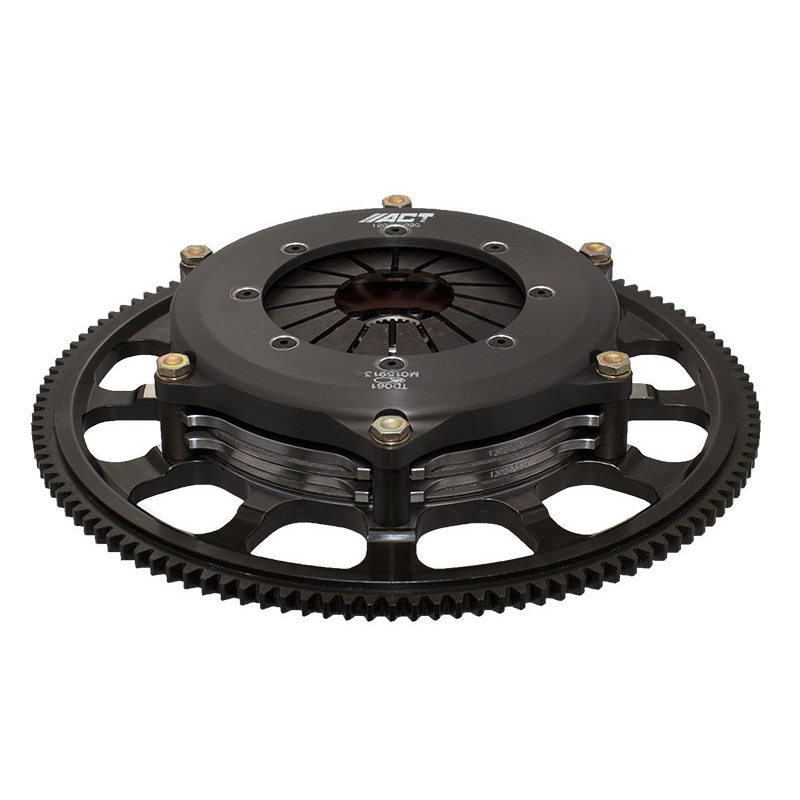

ACT Twin Disc Sint Iron Race Kit

        ACT Twin Disc Sint Iron Race Kit

        Part Number:T1RR-H02
        Advanced Clutch
        T1RR-H02 race, twin disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT's sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. Most kits offer pedal loads 10-20% higher than stock, yet increasing the clamp load by 80-90%. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT twin disc kits include a pressure plate, two discs, floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing. ACT Twin disc kits meet SFI Specification 1.2.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $2,020.00
        Features
        • SKU
          T1RR-H02
        • Brand
          Advanced Clutch
        • Clutch Disc Diameter
          184 mm
        • Clutch Disc Diameter
          7.25 in.
        • Clutch Master Cylinder Included
          No
        • Clutch Slave Cylinder Included
          No
        • Disc Material
          Sintered iron
        • Disc Type Sprung Solid
          Solid
        • Flywheel Bolts Included
          No
        • Grade Type
          Performance
        • Grease Included
          Yes
        • Includes Alignment Tool
          Yes
        • Includes Flywheel
          Yes
        • Includes Release Bearing
          Yes
        • Input Shaft Diameter
          1.03125 in.
        • Input Spline Quantity
          24
        • Pilot Bearing Included
          Yes
        • Pilot Bushing Included
          No
        • Pressure Plate Bolts Included
          No
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 Long Label
          Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
        • SFI Certification Rating
          1.2
        • Torque Capacity
          776 ft/lbs.
        • Torque Capacity Percentage Over Stock
          315%
        • Weight
          15.3 lbs. (6.9 kg)
