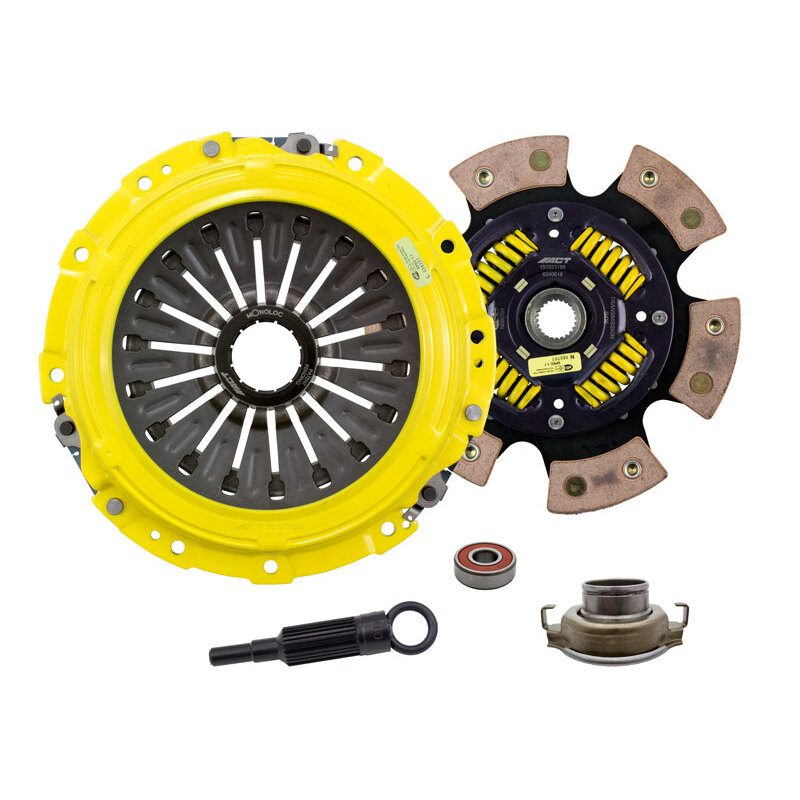

ACT XT-M/Race Sprung 6 Pad Kit

        ACT XT-M/Race Sprung 6 Pad Kit

        Part Number:SB10-XTG6
        Advanced Clutch
        SB10-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $1,049.00
        Features
        • SKU
          SB10-XTG6
        • Brand
          Advanced Clutch
        • Clutch Disc Diameter
          240 mm
        • Clutch Disc Diameter
          9.40 in.
        • Clutch Master Cylinder Included
          No
        • Clutch Slave Cylinder Included
          No
        • Disc Material
          Ceramic
        • Disc Type Sprung Solid
          Sprung
        • Flywheel Bolts Included
          No
        • Grade Type
          Performance
        • Grease Included
          Yes
        • Includes Alignment Tool
          Yes
        • Includes Release Bearing
          Yes
        • Input Shaft Diameter
          1.0 in.
        • Input Spline Quantity
          24
        • Pilot Bearing Included
          Yes
        • Pilot Bushing Included
          No
        • Pressure Plate Bolts Included
          No
        • Pressure Plate Series
          Xtreme
        • Product Note
          Includes ACT Monoloc.
        • Prop 65 - Required to list in California with Warning
          Yes
        • Prop 65 - Short Label
          WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
        • Prop 65 Long Label
          Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
        • Torque Capacity
          766 ft/lbs.
        • Torque Capacity Percentage Over Stock
          115%
        • Weight
          18.5 lbs. (8.4 kg)
