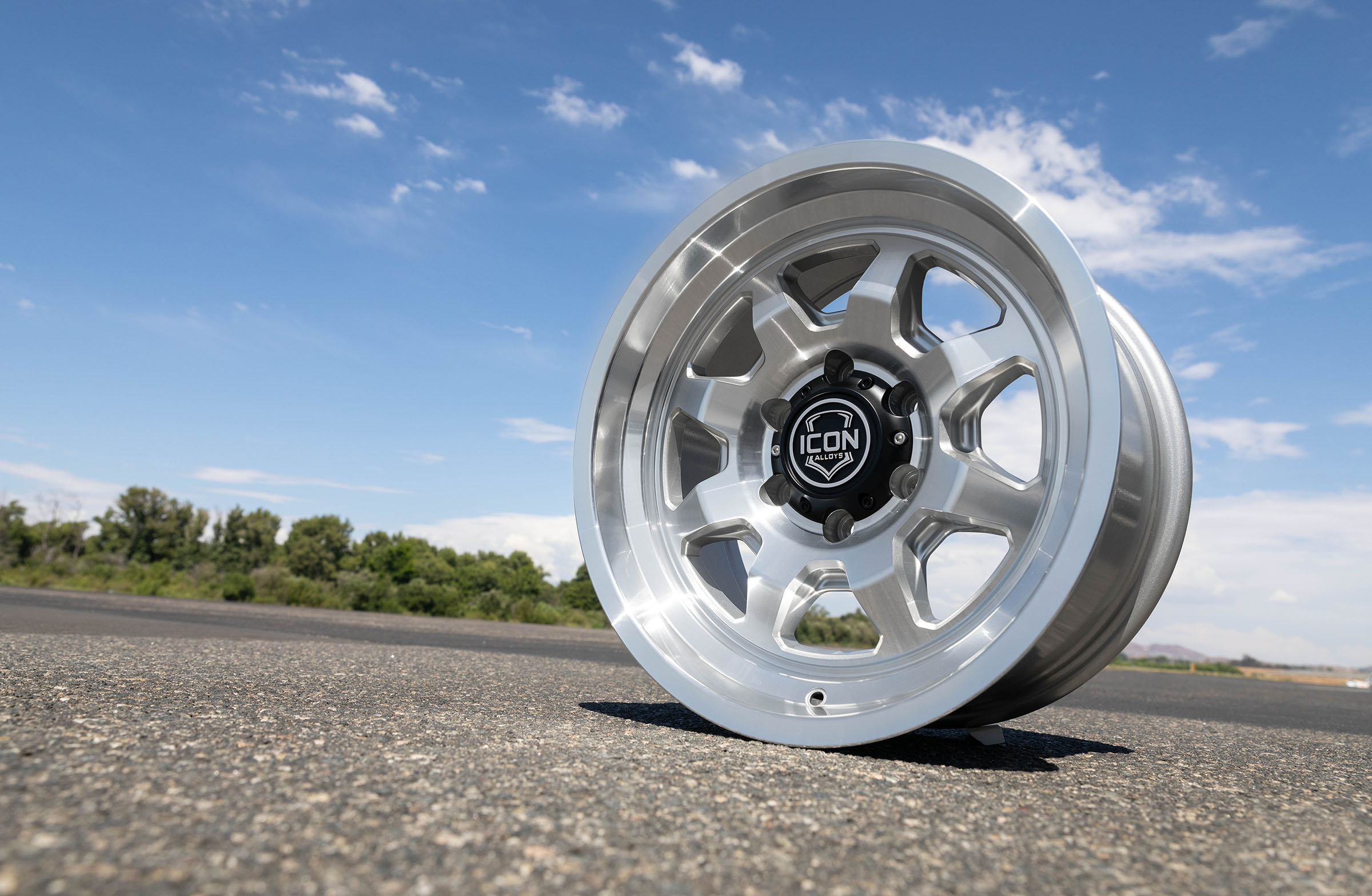

        ICON Alloys Nuevo, Silver Machined, 17 x 8.5 / 6 x 5.5, 0mm Offset, 4.75" BS

        Part Number:GQBN-8117858347SM
        ICON Alloys
        Teeming with offroad pedigree, the Nuevo's modern take on a classic offroad look means all business. The timeless 8 spokes and deep step lip lend the Nuevo a purposeful look, on or off the trail. A sophisticated Silver Machined as well Satin black are offered in both 5 or 6 lug applications. Available offsets ranging from -6mm through +25 are perfect for making the Nuevo ‘at home' on your ride.; Staying true to the ICON Alloys approach, the Nuevo has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.
        • Classic 8-spoke styling with deep step lip
        • 17" X 8.5" in 5-lug & 6-lug bolt patterns
        • Silver machined surface with clear powder coat finish for corrosion resistance
        • Application-specific dimensions optimize vehicle dynamics and tire clearance
        • Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
        • Aluminum alloy construction provides strength properties that are well suited for off-road use
        • 2750lbs load rating
        Retail price
        • $240.97
        Overview
        Teeming with offroad pedigree, the Nuevo's modern take on a classic offroad look means all business. The timeless 8 spokes and deep step lip lend the Nuevo a purposeful look, on or off the trail. A sophisticated Silver Machined as well Satin black are offered in both 5 or 6 lug applications. Available offsets ranging from -6mm through +25 are perfect for making the Nuevo ‘at home' on your ride.; Staying true to the ICON Alloys approach, the Nuevo has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.
        • Classic 8-spoke styling with deep step lip
        • 17" X 8.5" in 5-lug & 6-lug bolt patterns
        • Silver machined surface with clear powder coat finish for corrosion resistance
        • Application-specific dimensions optimize vehicle dynamics and tire clearance
        • Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
        • Aluminum alloy construction provides strength properties that are well suited for off-road use
        • 2750lbs load rating
        Features
          • SKU
            GQBN-8117858347SM
          • Brand
            ICON Alloys
          • Backspacing
            4.75 in.
          • Center Cap Included
            Yes
          • Diameter
            17.0 in.
          • Finish
            Powder Coated
          • Inside Diameter
            106.1 mm
          • Lug Hole Diameter
            1.1 in.
          • Lug Hole Quantity
            6
          • Lug Nut Insert Included
            No
          • Lug Nut Seat Type
            Conical
          • Material
            Cast
          • Material
            Aluminum
          • Maximum Load Rating
            2,750.0 lbs.
          • Offset
            0 mm
          • Offset
            0 mm
          • Offset
            0 mm
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Split Type
            No
          • Spoke Quantity
            8
          • TPMS
            Is Compatible
          • Tires Included
            No
          • Wheel Lug Hole Quantity
            6
          • Wheel Nuts Included
            No
          • Width
            8.5 in.
        Fitment
        Make Model Submodel Year
        Chevrolet Silverado 1500 LD Base 2019
        Chevrolet Silverado 1500 LTD Base 2022
        Ford Bronco First Edition 2021
        GMC Sierra 1500 Limited Base 2019
        GMC Sierra 1500 Limited Base 2022
