ICON 22-23 Toyota Tundra 2-3.5" Lift, Stage 14, 2.5 Suspension System, Tubular

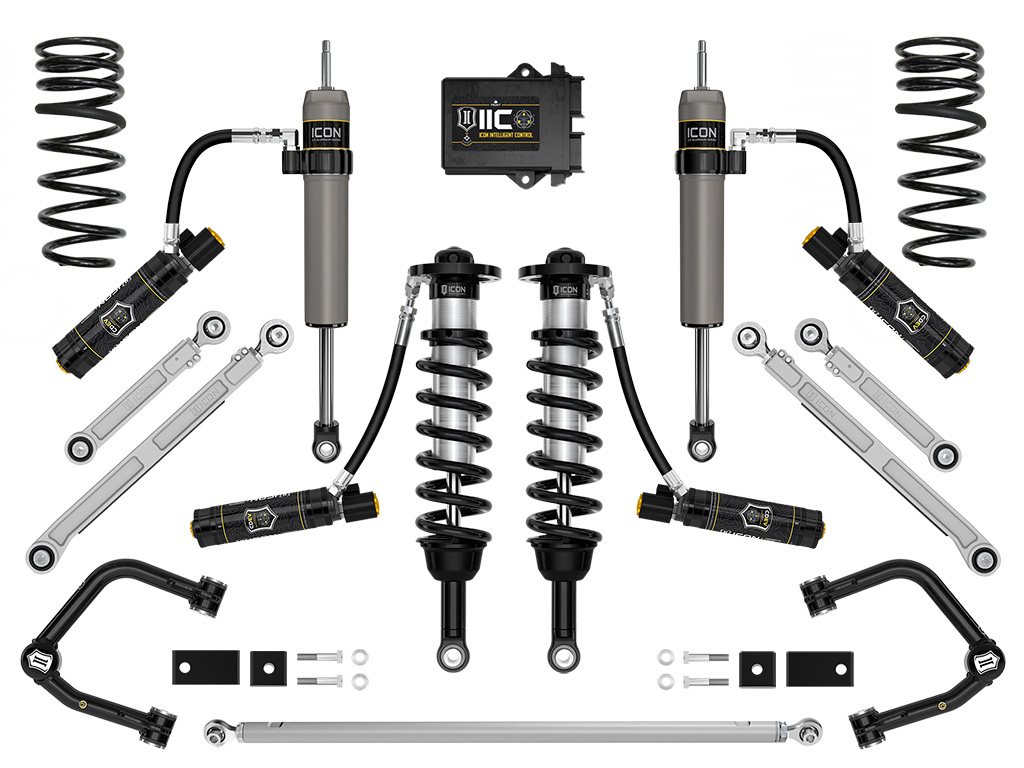

The ICON Vehicle Dynamics Stage 14 complete suspension system for the 2022-2023 Toyota Tundra builds upon the Stage 13 system with the addition of triple rate rear coils springs and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the rear coils and track bar, a 2.5 Series CDEV remote reservoir front coilover shock and tubular steel front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDEV rear remote reservoir shocks with billet upper and lower rear links.; This Stage 14 system features the 2022-2023 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 2-3.5” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.; The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2023 Toyota Tundra with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.; The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstres
