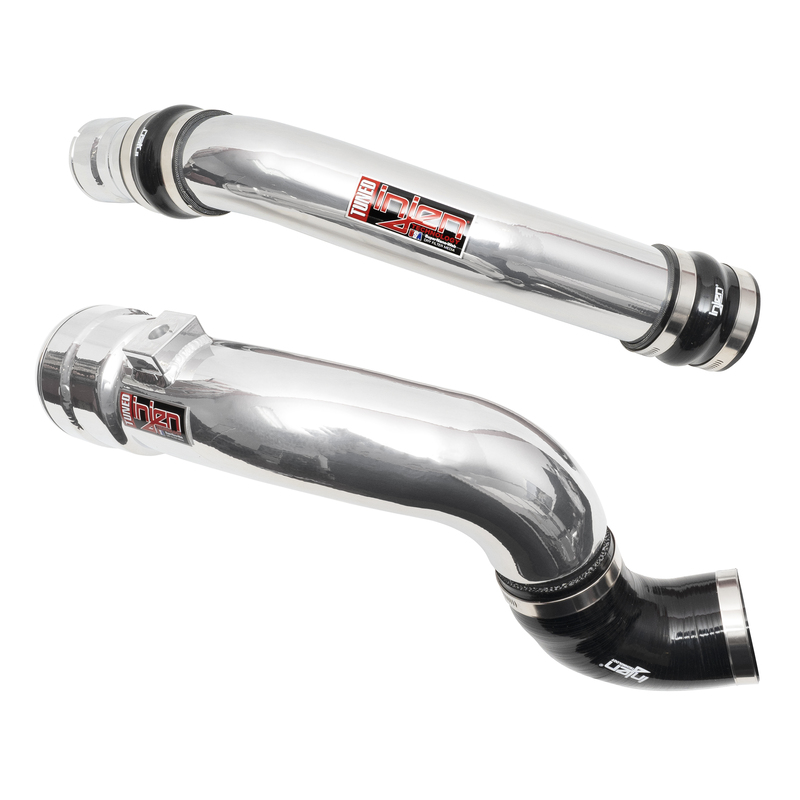

Injen Technology has done it once again with this amazing Charge Pipe system for the 2017-2022 Ford Super Duty Trucks equipped with the 6.7L Power Stroke Diesel. This complete set replaces both the hot side and the cold side charge pipes, giving you a complete engineered set for maximum performance.; This upgraded charge pipe system is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. The Injen hot-side pipe has an ID of 3.00in and the cold side has an ID of 3.25in. By utilizing oversized piping on both the hot side and the cold side, these charge pipes are able to reduce restriction, balance the airflow in and out of the intercooler to improve performance, and lower engine damaging exhaust gas temperatures (EGTs).; Most importantly, the restrictive OEM cold side pipe is prone to splitting without warning. When your OEM system splits, you lose boost pressure and it can leave you stranded at any moment. Take that worry away while adding some performance and longevity to your truck by installing the Injen Technology charge pipe system today!

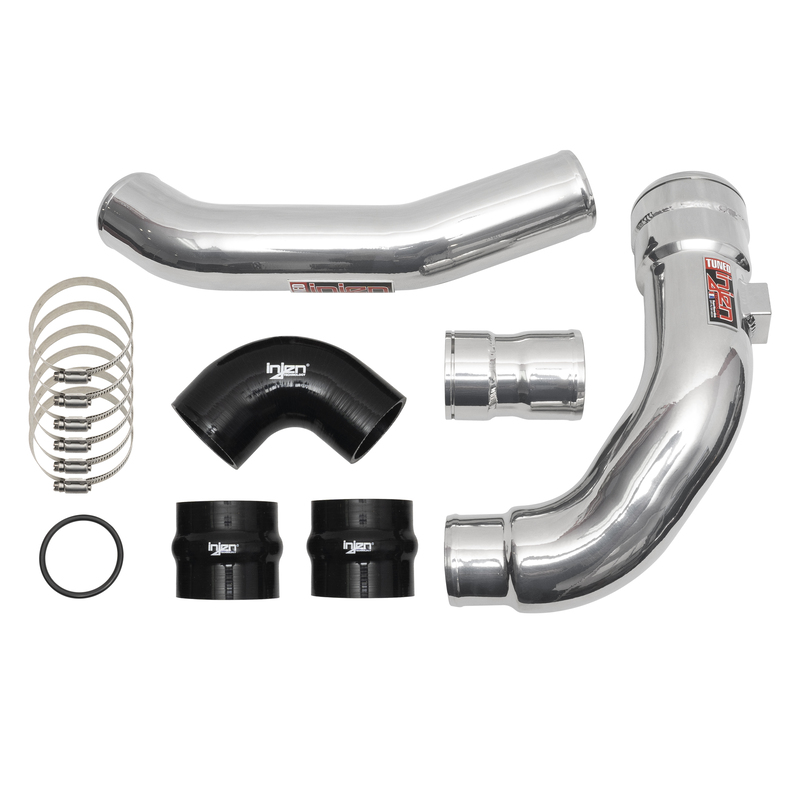

- Complete system including both HOT and COLD side piping
- Pairs perfectly with Injen's EVO9004 cold air intake
- Cold Side Pipe Inside Diameter - 3.250in
- Hot Side Pipe Inside Diameter - 3.00in
- Manufactured from Mandrel-Bent 6061 Aluminum
- Cold side pipe is 2-pieces for easier installation

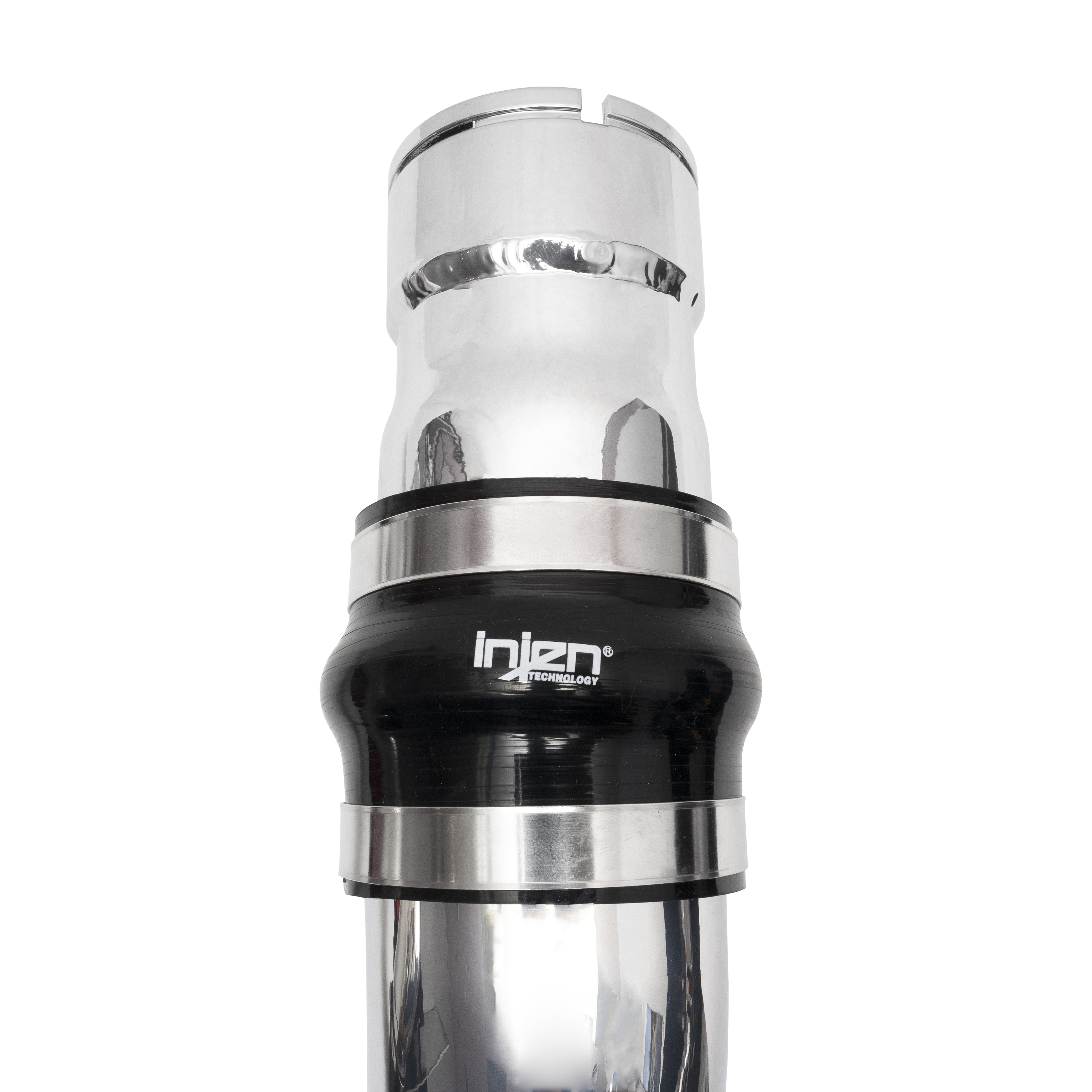

- Precision CNC machined factory-style quick connections utilizing the OE spring clip
- Works seamlessly with the OE intercooler
- Available in three finishes
- Polished - SES9004ICP
- Wrinkle Black ? SES9004ICPWB
- Wrinkle Red ? SES9004ICPWR
- Stainless Steel Band Clamps with Inner Protective Liner
- Automotive Grade Reinforced Silicone Couplers
- Unique Injen Logo Plate for a Refined Style
- Increase Throttle Response and Decreases Turbo Lag
- Beaded Tube Ends to Help Prevent Couplers from Coming Off
- Uses all factory mounting locations
- Includes all necessary hardware for a hassle-free installation
- Made in Pomona California, USA
- Injen Technology Limited Lifetime Warranty
- Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
