        Exhaust Header - 69076

        Part Number:FBLG-69076
        Hedman Hedders
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy truck headers for nearly as long. Whether your cherished truck is powered by a Chevy small block, big block, or LS engine, Hedman Hedders manufactures a header model for you in its Whittier, California manufacturing facility. This set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These HTC coated, MID-LENGTH tube headers fit 1967-74 4WD Blazers, 1/2 ton and 3/4 ton Chevy and GMC trucks, Suburbans with a SB Chevy engine (check the application listings for exact fitment). The smooth 1-5/8 in tube design provides ample exhaust flow to let your Blazer or C10/C20, C15/C25 truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. The MID-LENGTH design of these headers keeps the header connection up, tighter to the body, so you can keep your entire exhaust above the frame rails. </p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, HTC Polished Silver ceramic-metallic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Designed Specifically For 4WD Chevy Blazers and Trucks
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.

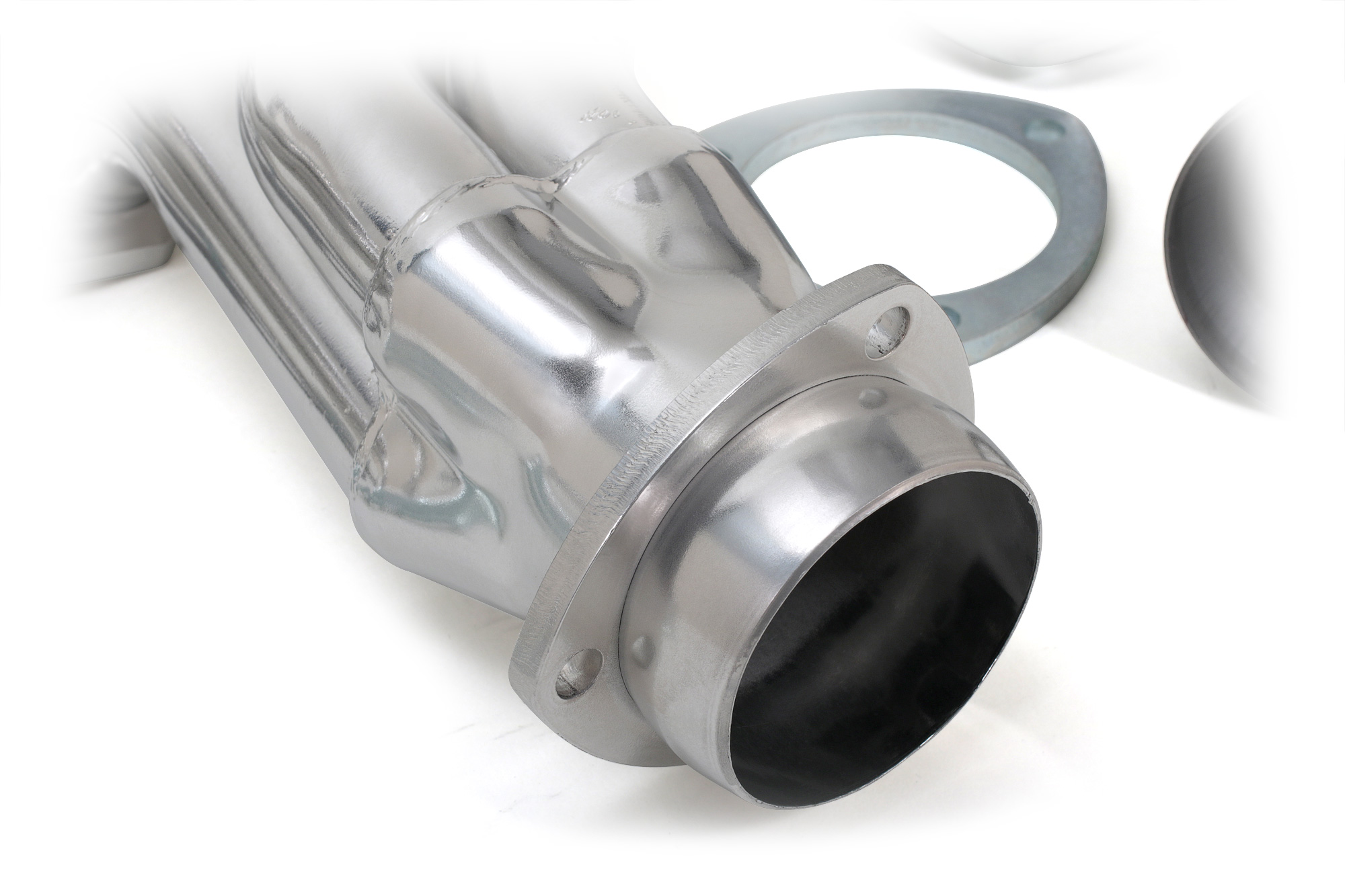

        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors.

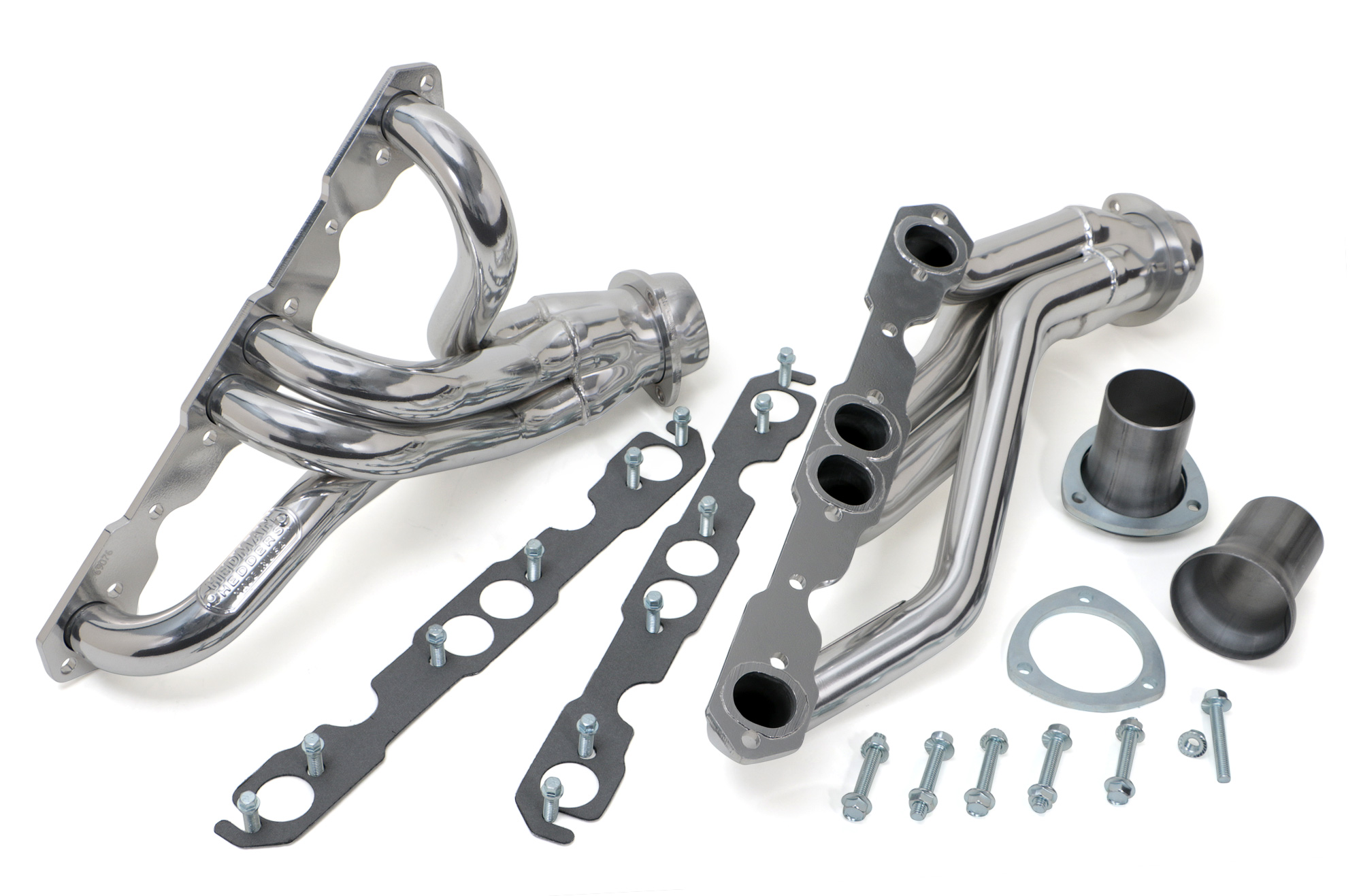

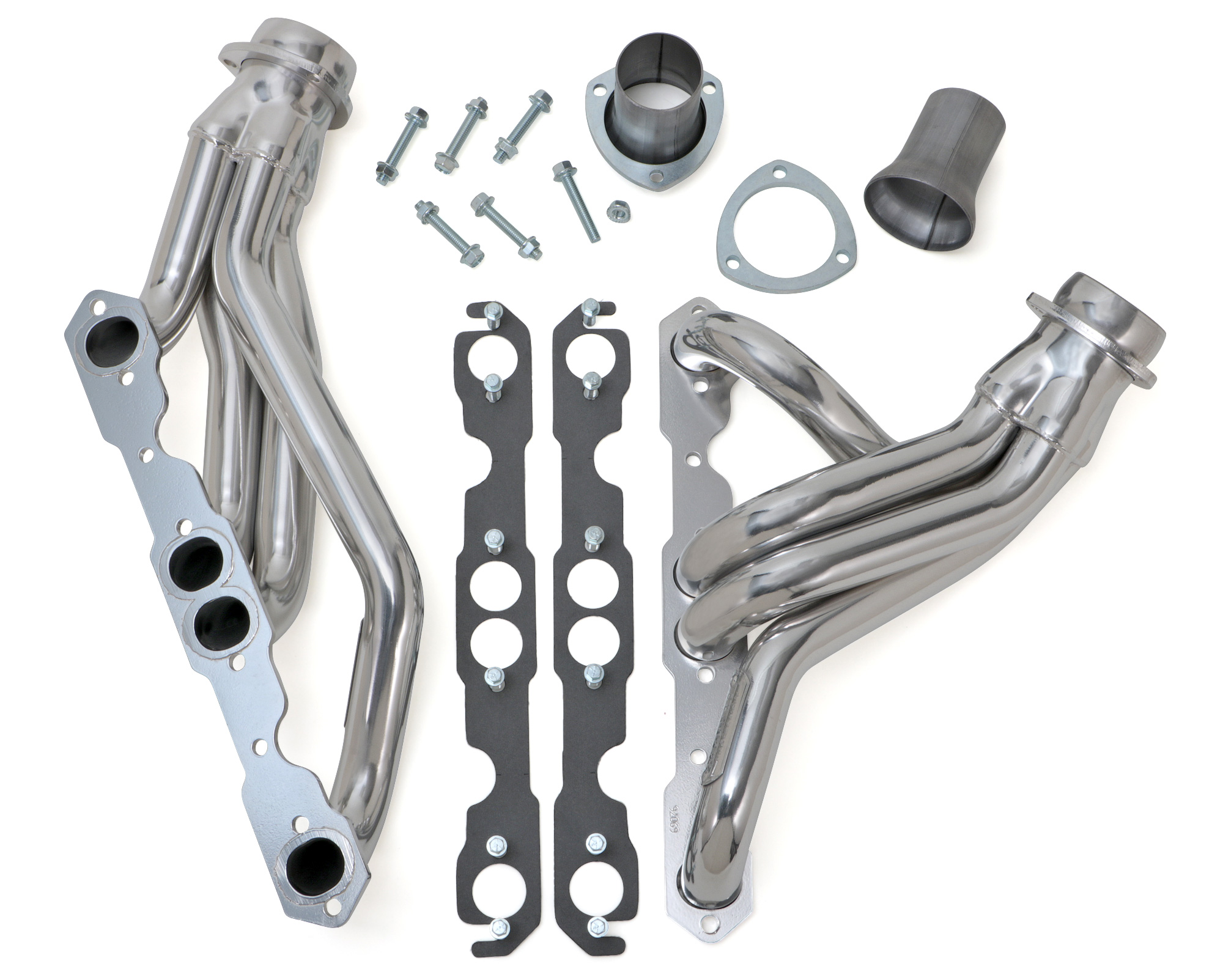

        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!<
        Retail price
        • $588.99
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy truck headers for nearly as long. Whether your cherished truck is powered by a Chevy small block, big block, or LS engine, Hedman Hedders manufactures a header model for you in its Whittier, California manufacturing facility. This set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These HTC coated, MID-LENGTH tube headers fit 1967-74 4WD Blazers, 1/2 ton and 3/4 ton Chevy and GMC trucks, Suburbans with a SB Chevy engine (check the application listings for exact fitment). The smooth 1-5/8 in tube design provides ample exhaust flow to let your Blazer or C10/C20, C15/C25 truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. The MID-LENGTH design of these headers keeps the header connection up, tighter to the body, so you can keep your entire exhaust above the frame rails. </p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, HTC Polished Silver ceramic-metallic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Designed Specifically For 4WD Chevy Blazers and Trucks
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors.
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!<
        Features
          • SKU
            FBLG-69076
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Exhaust System Diameter
            2.5 in.
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Fitment Note
            Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
          • Fitment Note
            NOT For Vehicles with Offset Right Engine Position
          • Fitment Note
            Fits Manual Transmission. Must Use TailShaft Style Crossmember or Modify Factory Crossmember
          • Fitment Note
            Designed for Use with he SB Chevy Engine Located in the Factory Position.
          • Fitment Note
            70-Up: Large Compressor Needs Bracket 20110; Small Compressor, Modify OE Bracket
          • Flange Style
            Standard
          • Flange Thickness
            0.3125 in.
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel
          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.625 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27520
          • Replacement Manifold Gasket Part Number
            27520
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.625 in.
          • Tube Size
            1.625 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Chevrolet Blazer Base 1969
        Chevrolet Blazer Base 1970
        Chevrolet Blazer Base 1971
        Chevrolet Blazer Base 1972
        Chevrolet Blazer Base 1973
        Chevrolet K10 Pickup Base 1967
        Chevrolet K10 Pickup Base 1967
        Chevrolet K10 Pickup Base 1968
        Chevrolet K10 Pickup Base 1968
        Chevrolet K10 Pickup Base 1969
        Chevrolet K10 Pickup Base 1969
        Chevrolet K10 Pickup Base 1969
        Chevrolet K10 Pickup Base 1970
        Chevrolet K10 Pickup Base 1970
        Chevrolet K10 Pickup Base 1971
        Chevrolet K10 Pickup Base 1971
        Chevrolet K10 Pickup Base 1972
        Chevrolet K10 Pickup Base 1972
        Chevrolet K10 Pickup Base 1973
        Chevrolet K10 Pickup Base 1973
        Chevrolet K10 Pickup Base 1974
        Chevrolet K10 Suburban Base 1967
        Chevrolet K10 Suburban Base 1967
        Chevrolet K10 Suburban Base 1968
        Chevrolet K10 Suburban Base 1968
        Chevrolet K10 Suburban Base 1969
        Chevrolet K10 Suburban Base 1969
        Chevrolet K10 Suburban Base 1969
        Chevrolet K10 Suburban Base 1970
        Chevrolet K10 Suburban Base 1970
        Chevrolet K10 Suburban Base 1971
        Chevrolet K10 Suburban Base 1971
        Chevrolet K10 Suburban Base 1972
        Chevrolet K10 Suburban Base 1972
        Chevrolet K10 Suburban Base 1973
        Chevrolet K10 Suburban Base 1973
        Chevrolet K10 Suburban Base 1974
        Chevrolet K20 Pickup Base 1967
        Chevrolet K20 Pickup Base 1967
        Chevrolet K20 Pickup Base 1968
        Chevrolet K20 Pickup Base 1968
        Chevrolet K20 Pickup Base 1969
        Chevrolet K20 Pickup Base 1969
        Chevrolet K20 Pickup Base 1969
        Chevrolet K20 Pickup Base 1970
        Chevrolet K20 Pickup Base 1970
        Chevrolet K20 Pickup Base 1971
        Chevrolet K20 Pickup Base 1971
        Chevrolet K20 Pickup Base 1972
        Chevrolet K20 Pickup Base 1972
        Chevrolet K20 Pickup Base 1973
        Chevrolet K20 Pickup Base 1973
        Chevrolet K20 Pickup Base 1974
        Chevrolet K20 Suburban Base 1967
        Chevrolet K20 Suburban Base 1967
        Chevrolet K20 Suburban Base 1968
        Chevrolet K20 Suburban Base 1968
        Chevrolet K20 Suburban Base 1969
        Chevrolet K20 Suburban Base 1969
        Chevrolet K20 Suburban Base 1969
        Chevrolet K20 Suburban Base 1970
        Chevrolet K20 Suburban Base 1970
        Chevrolet K20 Suburban Base 1971
        Chevrolet K20 Suburban Base 1971
        Chevrolet K20 Suburban Base 1972
        Chevrolet K20 Suburban Base 1972
        Chevrolet K20 Suburban Base 1973
        Chevrolet K20 Suburban Base 1973
        Chevrolet K20 Suburban Base 1974
        GMC Jimmy Base 1970
        GMC Jimmy Base 1971
        GMC Jimmy Base 1972
        GMC Jimmy Base 1973
        GMC K15/K1500 Pickup Base 1967
        GMC K15/K1500 Pickup Base 1967
        GMC K15/K1500 Pickup Base 1968
        GMC K15/K1500 Pickup Base 1968
        GMC K15/K1500 Pickup Base 1969
        GMC K15/K1500 Pickup Base 1969
        GMC K15/K1500 Pickup Base 1970
        GMC K15/K1500 Pickup Base 1970
        GMC K15/K1500 Pickup Base 1971
        GMC K15/K1500 Pickup Base 1971
        GMC K15/K1500 Pickup Base 1972
        GMC K15/K1500 Pickup Base 1972
        GMC K15/K1500 Pickup Base 1973
        GMC K15/K1500 Pickup Base 1973
        GMC K15/K1500 Pickup Base 1974
        GMC K15/K1500 Suburban Base 1967
        GMC K15/K1500 Suburban Base 1967
        GMC K15/K1500 Suburban Base 1968
        GMC K15/K1500 Suburban Base 1968
        GMC K15/K1500 Suburban Base 1969
        GMC K15/K1500 Suburban Base 1969
        GMC K15/K1500 Suburban Base 1970
        GMC K15/K1500 Suburban Base 1970
        GMC K15/K1500 Suburban Base 1971
        GMC K15/K1500 Suburban Base 1971
        GMC K15/K1500 Suburban Base 1972
        GMC K15/K1500 Suburban Base 1972
        GMC K15/K1500 Suburban Base 1973
        GMC K15/K1500 Suburban Base 1973
        GMC K15/K1500 Suburban Base 1974
        GMC K25/K2500 Pickup Base 1967
        GMC K25/K2500 Pickup Base 1967
        GMC K25/K2500 Pickup Base 1968
        GMC K25/K2500 Pickup Base 1968
        GMC K25/K2500 Pickup Base 1969
        GMC K25/K2500 Pickup Base 1969
        GMC K25/K2500 Pickup Base 1970
        GMC K25/K2500 Pickup Base 1970
        GMC K25/K2500 Pickup Base 1971
        GMC K25/K2500 Pickup Base 1971
        GMC K25/K2500 Pickup Base 1972
        GMC K25/K2500 Pickup Base 1972
        GMC K25/K2500 Pickup Base 1973
        GMC K25/K2500 Pickup Base 1973
        GMC K25/K2500 Pickup Base 1974
        GMC K25/K2500 Suburban Base 1967
        GMC K25/K2500 Suburban Base 1967
        GMC K25/K2500 Suburban Base 1968
        GMC K25/K2500 Suburban Base 1968
        GMC K25/K2500 Suburban Base 1969
        GMC K25/K2500 Suburban Base 1969
        GMC K25/K2500 Suburban Base 1970
        GMC K25/K2500 Suburban Base 1970
        GMC K25/K2500 Suburban Base 1971
        GMC K25/K2500 Suburban Base 1971
        GMC K25/K2500 Suburban Base 1972
        GMC K25/K2500 Suburban Base 1972
        GMC K25/K2500 Suburban Base 1973
        GMC K25/K2500 Suburban Base 1973
        GMC K25/K2500 Suburban Base 1974
