        LEED Brakes master cylinder, 15/16 in. bore 4 bolt flange

        Part Number:HBCJ-491
        Leed Brakes

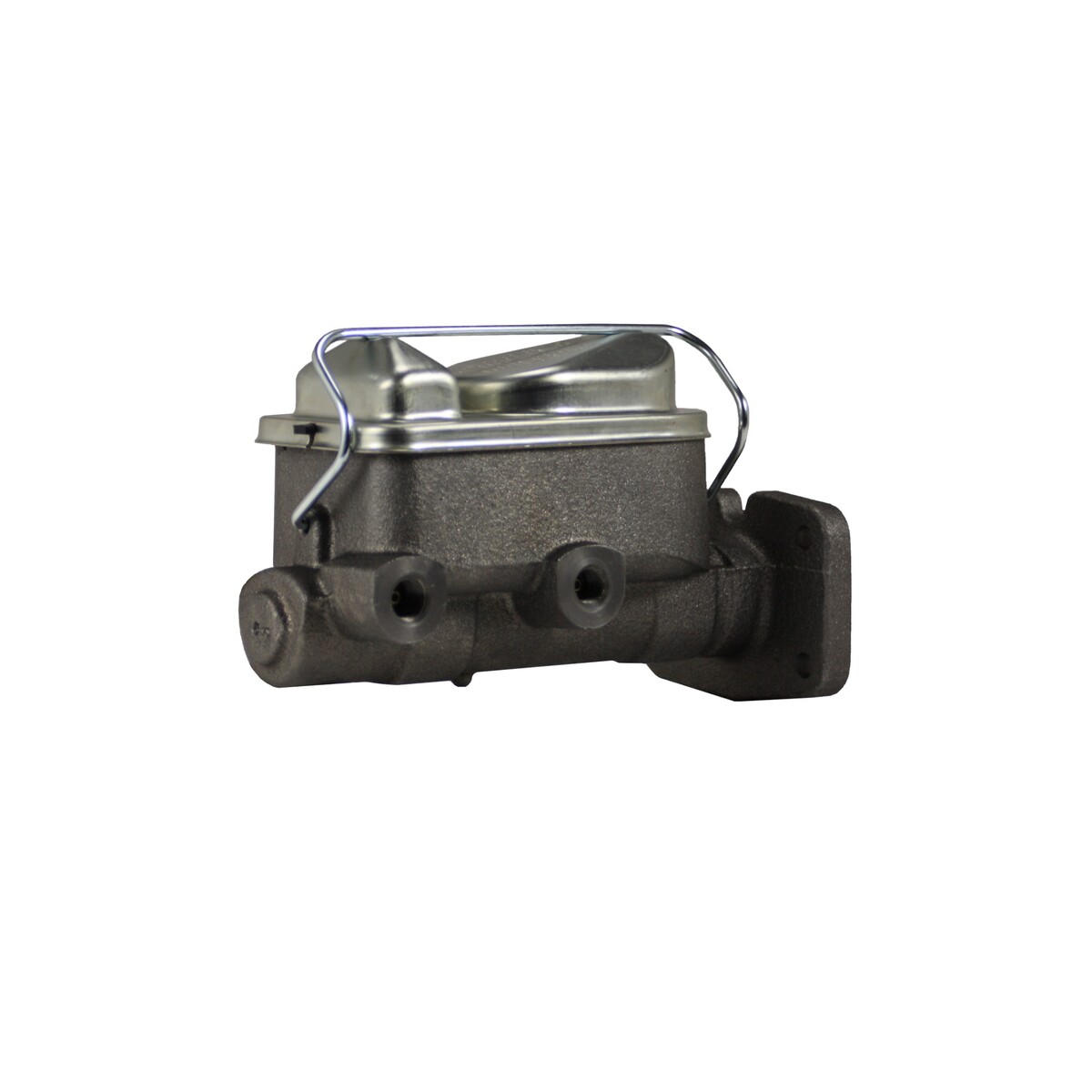

        New 15/16" bore manual Mopar brake master cylinder with left side outlets, 1/2-20 & 9/16-20 outlets. This master cylinder can be used as replacement for factory disc brake cars and for disc brake conversions.
        • New unit not remanufactured
        • THE LEED BRAKES DIFFERENCE
        Retail price
        • $109.95
        Overview
        New 15/16" bore manual Mopar brake master cylinder with left side outlets, 1/2-20 & 9/16-20 outlets. This master cylinder can be used as replacement for factory disc brake cars and for disc brake conversions.
        • New unit not remanufactured
        • THE LEED BRAKES DIFFERENCE
        Features
          • SKU
            HBCJ-491
          • Brand
            Leed Brakes
          • Bleeder Hoses Included
            Yes
          • Brake Booster Included
            No
          • Dust Boot Included
            No
          • Gasket or Seal Included
            Yes
          • Master Cylinder Bore Diameter
            0.937 in.
          • Master Cylinder Bore Size
            0.94 in.
          • Master Cylinder Cap Included
            Yes
          • Master Cylinder Finish
            Raw
          • Master Cylinder Included
            Yes
          • Master Cylinder Material
            Cast Iron
          • Mounting Bracket Included
            No
          • Mounting Hardware
            Utilizes OEM Hardware
          • Mounting Hole Quantity
            2
          • Port Quantity
            2
          • Primary Outlet (Threads Per Inch)
            24
          • Primary Outlet Thread Diameter
            0.38 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Push Rod Included
            No
          • Reservoir Included
            Yes
          • Reservoir Material
            Cast Iron
          • Secondary Outlet (Threads Per Inch)
            20
          • Secondary Outlet Thread Diameter
            0.5 in.
          • Sensor Included
            No
        Fitment
        Make Model Submodel Year
        No Results
