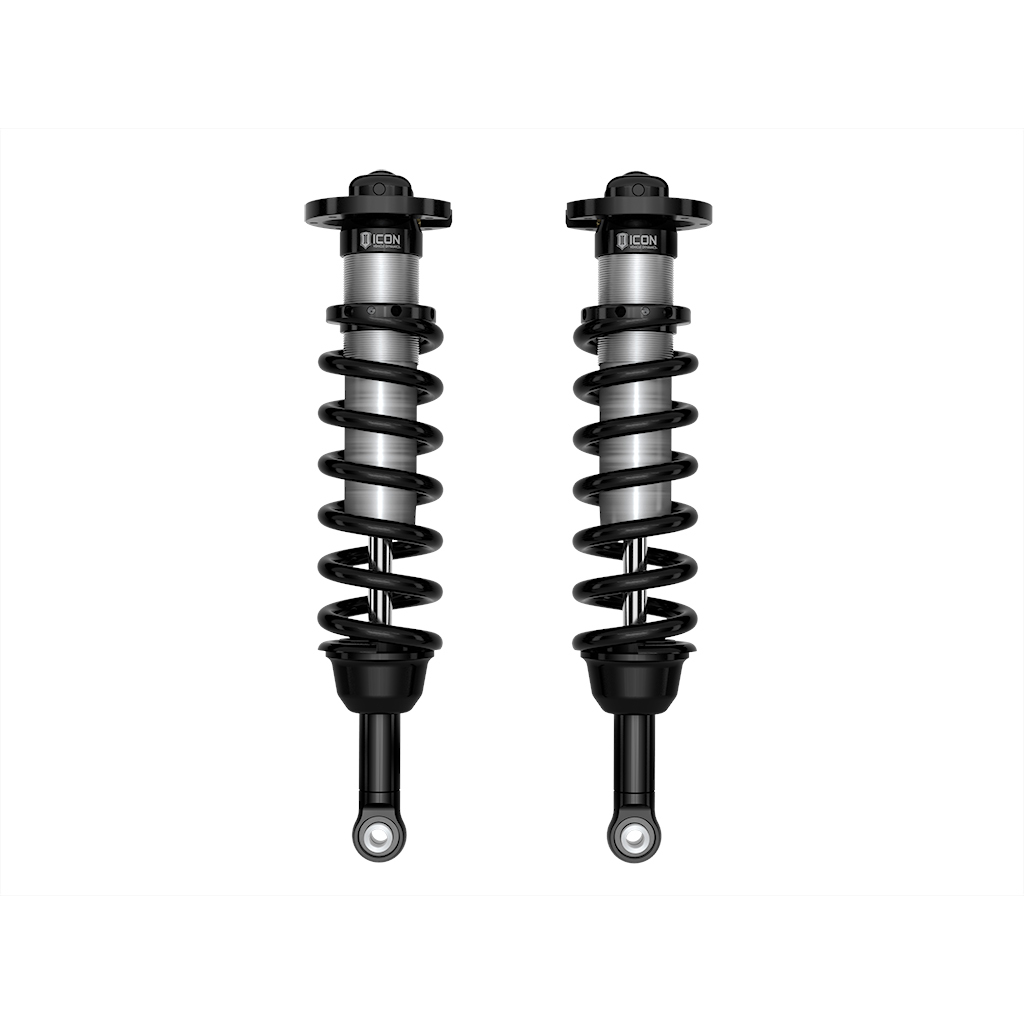

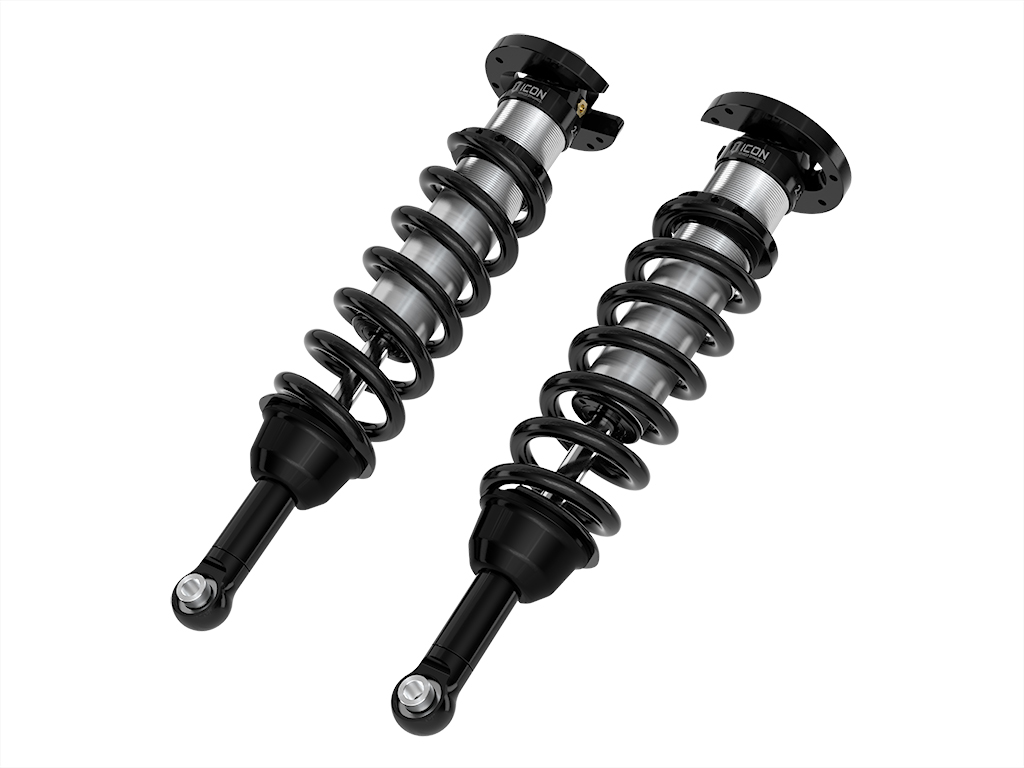

        ICON 22-23 Tundra 1.25-3.5" Lift/23 Sequoia 3-4.5" Lift, 2.5 Front CO Kit, Pair

        Part Number:FRDK-58670
        ICON Vehicle Dynamics
        ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra and 2023 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on a Tundra or 3-4.5" of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
        • Increased wheel travel and improved ride quality over stock
        • Vehicle specific tuned for superior shock damping and control
        • Adjustable ride height offers 1.25-3.5" of front lift over stock on Tundra or 3-4.5" of front lift over stock on Sequoia
        • ICON engineered coil springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        • FK rod end bearings for extended longevity and minimal deflection
        • Fully rebuildable and re-tunable
        Retail price
        • $1,730.35
        Overview
        ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra and 2023 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on a Tundra or 3-4.5" of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
        • Increased wheel travel and improved ride quality over stock
        • Vehicle specific tuned for superior shock damping and control
        • Adjustable ride height offers 1.25-3.5" of front lift over stock on Tundra or 3-4.5" of front lift over stock on Sequoia
        • ICON engineered coil springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        • FK rod end bearings for extended longevity and minimal deflection
        • Fully rebuildable and re-tunable
        Features
          • SKU
            FRDK-58670
          • Brand
            ICON Vehicle Dynamics
          • Adjustable Height
            Yes
          • Boot Included
            No
          • Dust Shield Included
            No
          • Fitment Note
            Does fit OEM Wheels and Tires
          • Grade Type
            Performance
          • Material
            Aluminum
          • Material
            Steel
          • Maximum Lift
            3.5 in.
          • Recommended Aftermarket Tires
            35.0 in. X 12.5 in. (Minor Fender Trimming and Modifications may be Required)
          • Recommended Aftermarket Wheels
            17x8.5 in. with 5.75 in. Backspace and 25 mm Offset
          • Spring Color
            Black
          • Spring Material
            Steel
        Fitment
        Make Model Submodel Year
        Toyota Sequoia TRD Off-Road 2023
        Toyota Tundra 1794 Edition 2024
        Toyota Tundra 1794 Edition 2024
        Toyota Tundra 1794 Edition 2024
        Toyota Tundra Limited TRD Off-Road 2022
        Toyota Tundra Platinum 1794 Edition 2022
        Toyota Tundra SR TRD Off-Road 2022
        Toyota Tundra SR5 TRD Off-Road 2022
