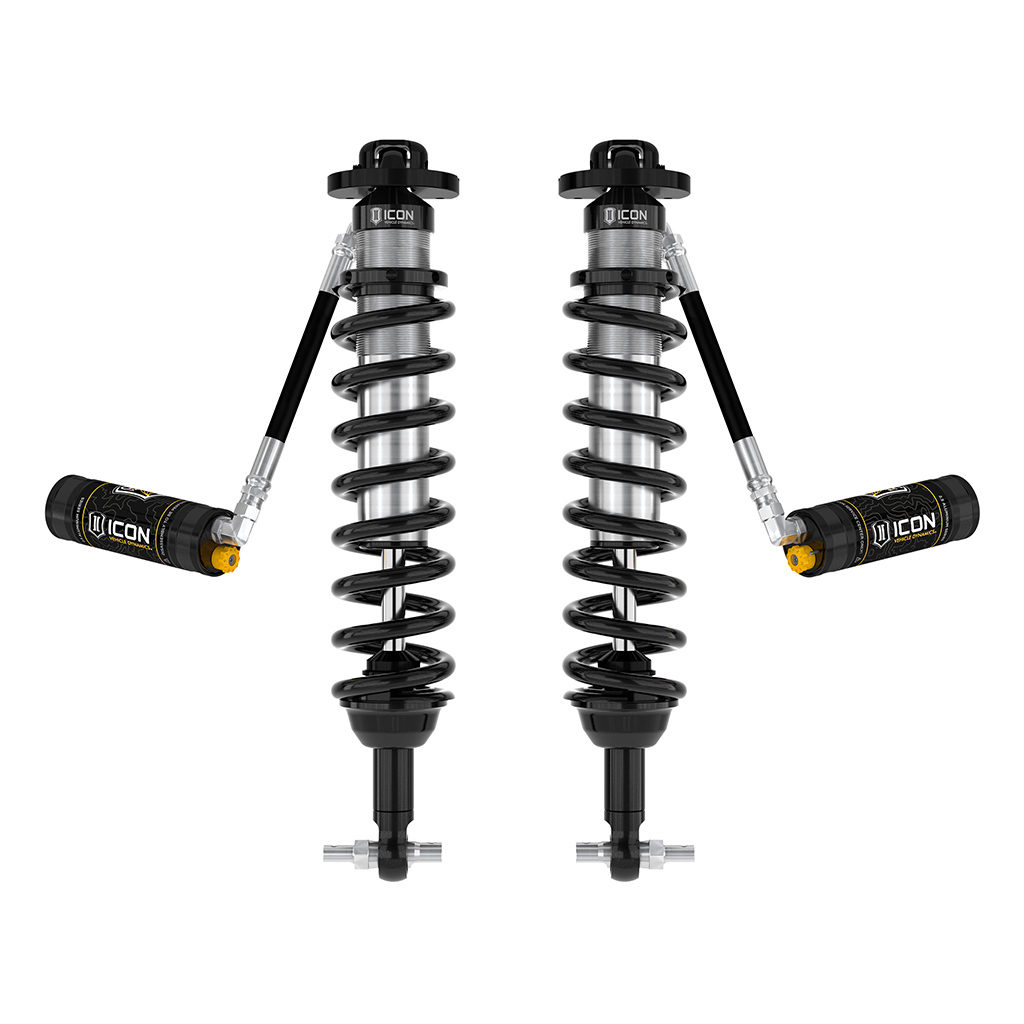

        ICON 2021-2023 Ford Bronco, Front, 1.5-4” Lift, 2.5 VS RR/CDCV Coilover Kit

        Part Number:FRDK-48700C
        ICON Vehicle Dynamics
        ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDCV are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
        • Increased wheel travel (up to 11.5”) and ride quality over stock
        • High strength alloy CNC machined lower bar pin
        • Fully rebuildable and re-tunable
        • 100% Bolt-on - no drilling, cutting or welding necessary for installation
        • Vehicle specific tuned for superior shock damping and control
        • Remote reservoirs maintain cooler operating temperatures during extended off-road use
        • ICON CDCV equipped for 10 settings of external compression damping adjustment
        • Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
        • ICON engineered coil springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        • FK rod end bearings for extended longevity and minimal deflection
        Retail price
        • $2,487.40
        Overview
        ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDCV are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
        • Increased wheel travel (up to 11.5”) and ride quality over stock
        • High strength alloy CNC machined lower bar pin
        • Fully rebuildable and re-tunable
        • 100% Bolt-on - no drilling, cutting or welding necessary for installation
        • Vehicle specific tuned for superior shock damping and control
        • Remote reservoirs maintain cooler operating temperatures during extended off-road use
        • ICON CDCV equipped for 10 settings of external compression damping adjustment
        • Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
        • ICON engineered coil springs
        • 6061 Aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
        • FK rod end bearings for extended longevity and minimal deflection
        Features
          • SKU
            FRDK-48700C
          • Brand
            ICON Vehicle Dynamics
          • Adjustable Height
            Yes
          • Boot Included
            No
          • Dust Shield Included
            No
          • Fitment Note
            Does fit OEM Wheels and Tires
          • Grade Type
            Performance
          • Material
            Aluminum
          • Material
            Steel
          • Maximum Lift
            4.0 in.
          • Spring Color
            Black
          • Spring Material
            Steel
        Fitment
        Make Model Submodel Year
        Ford Bronco First Edition 2021
        Ford Bronco Heritage Edition 2023
        Ford Bronco Heritage Limited Edition 2023
