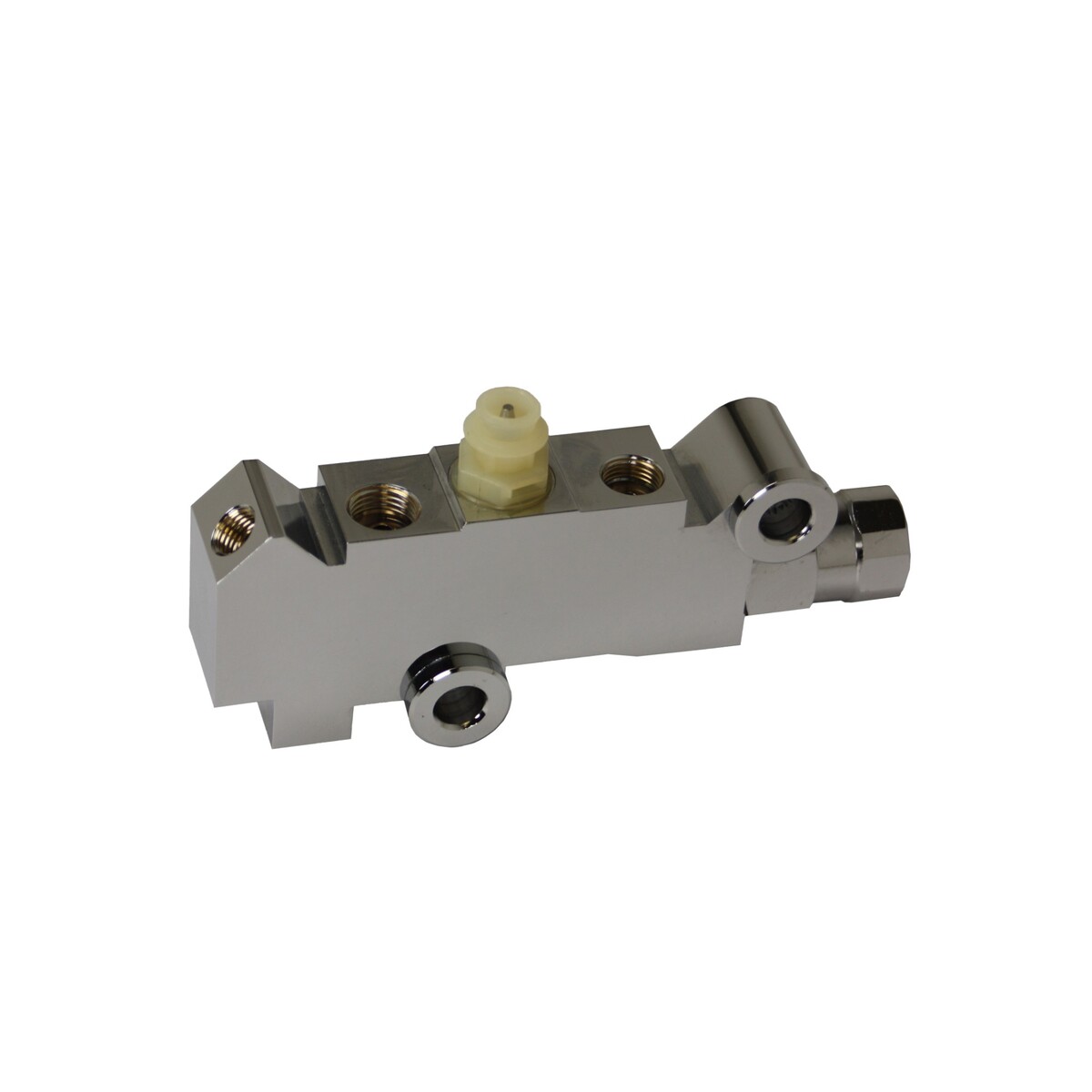

        LEED Brakes Proportioning Valve - Disc/Disc Chrome

        Part Number:HBCJ-PV4_C
        Leed Brakes
        Add safety to your brake system with this 4 wheel disc brake chrome proportioning valve. When upgrading to a dual bowl master cylinder is it always wise to add a universal proportioning valve equipped with a safety switch. The safety switch built into this valve senses when your brake system is producing unequal or lower pressure to one or more of the wheels, usually caused by a component failure. When the valve senses this drop or change in pressure it will cut off the pressure to the port supplying fluid to the defective brakes, thus stopping the leak. At this point you have noticed a change in your pedal feel, your brakes stopping ability and possibly the warning light on your dashboard. You will now be able to safely pull the vehicle off the road without causing harm to you or your vehicle. Without this 4 wheel disc brake proportioning valve installed if a component fails on your vehicle your brake pedal will drop to the floor as you pump the pedal with little to no braking. Brakes are the most important component on your vehicle, do it right the first time, be safe.
        • Manufactured to OE specifications
        • THE LEED BRAKES DIFFERENCE
        Retail price
        • $94.95
        Overview
        Add safety to your brake system with this 4 wheel disc brake chrome proportioning valve. When upgrading to a dual bowl master cylinder is it always wise to add a universal proportioning valve equipped with a safety switch. The safety switch built into this valve senses when your brake system is producing unequal or lower pressure to one or more of the wheels, usually caused by a component failure. When the valve senses this drop or change in pressure it will cut off the pressure to the port supplying fluid to the defective brakes, thus stopping the leak. At this point you have noticed a change in your pedal feel, your brakes stopping ability and possibly the warning light on your dashboard. You will now be able to safely pull the vehicle off the road without causing harm to you or your vehicle. Without this 4 wheel disc brake proportioning valve installed if a component fails on your vehicle your brake pedal will drop to the floor as you pump the pedal with little to no braking. Brakes are the most important component on your vehicle, do it right the first time, be safe.
        • Manufactured to OE specifications
        • THE LEED BRAKES DIFFERENCE
        Features
          • SKU
            HBCJ-PV4_C
          • Brand
            Leed Brakes
          • Adjustment Type
            Fixed
          • Color
            Chrome
          • Grade Type
            Standard
          • Inlet Attachment
            (Front) 1/2-20, (Rear) 7/16-24
          • Inlet Port Inside Diameter
            1/2 - 20 UNF, 7/16 - 24
          • Inlet Port Quantity
            2
          • Inlet Quantity
            2
          • Length
            5.4 in.
          • Material
            Brass
          • Maximum Height
            1.9 in.
          • Mounting Bracket Included
            No
          • Mounting Hole Quantity
            2
          • Outlet Port Inside Diameter
            3/8 - 24 UNF, 9/16 - 18 UNF
          • Outlet Port Quantity
            3
          • Outlet Quantity
            3
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Terminal Quantity
            1
          • Terminal Type
            Pin
          • Width
            1.125 in.
        Fitment
        Make Model Submodel Year
        No Results
