        LEED Brakes Manual Front Kit with Plain Rotors and Zinc Plated Calipers

        Part Number:HBCJ-FC5001-405
        Leed Brakes

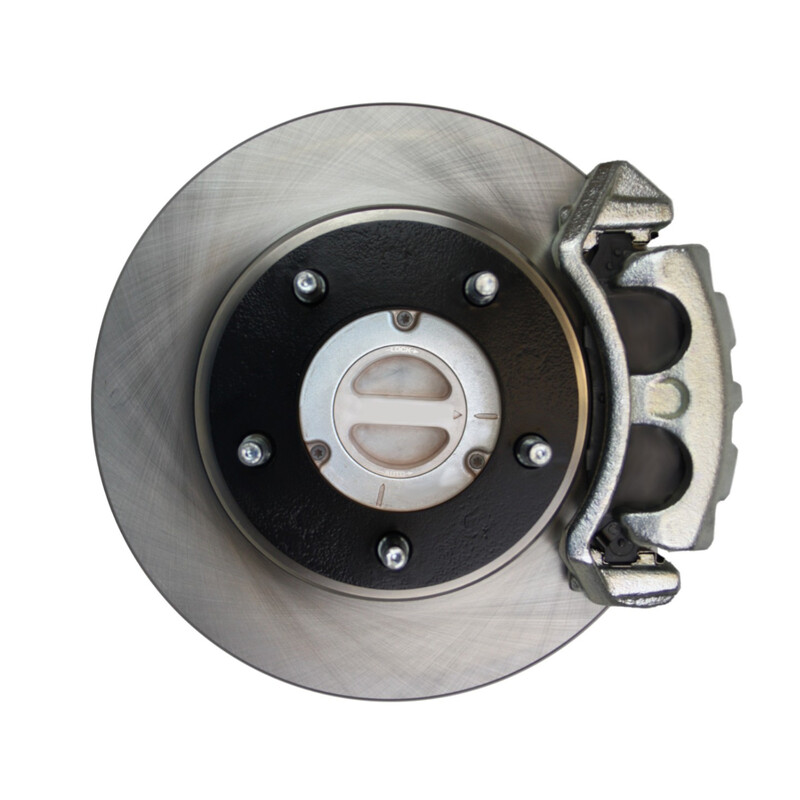

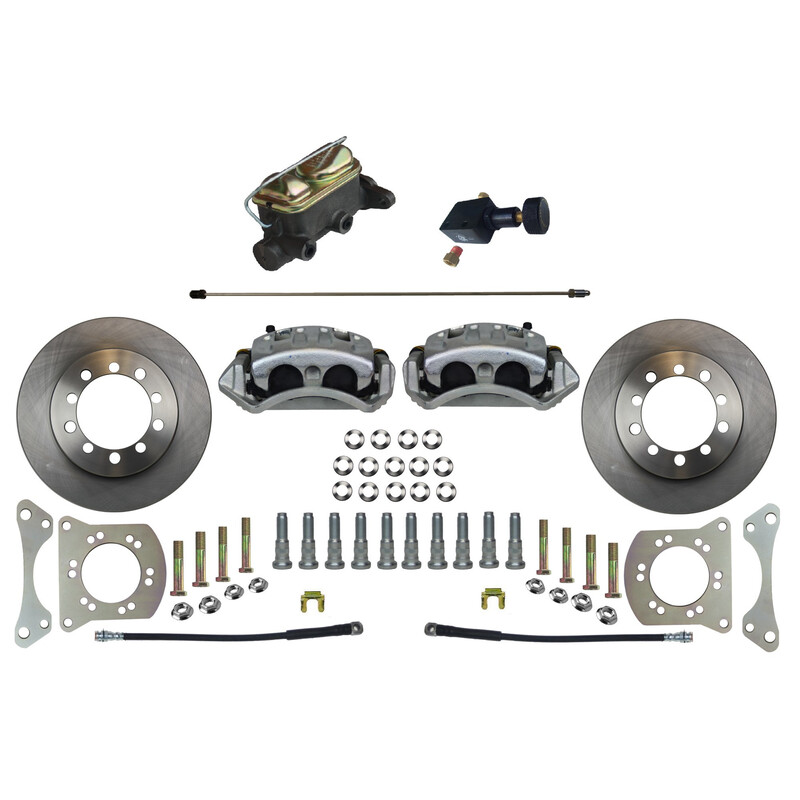

        Add the safety, reliability and performance of disc brakes to your truck with our drum to manual disc brake conversion. In this kit you receive everything you need to mount Ford 2 piston disc brakes to the original drum brake knuckles currently on your vehicle. This kit is an easy installation mounting to all factory mounting locations. This kit requires no modifications to the knuckle and even works with factory and factory replacement lock out hubs. All components used in these kits are new high quality, precision machined products. A great kit with a factory look and easy installation!
        • Bolts to factory drum brake spindles
        • THE LEED BRAKES DIFFERENCE
        • Includes new 2 piston calipers and 12" rotors
        Retail price
        • $1,095.95
        Overview
        Add the safety, reliability and performance of disc brakes to your truck with our drum to manual disc brake conversion. In this kit you receive everything you need to mount Ford 2 piston disc brakes to the original drum brake knuckles currently on your vehicle. This kit is an easy installation mounting to all factory mounting locations. This kit requires no modifications to the knuckle and even works with factory and factory replacement lock out hubs. All components used in these kits are new high quality, precision machined products. A great kit with a factory look and easy installation!
        • Bolts to factory drum brake spindles
        • THE LEED BRAKES DIFFERENCE
        • Includes new 2 piston calipers and 12" rotors
        Features
          • SKU
            HBCJ-FC5001-405
          • Brand
            Leed Brakes
          • Brake Pad Material
            Semi-Metallic

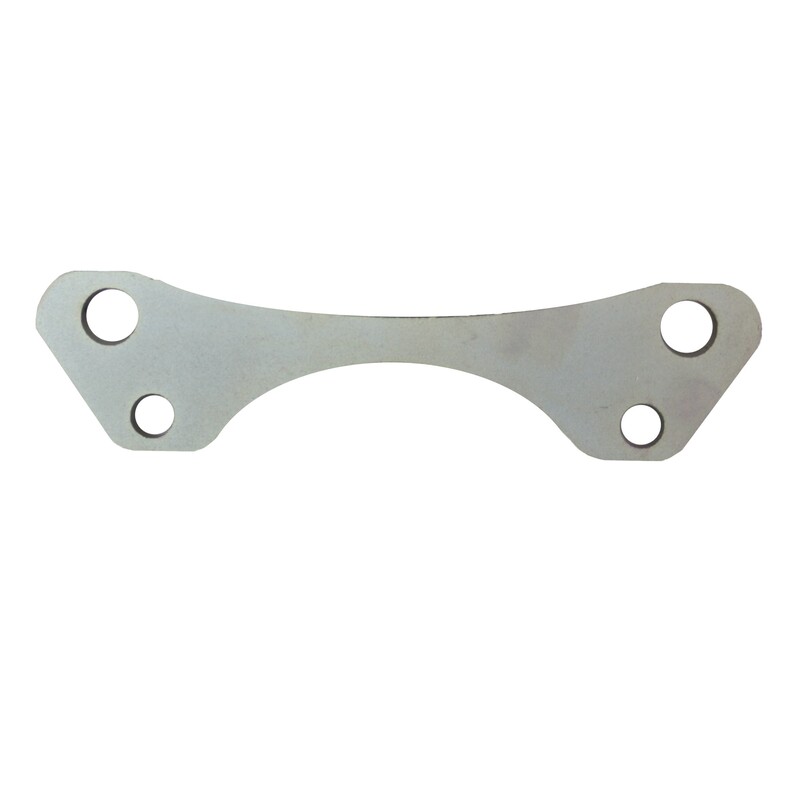

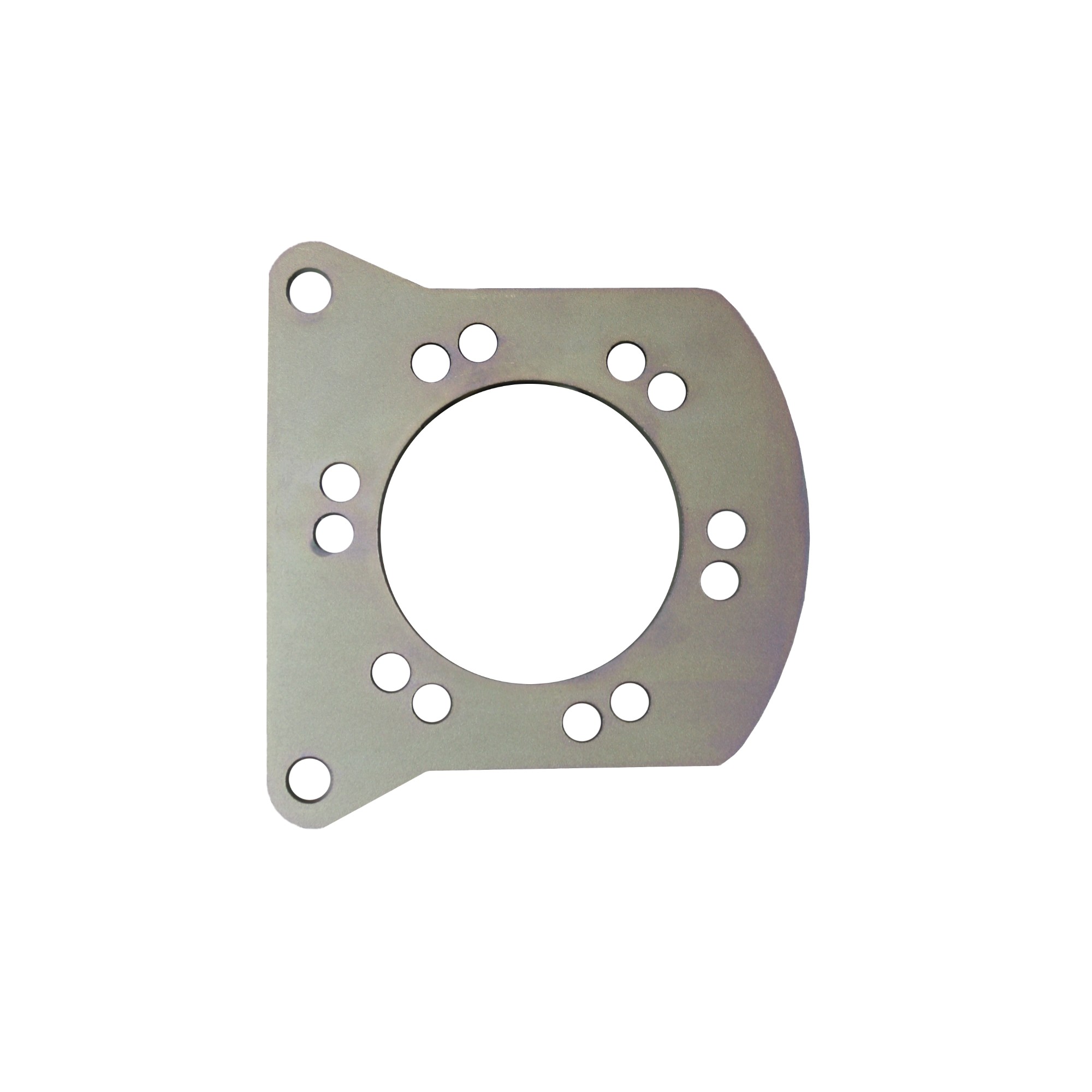

          • Caliper Bracket Color
            Silver
          • Caliper Bracket Material
            Steel
          • Caliper Bracket Mount Hole Center To Center Length
            6.0 in.
          • Caliper Bracket Mount Hole Diameter
            7/16 - 20 UNF

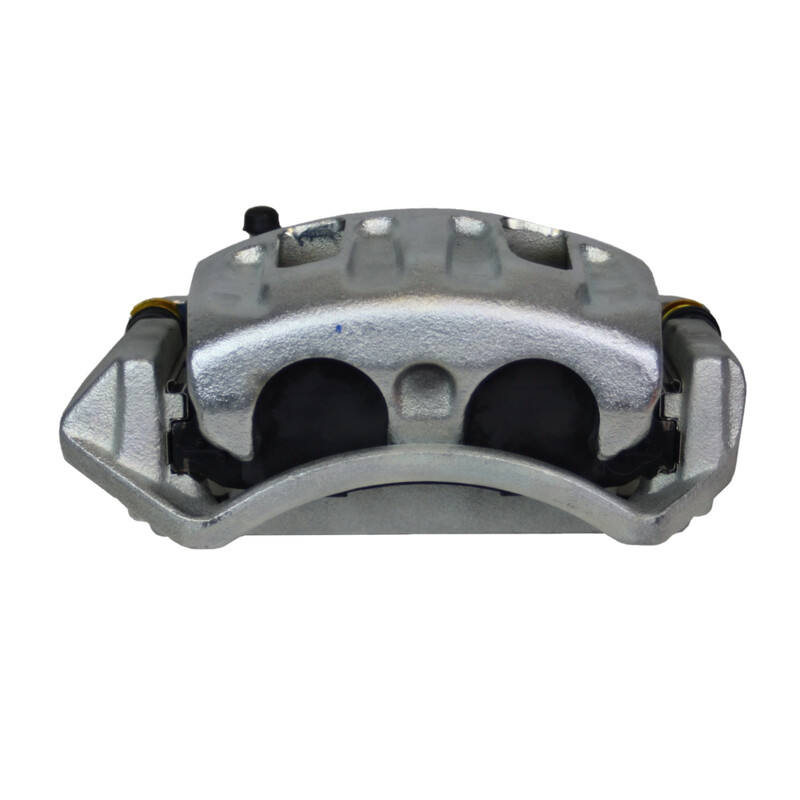

          • Caliper Finish
            Zinc Plated
          • Caliper Material
            Cast Iron
          • Caliper Piston Quantity
            2
          • Disc Brake Rotor Type
            Vented
          • Flex Hose 1 Bracket
            Is not Attached
          • Flex Hose 1 Length
            15.75 in.
          • Flex Hose 2 Bracket
            Is not Attached
          • Flex Hose End 2 Thread Diameter
            0.38 in.
          • Flex Hose Fitting Gender - End 1
            Female
          • Flex Hose Fitting Gender - End 2
            Banjo
          • Flex Hose Thread Diameter - End 1
            3/8 - 24 UNF
          • Grade Type
            Standard
          • Includes Brake Booster
            No
          • Includes Brake Lines
            No
          • Includes Brake Rotor
            Yes
          • Includes Caliper
            Yes
          • Includes Caliper Slides
            Yes
          • Includes Master Cylinder
            Yes
          • Includes Spindles
            No - Fits Stock Drum Brake Spindle

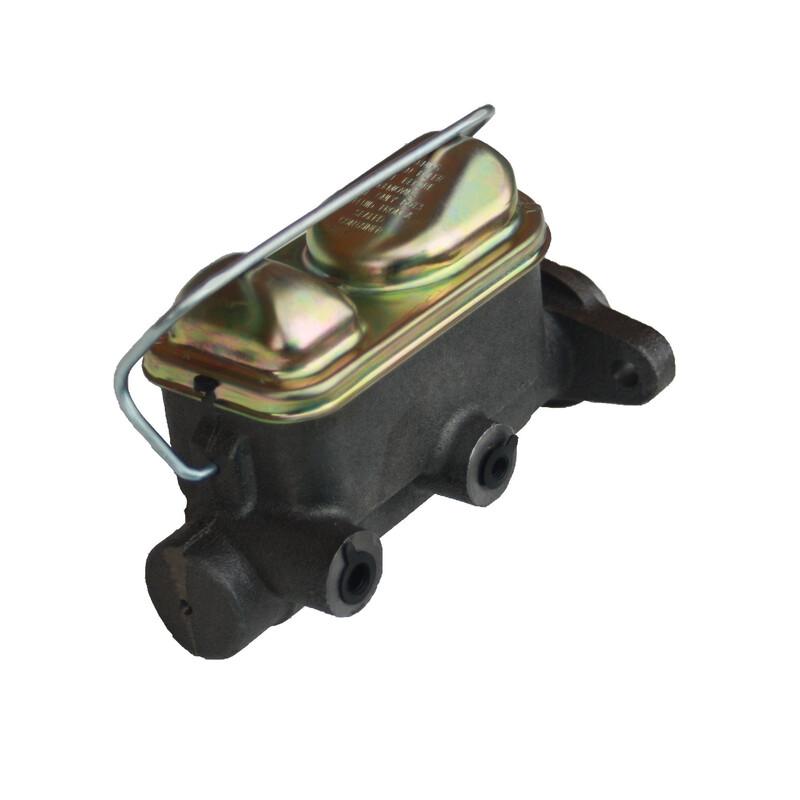

          • Master Cylinder Bore Size
            1.0 in.
          • Master Cylinder Finish
            Raw
          • Master Cylinder Material
            Cast Iron
          • Minimum Recommended Wheel Diameter
            15 in.
          • Position
            Front
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Prop 65 - Type
            Cancer and Reproductive
          • Prop 65 - Warning Image Label
            Prop 65 sticker web use.png

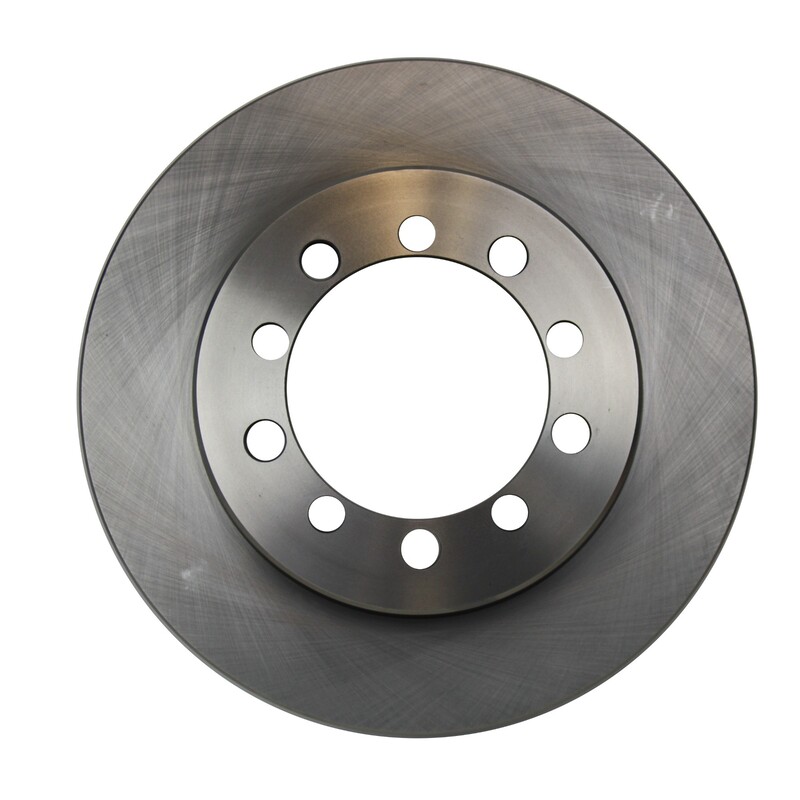

          • Rotor Diameter
            12.12 in.
          • Rotor Finish
            Raw
          • Rotor Material
            Cast Iron
          • Rotor Material
            Cast Iron
          • Rotor Outside Diameter
            12.12 in.
          • Rotor Style
            Smooth
          • Rotor Style
            Standard
          • Rotor Thickness
            1.025 in.
          • Rotor Thickness
            1.025 in.
          • Wheel Lug Hole Quantity
            5
        Fitment
        Make Model Submodel Year
        Ford Bronco Base 1966
        Ford Bronco Base 1967
        Ford Bronco Base 1968
        Ford Bronco Base 1969
        Ford Bronco Base 1970
        Ford Bronco Base 1971
        Ford Bronco Base 1972
        Ford Bronco Base 1973
        Ford Bronco Base 1974
        Ford Bronco Base 1975
