        LEED Brakes Manual 2" Drop Spindle Kit with Drilled Rotors and Zinc Plated Calipers

        Part Number:HBCJ-FC1003-E05X
        Leed Brakes

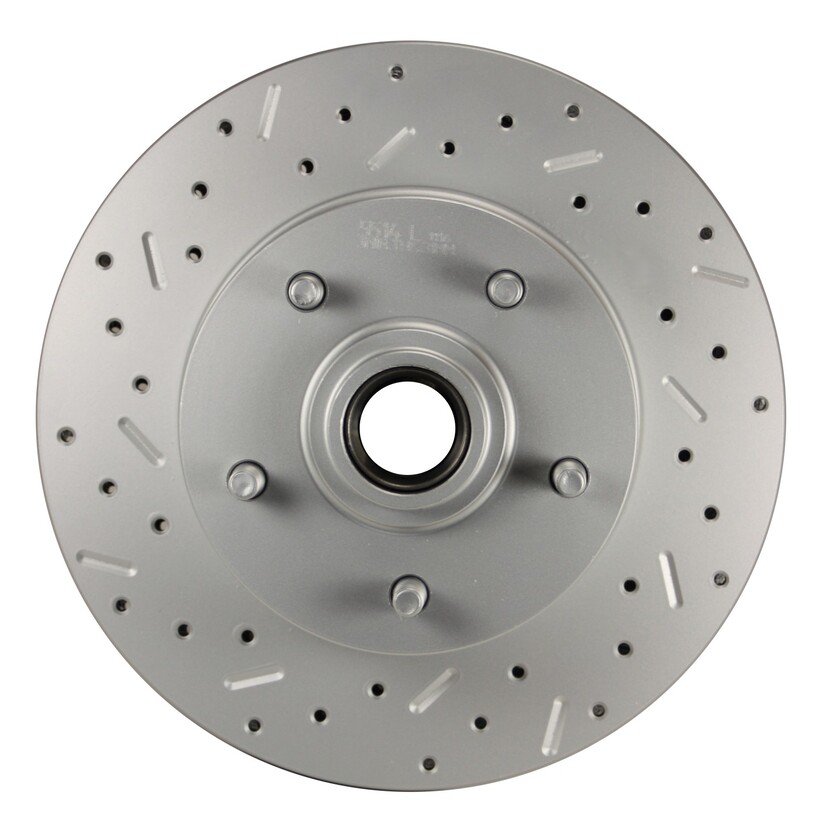

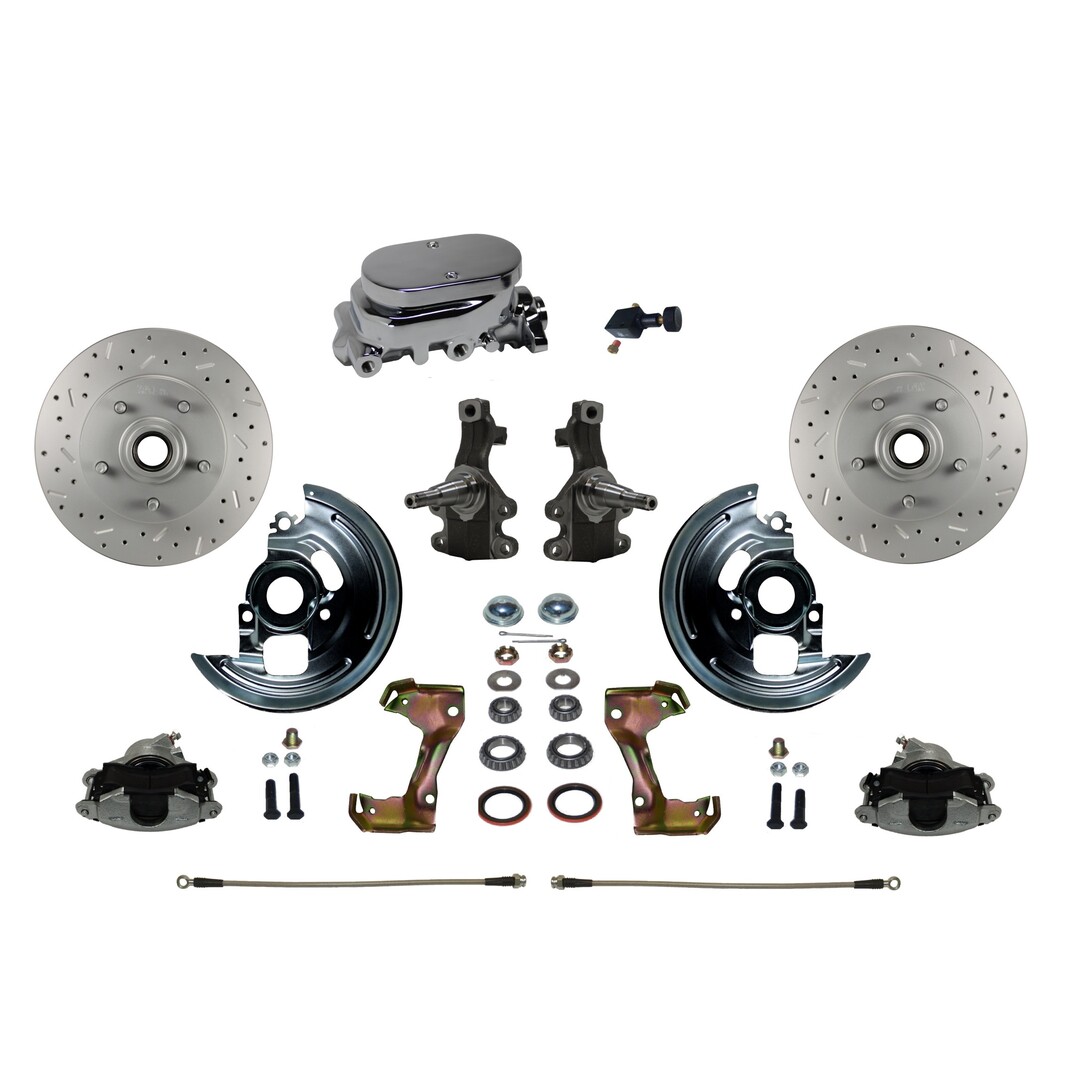

        Add the safety, reliability and performance of disc brakes to your vehicle with our drum to disc brake conversion. In this kit you receive everything you need to mount single piston disc brakes to the control arms of your vehicle. All GM brake set components used in these kits are new high quality, precision machined products. Reduce brake fade and increase your braking performance with this hi-performance cross drilled, slotted & zinc plated rotor. With a cross drilled and slotted rotor you remove gases that build up between the brake pad and rotor during heavy braking. The removal of this gas will give you better contact between the brake pad and rotor increasing your braking Power Front Disc Brake. Oh yea, they look pretty cool too!

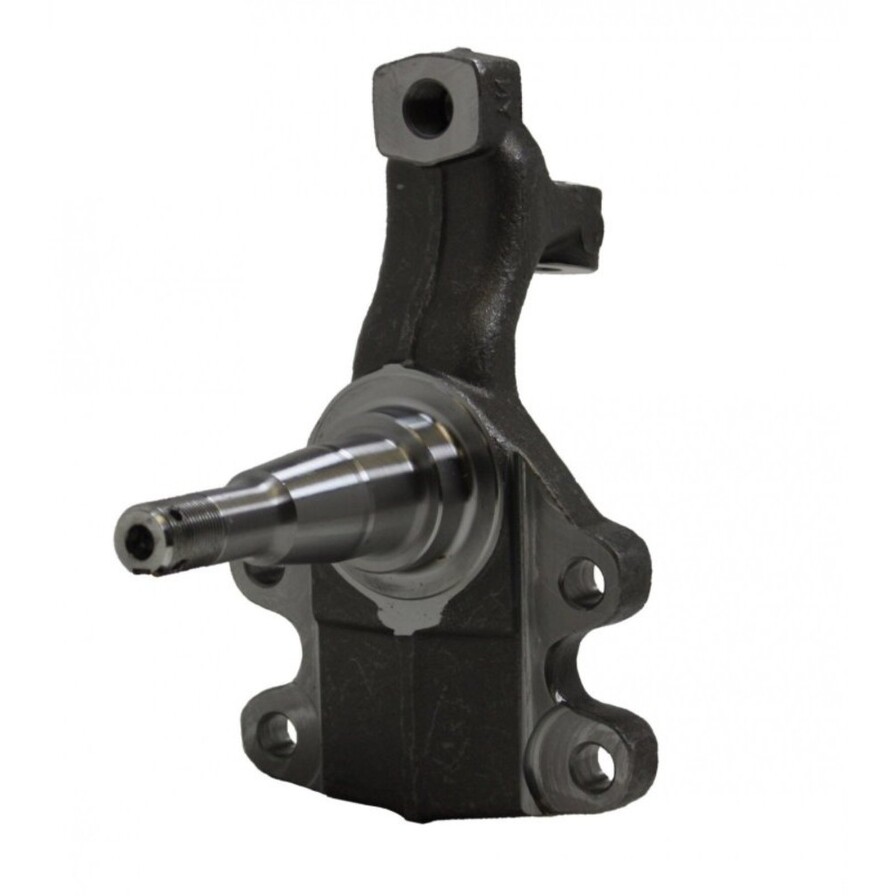

        • Includes new 2" drop disc brake spindles
        • THE LEED BRAKES DIFFERENCE

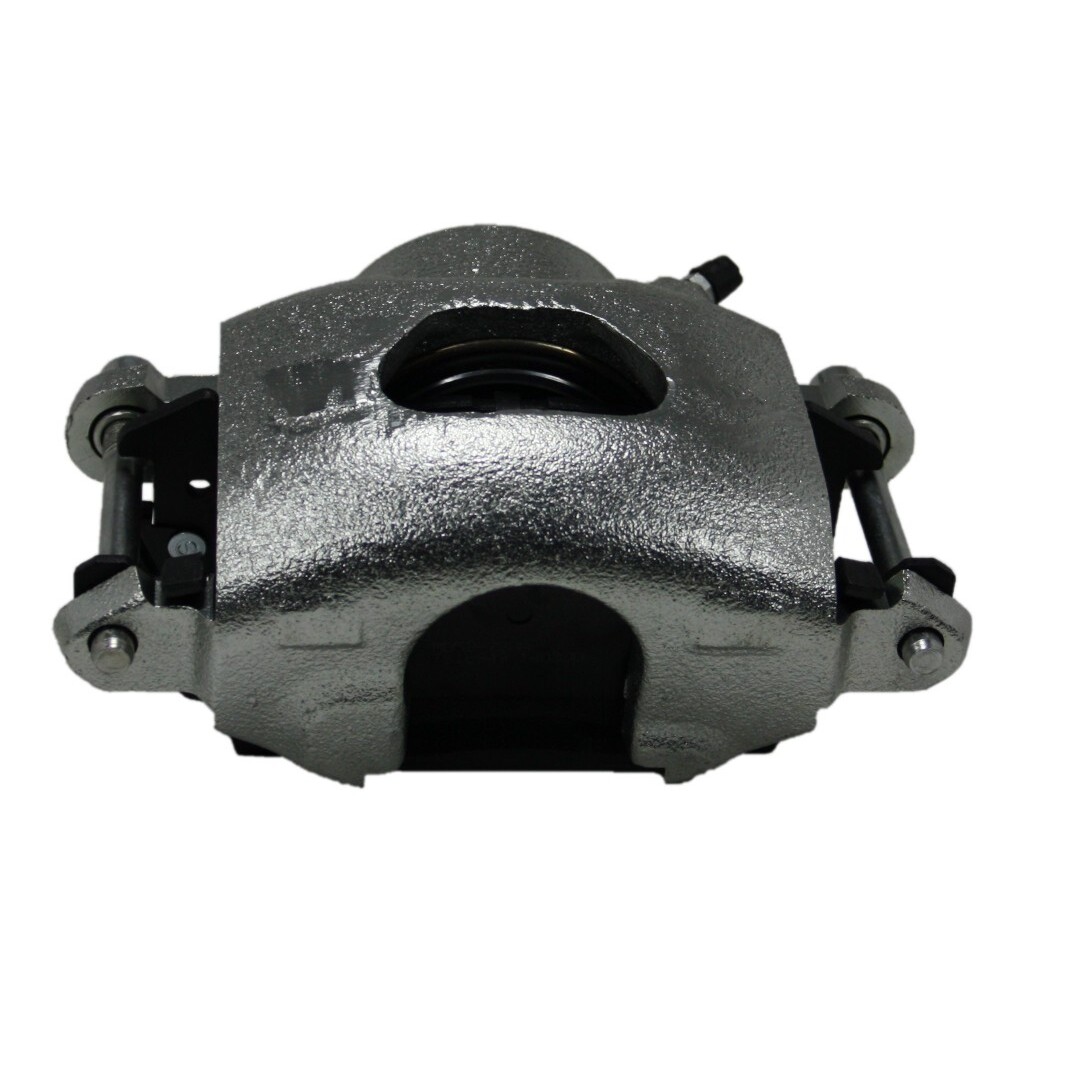

        • Includes new single piston calipers and 11" rotors
        Retail price
        • $884.95
        Overview
        Add the safety, reliability and performance of disc brakes to your vehicle with our drum to disc brake conversion. In this kit you receive everything you need to mount single piston disc brakes to the control arms of your vehicle. All GM brake set components used in these kits are new high quality, precision machined products. Reduce brake fade and increase your braking performance with this hi-performance cross drilled, slotted & zinc plated rotor. With a cross drilled and slotted rotor you remove gases that build up between the brake pad and rotor during heavy braking. The removal of this gas will give you better contact between the brake pad and rotor increasing your braking Power Front Disc Brake. Oh yea, they look pretty cool too!
        • Includes new 2" drop disc brake spindles
        • THE LEED BRAKES DIFFERENCE
        • Includes new single piston calipers and 11" rotors
        Features
          • SKU
            HBCJ-FC1003-E05X
          • Brand
            Leed Brakes
          • Brake Pad Material
            Semi-Metallic
          • Caliper Bracket Color
            Gold
          • Caliper Bracket Material
            Steel
          • Caliper Bracket Mount Hole Center To Center Length
            7.0 in.
          • Caliper Bracket Mount Hole Diameter
            7/16 - 20 UNF
          • Caliper Finish
            Zinc Plated
          • Caliper Material
            Cast Iron
          • Caliper Piston Quantity
            1
          • Disc Brake Rotor Type
            Vented
          • Flex Hose 1 Bracket
            Is not Attached
          • Flex Hose 1 Length
            15.75 in.
          • Flex Hose 2 Bracket
            Is not Attached
          • Flex Hose End 2 Thread Diameter
            0.44 in.
          • Flex Hose Fitting Gender - End 1
            Female
          • Flex Hose Fitting Gender - End 2
            Banjo
          • Flex Hose Thread Diameter - End 1
            3/8 - 24 UNF
          • Grade Type
            Performance
          • Includes Brake Booster
            No
          • Includes Brake Lines
            No
          • Includes Brake Rotor
            Yes
          • Includes Caliper
            Yes
          • Includes Caliper Slides
            Yes

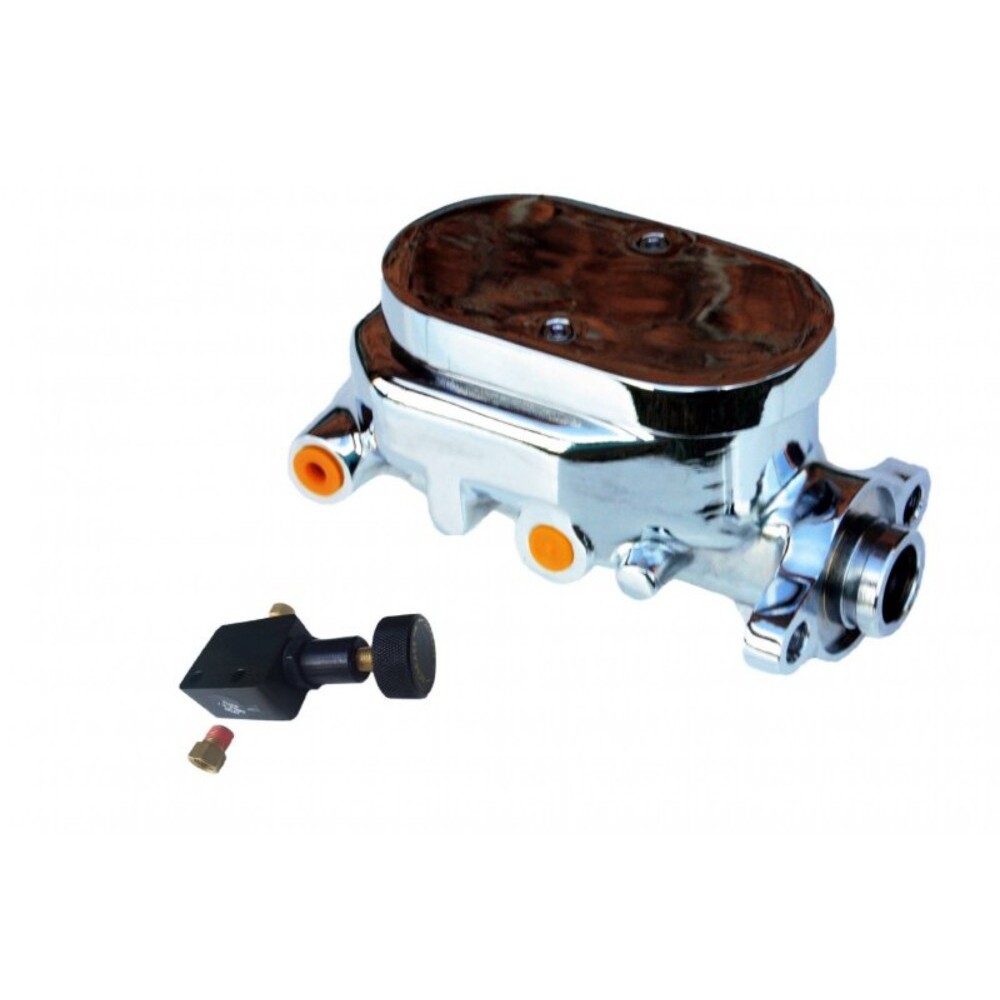

          • Includes Master Cylinder
            Yes
          • Includes Spindles
            Yes - 2 in. Drop
          • Master Cylinder Bore Size
            1.0 in.
          • Master Cylinder Finish
            Raw
          • Master Cylinder Material
            Cast Iron
          • Minimum Recommended Wheel Diameter
            14 x 7 in.
          • Position
            Front
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Prop 65 - Type
            Cancer and Reproductive
          • Prop 65 - Warning Image Label
            Prop 65 sticker web use.png
          • Rotor Diameter
            11.0 in.
          • Rotor Finish
            Zinc Plated
          • Rotor Material
            Cast Iron
          • Rotor Material
            Cast Iron
          • Rotor Outside Diameter
            11.0 in.
          • Rotor Style
            Slotted and Drilled
          • Rotor Style
            Cross Drilled and Slotted
          • Rotor Thickness
            1.0 in.
          • Rotor Thickness
            1.035 in.
          • Spindle Finish
            Raw
          • Spindle Material
            Forged Steel
          • Spindle Type
            2 in. Drop
          • Wheel Lug Hole Quantity
            5
        Fitment
        Make Model Submodel Year
        Buick Apollo Base 1973
        Buick Apollo Base 1974
        Buick GS Base 1970
        Buick GS Base 1971
        Buick GS Base 1972
        Buick GS 350 Base 1968
        Buick GS 350 Base 1969
        Buick GS 400 Base 1968
        Buick GS 400 Base 1969
        Buick GS 455 Base 1970
        Buick GS 455 Base 1971
        Buick GS 455 Base 1972
        Buick Skylark Base 1964
        Buick Skylark Base 1965
        Buick Skylark Base 1966
        Buick Skylark Base 1967
        Buick Skylark Base 1968
        Buick Skylark Base 1969
        Buick Skylark Base 1970
        Buick Skylark Base 1971
        Buick Skylark Base 1972
        Chevrolet Camaro Base 1967
        Chevrolet Camaro Base 1968
        Chevrolet Camaro Base 1969
        Chevrolet Chevelle Base 1964
        Chevrolet Chevelle Base 1965
        Chevrolet Chevelle Base 1966
        Chevrolet Chevelle Base 1967
        Chevrolet Chevelle Base 1968
        Chevrolet Chevelle Base 1969
        Chevrolet Chevelle Base 1970
        Chevrolet Chevelle Base 1971
        Chevrolet Chevelle Base 1972
        Chevrolet Chevy II Base 1968
        Chevrolet El Camino Base 1964
        Chevrolet El Camino Base 1965
        Chevrolet El Camino Base 1966
        Chevrolet El Camino Base 1967
        Chevrolet El Camino Base 1968
        Chevrolet El Camino Base 1969
        Chevrolet El Camino Base 1970
        Chevrolet El Camino Base 1971
        Chevrolet El Camino Base 1972
        Chevrolet Malibu Base 1964
        Chevrolet Malibu Base 1965
        Chevrolet Malibu Base 1966
        Chevrolet Malibu Base 1967
        Chevrolet Monte Carlo Base 1970
        Chevrolet Monte Carlo Base 1971
        Chevrolet Monte Carlo Base 1972
        Chevrolet Nova Base 1969
        Chevrolet Nova Base 1970
        Chevrolet Nova Base 1971
        Chevrolet Nova Base 1972
        Chevrolet Nova Base 1973
        Chevrolet Nova Base 1974
        GMC Sprint Base 1971
        GMC Sprint Base 1972
        Oldsmobile 442 Base 1965
        Oldsmobile 442 Base 1966
        Oldsmobile 442 Base 1967
        Oldsmobile 442 Base 1968
        Oldsmobile 442 Base 1969
        Oldsmobile 442 Base 1970
        Oldsmobile 442 Base 1971
        Oldsmobile Custom Cruiser Base 1971
        Oldsmobile Custom Cruiser Base 1972
        Oldsmobile Cutlass Base 1964
        Oldsmobile Cutlass Base 1965
        Oldsmobile Cutlass Base 1966
        Oldsmobile Cutlass Base 1967
        Oldsmobile Cutlass Base 1968
        Oldsmobile Cutlass Base 1969
        Oldsmobile Cutlass Base 1970
        Oldsmobile Cutlass Base 1971
        Oldsmobile Cutlass Base 1972
        Oldsmobile Cutlass Supreme Base 1967
        Oldsmobile Cutlass Supreme Base 1968
        Oldsmobile Cutlass Supreme Base 1969
        Oldsmobile Cutlass Supreme Base 1970
        Oldsmobile Cutlass Supreme Base 1971
        Oldsmobile Cutlass Supreme Base 1972
        Oldsmobile F85 Base 1964
        Oldsmobile F85 Base 1965
        Oldsmobile F85 Base 1966
        Oldsmobile F85 Base 1967
        Oldsmobile F85 Base 1968
        Oldsmobile F85 Base 1969
        Oldsmobile F85 Base 1970
        Oldsmobile F85 Base 1971
        Oldsmobile F85 Base 1972
        Oldsmobile Omega Base 1973
        Oldsmobile Omega Base 1974
        Oldsmobile Vista Cruiser Base 1964
        Oldsmobile Vista Cruiser Base 1965
        Oldsmobile Vista Cruiser Base 1966
        Oldsmobile Vista Cruiser Base 1967
        Oldsmobile Vista Cruiser Base 1968
        Oldsmobile Vista Cruiser Base 1969
        Oldsmobile Vista Cruiser Base 1970
        Oldsmobile Vista Cruiser Base 1971
        Oldsmobile Vista Cruiser Base 1972
        Pontiac Firebird Base 1967
        Pontiac Firebird Base 1968
        Pontiac Firebird Base 1969
        Pontiac GTO Base 1964
        Pontiac GTO Base 1965
        Pontiac GTO Base 1966
        Pontiac GTO Base 1967
        Pontiac GTO Base 1968
        Pontiac GTO Base 1969
        Pontiac GTO Base 1970
        Pontiac GTO Base 1971
        Pontiac GTO Base 1972
        Pontiac Grand Prix Base 1969
        Pontiac Grand Prix Base 1970
        Pontiac Grand Prix Base 1971
        Pontiac Grand Prix Base 1972
        Pontiac LeMans Base 1964
        Pontiac LeMans Base 1965
        Pontiac LeMans Base 1966
        Pontiac LeMans Base 1967
        Pontiac LeMans Base 1968
        Pontiac LeMans Base 1969
        Pontiac LeMans Base 1970
        Pontiac LeMans Base 1971
        Pontiac LeMans Base 1972
        Pontiac Ventura Base 1971
        Pontiac Ventura Base 1972
        Pontiac Ventura Base 1973
        Pontiac Ventura Base 1974
