        LEED Brakes 9 inch power brake booster with bracket, 1 inch bore master cylinder (Black)

        Part Number:HBCJ-034
        Leed Brakes

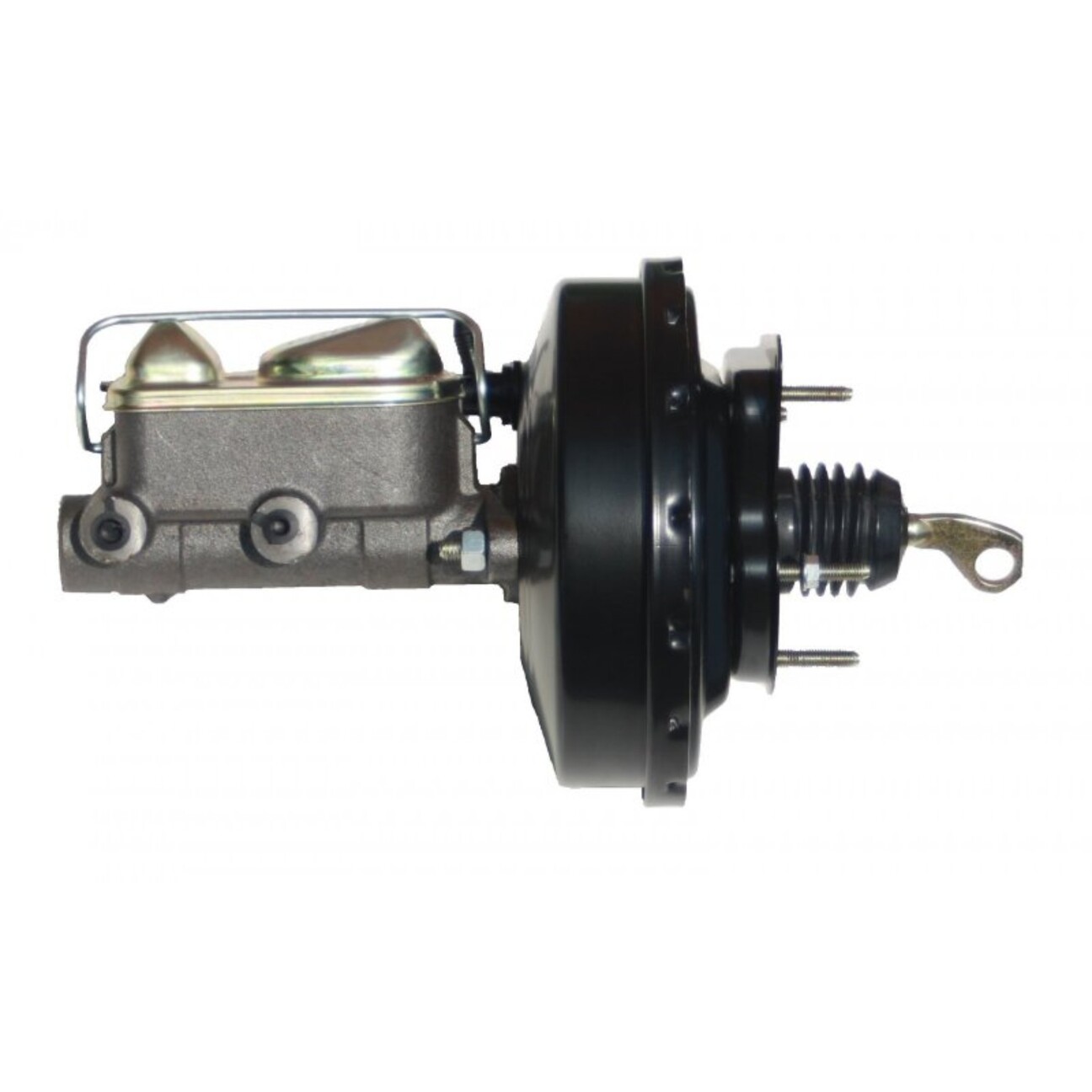

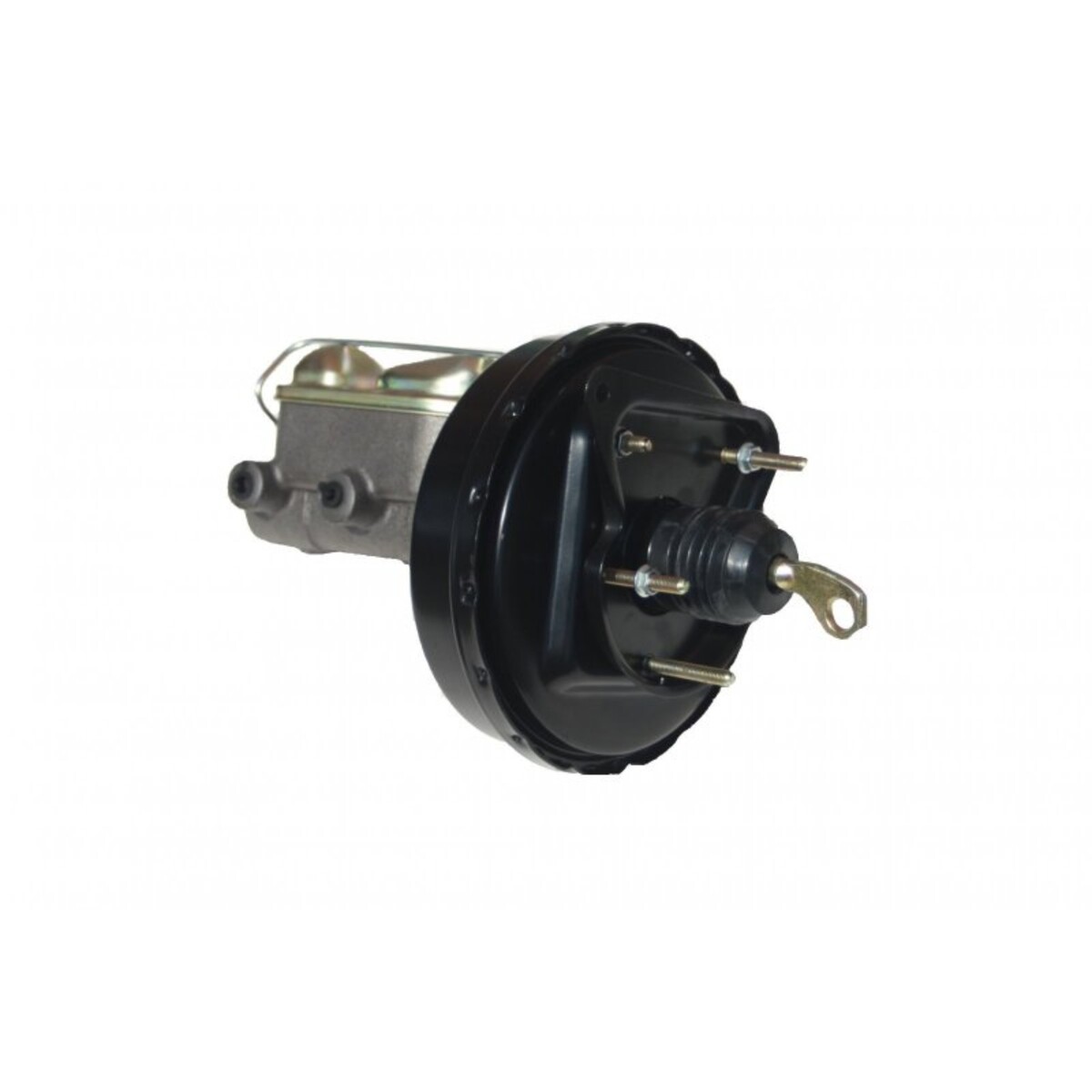

        New 9" slimline direct fit power brake booster with bracket and master cylinder combo. This top quality power brake booster with bracket is designed mount directly to your factory firewall. This slimline booster works great as a factory replacement or as an upgrade from manual to power brakes for vehicles with automatic transmissions. Included in this kits is a new factory style 1" bore master cylinder equipped to work with front disc rear drum or 4 wheel disc brake applications. Note: If switching from manual to power brakes a power brake pedal is required.
        • New unit not remanufactured
        • THE LEED BRAKES DIFFERENCE
        • Direct bolt in replacement for factory power brake booster
        • Includes brackets and pushrod
        Retail price
        • $289.95
        Overview
        New 9" slimline direct fit power brake booster with bracket and master cylinder combo. This top quality power brake booster with bracket is designed mount directly to your factory firewall. This slimline booster works great as a factory replacement or as an upgrade from manual to power brakes for vehicles with automatic transmissions. Included in this kits is a new factory style 1" bore master cylinder equipped to work with front disc rear drum or 4 wheel disc brake applications. Note: If switching from manual to power brakes a power brake pedal is required.
        • New unit not remanufactured
        • THE LEED BRAKES DIFFERENCE
        • Direct bolt in replacement for factory power brake booster
        • Includes brackets and pushrod
        Features
          • SKU
            HBCJ-034
          • Brand
            Leed Brakes
          • Booster Housing Diameter
            9 in.
          • Booster Housing Diameter
            9 in.
          • Booster Type
            Vacuum
          • Brake Booster Color
            Black
          • Brake Booster Diaphragm Type
            Single
          • Brake Booster Type
            Single Diaphragm
          • Grade Type
            Regular
          • Housing Material
            Steel
          • Includes Bleeder Hoses
            Yes
          • Includes Bracket
            Yes
          • Includes Brake Booster
            Yes
          • Includes Brake Lines
            No
          • Includes Brake Pedal Pushrod
            Yes
          • Includes Brake Pedal Rod Extension
            Yes
          • Includes Master Cylinder
            Yes
          • Includes Master Cylinder Cap
            Yes
          • Master Cylinder Bore Size
            1.0 in.
          • Master Cylinder Bore Size
            1.0 in.
          • Master Cylinder Finish
            Raw
          • Master Cylinder Material
            Cast Iron
          • Master Cylinder Material
            Cast Iron
          • Master Cylinder Port Quantity
            2
          • Master Cylinder Port Thread Diameter
            3/8 - 24 UNF, 1/2 - 20 UNF
          • Mounting Hardware
            Utilizes OEM Hardware
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Prop 65 - Type
            Cancer and Reproductive
          • Prop 65 - Warning Image Label
            Prop 65 sticker web use.png
        Fitment
        Make Model Submodel Year
        Ford Mustang Base 1967
        Ford Mustang Base 1968
        Ford Mustang Base 1969
        Ford Mustang Base 1970
        Mercury Cougar Base 1967
        Mercury Cougar Base 1968
        Mercury Cougar Base 1969
        Mercury Cougar Base 1970
