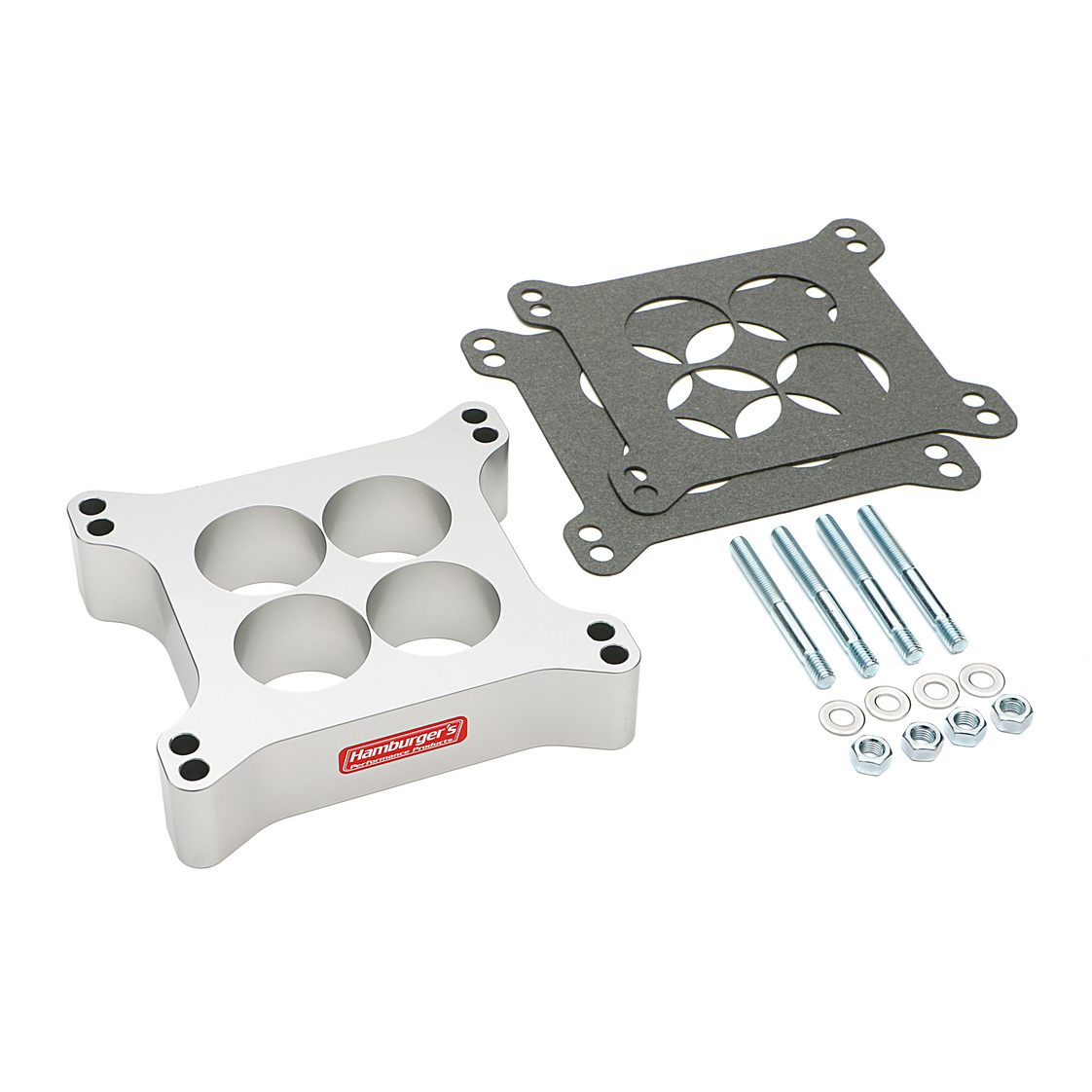

        Carburetor Spacer - 3207

        Part Number:FBLL-3207
        Hamburger's Performance
        <p>It is no secret that tuners can alter their engine torque's sweet spot imply by increasing or decreasing the length plenum beneath the carburetor. To lengthen the plenum, simply install a carburetor spacer.</p><p>For years, carb spacers have mainly been available in 1" or 2" tall varieties. This 4 barrel carb spacer measures 1-1/2" tall, and offers builders and drag aracers another level of tunability.</p><p>Hamburger's precision CNC machines this spacer in their Whittier, California manufacturing facilty using 6061-T6 aluminum, then giving a durable clear anoziding to protect it from the harsh engine bay elements. Hamburger's includes all the necessary gaskets and longer mounting hardware to accomodate the taller carburetor position. The spacer is designed with 8 mounting holes so it can be used with both Holley and AFB 4 bbl carburetors on a standard 4 barrel intake manifold. This model has a straight port design to provide a smooth transition between the 4 barrel carb and intake manifold. This spacer is backed by a limited lifetime warranty!</P>
        • Increases Plenum Length and Volume For More Horsepower & Torque.
        • CNC-Machined 6061 Aluminum Construction
        • Clear Anodized Finish
        • Made In The U.S.A.!
        • Includes Gaskets, Carburetor Studs and Mounting Hardware
        Retail price
        • $187.03
        Overview
        <p>It is no secret that tuners can alter their engine torque's sweet spot imply by increasing or decreasing the length plenum beneath the carburetor. To lengthen the plenum, simply install a carburetor spacer.</p><p>For years, carb spacers have mainly been available in 1" or 2" tall varieties. This 4 barrel carb spacer measures 1-1/2" tall, and offers builders and drag aracers another level of tunability.</p><p>Hamburger's precision CNC machines this spacer in their Whittier, California manufacturing facilty using 6061-T6 aluminum, then giving a durable clear anoziding to protect it from the harsh engine bay elements. Hamburger's includes all the necessary gaskets and longer mounting hardware to accomodate the taller carburetor position. The spacer is designed with 8 mounting holes so it can be used with both Holley and AFB 4 bbl carburetors on a standard 4 barrel intake manifold. This model has a straight port design to provide a smooth transition between the 4 barrel carb and intake manifold. This spacer is backed by a limited lifetime warranty!</P>
        • Increases Plenum Length and Volume For More Horsepower & Torque.
        • CNC-Machined 6061 Aluminum Construction
        • Clear Anodized Finish
        • Made In The U.S.A.!
        • Includes Gaskets, Carburetor Studs and Mounting Hardware
        Features
          • SKU
            FBLL-3207
          • Brand
            Hamburger's Performance
          • Bolt Hole Quantity
            8
          • Carburetor Type
            4-Barrel AFB
          • Carburetor Type
            Holley 4-Barrel
          • Fastener(s) Included
            Yes
          • Finish
            Clear Anodized
          • Finish
            Clear Anodized
          • Grade Type
            Performance
          • Height
            1.5 in.
          • Manifold Type
            Standard 4-Barrel
          • Material
            6061-T6 Billet Aluminum
          • Material
            Billet Aluminum
          • Package Contents
            Carburetor Spacer, Gaskets, Carb Studs, Nuts, Washers
          • Package Contents
            Carburetor Spacer, Gaskets, Carb Studs, Nuts, Washers
          • Plenum Style
            Ported
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Spacer Finish
            Anodized Clear
          • Spacer Material
            Billet Aluminum
          • Stud Diameter
            0.313 in.
          • Stud Length
            3.0 in.
          • Stud Material
            Steel
          • Stud Thread Size
            0.313 in.-18 ; 0.313 in.-24
          • Thickness
            1.5 in.
          • Thickness
            1.5 in.
