Engine Retrofit Kit 99096

Part Number:99096

Engine Swap In A Box Kit; 86-00 SB Chevy in 82-04 S10/S15;Long Tube-Black Coated

Retail price

Features
Fitment
Installation
More Detail
Videos

Features

- SKU
  99096
- Brand
  Trans-Dapt Performance
- Air Conditioning
  Yes
- Automatic Transmission - Column
  No
- Automatic Transmission - Floor
  Yes
- Baffled
  Yes
- Collector Diameter
  2.5 in.
- Collector Style
  Ball and Socket Flange
- Color
  Black Maxx
- Cylinder Head
  Factory Style
- Dipstick Port
  Yes
- Exhaust System Diameter
  2.5 in.
- Finish
  Satin Ceramic-Metallic
- Fitment Note
  Chevy/GMC S10/S15 Family; 1982-04
- Fitment Note
  Fits 2WD
- Fitment Note
  Automatic Transmission
- Fitment Note
  2WD
- Fitment Note
  TH350 Transmission
- Flange Style
  Standard
- Flange Thickness
  0.3125 in.
- Grade Type
  Performance
- Head Type
  Factory Heads
- Header Port Shape
  Round
- Header Style
  Long Tubes
- Includes Collector Attachment
  Yes
- Installation Method
  Welding Required
- Installation Note
  Pickup Number 2509
- Kicked Out
  No
- Manual Transmission - Column
  No
- Manual Transmission - Floor
  Yes
- Material
  Standard-Duty Mild Steel
- Material
  Mild Steel
- Mount Material
  Rubber, Steel
- O2 Provision
  No

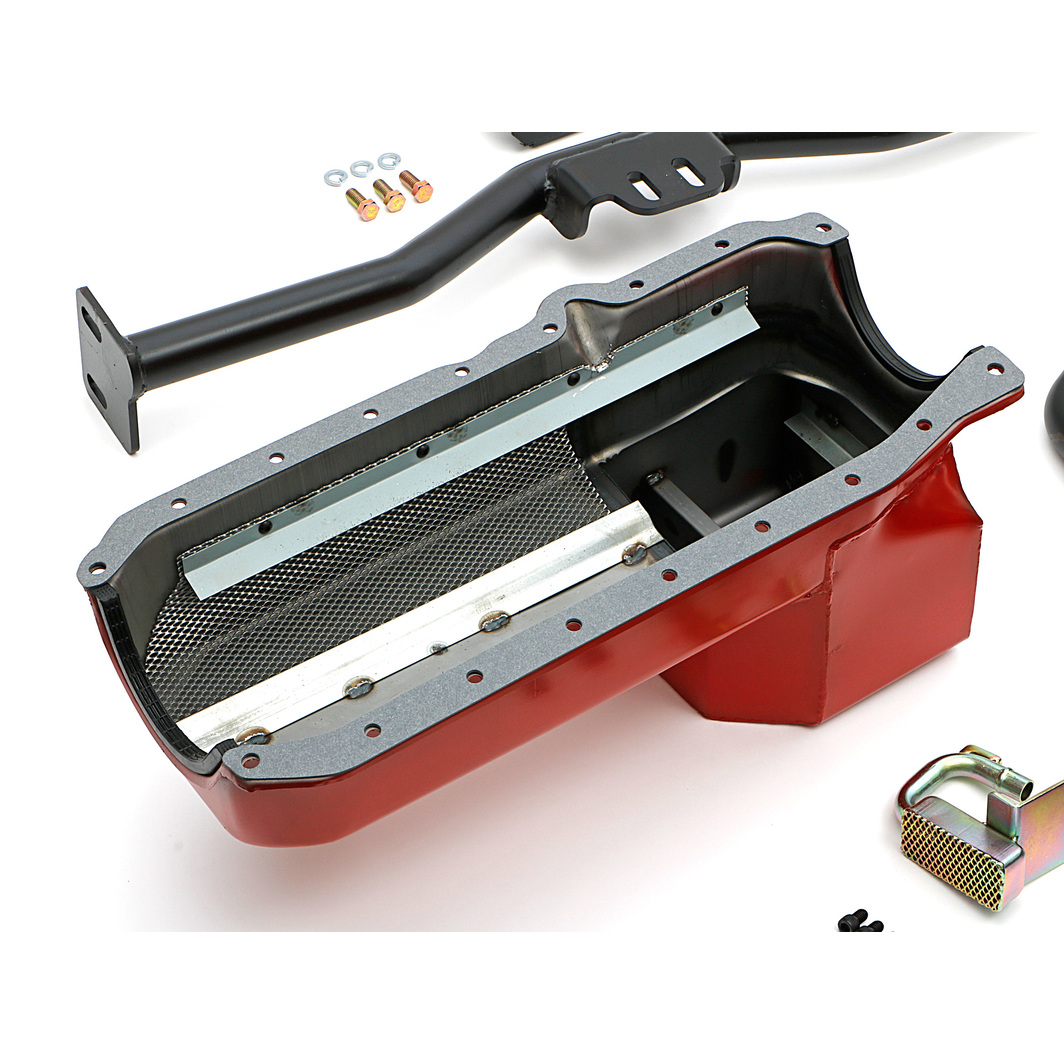

- Oil Pan Capacity
  7.0 qt.
- Oil Pan Color
  Red
- Oil Pan Depth
  9.25 in.
- Oil Pan Finish
  Painted
- Oil Pan Material
  Steel

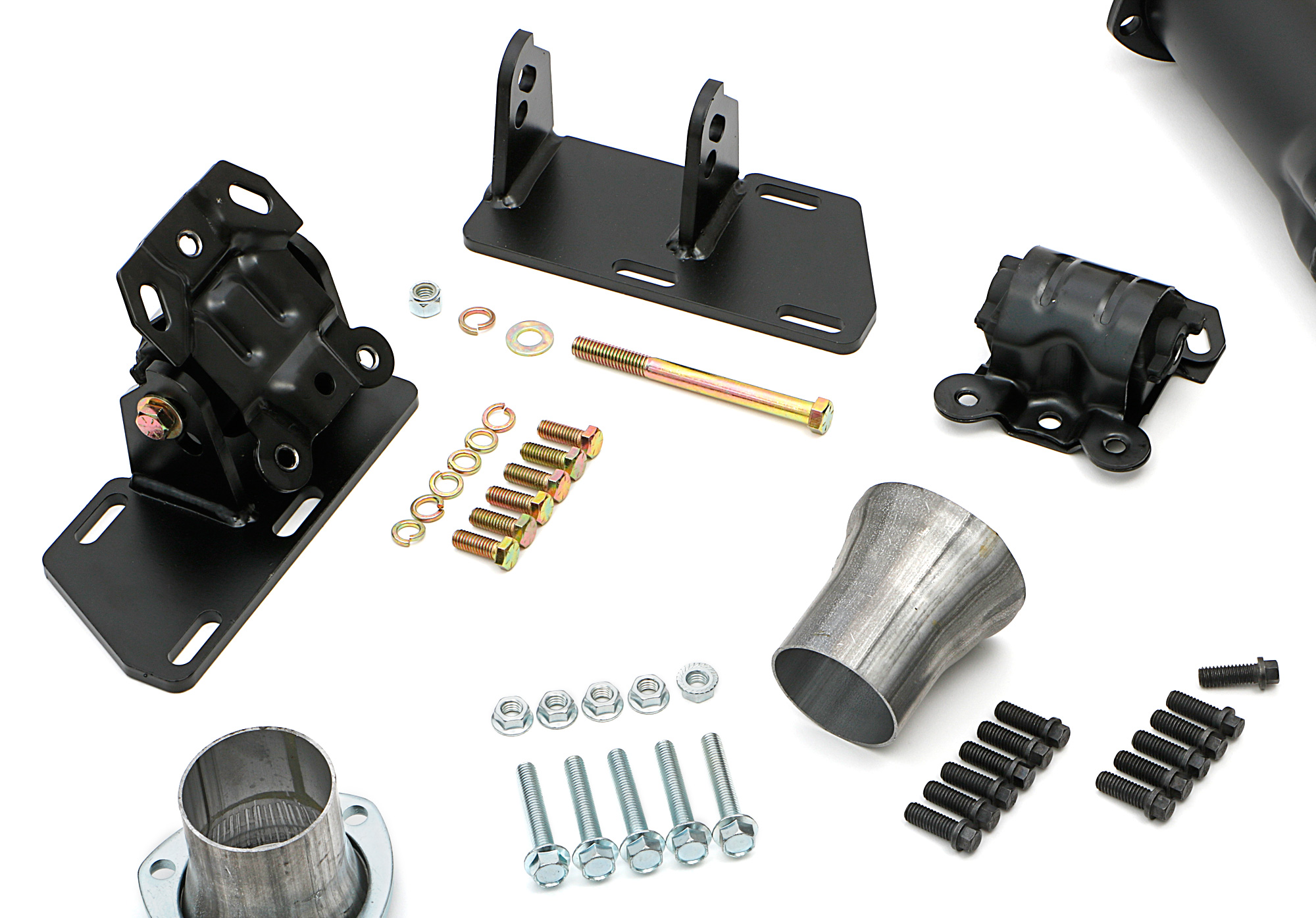

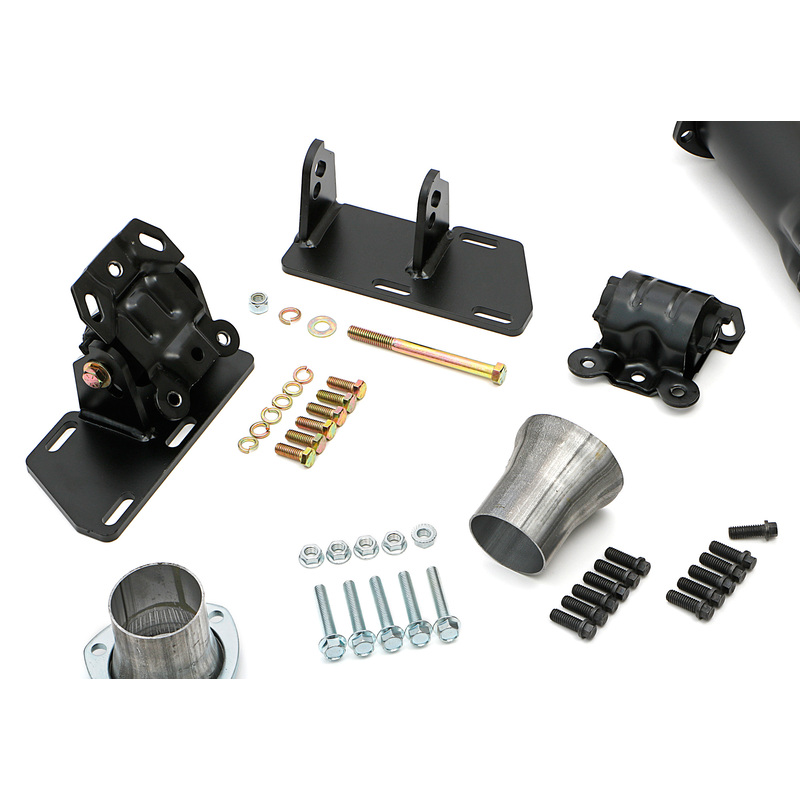

- Package Contents
  Headers, Engine Mounts, Transmission Crossmember, Oil Pan, Hardware and Gaskets
- Port Shape
  Round
- Power Steering
  Yes
- Primary Tube Diameter
  1.50 in.
- Prop 65 - Short Label
  WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Reducer Outlet Size
  2.5 in.
- Replacement Manifold Gasket Part Number
  27030
- Stroker Clearanced
  No
- Sump Location
  Rear
- Sump Style
  Wet Sump

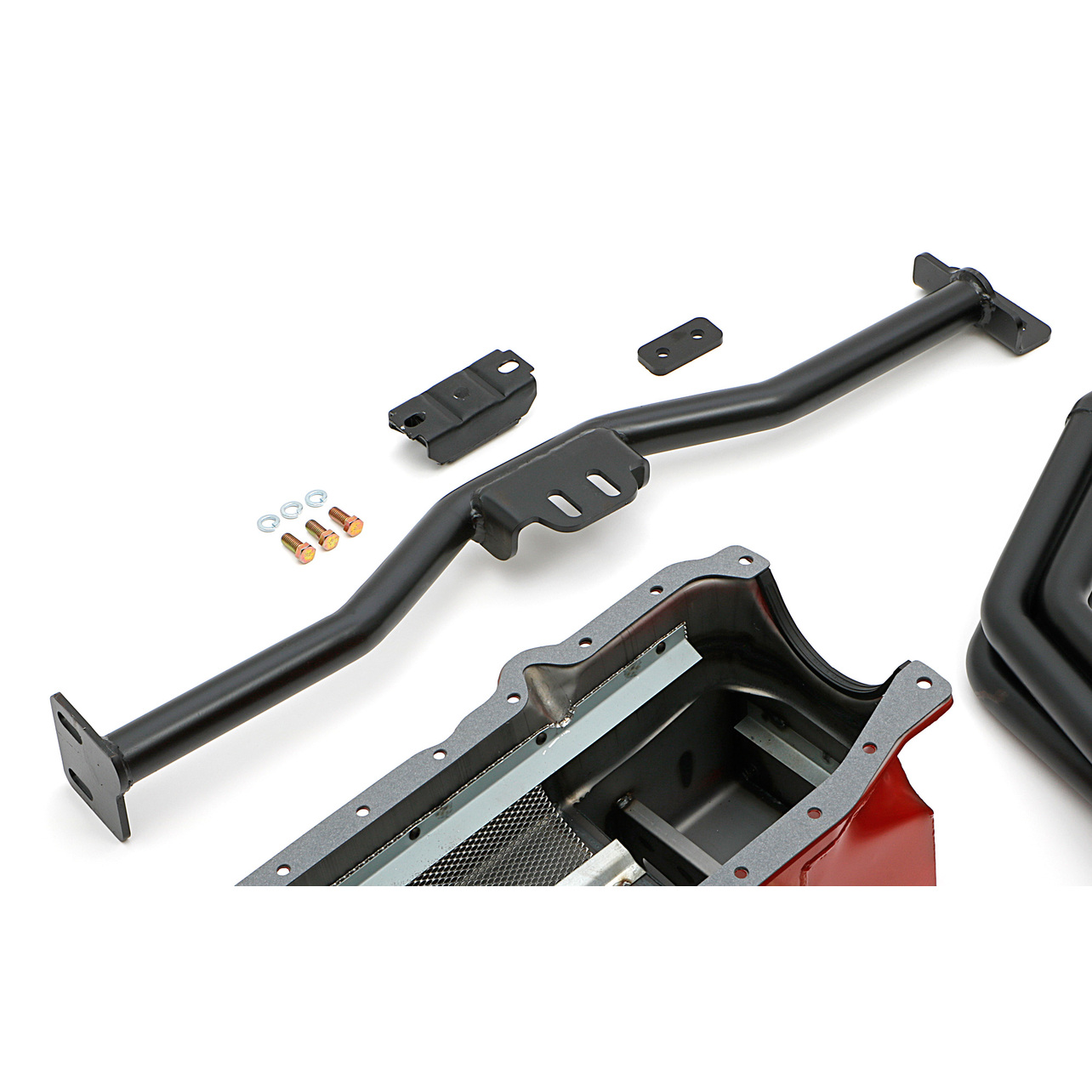

- Transmission Mount Type
  Crossmember
- Tube Diameter
  1.5 in.
- Tube Thickness
  16 ga
- Tuned
  No
- With A.I.R. System
  No
- With EGR
  No
