        Engine Retrofit Kit - 46012

        Part Number:FBLH-46012
        Trans-Dapt Performance
        <p>Each member company of the Hedman Performance Group is a specialist in the field they serve. Hedman hedders specializes in headers, Trans-Dapt Engine/transmission swap mounts, and Hamburger's focuses on oil pans. Working together, the HP Group companies join as one to develop comprehensive kits that include everything you'll need to safely, and properly, fasten the donor LS engine to the vehicle's chassis. Sold as a single part number, purchasing complete engine swap kit ensures the products have been developed to work with each other, and takes the guesswork out of choosing swap products.</p><p>This standard-duty header Swap-In-A-Box Kit is developed specifically for installing an LS engine and TH350, TH400 or 700R4 transmission into 1968-72 GM A-Body passenger cars (i.e. Chevelle, El Camino, GTO, Cutlass, Skylark, 442 and others). This comprehensive kit includes a pair of HTC Polished-silver ceramic coated, mild-steel, Mid-Length headers with gaskets, bolts and exhaust adapters, a complete engine mount kit with hardware and rubber pads, LS swap engine oil pan with bolts, gaskets and special pick-up tube.</p><p>Kits with uncoated or satin black ceramic-coated headers are also available. Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.</p>
        Retail price
        • $1,462.91
        Overview

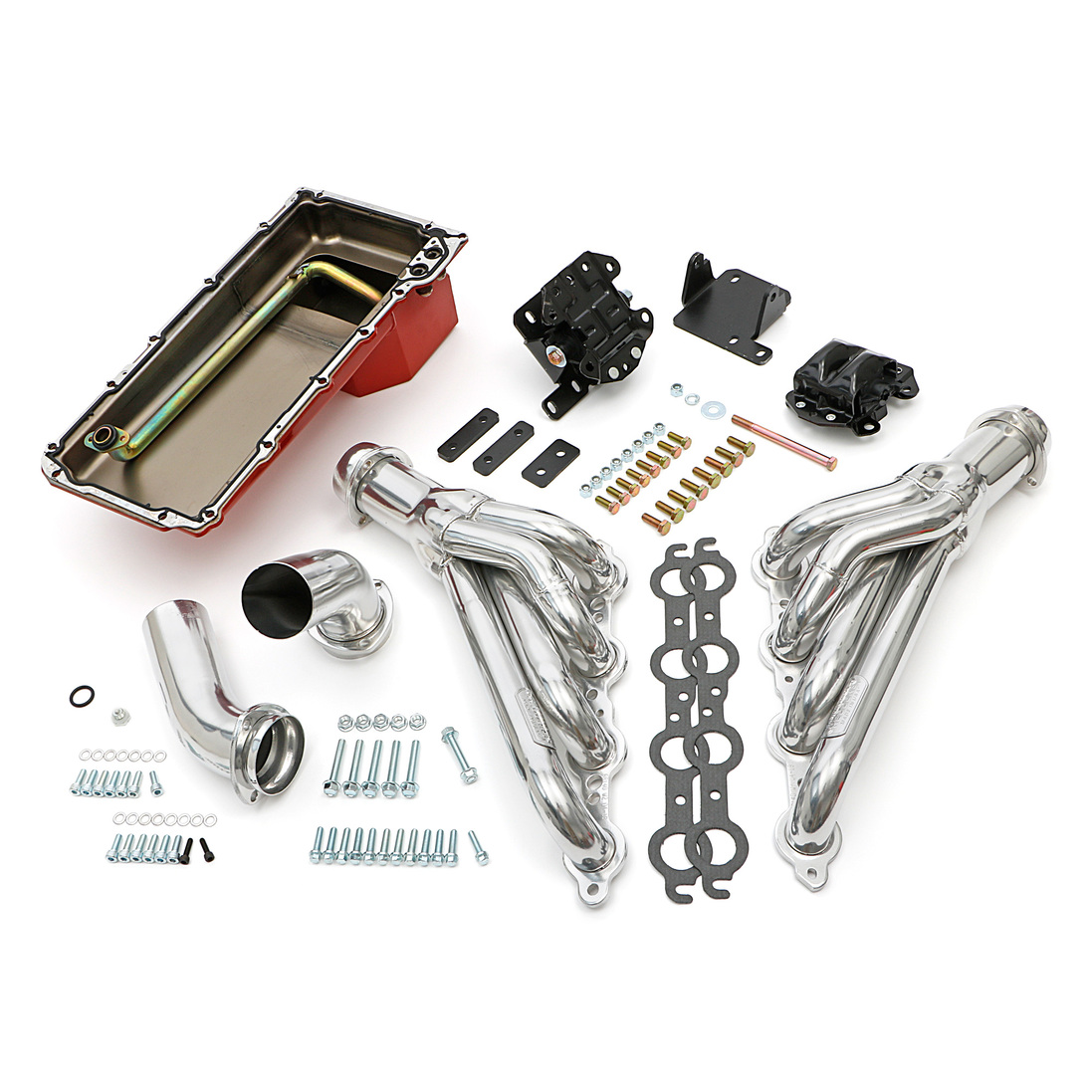

        <p>Each member company of the Hedman Performance Group is a specialist in the field they serve. Hedman hedders specializes in headers, Trans-Dapt Engine/transmission swap mounts, and Hamburger's focuses on oil pans. Working together, the HP Group companies join as one to develop comprehensive kits that include everything you'll need to safely, and properly, fasten the donor LS engine to the vehicle's chassis. Sold as a single part number, purchasing complete engine swap kit ensures the products have been developed to work with each other, and takes the guesswork out of choosing swap products.</p><p>This standard-duty header Swap-In-A-Box Kit is developed specifically for installing an LS engine and TH350, TH400 or 700R4 transmission into 1968-72 GM A-Body passenger cars (i.e. Chevelle, El Camino, GTO, Cutlass, Skylark, 442 and others). This comprehensive kit includes a pair of HTC Polished-silver ceramic coated, mild-steel, Mid-Length headers with gaskets, bolts and exhaust adapters, a complete engine mount kit with hardware and rubber pads, LS swap engine oil pan with bolts, gaskets and special pick-up tube.</p><p>Kits with uncoated or satin black ceramic-coated headers are also available. Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.</p>
        Features
          • SKU
            FBLH-46012
          • Brand
            Trans-Dapt Performance
          • Air Conditioning
            Yes
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Baffled
            No
          • Bolts or Studs Included
            Yes
          • Collector Bolts Included
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket Flange
          • Crank Shaft Wiper Included
            No
          • Crossover Pipe Included
            No
          • Cylinder Head
            Factory Style
          • Dipstick Included
            No
          • Dipstick Port
            No
          • Drain Plug Included
            Yes
          • Engine Fitment
            Chevy LS Series
          • Exhaust System Diameter
            2.5 in.
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Fitment Note
            Automatic Transmission
          • Fitment Note
            Chevy Only. Buick, Pontiac, Olds Models Require Frame Kit #9596 Sold Separately.
          • Fitment Note
            A-Body (GM) 1968-72
          • Fitment Note
            TH350 Transmission
          • Fitment Note
            TH400 Transmission
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Gasket or Seal Included
            Yes
          • Grade Type
            Performance
          • Header Fasteners Included
            Yes
          • Header Port Shape
            Round
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Hedman Hedders Included
            Yes
          • Includes Collector Attachment
            Yes
          • Installation Method
            Welding Required
          • Kicked Out
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            No
          • Material
            Mild Steel
          • Material
            Mild Steel
          • Material
            Standard-Duty Mild Steel
          • Motor Mounts Included
            Yes
          • Mount Material
            Mild Steel
          • Mounting Bracket Included
            Yes
          • O.E. Replacement
            No
          • O2 Provision
            No
          • O2 Sensors Included
            No
          • Oil Pan Bolts Included
            Yes
          • Oil Pan Capacity
            5.0 qt.
          • Oil Pan Depth
            2.0 in. (Front), 6.0 in. (Rear Sump)
          • Oil Pan Included
            Yes
          • Oil Pan Material
            Steel
          • Oxygen Sensor Bung Included
            No
          • Package Contents
            Headers, Engine Mounts, Oil Pan, Related Gaskets and Hardware
          • Package Contents
            Headers, Engine Mounts, Oil Pan, Related Gaskets and Hardware
          • Pickup Included
            Yes
          • Port Shape
            Round
          • Power Steering
            Yes
          • Primary Tube Diameter
            1.75 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Manifold Gasket Part Number
            27470
          • Stroker Clearanced
            No
          • Sump Location
            Rear
          • Sump Style
            Wet Sump
          • Tube Diameter
            1.75 in.
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Windage Tray Included
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • Y-Pipe Included
            No
        Fitment
        Make Model Submodel Year
        Buick GS Base 1970
        Buick GS Base 1971
        Buick GS Base 1972
        Buick Skylark Base 1968
        Buick Skylark Base 1969
        Buick Skylark Base 1970
        Buick Skylark Base 1971
        Buick Skylark Base 1972
        Chevrolet Chevelle Base 1968
        Chevrolet Chevelle Base 1970
        Chevrolet Chevelle Base 1971
        Chevrolet Chevelle Base 1972
        Chevrolet El Camino Base 1968
        Chevrolet El Camino Base 1969
        Chevrolet El Camino Base 1970
        Chevrolet El Camino Base 1971
        Chevrolet El Camino Base 1972
        Chevrolet Monte Carlo Base 1970
        Chevrolet Monte Carlo Base 1971
        Chevrolet Monte Carlo Base 1972
        Oldsmobile 442 Base 1968
        Oldsmobile 442 Base 1969
        Oldsmobile 442 Base 1970
        Oldsmobile 442 Base 1971
        Oldsmobile Cutlass Base 1968
        Oldsmobile Cutlass Base 1969
        Oldsmobile Cutlass Base 1970
        Oldsmobile Cutlass Base 1971
        Oldsmobile Cutlass Base 1972
        Oldsmobile F85 Base 1968
        Oldsmobile F85 Base 1969
        Oldsmobile F85 Base 1970
        Oldsmobile F85 Base 1971
        Oldsmobile F85 Base 1972
        Oldsmobile Vista Cruiser Base 1968
        Oldsmobile Vista Cruiser Base 1969
        Oldsmobile Vista Cruiser Base 1970
        Oldsmobile Vista Cruiser Base 1971
        Oldsmobile Vista Cruiser Base 1972
        Pontiac GTO Base 1968
        Pontiac GTO Base 1969
        Pontiac GTO Base 1970
        Pontiac GTO Base 1971
        Pontiac GTO Base 1972
        Pontiac LeMans Base 1968
        Pontiac LeMans Base 1969
        Pontiac LeMans Base 1970
        Pontiac LeMans Base 1971
        Pontiac LeMans Base 1972
        Pontiac Tempest Base 1968
        Pontiac Tempest Base 1969
        Pontiac Tempest Base 1970
