BD 6.7L Power Stroke Screamer Stage 1 Retrofit Turbo Kit Ford 2011-2016 - 1045824

        Engine Retrofit Kit - 42053

        Part Number:FBLH-42053
        Trans-Dapt Performance

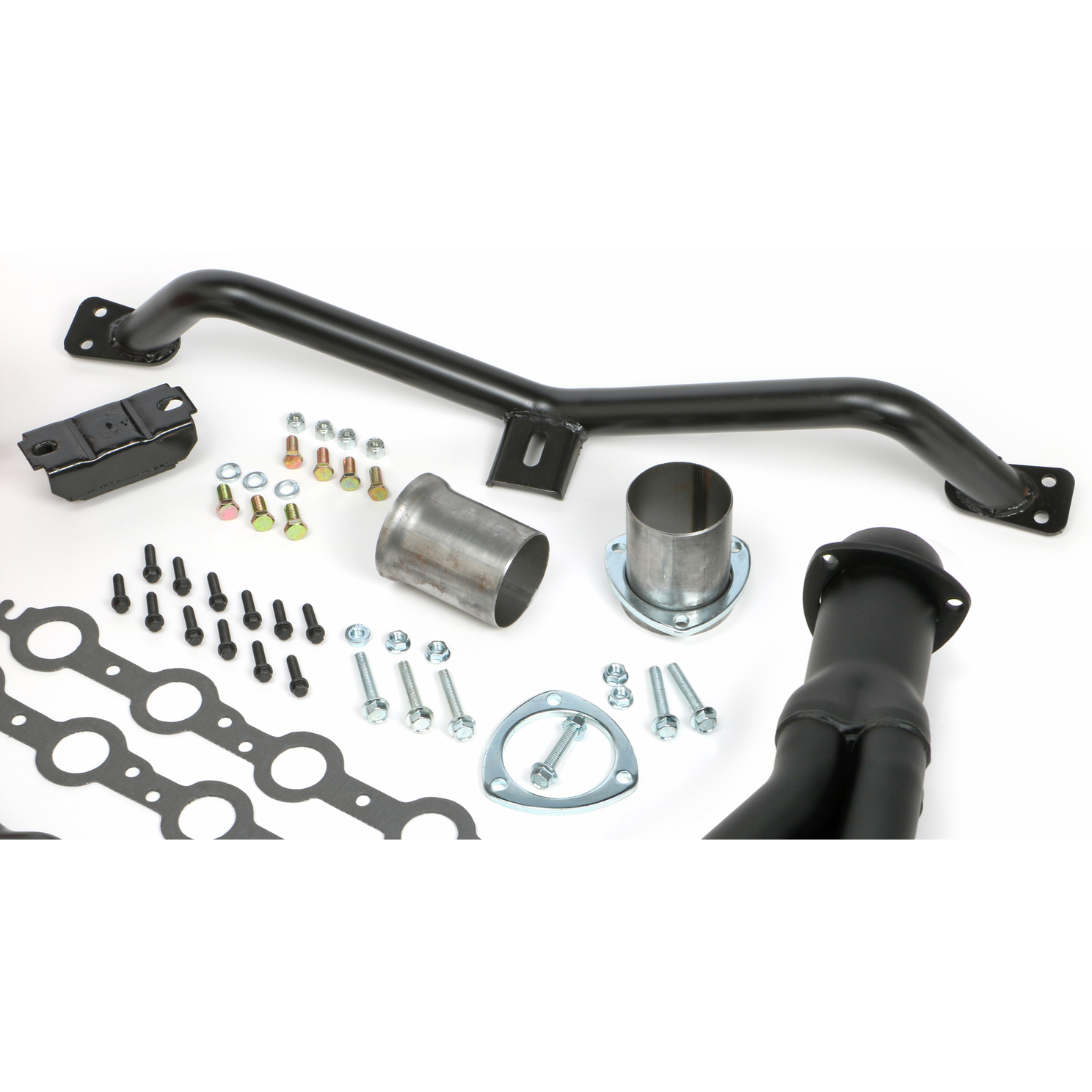

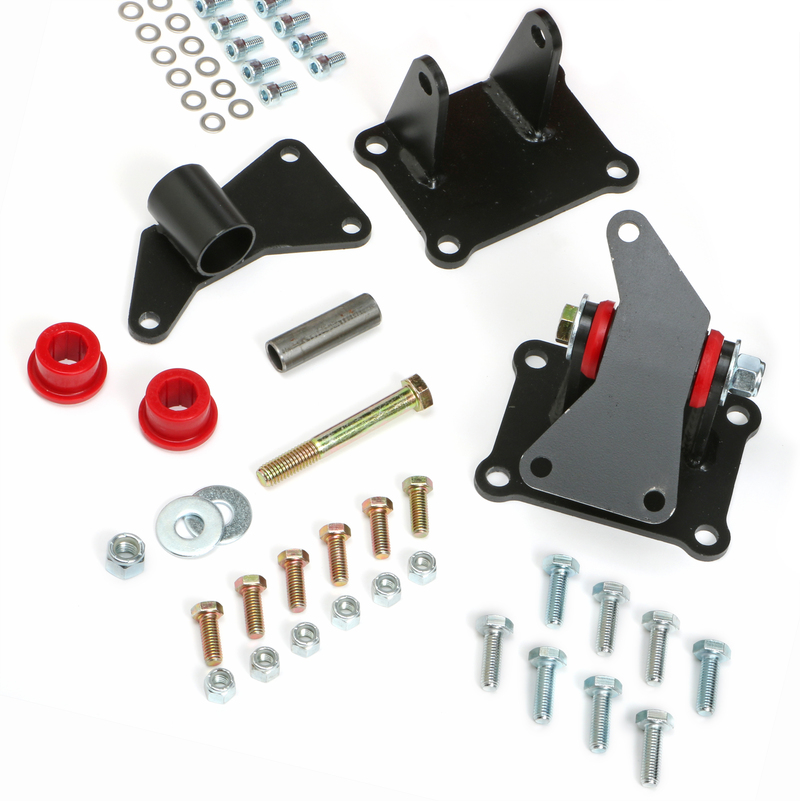

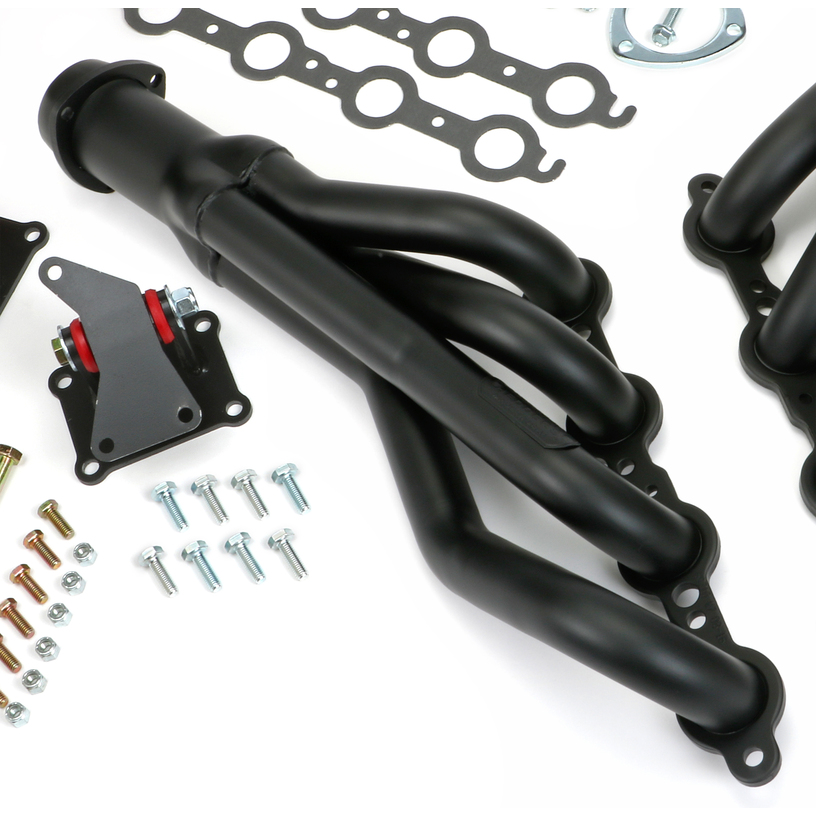

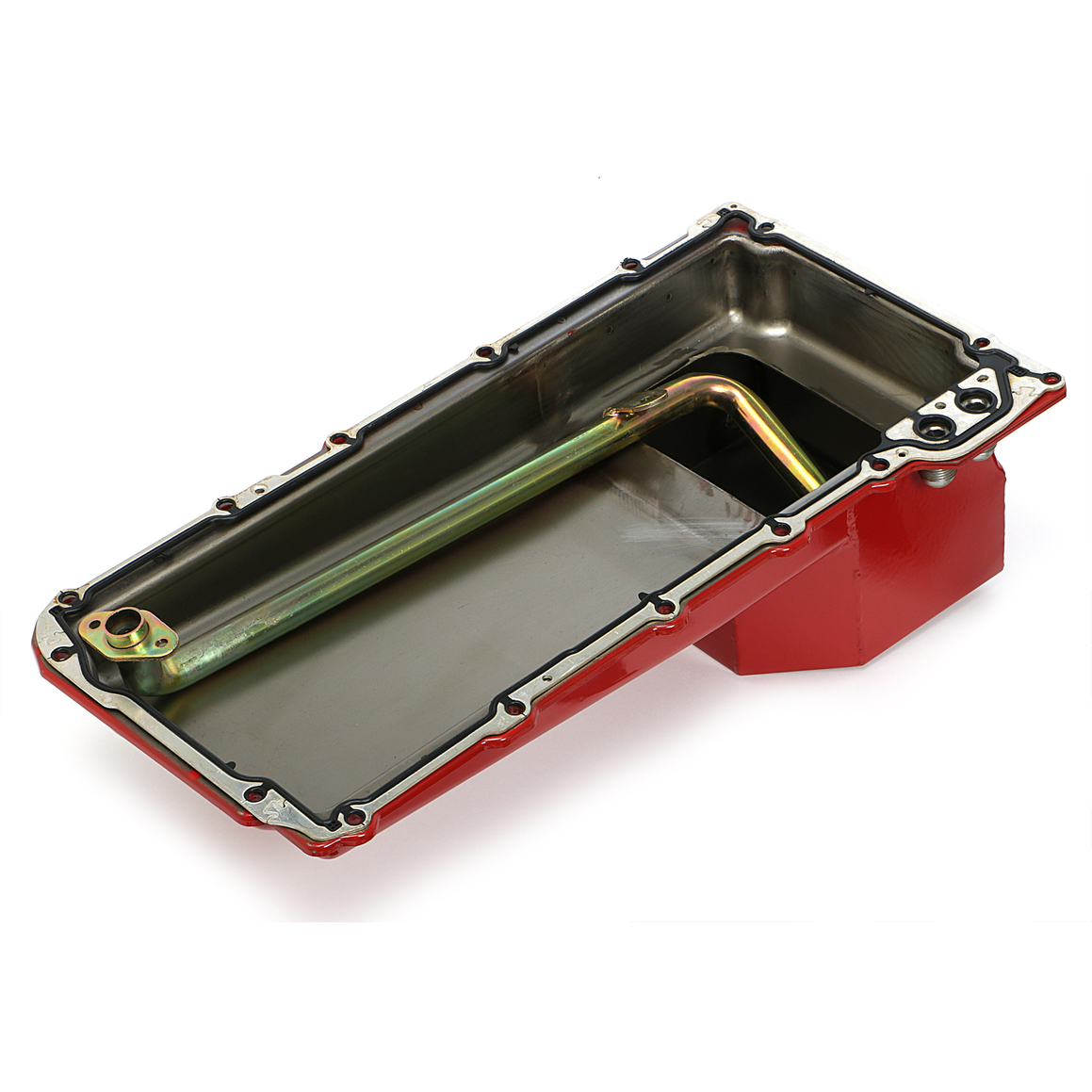

        <p>Each member company of the Hedman Performance Group is a specialist in the field they serve. Hedman hedders specializes in headers, Trans-Dapt Engine/transmission swap mounts, and Hamburger's focuses on oil pans. Working together, the HP Group companies join as one to develop comprehensive kits that include everything you'll need to safely, and properly, fasten the donor LS engine to the Chevy truck chassis. Sold as a single part number, purchasing complete engine swap kit ensures the products have been developed to work with each other, and takes the guesswork out of choosing swap products.</p><p>This Swap-In-A-Box Kit is developed specifically for installing an LS engine and automatic transmission into 1973-87 Chevy/GMC C10/C15 and C20/C25 Pickup Trucks and Suburbans (2WD). This kit is not for 4WD truck or Blazer applications. This comprehensive kit includes a pair of mild steel, Satin Black ceramic-coated Mid-Length headers with gaskets, bolts and exhaust adapters, a complete engine mount kit with hardware and rubber pads, LS swap engine oil pan with bolts, gaskets and special pick-up tube, and a transmission crossmember for use with a 4L60E, 4L70E, 4L80E, 4L85E, 6L85E and 6L90E automatic transmission.</p><p>Complete C10/C20 Engine Swap In A Box Kits with Hedman's HTC polished silver ceramic-coated, or uncoated headers are also available.</p><p>Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.</p>
        Retail price
        • $1,520.67
        Overview
        <p>Each member company of the Hedman Performance Group is a specialist in the field they serve. Hedman hedders specializes in headers, Trans-Dapt Engine/transmission swap mounts, and Hamburger's focuses on oil pans. Working together, the HP Group companies join as one to develop comprehensive kits that include everything you'll need to safely, and properly, fasten the donor LS engine to the Chevy truck chassis. Sold as a single part number, purchasing complete engine swap kit ensures the products have been developed to work with each other, and takes the guesswork out of choosing swap products.</p><p>This Swap-In-A-Box Kit is developed specifically for installing an LS engine and automatic transmission into 1973-87 Chevy/GMC C10/C15 and C20/C25 Pickup Trucks and Suburbans (2WD). This kit is not for 4WD truck or Blazer applications. This comprehensive kit includes a pair of mild steel, Satin Black ceramic-coated Mid-Length headers with gaskets, bolts and exhaust adapters, a complete engine mount kit with hardware and rubber pads, LS swap engine oil pan with bolts, gaskets and special pick-up tube, and a transmission crossmember for use with a 4L60E, 4L70E, 4L80E, 4L85E, 6L85E and 6L90E automatic transmission.</p><p>Complete C10/C20 Engine Swap In A Box Kits with Hedman's HTC polished silver ceramic-coated, or uncoated headers are also available.</p><p>Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.</p>
        Features
          • SKU
            FBLH-42053
          • Brand
            Trans-Dapt Performance
          • Air Conditioning
            Yes
          • Automatic Transmission - Column
            No
          • Automatic Transmission - Floor
            Yes
          • Baffled
            No
          • Bolts or Studs Included
            Yes
          • Collector Bolts Included
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Crank Shaft Wiper Included
            No
          • Cylinder Head
            Factory Style
          • Dipstick Port
            No
          • Drain Plug Included
            Yes
          • Engine Fitment
            Chevy LS Series
          • Exhaust System Diameter
            2.5 in.
          • Fastener(s) Included
            Yes
          • Fitment Note
            Automatic Transmission
          • Fitment Note
            C10/C15 Trucks and SUVs; 1973-87
          • Fitment Note
            Pan has -10AN Inlet / Outlet Ports, and Requires Relocation of the Oil Filter.
          • Fitment Note
            2WD
          • Fitment Note
            Fits 2WD
          • Fitment Note
            4L60E Transmission
          • Fitment Note
            4L70E Transmission
          • Fitment Note
            4L80E Transmission
          • Fitment Note
            4L85E Transmission
          • Fitment Note
            6L80E Transmission
          • Fitment Note
            6L90E Transmission
          • Flange Thickness
            0.375 in.
          • Gasket or Seal Included
            Yes
          • Header Fasteners Included
            Yes
          • Header Port Shape
            Round
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Hedman Hedders Included
            69713
          • Installation Method
            Welding Required
          • Kicked Out
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            No
          • Material
            Mild Steel
          • Material
            Mild Steel
          • Motor Mounts Included
            Yes
          • O2 Provision
            No
          • O2 Sensors Included
            No
          • Oil Pan Bolts Included
            Yes
          • Oil Pan Capacity
            5.0 qt.
          • Oil Pan Depth
            2.0 in. (Front), 6.0 in. (Rear Sump)
          • Oil Pan Included
            Yes
          • Oil Pan Material
            Steel
          • Oxygen Sensor Bung Included
            No
          • Package Contents
            Headers, Engine Mounts, Transmission Crossmember, Oil Pan, Hardware and Gaskets
          • Pickup Included
            Yes
          • Port Shape
            Round
          • Power Steering
            Yes
          • Primary Tube Diameter
            1.75 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Diameter
            2.5 in.
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            Yes
          • Replacement Manifold Gasket Part Number
            27470
          • Sump Dimensions
            6.0 in. x 8.25 in. x 7.0 in.
          • Sump Location
            Rear
          • Sump Style
            Wet Sump
          • Transmission Mount Type
            Crossmember
          • Transmission Mount/Crossmember Included
            6421
          • Tube Diameter
            1.75 in.
          • Tube Size
            1.75 in.
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Windage Tray Included
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • Y-Pipe Included
            No
        Fitment
        Make Model Submodel Year
        Chevrolet C10 Pickup Base 1973
        Chevrolet C10 Pickup Base 1974
        Chevrolet C10 Suburban Base 1973
        Chevrolet C10 Suburban Base 1974
        Chevrolet C20 Pickup Base 1973
        Chevrolet C20 Pickup Base 1974
        Chevrolet C20 Suburban Base 1973
        Chevrolet C20 Suburban Base 1974
        GMC C15/C1500 Pickup Base 1973
        GMC C15/C1500 Pickup Base 1974
        GMC C15/C1500 Suburban Base 1973
        GMC C15/C1500 Suburban Base 1974
