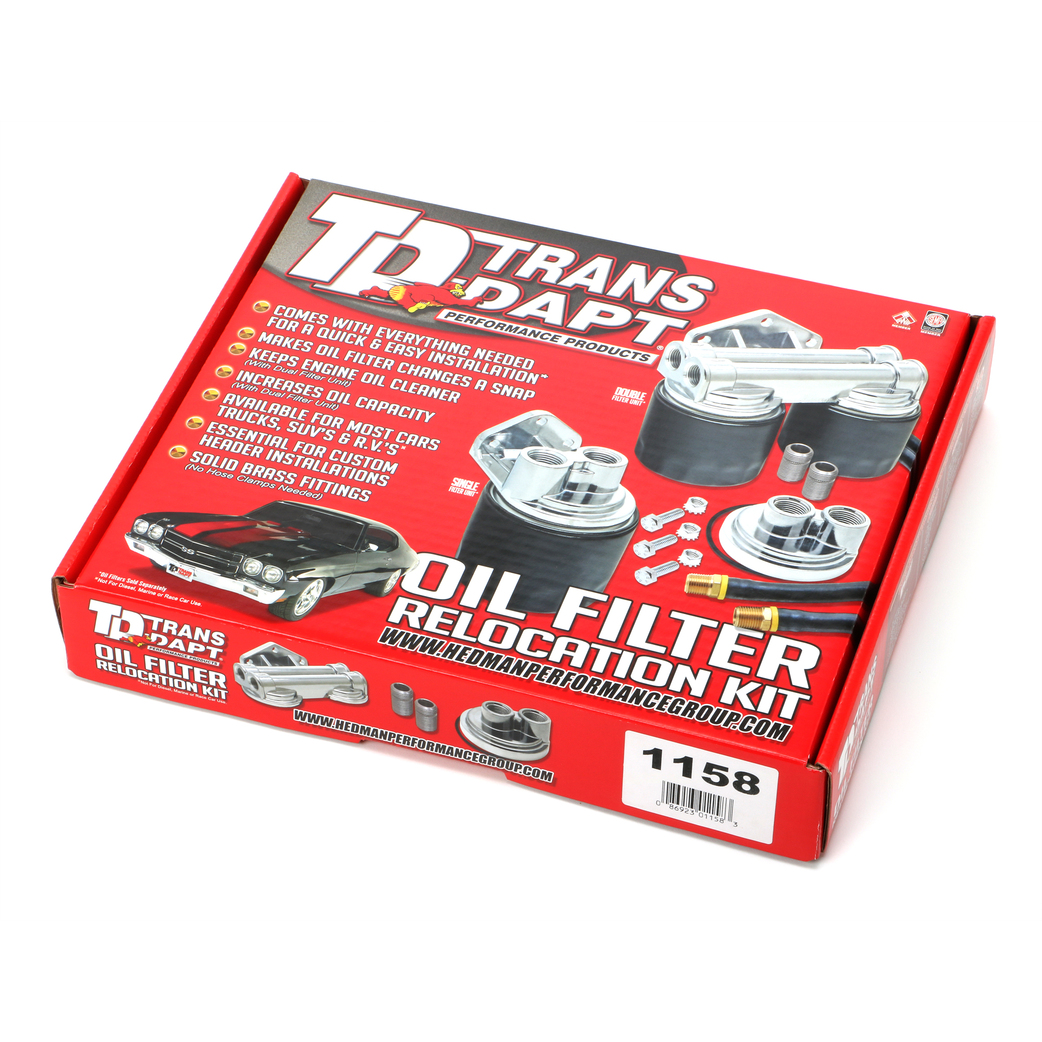

        Engine Oil Filter Remote Mounting Kit - 1158

        Part Number:FBLH-1158
        Trans-Dapt Performance
        Engine Oil Filter Remote Mounting Kit
        Retail price
        • $97.34
        Overview
        Engine Oil Filter Remote Mounting Kit
        Features
          • SKU
            FBLH-1158
          • Brand
            Trans-Dapt Performance
          • Bolt Hole Quantity
            3
          • Feature Note
            Single Oil Filter Relocation System; 2.5 in. Inside Diameter and 2.75 in. Outside Diameter Bypass Flange with 20.0 mm X 1.5 Thread Size
          • Filter Bypass Style
            Standard Port
          • Filter Nipple Thread Size
            20.0 mm x 1.5
          • Fitment Note
            Fits Engine Blocks Designed to Accept Oil Filters with a 20.0 mm X 1.5 Thread and 2.63 in. Diameter Sealing O-Ring.
          • Fitment Note
            Not for Diesel, Marine, Race Use.
          • Fitting Finish
            Raw
          • Fitting Material
            Brass
          • Fitting Quantity
            4
          • Fitting Thread
            0.5 in. NPT
          • Fitting Type
            Hose Barb
          • Hose Bust Pressure
            1,200 PSI
          • Hose Connection Type
            Push Lock
          • Hose Inside Diameter
            0.5 in.
          • Hose Length
            30.0 in.
          • Hose Material
            Nitrile Rubber
          • Hose Outside Diameter
            0.75 in.
          • Hose Temperature Range
            -40 F to +212 F
          • Hose Thickness
            0.125 in.
          • Hose Type
            Reinforced 1 Fiber Band
          • Kit Type
            Single Filter
          • Kit Type
            Single Filter
          • Material
            Cast Aluminum
          • Material
            Cast Aluminum
          • Mount Material
            Cast Aluminum
          • OEM Replacement Part
            No
          • Oil Filter Compatibility
            PH8A (or Equivalent)
          • Oil Filter Compatibility
            FRAM PH8A, Trans-Dapt 1156 (or Equivalent)
          • Package Contents
            Oil Filter Bypass Adapter, Remote Single Oil Filter Base, (2x) 30.0 in. Hoses, (4x) Brass Fittings, Mounting Hardware, Instructions
          • Package Contents
            Oil Filter Bypass Adapter, Remote Oil Filter Base, (2x) Hoses, (4x) Fittings, (4x) Hose Ferrules, Mounting Hardware
          • Performance
            Yes
          • Port Size
            0.5 in. NPT
          • Port Style
            Vertical
          • Race Only
            No
          • Vehicle Oil Filter Flange Inside Diameter
            2.5 in.
          • Vehicle Oil Filter Flange Outside Diameter
            2.75 in.
          • Vehicle Oil Filter Nipple Size
            20.0 mm x 1.5
        Fitment
        Make Model Submodel Year
        No Results
