        Exhaust Header - 99616

        Part Number:FBLG-99616
        Hedman Hedders

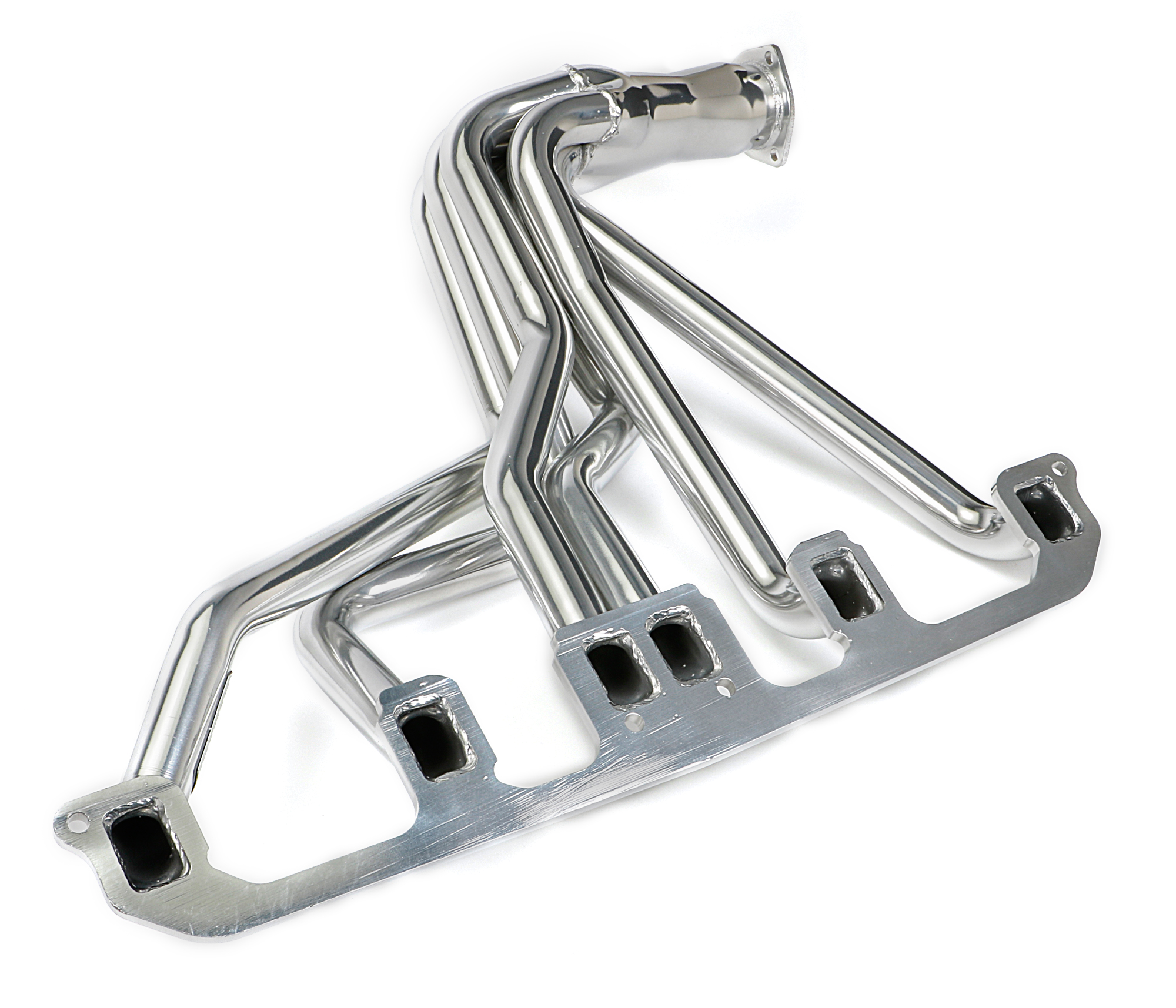

        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Jeep headers for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Inline 6 AMC headers, even if it is not perfectly aligned with the header collectors.</p><p>These HTC coated, 6-into-1, LONG-TUBE, headers fit 1972-1986 Jeep CJ5, CJ6 and CJ7 models with AMC's "torquey" 232-258 I6 engine. They are compatible with both manual and automatic transmission setups, and the long, smooth 1-1/2 in. tube design provides excellent exhaust flow to let your CJ's Inline 6 AMC engine exhale better, to pull out every bit of available torque and power you down any trail.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • Long Tube, 6-Into-1 Header Design Provides Excellent Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $879.25
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Jeep headers for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Inline 6 AMC headers, even if it is not perfectly aligned with the header collectors.</p><p>These HTC coated, 6-into-1, LONG-TUBE, headers fit 1972-1986 Jeep CJ5, CJ6 and CJ7 models with AMC's "torquey" 232-258 I6 engine. They are compatible with both manual and automatic transmission setups, and the long, smooth 1-1/2 in. tube design provides excellent exhaust flow to let your CJ's Inline 6 AMC engine exhale better, to pull out every bit of available torque and power you down any trail.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • Long Tube, 6-Into-1 Header Design Provides Excellent Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-99616
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            99610
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            2.5 in.
          • Collector Diameter
            2.5 in.
          • Collector Diameter
            2.5 in.
          • Collector Style
            3-Bolt Gasket Style Flange
          • Cylinder Head Port Shape
            Rectangle
          • Cylinder Head Port Shape
            Rectangle
          • Cylinder Head Port Shape
            Rectangle
          • Exhaust System Diameter
            2.5 in.
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            72-86 Jeep CJ5, CJ6, CJ7 232-258
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Header Style
            6-into-1
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            Yes
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel
          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Header Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.50 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Quantity
            Individually
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27820
          • Replacement Manifold Gasket Part Number
            27820
          • Tube Design
            Standard
          • Tube Diameter
            1.5 in.
          • Tube Size
            1.5 in.
          • Tube Thickness
            14 ga
          • Tube Thickness
            14 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Jeep CJ5 Base 1972
        Jeep CJ5 Base 1972
        Jeep CJ5 Base 1973
        Jeep CJ5 Base 1973
        Jeep CJ5 Base 1974
        Jeep CJ5 Base 1974
        Jeep CJ5 Base 1975
        Jeep CJ5 Base 1975
        Jeep CJ5 Base 1976
        Jeep CJ5 Base 1976
        Jeep CJ5 Base 1977
        Jeep CJ5 Base 1977
        Jeep CJ5 Base 1978
        Jeep CJ5 Base 1978
        Jeep CJ5 Base 1979
        Jeep CJ5 Base 1979
        Jeep CJ5 Base 1980
        Jeep CJ5 Base 1980
        Jeep CJ5 Base 1981
        Jeep CJ5 Base 1981
        Jeep CJ5 Base 1982
        Jeep CJ5 Base 1982
        Jeep CJ5 Base 1983
        Jeep CJ5 Base 1983
        Jeep CJ6 Base 1972
        Jeep CJ6 Base 1972
        Jeep CJ6 Base 1973
        Jeep CJ6 Base 1973
        Jeep CJ6 Base 1974
        Jeep CJ6 Base 1974
        Jeep CJ6 Base 1975
        Jeep CJ6 Base 1975
        Jeep CJ7 Base 1976
        Jeep CJ7 Base 1976
        Jeep CJ7 Base 1977
        Jeep CJ7 Base 1977
        Jeep CJ7 Base 1978
        Jeep CJ7 Base 1978
        Jeep CJ7 Base 1979
        Jeep CJ7 Base 1979
        Jeep CJ7 Base 1980
        Jeep CJ7 Base 1980
        Jeep CJ7 Base 1981
        Jeep CJ7 Base 1981
        Jeep CJ7 Base 1982
        Jeep CJ7 Base 1982
        Jeep CJ7 Base 1983
        Jeep CJ7 Base 1983
        Jeep CJ7 Base 1984
        Jeep CJ7 Base 1984
        Jeep CJ7 Base 1985
        Jeep CJ7 Base 1985
        Jeep CJ7 Base 1986
        Jeep CJ7 Base 1986
