BD 6.7L Power Stroke Screamer Stage 1 Retrofit Turbo Kit Ford 2011-2016 - 1045824

        Exhaust Header - 89353

        Part Number:FBLG-89353
        Hedman Hedders
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 5.0L headers, even if it is not perfectly aligned with the header collectors.</p><p>These BLACK-MAXX coated, LONG-TUBE headers fit 1980-96 Ford 1/2, 3/4 and 1 ton, 4WD Trucks, and 2WD or 4WD Broncos with a 5.0L (302W) engine. The long, smooth-flowing 1-1/2 in. tube design provides superb exhaust flow to let your Ford truck or Bronco's 5.0L engine breathe easy, and produce more horsepower and torque. They fit automatic transmissions only. Not designed for use with manual transmissions.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, SATIN-BLACK ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

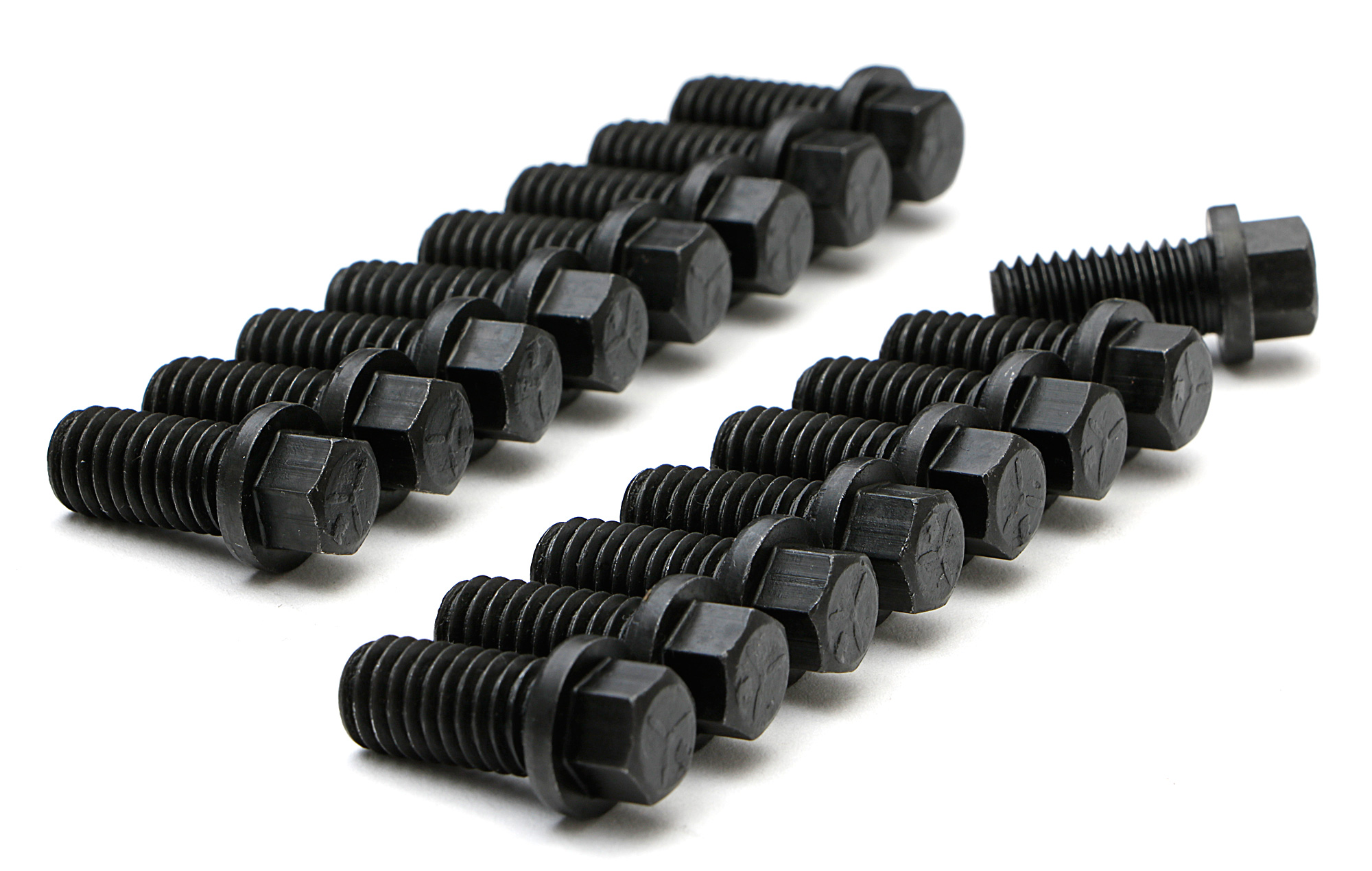

        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $673.70
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 5.0L headers, even if it is not perfectly aligned with the header collectors.</p><p>These BLACK-MAXX coated, LONG-TUBE headers fit 1980-96 Ford 1/2, 3/4 and 1 ton, 4WD Trucks, and 2WD or 4WD Broncos with a 5.0L (302W) engine. The long, smooth-flowing 1-1/2 in. tube design provides superb exhaust flow to let your Ford truck or Bronco's 5.0L engine breathe easy, and produce more horsepower and torque. They fit automatic transmissions only. Not designed for use with manual transmissions.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, SATIN-BLACK ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-89353
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            89350, 89358
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Square
          • Cylinder Head Port Shape
            Square
          • Cylinder Head Port Shape
            Square
          • Engine Fitment
            Ford Windsor Block (W)
          • Exhaust System Diameter
            2.5 in.
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            80-96 Ford F150, F250, F350, Bronco; 2-4WD 302 5.0L
          • Flange Style
            Standard
          • Flange Thickness
            0.3125 in.
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            No
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel
          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents

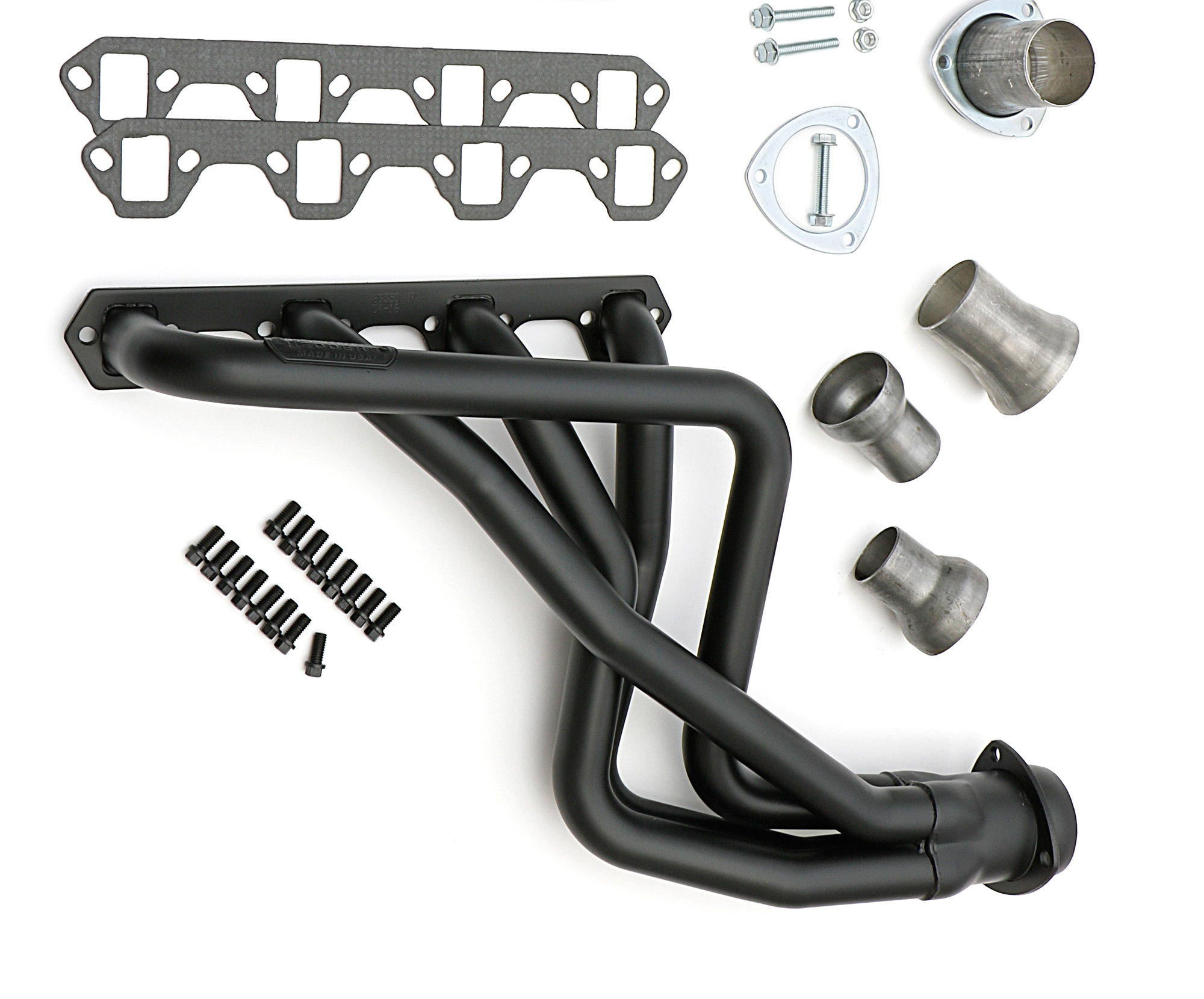

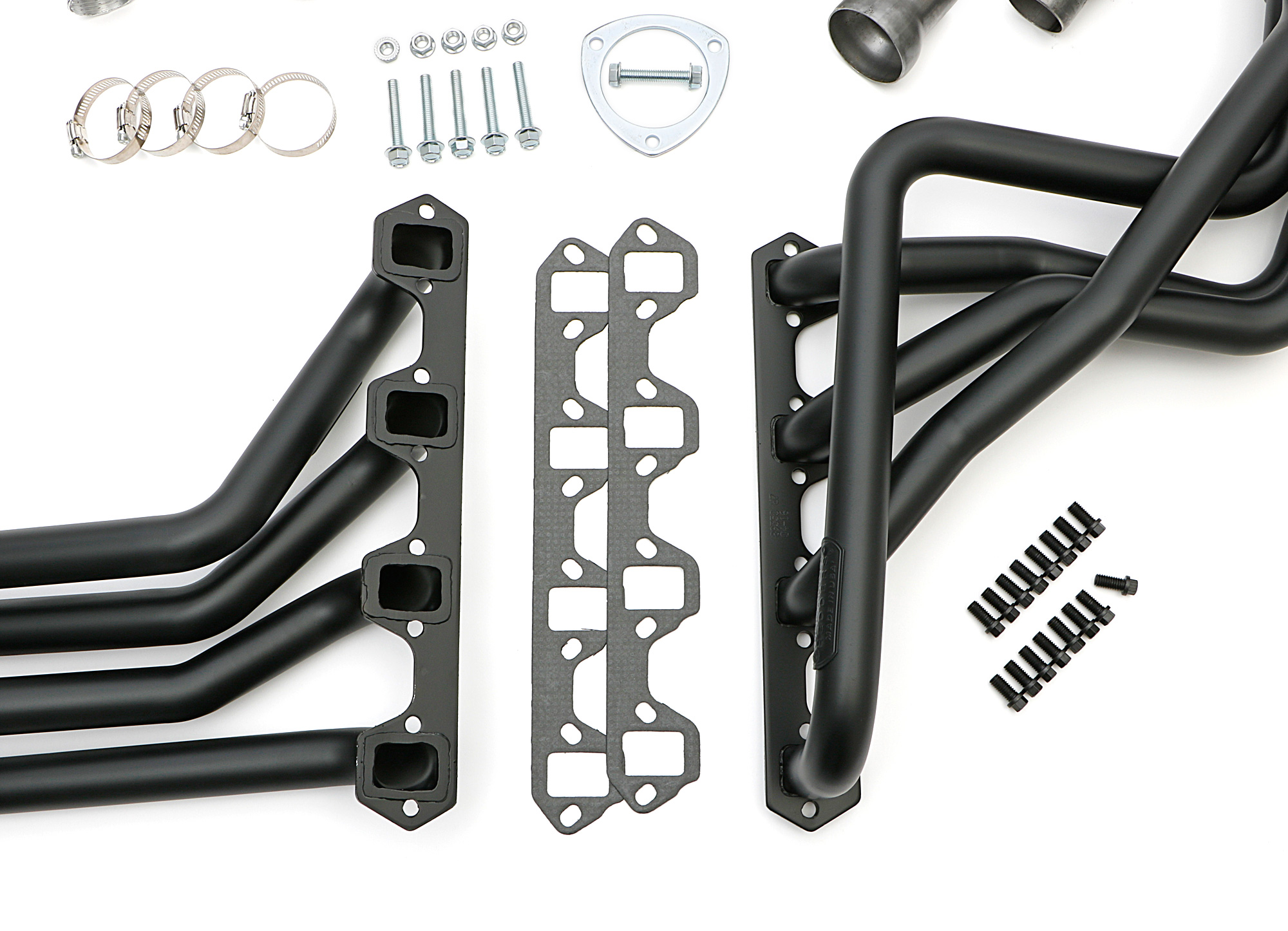

            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.50 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27340
          • Replacement Manifold Gasket Part Number
            27340
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.5 in.
          • Tube Size
            1.5 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Ford Bronco Base 1980
        Ford Bronco Base 1981
        Ford Bronco Base 1982
        Ford Bronco Base 1983
        Ford Bronco Base 1984
        Ford Bronco Base 1985
        Ford Bronco Base 1986
        Ford Bronco Base 1987
        Ford Bronco Base 1988
        Ford Bronco Base 1989
        Ford Bronco Base 1990
        Ford Bronco Base 1991
        Ford Bronco Base 1992
        Ford Bronco Base 1993
        Ford Bronco Base 1994
        Ford Bronco Base 1995
        Ford Bronco Base 1996
        Ford F-150 Base 1980
        Ford F-150 Base 1980
        Ford F-150 Base 1981
        Ford F-150 Base 1981
        Ford F-150 Base 1982
        Ford F-150 Base 1982
        Ford F-150 Base 1983
        Ford F-150 Base 1983
        Ford F-150 Base 1984
        Ford F-150 Base 1984
        Ford F-150 Base 1985
        Ford F-150 Base 1985
        Ford F-150 Base 1986
        Ford F-150 Base 1986
        Ford F-150 Base 1987
        Ford F-150 Base 1987
        Ford F-150 Base 1988
        Ford F-150 Base 1988
        Ford F-150 Base 1989
        Ford F-150 Base 1989
        Ford F-150 Base 1990
        Ford F-150 Base 1990
        Ford F-150 Base 1991
        Ford F-150 Base 1991
        Ford F-150 Base 1992
        Ford F-150 Base 1992
        Ford F-150 Base 1993
        Ford F-150 Base 1993
        Ford F-150 Base 1994
        Ford F-150 Base 1994
        Ford F-150 Base 1995
        Ford F-150 Base 1995
        Ford F-150 Base 1996
        Ford F-150 Base 1996
        Ford F-250 Base 1980
        Ford F-250 Base 1981
        Ford F-250 Base 1982
        Ford F-250 Base 1983
        Ford F-250 Base 1984
        Ford F-250 Base 1985
        Ford F-250 Base 1986
        Ford F-250 Base 1987
        Ford F-250 Base 1988
        Ford F-250 Base 1989
        Ford F-250 Base 1990
        Ford F-250 Base 1991
        Ford F-250 Base 1992
        Ford F-250 Base 1993
        Ford F-250 Base 1994
        Ford F-250 Base 1995
        Ford F-250 Base 1996
        Ford F-350 Base 1980
