        Exhaust Header - 89270

        Part Number:FBLG-89270
        Hedman Hedders
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these 351W (5.8L) headers, even if it is not perfectly aligned with the header collectors.</p><p>These uncoated, LONG-TUBE headers fit 1980-95 2WD Ford 1/2, 3/4 and 1 ton, and 1982-96 4WD Ford 1/2, 3/4 and 1 ton Trucks and Broncos with a 351W (5.8L) non-E.G.R. engine. The long, smooth-flowing 1-1/2 in. tube design provides superb exhaust flow to let your Ford truck's 5.8L engine breathe easy, and produce loads of horsepower and torque. They fit column-shift automatic and floor-shift manual transmissions, but will not work on lifted trucks, or 4WD models with a Dana 60 front differential.</p><p>These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $383.75
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these 351W (5.8L) headers, even if it is not perfectly aligned with the header collectors.</p><p>These uncoated, LONG-TUBE headers fit 1980-95 2WD Ford 1/2, 3/4 and 1 ton, and 1982-96 4WD Ford 1/2, 3/4 and 1 ton Trucks and Broncos with a 351W (5.8L) non-E.G.R. engine. The long, smooth-flowing 1-1/2 in. tube design provides superb exhaust flow to let your Ford truck's 5.8L engine breathe easy, and produce loads of horsepower and torque. They fit column-shift automatic and floor-shift manual transmissions, but will not work on lifted trucks, or 4WD models with a Dana 60 front differential.</p><p>These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-89270
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            89276, 89278
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            No
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Square
          • Cylinder Head Port Shape
            Square
          • Cylinder Head Port Shape
            Square
          • Engine Fitment
            Ford 351 WINDSOR
          • Engine Fitment
            Ford Windsor Block (W)
          • Exhaust System Diameter
            2.5 in.
          • Finish
            Uncoated
          • Finish
            Uncoated
          • Fitment Note
            Fits Stock Profile Heads
          • Flange Style
            Standard
          • Flange Thickness
            0.3125 in.
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel
          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents

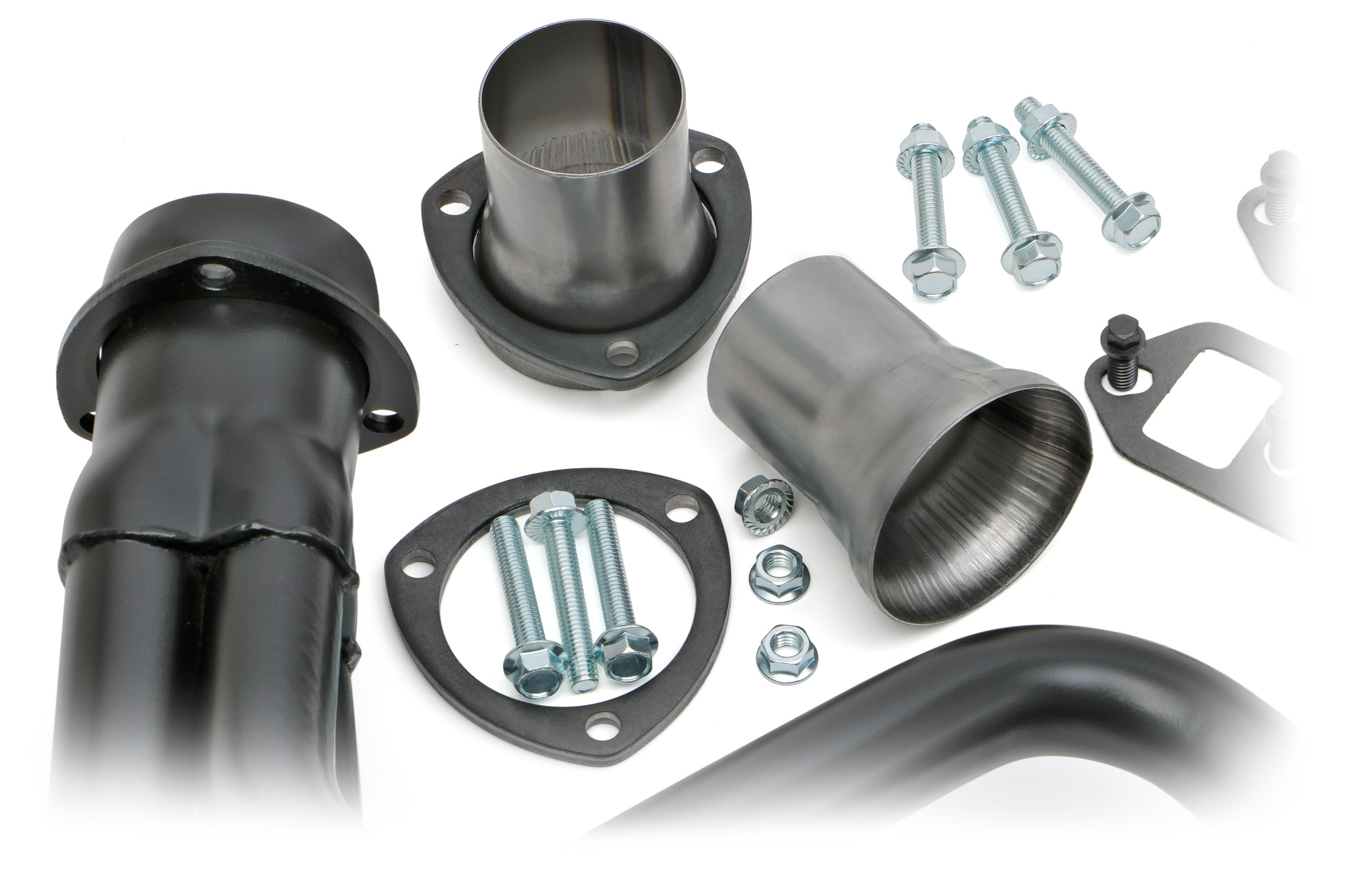

            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.50 in.
          • Prop 65 - Short Label
            WARNING: Cancer - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27340
          • Replacement Manifold Gasket Part Number
            27340
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.5 in.
          • Tube Size
            1.5 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Ford Bronco Base 1982
        Ford Bronco Base 1983
        Ford Bronco Base 1984
        Ford Bronco Base 1985
        Ford F-150 Base 1980
        Ford F-150 Base 1981
        Ford F-150 Base 1982
        Ford F-150 Base 1982
        Ford F-150 Base 1983
        Ford F-150 Base 1983
        Ford F-150 Base 1984
        Ford F-150 Base 1984
        Ford F-150 Base 1985
        Ford F-150 Base 1985
        Ford F-150 Base 1993
        Ford F-150 Base 1994
        Ford F-150 Base 1995
        Ford F-250 Base 1980
        Ford F-250 Base 1981
        Ford F-250 Base 1982
        Ford F-250 Base 1982
        Ford F-250 Base 1983
        Ford F-250 Base 1983
        Ford F-250 Base 1984
        Ford F-250 Base 1984
        Ford F-250 Base 1985
        Ford F-250 Base 1985
        Ford F-350 Base 1980
        Ford F-350 Base 1981
        Ford F-350 Base 1982
        Ford F-350 Base 1982
        Ford F-350 Base 1983
        Ford F-350 Base 1983
        Ford F-350 Base 1984
        Ford F-350 Base 1984
        Ford F-350 Base 1985
        Ford F-350 Base 1985
