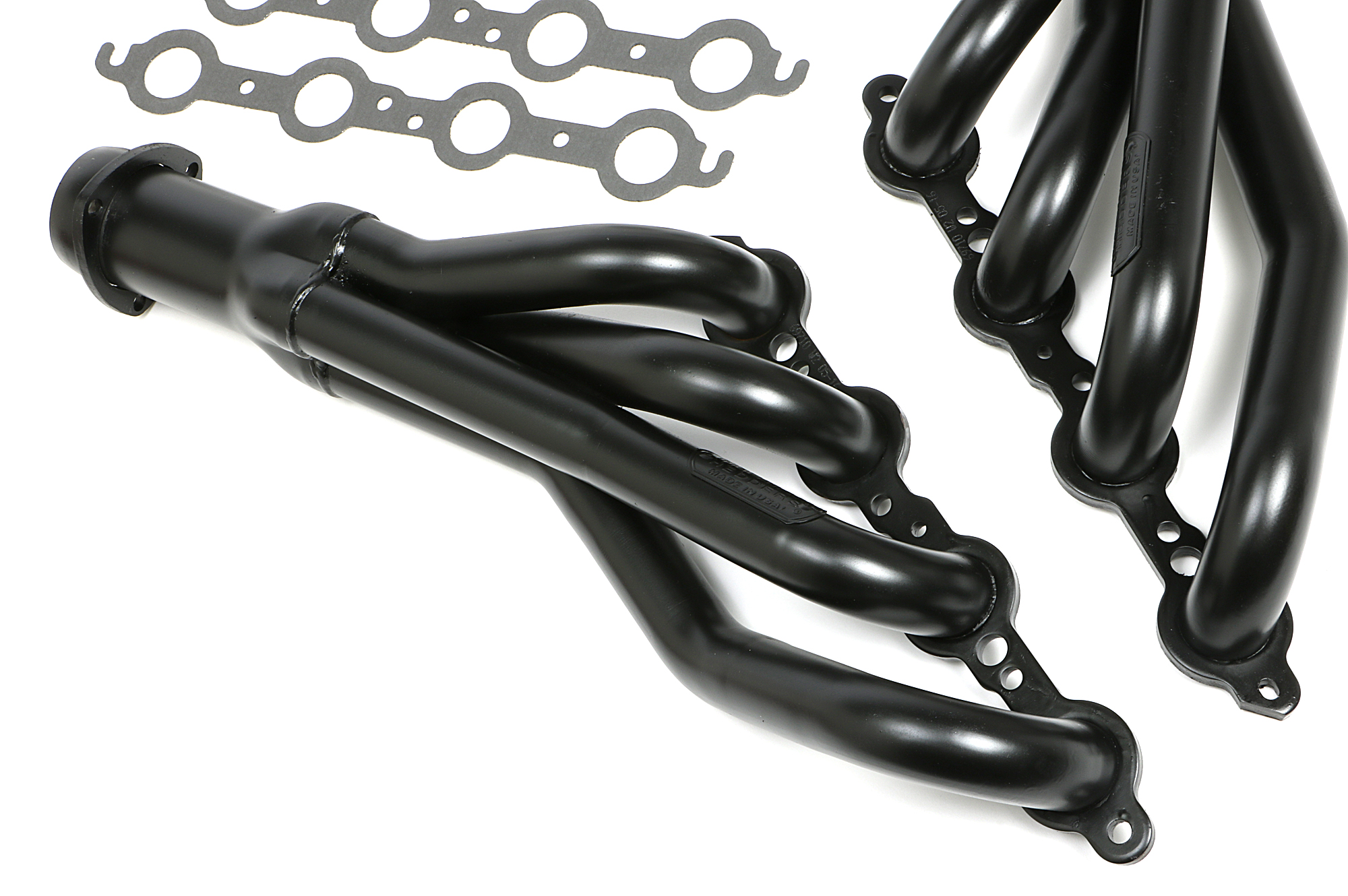

        Exhaust Header - 69710

        Part Number:FBLG-69710
        Hedman Hedders
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy & GMC Trucks for decades, so designing a good fitting, great performing set of headers for the popular LS engine swap was easy.</p><p>Each set uses smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. The stout 3/8" header flanges ensure a great seal that will resist warping, and Hedman's unique, gasketless ball and socket collector design allows your 1/2 or 3/4 ton Chevy/GMC's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. Hedman is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $390.67
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy & GMC Trucks for decades, so designing a good fitting, great performing set of headers for the popular LS engine swap was easy.</p><p>Each set uses smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. The stout 3/8" header flanges ensure a great seal that will resist warping, and Hedman's unique, gasketless ball and socket collector design allows your 1/2 or 3/4 ton Chevy/GMC's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. Hedman is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-69710
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            69713, 69716
          • Automatic Transmission - Column
            No
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Round
          • Cylinder Head Port Shape
            Round
          • Cylinder Head Port Shape
            Round
          • Engine Fitment
            Chevy LS Series
          • Engine Swap Headers
            For Installing an LS engine into 1967-87 Chevy/GMC C10 / C15 pick-up trucks
          • Exhaust System Diameter
            2.5 in.
          • Feature Note
            Engine Swap Headers
          • Finish
            Uncoated
          • Finish
            Uncoated
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            C10/C15 Trucks and SUVs; 1967-72
          • Fitment Note
            C10/C15 Trucks and SUVs; 1973-87
          • Fitment Note
            67-87 C10 TRUCK
          • Fitment Note
            Factory Chassis; Porterbuilt Front Dropmember, Roadster Shop Chassis
          • Fitment Note
            4L80 Requires Modification or Trimming to Bellhousing Ears
          • Fitment Note
            Fits Automatic Transmission
          • Fitment Note
            Fits Manual Transmission
          • Fitment Note
            Engine Swap, All Parts Must Be Factory Stock
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Head Style
            Factory Profile
          • Head Type
            Factory Heads
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes O2 Sensors
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

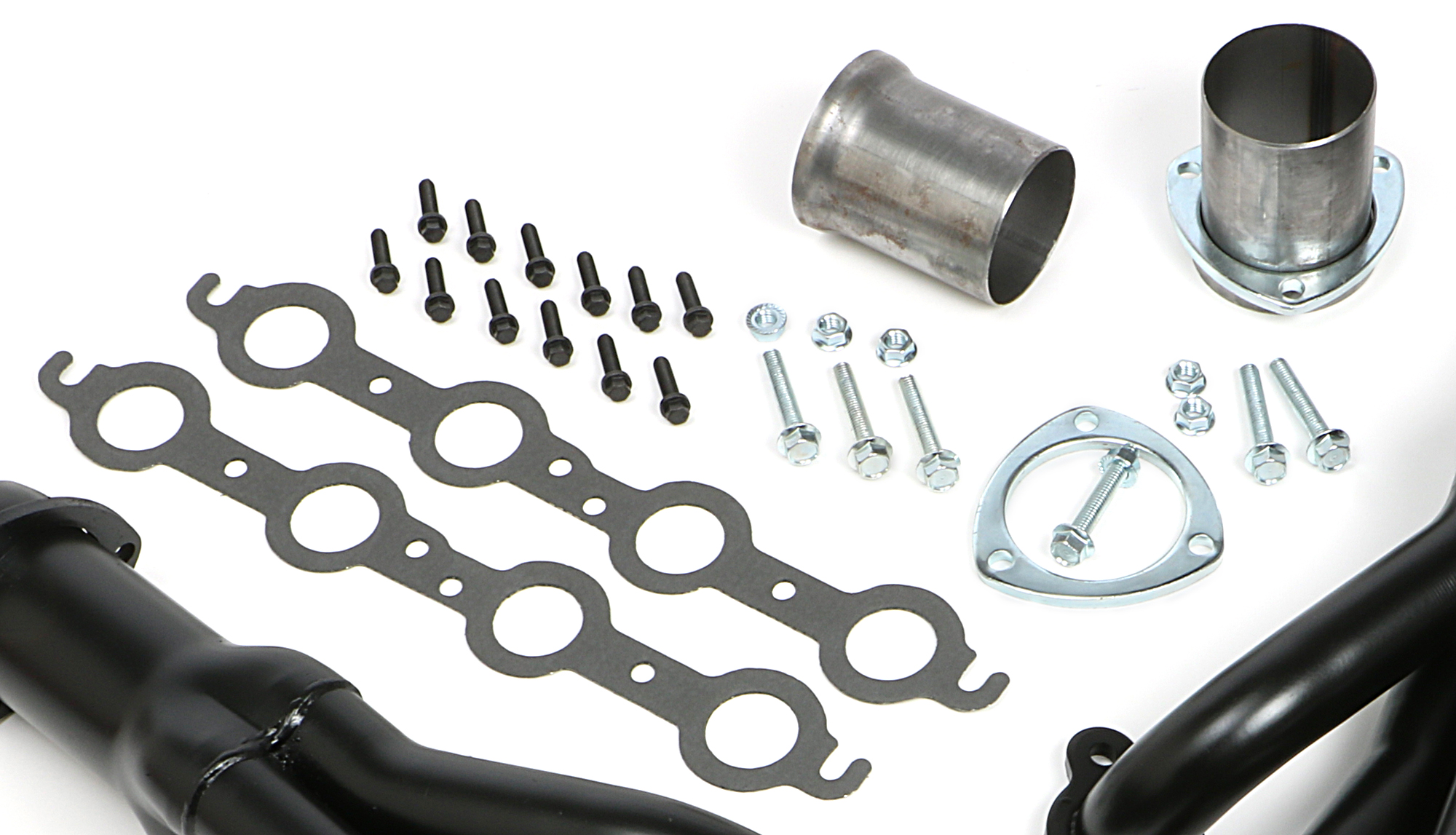

          • Package Contents
            Headers, Header Gaskets, Reducers (Exhaust Adapters), Header and Collector Bolts
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.75 in.
          • Product Type
            Headers
          • Prop 65 - Short Label
            WARNING: Cancer - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27470
          • Replacement Manifold Gasket Part Number
            27470
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.75 in.
          • Tube Size
            1.75 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        GMC C25/C2500 Suburban Base 1972
