        Exhaust Header - 69643

        Part Number:FBLG-69643
        Hedman Hedders

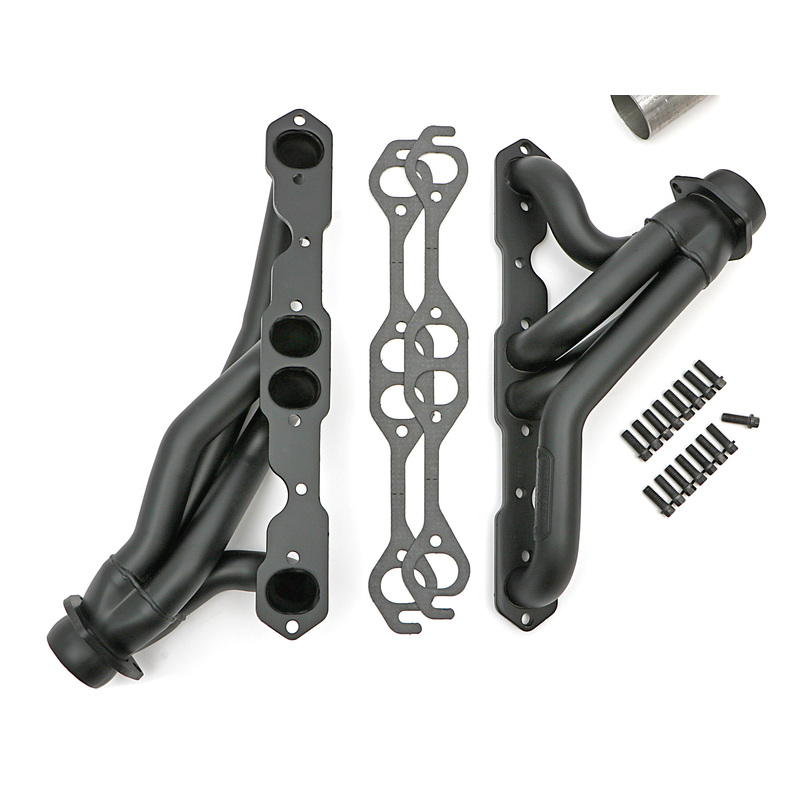

        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing and refining these Jeep Wrangler (YJ), SB Chevy V8 engine swap specific header model for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These BLACK-MAXX coated, MID-LENGTH TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into a 1987-1995 Wrangler (YJ). The smooth 1-1/2 in. tube design provides ample exhaust flow to let your Wrangler's transplanted 283-400 SB Chevy engine breathe easy, and significantly improve torque over factory manifolds.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, SATIN-BLACK ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Handcrafted, Under-Chassis Exit Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $498.20
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing and refining these Jeep Wrangler (YJ), SB Chevy V8 engine swap specific header model for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These BLACK-MAXX coated, MID-LENGTH TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into a 1987-1995 Wrangler (YJ). The smooth 1-1/2 in. tube design provides ample exhaust flow to let your Wrangler's transplanted 283-400 SB Chevy engine breathe easy, and significantly improve torque over factory manifolds.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, SATIN-BLACK ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Handcrafted, Under-Chassis Exit Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-69643
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            69640, 69648
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            2.5 in.
          • Collector Diameter
            2.5 in.
          • Collector Diameter
            2.5 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Round
          • Cylinder Head Port Shape
            Round
          • Cylinder Head Port Shape
            Round
          • Exhaust System Diameter
            2.5 in.
          • Fitment Note
            Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
          • Fitment Note
            87-95 Jeep Wrangler Chevrolet 283-400 Swap
          • Flange Style
            Standard
          • Flange Thickness
            0.3125 in.
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

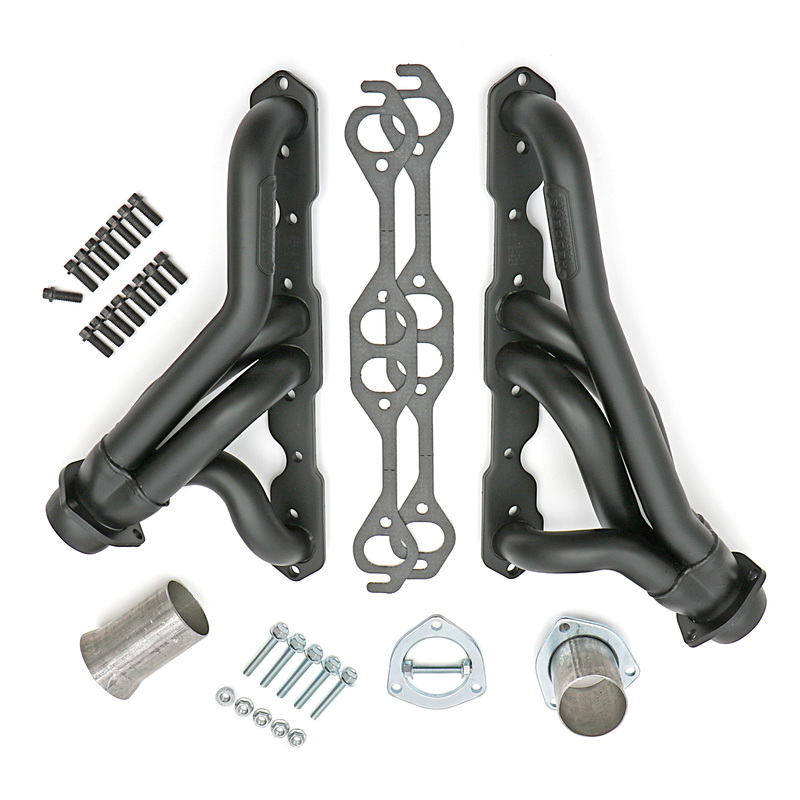

          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.50 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27500
          • Replacement Manifold Gasket Part Number
            27500
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.5 in.
          • Tube Size
            1.5 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Jeep Wrangler Base 1987
        Jeep Wrangler Base 1987
        Jeep Wrangler Base 1988
        Jeep Wrangler Base 1988
        Jeep Wrangler Base 1989
        Jeep Wrangler Base 1989
        Jeep Wrangler Base 1990
        Jeep Wrangler Base 1990
        Jeep Wrangler Base 1991
        Jeep Wrangler Base 1991
        Jeep Wrangler Base 1992
        Jeep Wrangler Base 1992
        Jeep Wrangler Base 1993
        Jeep Wrangler Base 1993
        Jeep Wrangler Base 1994
        Jeep Wrangler Base 1994
        Jeep Wrangler Base 1995
        Jeep Wrangler Base 1995
