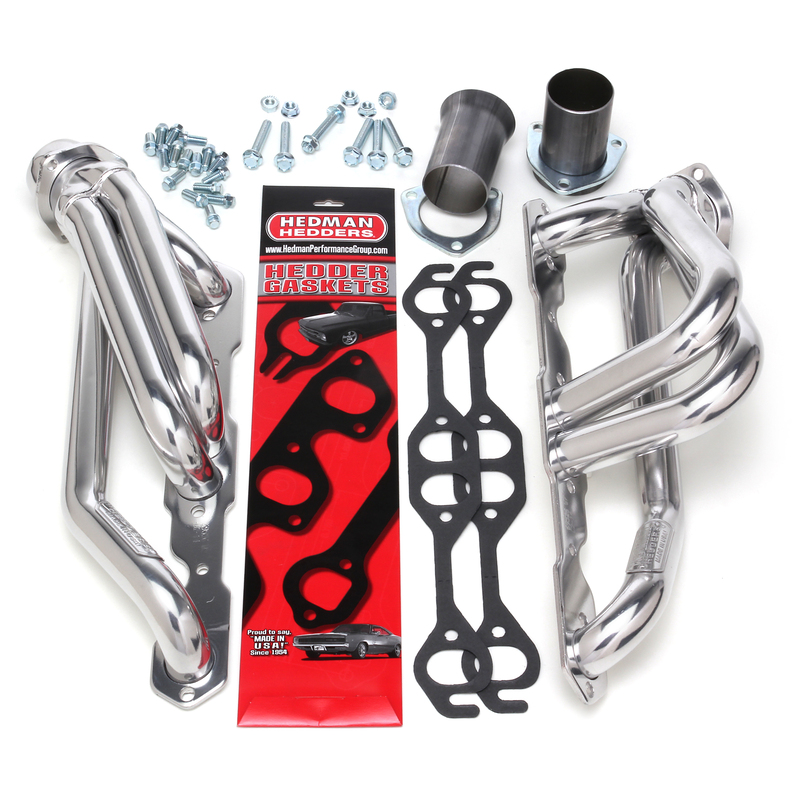

        Exhaust Header - 69526

        Part Number:FBLG-69526
        Hedman Hedders
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy S10, GMC S15, V8 engine swap specific headers for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These HTC Coated, MID-LENGTH TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into 1982-2004 Chevy S10/Blazer, GMC S15/Jimmy 2WD trucks. Fits both manual and automatic transmission trucks. The smooth 1-1/2 in. tube design provides ample exhaust flow to let your transplanted 283-400 SB Chevy engine breathe easy, and produce additional horsepower and torque over factory manifolds.</p><p>To ensure a proper installation, it is recommended that these headers be installed with Trans-Dapt Performance Product's #9906 engine swap mount kit.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $721.59
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy S10, GMC S15, V8 engine swap specific headers for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These HTC Coated, MID-LENGTH TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into 1982-2004 Chevy S10/Blazer, GMC S15/Jimmy 2WD trucks. Fits both manual and automatic transmission trucks. The smooth 1-1/2 in. tube design provides ample exhaust flow to let your transplanted 283-400 SB Chevy engine breathe easy, and produce additional horsepower and torque over factory manifolds.</p><p>To ensure a proper installation, it is recommended that these headers be installed with Trans-Dapt Performance Product's #9906 engine swap mount kit.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-69526
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            69520, 69528
          • Automatic Transmission - Column
            No
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            2.5 in.
          • Collector Diameter
            2.5 in.
          • Collector Diameter
            2.5 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Round
          • Cylinder Head Port Shape
            Round
          • Cylinder Head Port Shape
            Round
          • Engine Fitment
            Chevy Small Block 283-400 (Gen 1) 1958-86
          • Exhaust System Diameter
            2.5 in.
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            Fits 2WD
          • Fitment Note
            82-00 GM S10/15, Blazer, Jimmy, Sonoma 2WD SBC
          • Fitment Note
            Fits 2WD
          • Flange Style
            Standard
          • Flange Thickness
            0.3125 in.
          • Head Type
            Factory Heads
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel
          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.50 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27500
          • Replacement Manifold Gasket Part Number
            27500
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.5 in.
          • Tube Size
            1.5 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Chevrolet Blazer Base 1995
        Chevrolet Blazer Base 1996
        Chevrolet Blazer Base 1997
        Chevrolet Blazer Base 1998
        Chevrolet Blazer Base 1999
        Chevrolet Blazer Base 2000
        Chevrolet Blazer Base 2001
        Chevrolet Blazer Base 2002
        Chevrolet Blazer Base 2003
        Chevrolet Blazer Base 2004
        Chevrolet S10 Base 1982
        Chevrolet S10 Base 1982
        Chevrolet S10 Base 1983
        Chevrolet S10 Base 1983
        Chevrolet S10 Base 1984
        Chevrolet S10 Base 1984
        Chevrolet S10 Base 1985
        Chevrolet S10 Base 1985
        Chevrolet S10 Base 1986
        Chevrolet S10 Base 1986
        Chevrolet S10 Base 1987
        Chevrolet S10 Base 1987
        Chevrolet S10 Base 1988
        Chevrolet S10 Base 1988
        Chevrolet S10 Base 1989
        Chevrolet S10 Base 1989
        Chevrolet S10 Base 1990
        Chevrolet S10 Base 1990
        Chevrolet S10 Base 1991
        Chevrolet S10 Base 1991
        Chevrolet S10 Base 1992
        Chevrolet S10 Base 1992
        Chevrolet S10 Base 1993
        Chevrolet S10 Base 1993
        Chevrolet S10 Base 1994
        Chevrolet S10 Base 1994
        Chevrolet S10 Base 1995
        Chevrolet S10 Base 1995
        Chevrolet S10 Base 1996
        Chevrolet S10 Base 1997
        Chevrolet S10 Base 1998
        Chevrolet S10 Base 1999
        Chevrolet S10 Base 2000
        Chevrolet S10 Base 2001
        Chevrolet S10 Base 2002
        Chevrolet S10 Base 2003
        Chevrolet S10 Blazer Base 1983
        Chevrolet S10 Blazer Base 1983
        Chevrolet S10 Blazer Base 1984
        Chevrolet S10 Blazer Base 1984
        Chevrolet S10 Blazer Base 1985
        Chevrolet S10 Blazer Base 1985
        Chevrolet S10 Blazer Base 1986
        Chevrolet S10 Blazer Base 1986
        Chevrolet S10 Blazer Base 1987
        Chevrolet S10 Blazer Base 1987
        Chevrolet S10 Blazer Base 1988
        Chevrolet S10 Blazer Base 1988
        Chevrolet S10 Blazer Base 1989
        Chevrolet S10 Blazer Base 1989
        Chevrolet S10 Blazer Base 1990
        Chevrolet S10 Blazer Base 1990
        Chevrolet S10 Blazer Base 1991
        Chevrolet S10 Blazer Base 1991
        Chevrolet S10 Blazer Base 1992
        Chevrolet S10 Blazer Base 1992
        Chevrolet S10 Blazer Base 1993
        Chevrolet S10 Blazer Base 1993
        Chevrolet S10 Blazer Base 1994
        Chevrolet S10 Blazer Base 1994
        GMC Jimmy Base 1982
        GMC Jimmy Base 1982
        GMC Jimmy Base 1983
        GMC Jimmy Base 1983
        GMC Jimmy Base 1984
        GMC Jimmy Base 1984
        GMC Jimmy Base 1992
        GMC Jimmy Base 1992
        GMC Jimmy Base 1993
        GMC Jimmy Base 1993
        GMC Jimmy Base 1994
        GMC Jimmy Base 1994
        GMC Jimmy Base 1995
        GMC Jimmy Base 1996
        GMC Jimmy Base 1997
        GMC Jimmy Base 1998
        GMC Jimmy Base 1999
        GMC Jimmy Base 2000
        GMC Jimmy Base 2001
        GMC S15 Base 1982
        GMC S15 Base 1982
        GMC S15 Base 1983
        GMC S15 Base 1983
        GMC S15 Base 1984
        GMC S15 Base 1984
        GMC S15 Base 1985
        GMC S15 Base 1985
        GMC S15 Base 1986
        GMC S15 Base 1986
        GMC S15 Base 1987
        GMC S15 Base 1987
        GMC S15 Base 1988
        GMC S15 Base 1988
        GMC S15 Base 1989
        GMC S15 Base 1989
        GMC S15 Base 1990
        GMC S15 Base 1990
        GMC S15 Jimmy Base 1983
        GMC S15 Jimmy Base 1983
        GMC S15 Jimmy Base 1984
        GMC S15 Jimmy Base 1984
        GMC S15 Jimmy Base 1985
        GMC S15 Jimmy Base 1985
        GMC S15 Jimmy Base 1986
        GMC S15 Jimmy Base 1986
        GMC S15 Jimmy Base 1987
        GMC S15 Jimmy Base 1987
        GMC S15 Jimmy Base 1988
        GMC S15 Jimmy Base 1988
        GMC S15 Jimmy Base 1989
        GMC S15 Jimmy Base 1989
        GMC S15 Jimmy Base 1990
        GMC S15 Jimmy Base 1990
        GMC S15 Jimmy Base 1991
        GMC S15 Jimmy Base 1991
        GMC Sonoma Base 1991
        GMC Sonoma Base 1991
        GMC Sonoma Base 1992
        GMC Sonoma Base 1992
        GMC Sonoma Base 1993
        GMC Sonoma Base 1993
        GMC Sonoma Base 1994
        GMC Sonoma Base 1994
        GMC Sonoma Base 1995
        GMC Sonoma Base 1995
        GMC Sonoma Base 1996
        GMC Sonoma Base 1997
        GMC Sonoma Base 1998
        GMC Sonoma Base 1999
        GMC Sonoma Base 2000
        GMC Sonoma Base 2001
        GMC Sonoma Base 2002
        GMC Sonoma Base 2003
        Isuzu Hombre Base 1996
        Isuzu Hombre Base 1997
        Isuzu Hombre Base 1998
        Isuzu Hombre Base 1999
        Isuzu Hombre Base 2000
        Oldsmobile Bravada Base 2002
        Oldsmobile Bravada Base 2003
        Oldsmobile Bravada Base 2004
