        Exhaust Header - 69518

        Part Number:FBLG-69518
        Hedman Hedders
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing these Jeep CJ, SB Chevy V8 engine swap specific header model for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8 in. flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.</p><p>ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.</p><p>These LONG-TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into a 1976-1986 Jeep CJ5, CJ6 and CJ7. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your CJ's transplanted 283-400 SB Chevy engine breathe easy, and produce maximum torque to power you through virtually any trail.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
        • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty
        Retail price
        • $693.05
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing these Jeep CJ, SB Chevy V8 engine swap specific header model for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8 in. flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.</p><p>ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.</p><p>These LONG-TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into a 1976-1986 Jeep CJ5, CJ6 and CJ7. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your CJ's transplanted 283-400 SB Chevy engine breathe easy, and produce maximum torque to power you through virtually any trail.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
        • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty
        Features
          • SKU
            FBLG-69518
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            69516, 69518
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Exhaust System Diameter
            2.5 in.
          • Finish
            Matte Silver Ceramic-Metallic
          • Finish
            Matte Silver Ceramic-Metallic
          • Finish
            Matte Silver Ceramic-Metallic
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            Proper Header Fitment Depends on Engine and Drivetrain Location. Modification may be Necessary.
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Header Style
            Long Tubes - Fenderwell Exit
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No

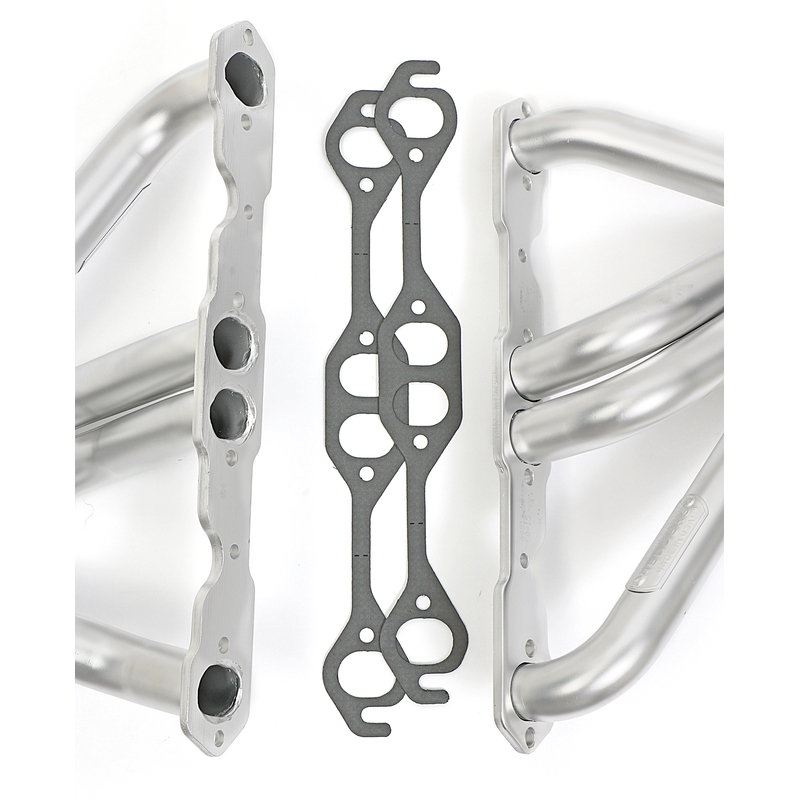

          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            Yes
          • Manual Transmission - Floor
            Yes
          • Material
            Elite Heavy-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

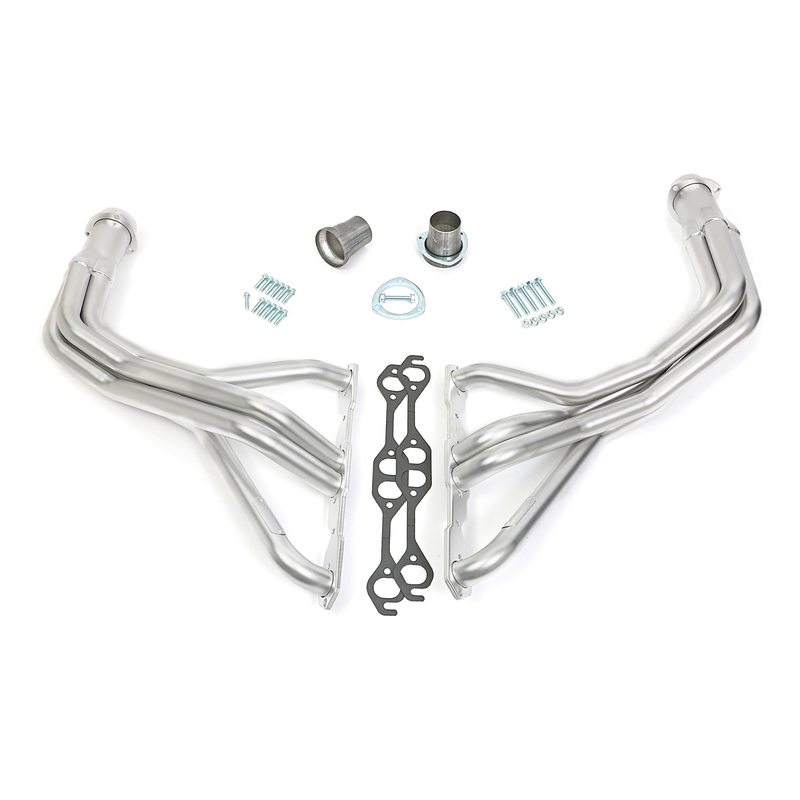

          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.625 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27520
          • Replacement Manifold Gasket Part Number
            27520
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.625 in.
          • Tube Size
            1.625 in.
          • Tube Thickness
            14 ga
          • Tube Thickness
            14 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Jeep CJ5 Base 1980
        Jeep CJ5 Base 1980
        Jeep CJ5 Base 1981
        Jeep CJ5 Base 1981
        Jeep CJ5 Base 1982
        Jeep CJ5 Base 1982
        Jeep CJ5 Base 1983
        Jeep CJ5 Base 1983
        Jeep CJ7 Base 1980
        Jeep CJ7 Base 1980
        Jeep CJ7 Base 1981
        Jeep CJ7 Base 1981
        Jeep CJ7 Base 1982
        Jeep CJ7 Base 1982
        Jeep CJ7 Base 1983
        Jeep CJ7 Base 1983
