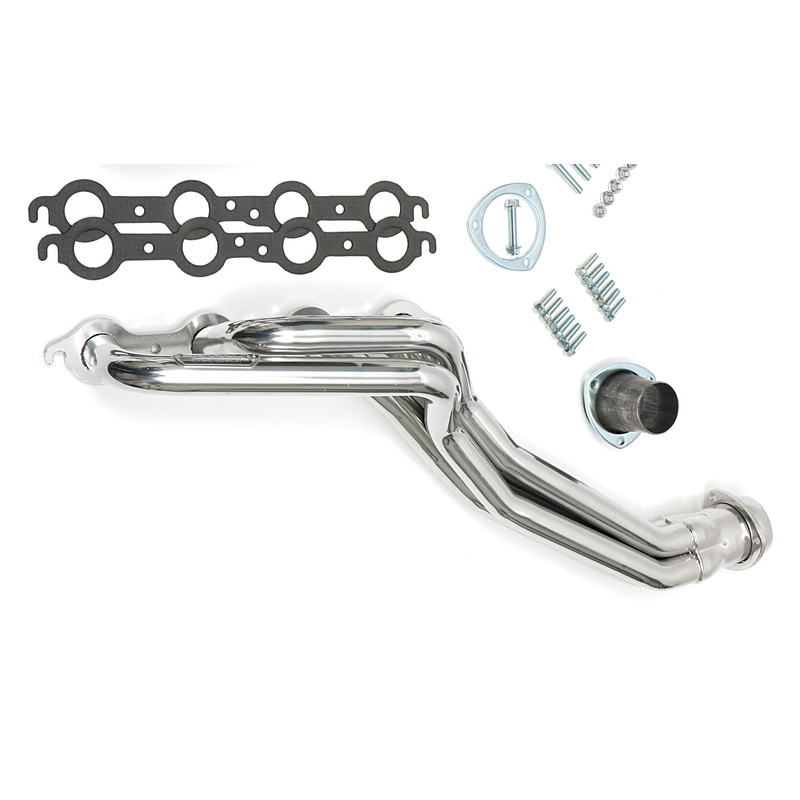

        Exhaust Header - 69056

        Part Number:FBLG-69056
        Hedman Hedders
        • Handcrafted, Mild Steel Construction.
        • Long Tube, Under Chassis Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Under Chassis Design
        • Proud To Say, Made In The USA, Since 1954!
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        Retail price
        • $793.39
        Overview
        • Handcrafted, Mild Steel Construction.
        • Long Tube, Under Chassis Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Under Chassis Design
        • Proud To Say, Made In The USA, Since 1954!
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        Features
          • SKU
            FBLG-69056
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            69050, 69053, 69056
          • Automatic Transmission - Column
            No
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Round
          • Cylinder Head Port Shape
            Round
          • Cylinder Head Port Shape
            Round
          • Engine Fitment
            Chevy LS Series
          • Exhaust System Diameter
            2.5 in.
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            Fits 2WD
          • Fitment Note
            Chevy/GMC S10/S15 Family; 1982-04
          • Fitment Note
            Requires Trans-Dapt Engine Swap Mount Kit 4516 (Rubber) Or 4530 (All Steel)
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Head Type
            Factory Heads
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

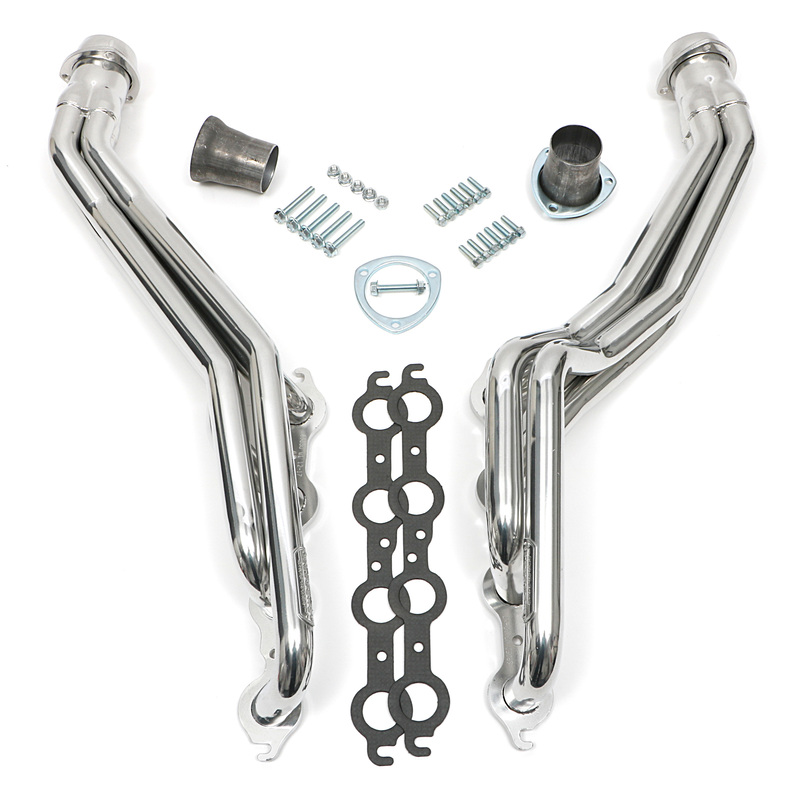

          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.50 in.
          • Product Type
            Headers
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes

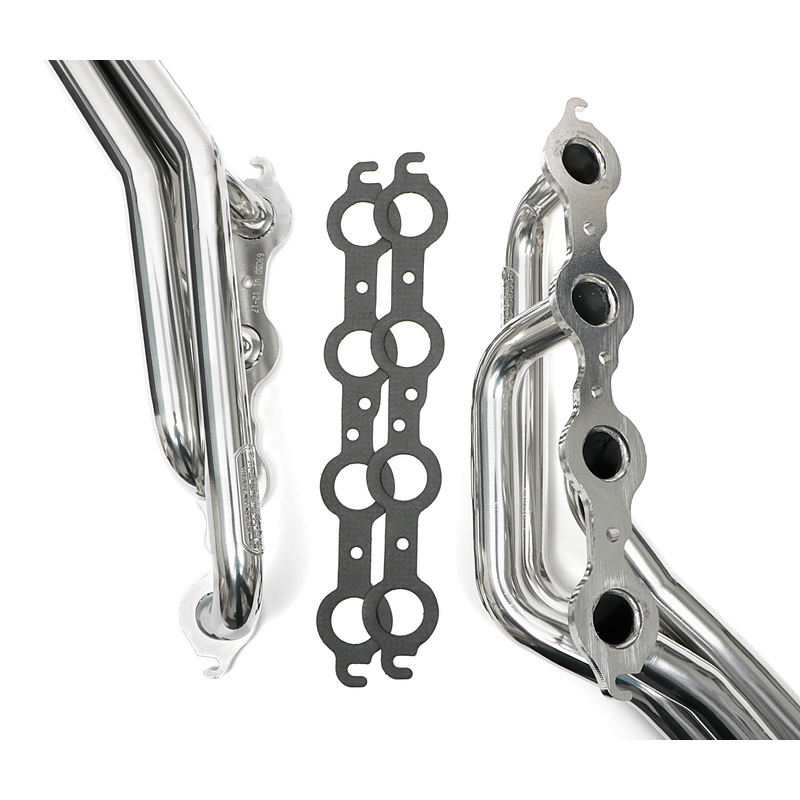

          • Replacement Head Flange Gasket
            27470
          • Replacement Manifold Gasket Part Number
            27470
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.5 in.
          • Tube Size
            1.5 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Chevrolet Blazer Base 1995
        Chevrolet Blazer Base 1996
        Chevrolet Blazer Base 1997
        Chevrolet Blazer Base 1998
        Chevrolet Blazer Base 1999
        Chevrolet Blazer Base 2000
        Chevrolet Blazer Base 2001
        Chevrolet Blazer Base 2002
        Chevrolet Blazer Base 2003
        Chevrolet Blazer Base 2004
        Chevrolet S10 Base 1982
        Chevrolet S10 Base 1983
        Chevrolet S10 Base 1984
        Chevrolet S10 Base 1985
        Chevrolet S10 Base 1986
        Chevrolet S10 Base 1986
        Chevrolet S10 Base 1987
        Chevrolet S10 Base 1988
        Chevrolet S10 Base 1989
        Chevrolet S10 Base 1990
        Chevrolet S10 Base 1991
        Chevrolet S10 Base 1992
        Chevrolet S10 Base 1993
        Chevrolet S10 Base 1994
        Chevrolet S10 Base 1995
        Chevrolet S10 Base 1996
        Chevrolet S10 Base 1997
        Chevrolet S10 Base 1998
        Chevrolet S10 Base 1999
        Chevrolet S10 Base 2000
        Chevrolet S10 Base 2001
        Chevrolet S10 Base 2002
        Chevrolet S10 Base 2003
        Chevrolet S10 Blazer Base 1983
        Chevrolet S10 Blazer Base 1984
        Chevrolet S10 Blazer Base 1985
        Chevrolet S10 Blazer Base 1985
        Chevrolet S10 Blazer Base 1986
        Chevrolet S10 Blazer Base 1987
        Chevrolet S10 Blazer Base 1988
        Chevrolet S10 Blazer Base 1989
        Chevrolet S10 Blazer Base 1990
        Chevrolet S10 Blazer Base 1991
        Chevrolet S10 Blazer Base 1992
        Chevrolet S10 Blazer Base 1993
        Chevrolet S10 Blazer Base 1994
        GMC Jimmy Base 1982
        GMC Jimmy Base 1983
        GMC Jimmy Base 1983
        GMC Jimmy Base 1984
        GMC Jimmy Base 1992
        GMC Jimmy Base 1993
        GMC Jimmy Base 1994
        GMC Jimmy Base 1995
        GMC Jimmy Base 1996
        GMC Jimmy Base 1997
        GMC Jimmy Base 1998
        GMC Jimmy Base 1999
        GMC Jimmy Base 2000
        GMC Jimmy Base 2001
        GMC S15 Base 1982
        GMC S15 Base 1983
        GMC S15 Base 1984
        GMC S15 Base 1985
        GMC S15 Base 1986
        GMC S15 Base 1987
        GMC S15 Base 1988
        GMC S15 Base 1989
        GMC S15 Base 1990
        GMC S15 Jimmy Base 1983
        GMC S15 Jimmy Base 1984
        GMC S15 Jimmy Base 1985
        GMC S15 Jimmy Base 1986
        GMC S15 Jimmy Base 1987
        GMC S15 Jimmy Base 1988
        GMC S15 Jimmy Base 1988
        GMC S15 Jimmy Base 1989
        GMC S15 Jimmy Base 1990
        GMC S15 Jimmy Base 1991
        GMC Sonoma Base 1991
        GMC Sonoma Base 1992
        GMC Sonoma Base 1993
        GMC Sonoma Base 1994
        GMC Sonoma Base 1995
        GMC Sonoma Base 1996
        GMC Sonoma Base 1997
        GMC Sonoma Base 1998
        GMC Sonoma Base 1999
        GMC Sonoma Base 2000
        GMC Sonoma Base 2001
        GMC Sonoma Base 2002
        GMC Sonoma Base 2003
        Isuzu Hombre Base 1996
        Isuzu Hombre Base 1997
        Isuzu Hombre Base 1998
        Isuzu Hombre Base 1999
        Isuzu Hombre Base 2000
        Oldsmobile Bravada Base 2002
        Oldsmobile Bravada Base 2003
        Oldsmobile Bravada Base 2004
