        Exhaust Header - 69020

        Part Number:FBLG-69020
        Hedman Hedders
        • Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
        • The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $383.25
        Overview
        • Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
        • The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-69020
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            69026
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Rectangle
          • Cylinder Head Port Shape
            Rectangle
          • Cylinder Head Port Shape
            Rectangle
          • Engine Fitment
            Chevy Small Block 283-400 (Gen 1) 1958-86
          • Exhaust System Diameter
            2.5 in.
          • Feature Note
            The Short, Compact Design of These Headers Allows Truck Builder to Raise the Exhaust System Higher for Maximum Ground Clearance. This Set is Uncoated. For the Added Protection of HTC Coating, Please Refer to Part Number 69026.
          • Finish
            Uncoated
          • Finish
            Uncoated
          • Fitment Note
            Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
          • Fitment Note
            67-87 Chevrolet 1/2, 3/4 Ton Truck 283-400 2WD
          • Fitment Note
            NOT For Vehicles with Offset Right Engine Position
          • Fitment Note
            Fits Manual Transmission. Must Use TailShaft Style Crossmember or Modify Factory Crossmember
          • Fitment Note
            Designed for Use with he SB Chevy Engine Located in the Factory Position.
          • Fitment Note
            70-Up: Large Compressor Needs Bracket 20110; Small Compressor, Modify OE Bracket
          • Flange Style
            Standard
          • Flange Thickness
            0.3125 in.
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

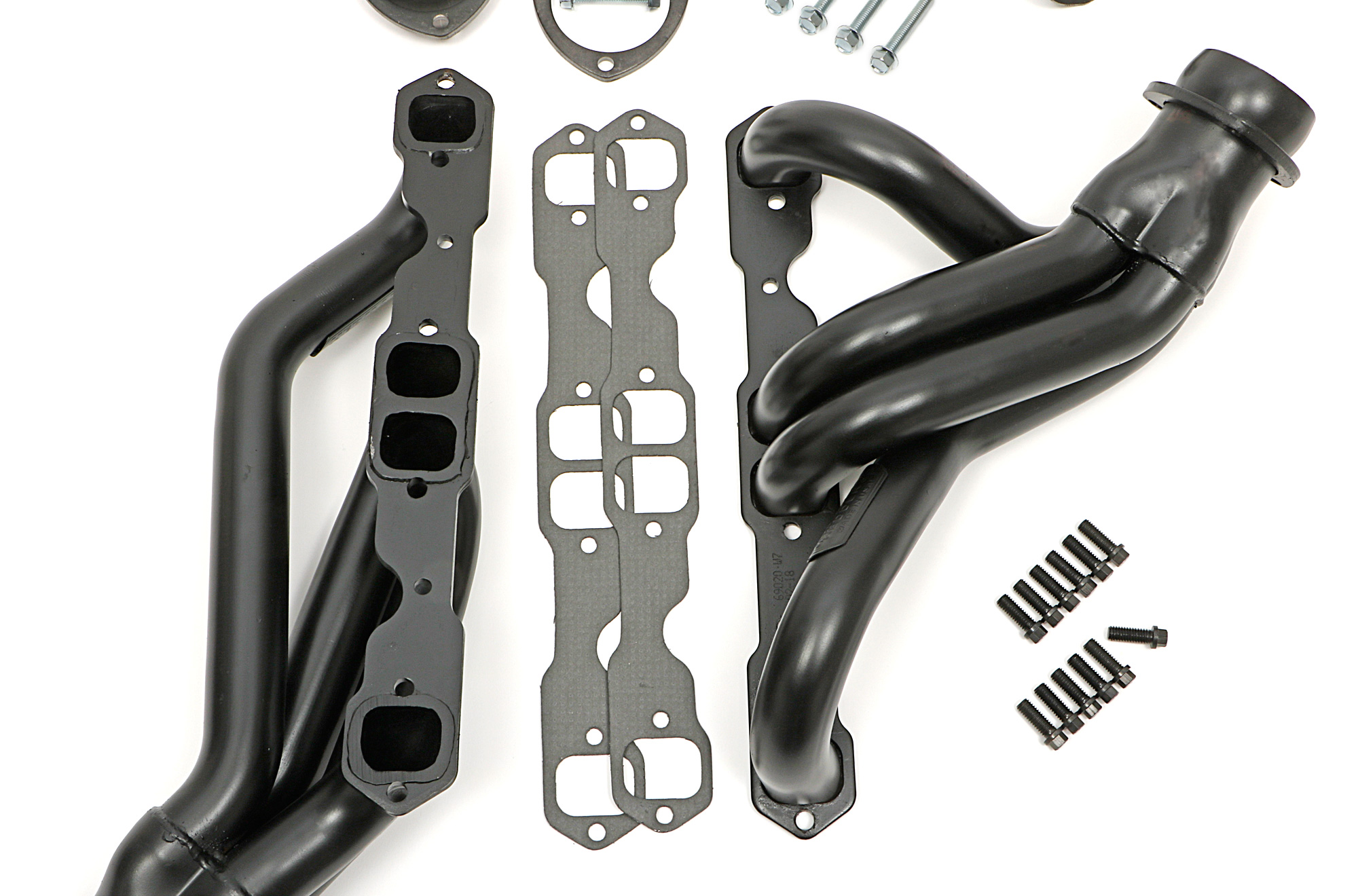

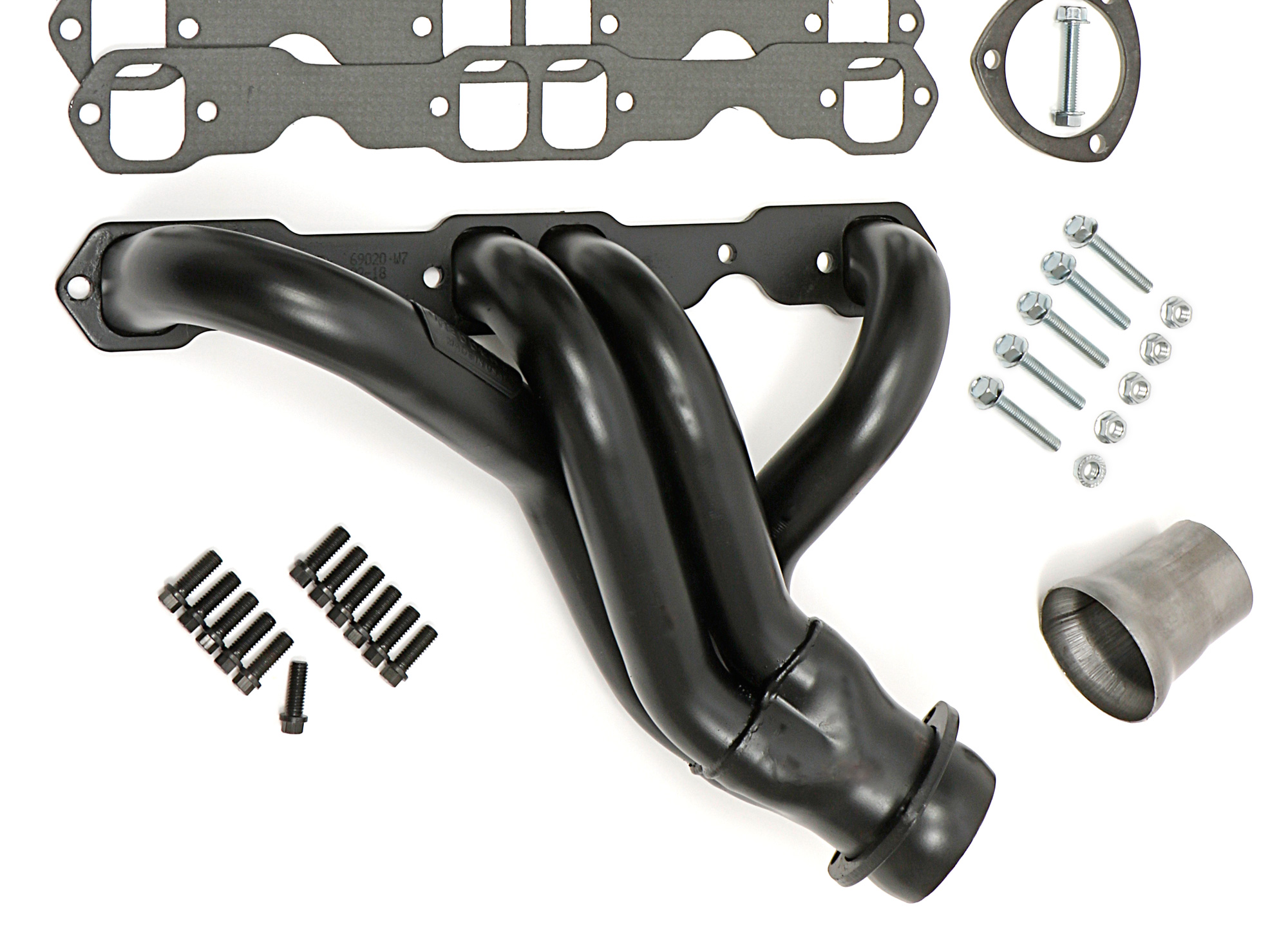

          • Package Contents
            Headers, Header Gaskets, Reducers (Exhaust Adapters), Header and Collector Bolts
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.75 in.
          • Prop 65 - Short Label
            WARNING: Cancer - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27560
          • Replacement Manifold Gasket Part Number
            27560
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.75 in.
          • Tube Size
            1.75 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Chevrolet C10 Base 1976
        Chevrolet C10 Base 1977
        Chevrolet C10 Base 1978
        Chevrolet C10 Base 1979
        Chevrolet C10 Base 1980
        Chevrolet C10 Pickup Base 1967
        Chevrolet C10 Pickup Base 1967
        Chevrolet C10 Pickup Base 1968
        Chevrolet C10 Pickup Base 1969
        Chevrolet C10 Suburban Base 1967
        Chevrolet C10 Suburban Base 1967
        Chevrolet C10 Suburban Base 1968
        Chevrolet C10 Suburban Base 1969
        Chevrolet C20 Base 1976
        Chevrolet C20 Base 1977
        Chevrolet C20 Base 1978
        Chevrolet C20 Base 1979
        Chevrolet C20 Base 1980
        Chevrolet C20 Pickup Base 1967
        Chevrolet C20 Pickup Base 1967
        Chevrolet C20 Pickup Base 1968
        Chevrolet C20 Pickup Base 1969
        Chevrolet C20 Suburban Base 1967
        Chevrolet C20 Suburban Base 1967
        Chevrolet C20 Suburban Base 1968
        Chevrolet C20 Suburban Base 1969
        Chevrolet C20 Suburban Base 1976
        Chevrolet C20 Suburban Base 1977
        Chevrolet C20 Suburban Base 1978
        Chevrolet C20 Suburban Base 1979
        Chevrolet C20 Suburban Base 1980
        Chevrolet C30 Base 1976
        Chevrolet C30 Base 1977
        Chevrolet C30 Base 1978
        Chevrolet C30 Pickup Base 1967
        Chevrolet C30 Pickup Base 1967
        Chevrolet C30 Pickup Base 1968
        Chevrolet C30 Pickup Base 1969
        GMC C15 Base 1976
        GMC C15 Base 1978
        GMC C15/C1500 Pickup Base 1967
        GMC C15/C1500 Pickup Base 1967
        GMC C15/C1500 Pickup Base 1968
        GMC C15/C1500 Suburban Base 1967
        GMC C15/C1500 Suburban Base 1967
        GMC C15/C1500 Suburban Base 1968
        GMC C1500 Base 1979
        GMC C1500 Base 1980
        GMC C25 Base 1976
        GMC C25 Base 1977
        GMC C25 Base 1978
        GMC C25 Suburban Base 1978
        GMC C25/C2500 Pickup Base 1967
        GMC C25/C2500 Pickup Base 1967
        GMC C25/C2500 Pickup Base 1968
        GMC C25/C2500 Suburban Base 1967
        GMC C25/C2500 Suburban Base 1967
        GMC C25/C2500 Suburban Base 1968
        GMC C2500 Base 1979
        GMC C2500 Suburban Base 1980
        GMC C35 Base 1976
        GMC C35 Base 1977
        GMC C35 Base 1978
        GMC C35/C3500 Pickup Base 1967
        GMC C35/C3500 Pickup Base 1967
        GMC C35/C3500 Pickup Base 1968
        GMC C3500 Base 1979
