        Exhaust Header - 69010

        Part Number:FBLG-69010
        Hedman Hedders

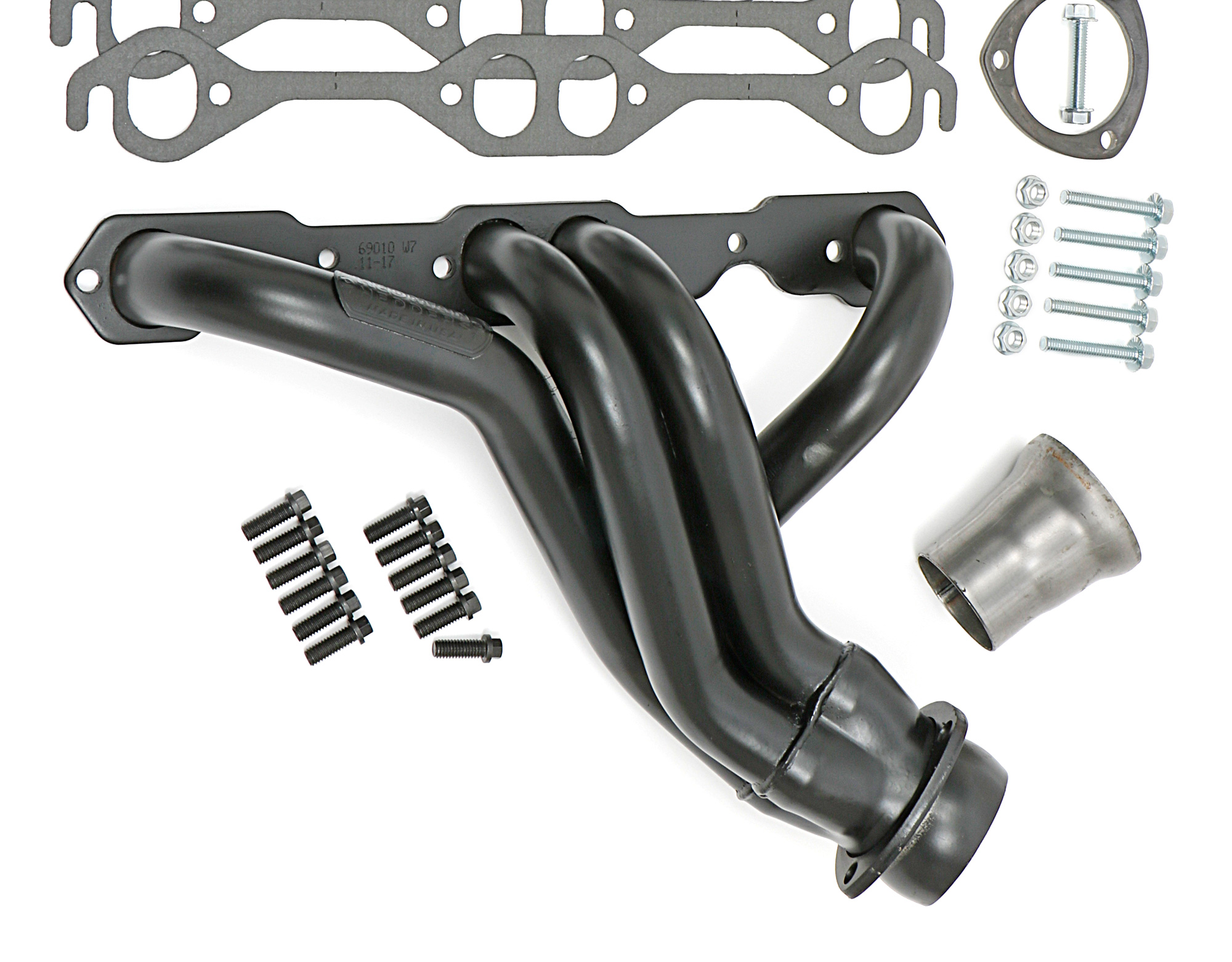

        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy truck headers for nearly as long. Whether your cherished truck is powered by a Chevy small block, big block, or LS engine, Hedman Hedders manufactures as model for you in its Whittier, California manufactruring facility. This set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These uncoated, MID-LENGTH tube headers fit 1967-1987 2WD, 1/2 ton and 3/4 ton Chevy and GMC trucks, Suburbans, and Blazers with a SB Chevy engine (check the application listings for exact fitment). The smooth 1-5/8 in tube design provides ample exhaust flow to let your C10/C20, C15/C25 truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. The MID-LENGTH design of these headers keeps the header connection up, tighter to the body, so you can keep your entire exhaust above the frame rails. These headers work with factory chassis, as well as, aftermarket front clips, like Porterbuilt.</p><p> These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Appli
        Retail price
        • $342.16
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy truck headers for nearly as long. Whether your cherished truck is powered by a Chevy small block, big block, or LS engine, Hedman Hedders manufactures as model for you in its Whittier, California manufactruring facility. This set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These uncoated, MID-LENGTH tube headers fit 1967-1987 2WD, 1/2 ton and 3/4 ton Chevy and GMC trucks, Suburbans, and Blazers with a SB Chevy engine (check the application listings for exact fitment). The smooth 1-5/8 in tube design provides ample exhaust flow to let your C10/C20, C15/C25 truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. The MID-LENGTH design of these headers keeps the header connection up, tighter to the body, so you can keep your entire exhaust above the frame rails. These headers work with factory chassis, as well as, aftermarket front clips, like Porterbuilt.</p><p> These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Appli
        Features
          • SKU
            FBLG-69010
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            69016
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Exhaust System Diameter
            2.5 in.
          • Finish
            Uncoated
          • Finish
            Uncoated
          • Fitment Note
            Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
          • Fitment Note
            NOT For Vehicles with Offset Right Engine Position
          • Fitment Note
            Fits Manual Transmission. Must Use TailShaft Style Crossmember or Modify Factory Crossmember
          • Fitment Note
            Designed for Use with he SB Chevy Engine Located in the Factory Position.
          • Fitment Note
            70-Up: Large Compressor Needs Bracket 20110; Small Compressor, Modify OE Bracket
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Header Style
            Mid-Length
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel
          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.625 in.
          • Prop 65 - Short Label
            WARNING: Cancer - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27520
          • Replacement Manifold Gasket Part Number
            27520
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.625 in.
          • Tube Size
            1.625 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Chevrolet C10 Base 1976
        Chevrolet C10 Base 1977
        Chevrolet C10 Base 1978
        Chevrolet C10 Base 1979
        Chevrolet C10 Base 1980
        Chevrolet C10 Pickup Base 1967
        Chevrolet C10 Pickup Base 1967
        Chevrolet C10 Pickup Base 1968
        Chevrolet C10 Pickup Base 1969
        Chevrolet C10 Suburban Base 1967
        Chevrolet C10 Suburban Base 1967
        Chevrolet C10 Suburban Base 1968
        Chevrolet C10 Suburban Base 1969
        Chevrolet C20 Base 1976
        Chevrolet C20 Base 1977
        Chevrolet C20 Base 1978
        Chevrolet C20 Base 1979
        Chevrolet C20 Base 1980
        Chevrolet C20 Pickup Base 1967
        Chevrolet C20 Pickup Base 1967
        Chevrolet C20 Pickup Base 1968
        Chevrolet C20 Pickup Base 1969
        Chevrolet C20 Suburban Base 1967
        Chevrolet C20 Suburban Base 1967
        Chevrolet C20 Suburban Base 1968
        Chevrolet C20 Suburban Base 1969
        Chevrolet C20 Suburban Base 1976
        Chevrolet C20 Suburban Base 1977
        Chevrolet C20 Suburban Base 1978
        Chevrolet C20 Suburban Base 1979
        Chevrolet C20 Suburban Base 1980
        Chevrolet C30 Base 1976
        Chevrolet C30 Base 1977
        Chevrolet C30 Base 1978
        Chevrolet C30 Pickup Base 1967
        Chevrolet C30 Pickup Base 1967
        Chevrolet C30 Pickup Base 1968
        Chevrolet C30 Pickup Base 1969
        GMC C15 Base 1976
        GMC C15 Base 1978
        GMC C15/C1500 Pickup Base 1967
        GMC C15/C1500 Pickup Base 1967
        GMC C15/C1500 Pickup Base 1968
        GMC C15/C1500 Suburban Base 1967
        GMC C15/C1500 Suburban Base 1967
        GMC C15/C1500 Suburban Base 1968
        GMC C1500 Base 1979
        GMC C1500 Base 1980
        GMC C25 Base 1976
        GMC C25 Base 1977
        GMC C25 Base 1978
        GMC C25 Suburban Base 1978
        GMC C25/C2500 Pickup Base 1967
        GMC C25/C2500 Pickup Base 1967
        GMC C25/C2500 Pickup Base 1968
        GMC C25/C2500 Suburban Base 1967
        GMC C25/C2500 Suburban Base 1967
        GMC C25/C2500 Suburban Base 1968
        GMC C2500 Base 1979
        GMC C2500 Suburban Base 1980
        GMC C35 Base 1976
        GMC C35 Base 1977
        GMC C35 Base 1978
        GMC C35/C3500 Pickup Base 1967
        GMC C35/C3500 Pickup Base 1967
        GMC C35/C3500 Pickup Base 1968
        GMC C3500 Base 1979
