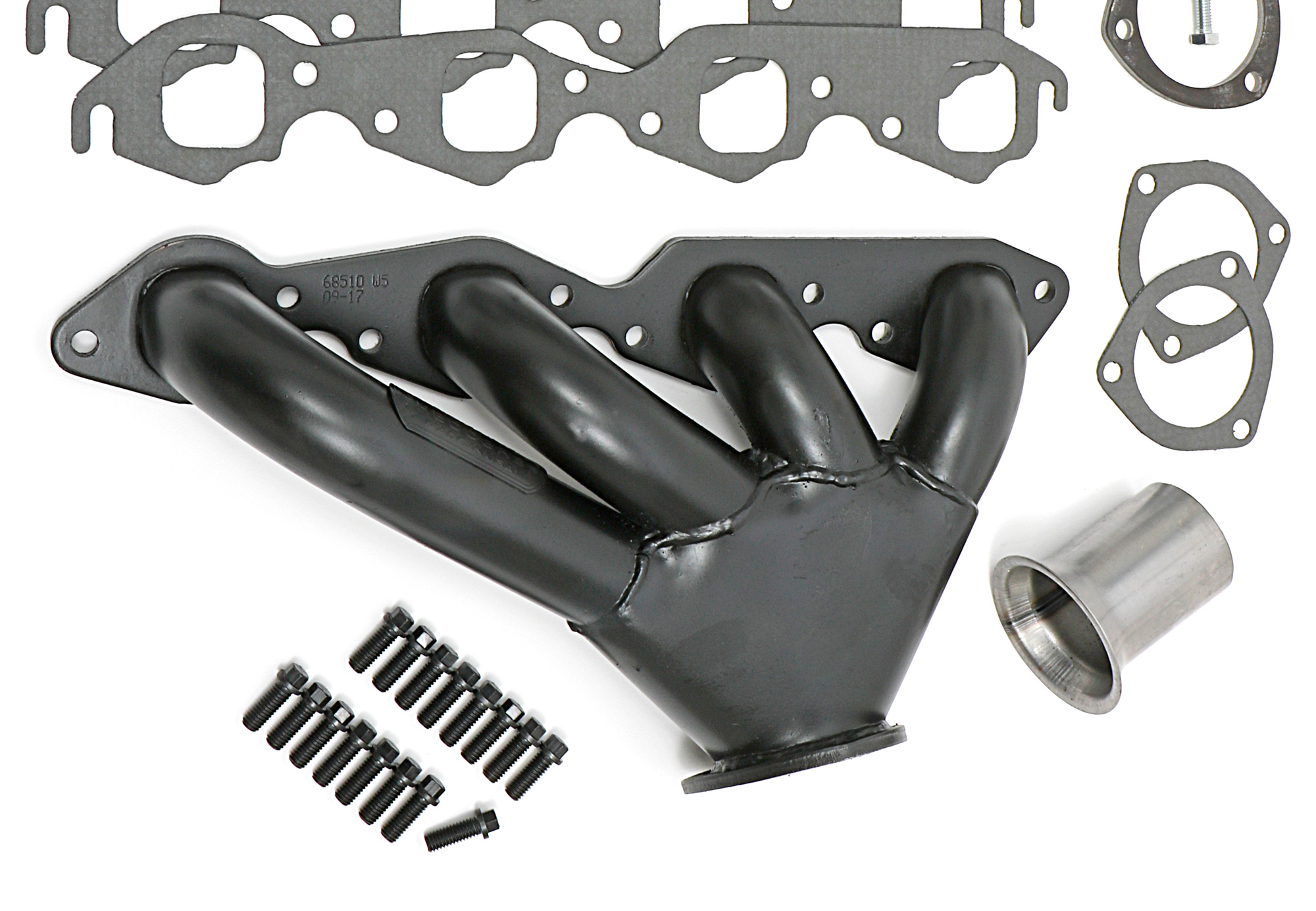

        Exhaust Header - 68510

        Part Number:FBLG-68510
        Hedman Hedders
        • The Lowest Profile Header On The Market
        • The Flat, Clamshell Style Collector Has an Extremely Low Profile So they'll Fit in Nearly Any Street Rod or Custom Build With Little Clearance.
        • The High Volume Flat Collector Offers Improved Exhaust Flow For Far Superior Performance Over Classic Block Hugger Models.
        • Includes Classic, 3-Bolt Gasket-Style Header Collectors, Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $426.88
        Overview
        • The Lowest Profile Header On The Market
        • The Flat, Clamshell Style Collector Has an Extremely Low Profile So they'll Fit in Nearly Any Street Rod or Custom Build With Little Clearance.
        • The High Volume Flat Collector Offers Improved Exhaust Flow For Far Superior Performance Over Classic Block Hugger Models.
        • Includes Classic, 3-Bolt Gasket-Style Header Collectors, Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-68510
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            68516
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            3-Bolt Gasket Style Flange
          • Cylinder Head Port Shape
            Square
          • Cylinder Head Port Shape
            Square
          • Cylinder Head Port Shape
            Square
          • Engine Fitment
            Chevy Big Block 396-502
          • Exhaust System Diameter
            2.5 in.
          • Finish
            Uncoated
          • Finish
            Uncoated
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            55-57 Chevrolet Passenger Cars 396-502
          • Fitment Note
            Modification to Shifter Linkage May Be Required.
          • Fitment Note
            Must Use Trans-Dapt Performance Tri-5 Engine Swap Mount Kit #4195.
          • Fitment Note
            Requires the Use of a Mini Starter.
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Header Style
            Tight Tubes
          • Header Style
            Tight Tubes
          • Header Style
            Tight Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

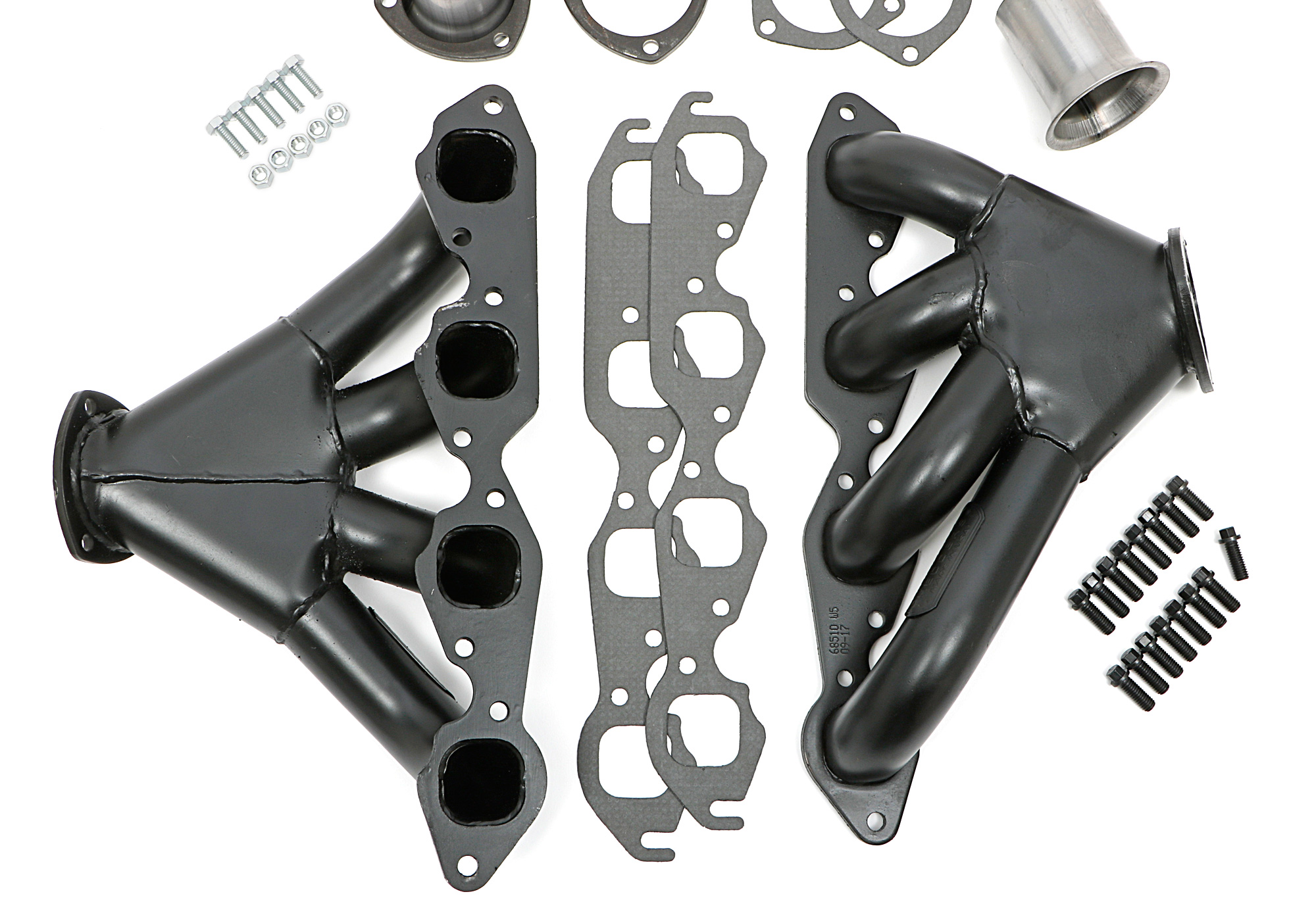

          • Package Contents
            Headers, New Bolts, Gaskets to Head, Reducers and Hardware, Instructions.
          • Package Contents
            Headers, Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            2.0 in.
          • Prop 65 - Short Label
            WARNING: Cancer - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27550
          • Replacement Manifold Gasket Part Number
            27550
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            2.0 in.
          • Tube Size
            2.0 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
