        Exhaust Header - 68298

        Part Number:FBLG-68298
        Hedman Hedders
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures. ELITE models have a MATTE-SILVER ceramic finish that looks great and keeps more heat in the tubes, and underhood temperatures down.</p><p>These LONG-TUBE headers fit a variety of popular 1971-1993 Chevy Passenger cars, including Impala, Caprice and Bel Air; 1970-1977 Monte Carlo (A-Body) , and 1964-1977 Chevy Chevelle, Malibu and El Camino models fitted with a SB Chevy (Gen 1) engine. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, MATTE-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
        • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warran
        Retail price
        • $820.34
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures. ELITE models have a MATTE-SILVER ceramic finish that looks great and keeps more heat in the tubes, and underhood temperatures down.</p><p>These LONG-TUBE headers fit a variety of popular 1971-1993 Chevy Passenger cars, including Impala, Caprice and Bel Air; 1970-1977 Monte Carlo (A-Body) , and 1964-1977 Chevy Chevelle, Malibu and El Camino models fitted with a SB Chevy (Gen 1) engine. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, MATTE-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
        • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warran
        Features
          • SKU
            FBLG-68298
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            68296, 68298
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Exhaust System Diameter
            2.5 in.
          • Feature Note
            Without A.I.R.
          • Finish
            Matte Silver Ceramic-Metallic
          • Finish
            Matte Silver Ceramic-Metallic
          • Finish
            Matte Silver Ceramic-Metallic
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            64-77 A-Body, 71-93 Chevrolet Pass. Car 283-400
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            Elite Heavy-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

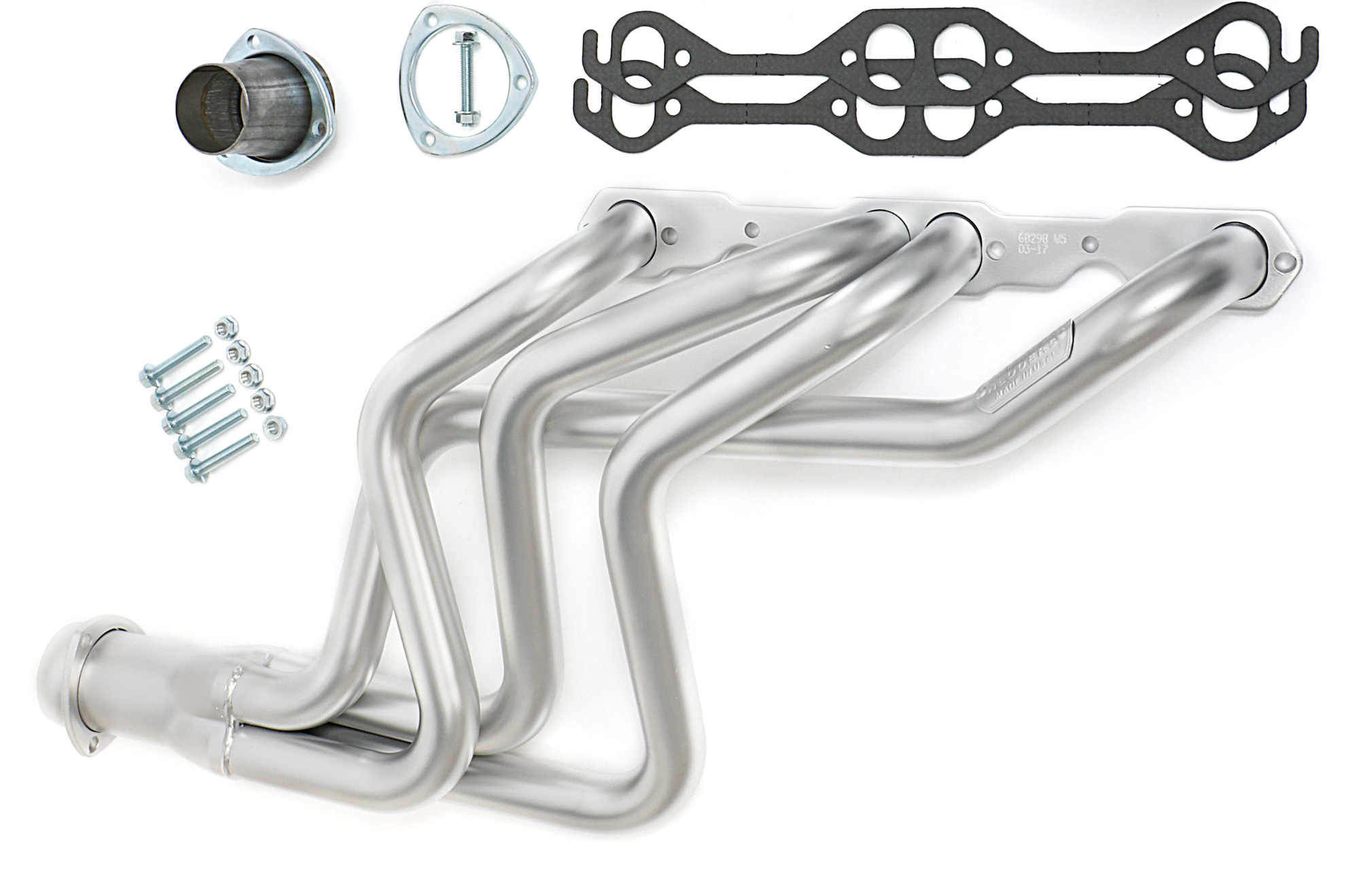

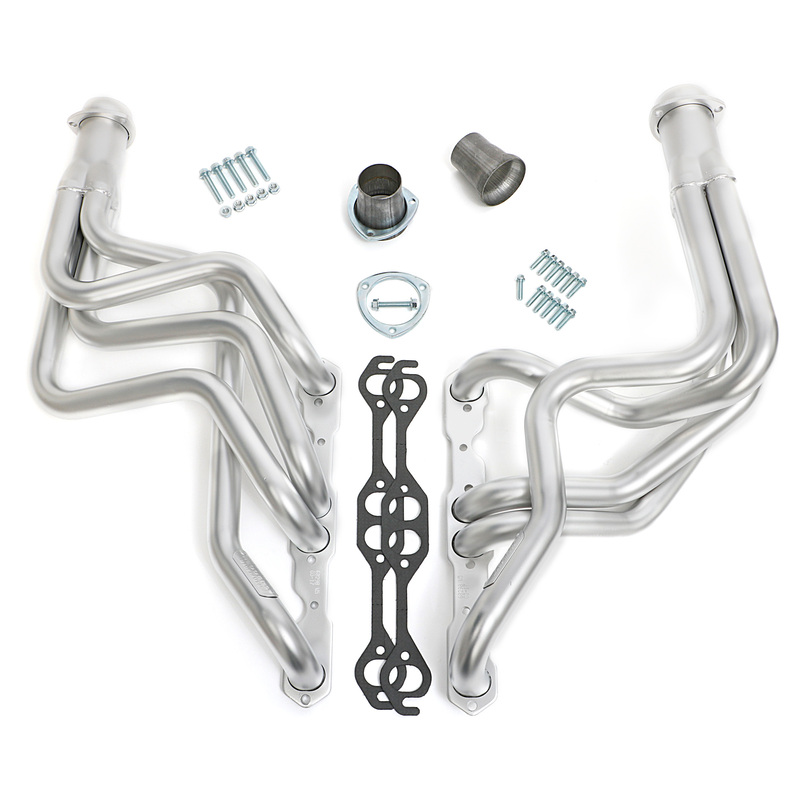

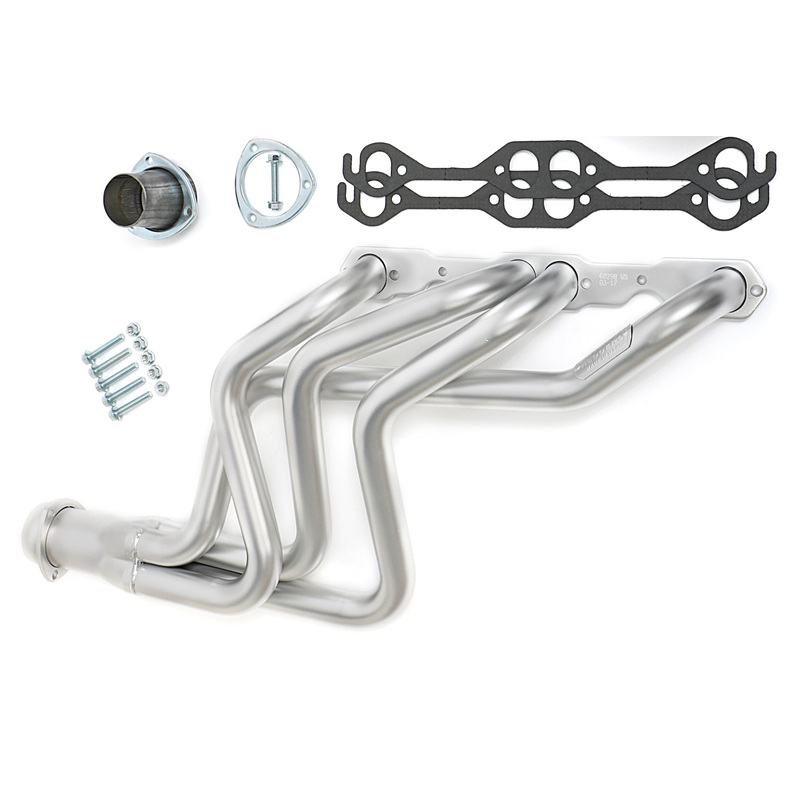

          • Package Contents
            Headers, New Bolts, Gaskets to Head, Reducers and Hardware, Instructions.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.625 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes

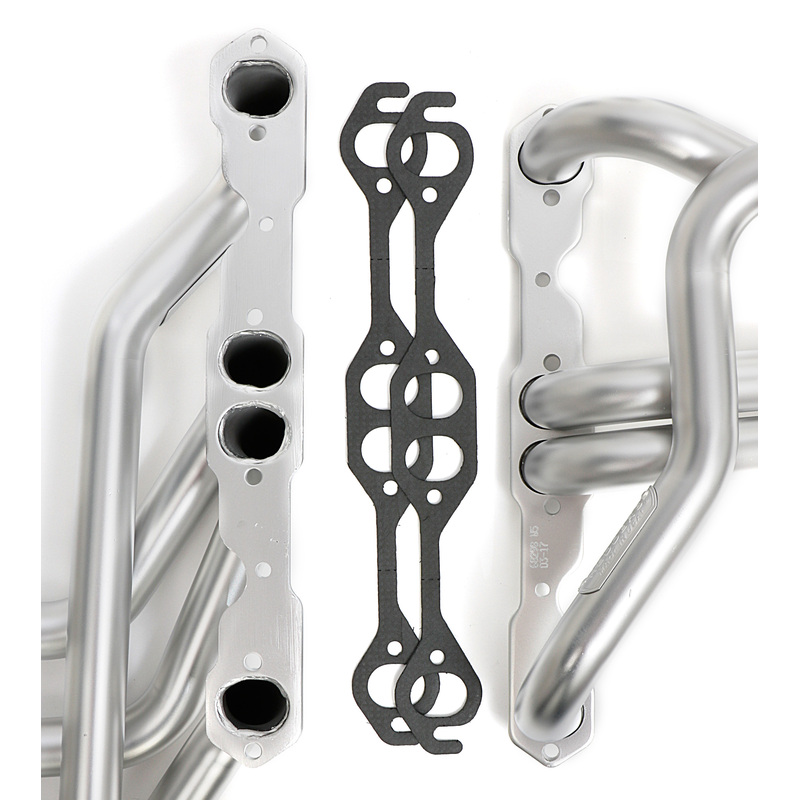

          • Replacement Head Flange Gasket
            27520
          • Replacement Manifold Gasket Part Number
            27520
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.625 in.
          • Tube Size
            1.625 in.
          • Tube Thickness
            14 ga
          • Tube Thickness
            14 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Chevrolet Bel Air Base 1971
        Chevrolet Bel Air Base 1972
        Chevrolet Bel Air Base 1973
        Chevrolet Bel Air Base 1974
        Chevrolet Bel Air Base 1974
        Chevrolet Bel Air Base 1975
        Chevrolet Bel Air Base 1975
        Chevrolet Brookwood Base 1972
        Chevrolet Caprice Base 1971
        Chevrolet Caprice Base 1972
        Chevrolet Caprice Base 1973
        Chevrolet Caprice Base 1974
        Chevrolet Caprice Base 1974
        Chevrolet Caprice Base 1975
        Chevrolet Caprice Base 1975
        Chevrolet Caprice Base 1976
        Chevrolet Caprice Base 1976
        Chevrolet Caprice Base 1977
        Chevrolet Caprice Base 1977
        Chevrolet Caprice Base 1978
        Chevrolet Caprice Base 1978
        Chevrolet Caprice Base 1979
        Chevrolet Caprice Base 1979
        Chevrolet Caprice Base 1980
        Chevrolet Caprice Base 1980
        Chevrolet Caprice Base 1980
        Chevrolet Caprice Base 1981
        Chevrolet Caprice Base 1981
        Chevrolet Caprice Base 1982
        Chevrolet Caprice Base 1982
        Chevrolet Caprice Base 1983
        Chevrolet Caprice Base 1984
        Chevrolet Caprice Base 1985
        Chevrolet Caprice Base 1985
        Chevrolet Caprice Base 1986
        Chevrolet Caprice Base 1986
        Chevrolet Caprice Base 1987
        Chevrolet Caprice Base 1987
        Chevrolet Caprice Base 1988
        Chevrolet Caprice Base 1988
        Chevrolet Caprice Base 1989
        Chevrolet Caprice Base 1990
        Chevrolet Caprice Base 1991
        Chevrolet Caprice Base 1992
        Chevrolet Caprice Base 1993
        Chevrolet Chevelle Base 1964
        Chevrolet Chevelle Base 1964
        Chevrolet Chevelle Base 1965
        Chevrolet Chevelle Base 1965
        Chevrolet Chevelle Base 1966
        Chevrolet Chevelle Base 1966
        Chevrolet Chevelle Base 1967
        Chevrolet Chevelle Base 1967
        Chevrolet Chevelle Base 1968
        Chevrolet Chevelle Base 1968
        Chevrolet Chevelle Base 1969
        Chevrolet Chevelle Base 1970
        Chevrolet Chevelle Base 1970
        Chevrolet Chevelle Base 1971
        Chevrolet Chevelle Base 1971
        Chevrolet Chevelle Base 1972
        Chevrolet Chevelle Base 1972
        Chevrolet Chevelle Base 1973
        Chevrolet Chevelle Base 1973
        Chevrolet El Camino Base 1964
        Chevrolet El Camino Base 1965
        Chevrolet El Camino Base 1965
        Chevrolet El Camino Base 1970
        Chevrolet El Camino Base 1971
        Chevrolet El Camino Base 1974
        Chevrolet El Camino Base 1974
        Chevrolet El Camino Base 1975
        Chevrolet El Camino Base 1975
        Chevrolet El Camino Base 1976
        Chevrolet El Camino Base 1976
        Chevrolet El Camino Base 1976
        Chevrolet El Camino Base 1977
        Chevrolet El Camino Base 1977
        Chevrolet Impala Base 1971
        Chevrolet Impala Base 1972
        Chevrolet Impala Base 1973
        Chevrolet Impala Base 1974
        Chevrolet Impala Base 1974
        Chevrolet Impala Base 1975
        Chevrolet Impala Base 1975
        Chevrolet Impala Base 1976
        Chevrolet Impala Base 1976
        Chevrolet Impala Base 1977
        Chevrolet Impala Base 1977
        Chevrolet Impala Base 1978
        Chevrolet Impala Base 1978
        Chevrolet Impala Base 1979
        Chevrolet Impala Base 1979
        Chevrolet Impala Base 1980
        Chevrolet Impala Base 1980
        Chevrolet Impala Base 1980
        Chevrolet Impala Base 1981
        Chevrolet Impala Base 1981
        Chevrolet Impala Base 1981
        Chevrolet Impala Base 1982
        Chevrolet Impala Base 1982
        Chevrolet Impala Base 1982
        Chevrolet Impala Base 1983
        Chevrolet Impala Base 1983
        Chevrolet Impala Base 1984
        Chevrolet Impala Base 1984
        Chevrolet Impala Base 1985
        Chevrolet Impala Base 1985
        Chevrolet Laguna Base 1974
        Chevrolet Laguna Base 1974
        Chevrolet Laguna Base 1975
        Chevrolet Laguna Base 1975
        Chevrolet Laguna Base 1976
        Chevrolet Laguna Base 1976
        Chevrolet Laguna Base 1976
        Chevrolet Malibu Base 1974
        Chevrolet Malibu Base 1974
        Chevrolet Malibu Base 1975
        Chevrolet Malibu Base 1975
        Chevrolet Malibu Base 1976
        Chevrolet Malibu Base 1976
        Chevrolet Malibu Base 1976
        Chevrolet Malibu Base 1977
        Chevrolet Malibu Base 1977
        Chevrolet Malibu Base 1978
        Chevrolet Malibu Base 1978
        Chevrolet Malibu Base 1979
        Chevrolet Malibu Base 1979
        Chevrolet Malibu Base 1979
        Chevrolet Malibu Base 1980
        Chevrolet Malibu Base 1980
        Chevrolet Malibu Base 1980
        Chevrolet Malibu Base 1981
        Chevrolet Malibu Base 1981
        Chevrolet Malibu Base 1981
        Chevrolet Malibu Base 1982
        Chevrolet Malibu Base 1982
        Chevrolet Malibu Base 1983
        Chevrolet Monte Carlo Base 1970
        Chevrolet Monte Carlo Base 1971
        Chevrolet Monte Carlo Base 1972
        Chevrolet Monte Carlo Base 1973
        Chevrolet Monte Carlo Base 1974
        Chevrolet Monte Carlo Base 1974
        Chevrolet Monte Carlo Base 1975
        Chevrolet Monte Carlo Base 1975
        Chevrolet Monte Carlo Base 1976
        Chevrolet Monte Carlo Base 1976
        Chevrolet Monte Carlo Base 1976
        Chevrolet Monte Carlo Base 1977
        Chevrolet Monte Carlo Base 1977
