        Exhaust Header - 66503

        Part Number:FBLG-66503
        Hedman Hedders
        • Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
        • Mild Steel, Long Tube Header Design Provides Better Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $832.47
        Overview
        • Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
        • Mild Steel, Long Tube Header Design Provides Better Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-66503
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            68503
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Close Ratio Steering Box
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Rectangle
          • Cylinder Head Port Shape
            Rectangle
          • Cylinder Head Port Shape
            Rectangle
          • Engine Fitment
            Chevy Small Block 283-400 (Gen 1) 1958-86
          • Exhaust System Diameter
            2.5 in.
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            This Set of Headers Has Been Designed Specifically For Use on Vehicles with a Close-Ratio Steering Box.
          • Fitment Note
            67-69 Camaro, 68-74 Nova 283-400 (Close Ratio Steering)
          • Flange Style
            Standard
          • Flange Thickness
            0.3125 in.
          • Header Style
            Long Tubes - Close Ratio Steering
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            Yes
          • Manual Transmission - Floor
            Yes
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

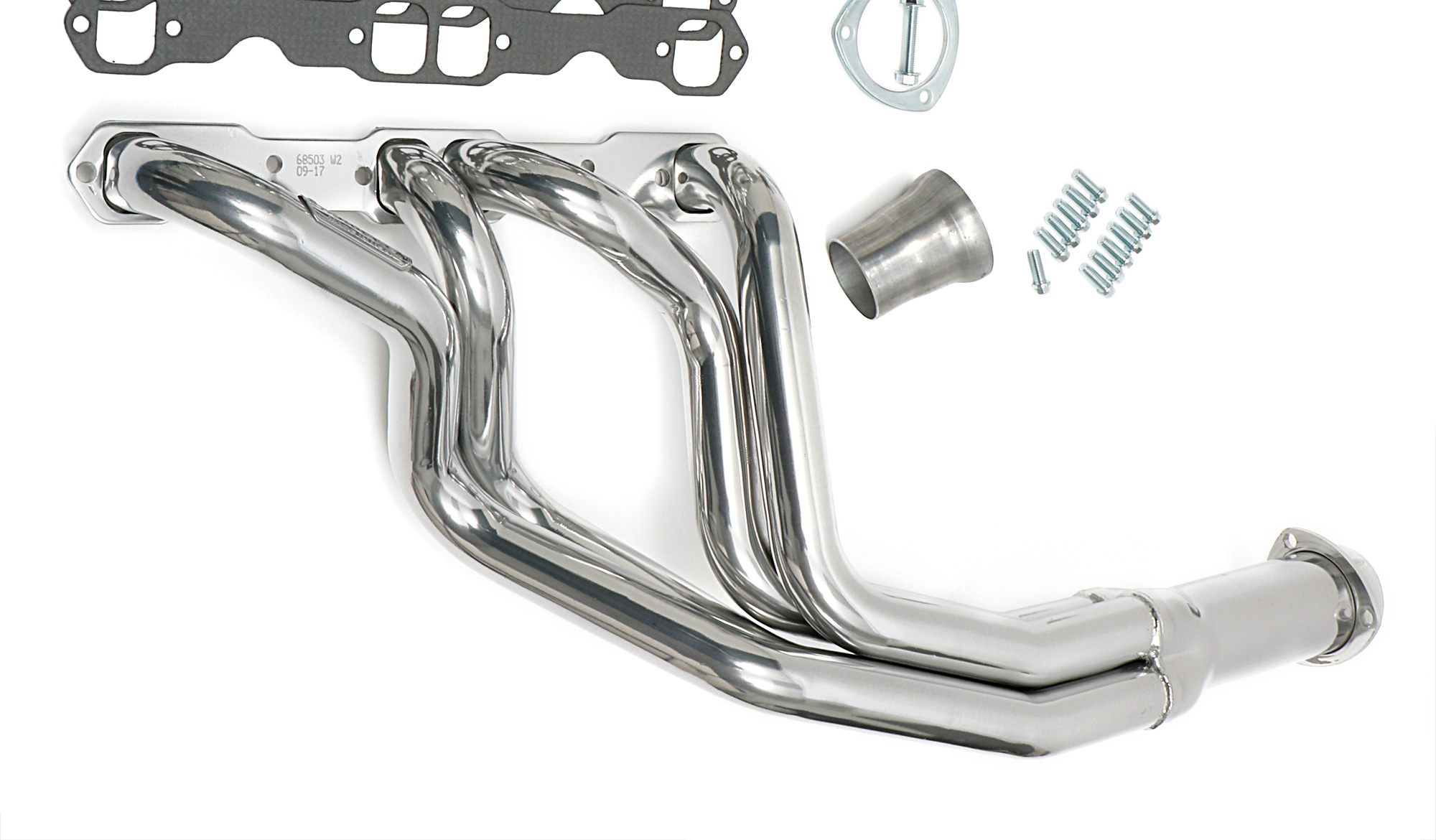

          • Package Contents
            Headers, New Bolts, Gaskets to Head, Reducers and Hardware, Instructions.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.75 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27520
          • Replacement Manifold Gasket Part Number
            27560
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.75 in.
          • Tube Size
            1.75 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Chevrolet Camaro Base 1967
        Chevrolet Camaro Base 1968
        Chevrolet Camaro Base 1969
        Chevrolet Camaro Base 1969
        Chevrolet Chevy II Nova 1968
        Chevrolet Chevy II Nova 1968
        Chevrolet Nova Base 1969
        Chevrolet Nova Base 1970
        Chevrolet Nova Base 1971
        Chevrolet Nova Base 1972
        Chevrolet Nova Base 1973
        Chevrolet Nova Base 1974
