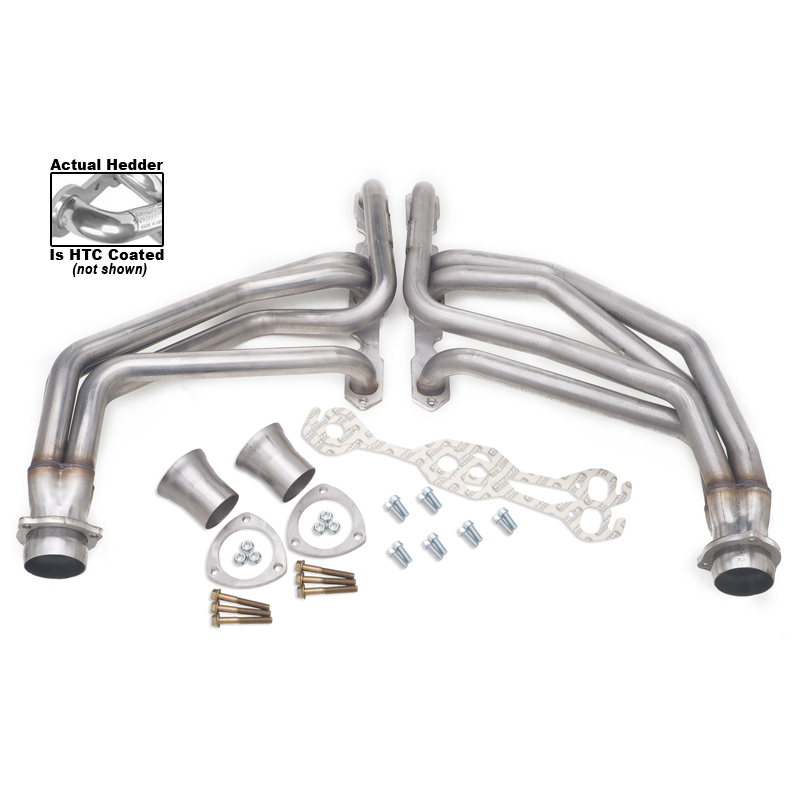

        Exhaust Header - 62096

        Part Number:FBLG-62096
        Hedman Hedders
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. These headers are manufactured from 100% T304 Stainless Steel to provide durability rivaled only by Hedman's ELITE&reg; line of heavy-duty headers. They have smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next, and utilize 3/8 in. thick 304 stainless flanges to prevent warping. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These HTC&trade; coated, stainless LONG-TUBE headers use Hedman's best selling Chevy truck header configuration, and fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans <i>(check the application listings for exact fitment)</i>, powered by a Small Block Chevy engine <i>(without A.I.R. System)</i>. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. These stainless steel headers ship from the factory with a polished silver ceramic-metallic coating that withstands exhaust temperatures up to 1400 degree F.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • 100% Premium T304 Stainless Steel Flange and Tube Construction.
        • T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 19
        Retail price
        • $1,260.22
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. These headers are manufactured from 100% T304 Stainless Steel to provide durability rivaled only by Hedman's ELITE&reg; line of heavy-duty headers. They have smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next, and utilize 3/8 in. thick 304 stainless flanges to prevent warping. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These HTC&trade; coated, stainless LONG-TUBE headers use Hedman's best selling Chevy truck header configuration, and fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans <i>(check the application listings for exact fitment)</i>, powered by a Small Block Chevy engine <i>(without A.I.R. System)</i>. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. These stainless steel headers ship from the factory with a polished silver ceramic-metallic coating that withstands exhaust temperatures up to 1400 degree F.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>
        • 100% Premium T304 Stainless Steel Flange and Tube Construction.
        • T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 19
        Features
          • SKU
            FBLG-62096
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            69096, 69890
          • Automatic Transmission - Column
            Yes
          • Automatic Transmission - Floor
            Yes
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Oval
          • Exhaust System Diameter
            2.5 in.
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Fitment Note
            Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
          • Fitment Note
            67-91 1/2, 3/4, 1 Ton Chevrolet Truck 2-4WD 283-400
          • Fitment Note
            NOT For Vehicles with Offset Right Engine Position
          • Fitment Note
            May Encounter Clutch Shaft Interference. If So, Use 69092, 69093 or 69892
          • Flange Style
            Standard
          • Flange Thickness
            0.375 in.
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Manual Transmission - Column
            No
          • Manual Transmission - Floor
            Yes
          • Material
            T304 Stainless Steel
          • Material
            T-304 Stainless Steel
          • Material
            T-304 Stainless Steel
          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.625 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27520
          • Replacement Manifold Gasket Part Number
            27520
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.625 in.
          • Tube Size
            1.625 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Chevrolet C10 Base 1976
        Chevrolet C10 Base 1977
        Chevrolet C10 Base 1978
        Chevrolet C10 Base 1979
        Chevrolet C10 Base 1980
        Chevrolet C10 Pickup Base 1967
        Chevrolet C10 Pickup Base 1967
        Chevrolet C10 Pickup Base 1968
        Chevrolet C10 Pickup Base 1969
        Chevrolet C10 Suburban Base 1967
        Chevrolet C10 Suburban Base 1967
        Chevrolet C10 Suburban Base 1968
        Chevrolet C10 Suburban Base 1969
        Chevrolet C20 Base 1976
        Chevrolet C20 Base 1977
        Chevrolet C20 Base 1978
        Chevrolet C20 Base 1979
        Chevrolet C20 Base 1980
        Chevrolet C20 Pickup Base 1967
        Chevrolet C20 Pickup Base 1967
        Chevrolet C20 Pickup Base 1968
        Chevrolet C20 Pickup Base 1969
        Chevrolet C20 Suburban Base 1967
        Chevrolet C20 Suburban Base 1967
        Chevrolet C20 Suburban Base 1968
        Chevrolet C20 Suburban Base 1969
        Chevrolet C20 Suburban Base 1976
        Chevrolet C20 Suburban Base 1977
        Chevrolet C20 Suburban Base 1978
        Chevrolet C20 Suburban Base 1979
        Chevrolet C20 Suburban Base 1980
        Chevrolet C30 Base 1976
        Chevrolet C30 Base 1977
        Chevrolet C30 Base 1978
        Chevrolet C30 Pickup Base 1967
        Chevrolet C30 Pickup Base 1967
        Chevrolet C30 Pickup Base 1968
        Chevrolet C30 Pickup Base 1969
        Chevrolet K10 Base 1975
        Chevrolet K10 Base 1976
        Chevrolet K10 Base 1977
        Chevrolet K10 Base 1978
        Chevrolet K10 Base 1979
        Chevrolet K10 Base 1980
        Chevrolet K10 Pickup Base 1967
        Chevrolet K10 Pickup Base 1967
        Chevrolet K10 Pickup Base 1968
        Chevrolet K10 Pickup Base 1969
        Chevrolet K10 Suburban Base 1967
        Chevrolet K10 Suburban Base 1967
        Chevrolet K10 Suburban Base 1968
        Chevrolet K10 Suburban Base 1969
        Chevrolet K10 Suburban Base 1975
        Chevrolet K10 Suburban Base 1976
        Chevrolet K10 Suburban Base 1977
        Chevrolet K10 Suburban Base 1978
        Chevrolet K10 Suburban Base 1979
        Chevrolet K20 Base 1975
        Chevrolet K20 Base 1976
        Chevrolet K20 Base 1977
        Chevrolet K20 Base 1978
        Chevrolet K20 Base 1979
        Chevrolet K20 Base 1980
        Chevrolet K20 Pickup Base 1967
        Chevrolet K20 Pickup Base 1967
        Chevrolet K20 Pickup Base 1968
        Chevrolet K20 Pickup Base 1969
        Chevrolet K20 Suburban Base 1967
        Chevrolet K20 Suburban Base 1967
        Chevrolet K20 Suburban Base 1968
        Chevrolet K20 Suburban Base 1969
        Chevrolet K20 Suburban Base 1975
        Chevrolet K20 Suburban Base 1976
        Chevrolet K20 Suburban Base 1977
        Chevrolet K20 Suburban Base 1978
        Chevrolet K20 Suburban Base 1979
        Chevrolet K20 Suburban Base 1980
        Chevrolet K5 Blazer Base 1975
        Chevrolet K5 Blazer Base 1976
        Chevrolet K5 Blazer Base 1977
        Chevrolet K5 Blazer Base 1978
        Chevrolet K5 Blazer Base 1979
        GMC C15 Base 1976
        GMC C15 Base 1978
        GMC C15/C1500 Pickup Base 1967
        GMC C15/C1500 Pickup Base 1967
        GMC C15/C1500 Pickup Base 1968
        GMC C15/C1500 Suburban Base 1967
        GMC C15/C1500 Suburban Base 1967
        GMC C15/C1500 Suburban Base 1968
        GMC C1500 Base 1979
        GMC C1500 Base 1980
        GMC C25 Base 1976
        GMC C25 Base 1977
        GMC C25 Base 1978
        GMC C25 Suburban Base 1978
        GMC C25/C2500 Pickup Base 1967
        GMC C25/C2500 Pickup Base 1967
        GMC C25/C2500 Pickup Base 1968
        GMC C25/C2500 Suburban Base 1967
        GMC C25/C2500 Suburban Base 1967
        GMC C25/C2500 Suburban Base 1968
        GMC C2500 Base 1979
        GMC C2500 Suburban Base 1980
        GMC C35 Base 1976
        GMC C35 Base 1977
        GMC C35 Base 1978
        GMC C35/C3500 Pickup Base 1967
        GMC C35/C3500 Pickup Base 1967
        GMC C35/C3500 Pickup Base 1968
        GMC C3500 Base 1979
        GMC Jimmy Base 1975
        GMC Jimmy Base 1976
        GMC Jimmy Base 1977
        GMC Jimmy Base 1978
        GMC Jimmy Base 1979
        GMC K15 Base 1975
        GMC K15 Base 1976
        GMC K15 Base 1977
        GMC K15 Base 1978
        GMC K15 Suburban Base 1975
        GMC K15 Suburban Base 1976
        GMC K15 Suburban Base 1977
        GMC K15 Suburban Base 1978
        GMC K15/K1500 Pickup Base 1967
        GMC K15/K1500 Pickup Base 1967
        GMC K15/K1500 Pickup Base 1968
        GMC K15/K1500 Suburban Base 1967
        GMC K15/K1500 Suburban Base 1967
        GMC K15/K1500 Suburban Base 1968
        GMC K1500 Base 1979
        GMC K1500 Base 1980
        GMC K1500 Suburban Base 1979
        GMC K1500 Suburban Base 1980
        GMC K25 Base 1975
        GMC K25 Base 1976
        GMC K25 Base 1977
        GMC K25 Base 1978
        GMC K25 Suburban Base 1975
        GMC K25 Suburban Base 1976
        GMC K25 Suburban Base 1977
        GMC K25 Suburban Base 1978
        GMC K25/K2500 Pickup Base 1967
        GMC K25/K2500 Pickup Base 1967
        GMC K25/K2500 Pickup Base 1968
        GMC K25/K2500 Suburban Base 1967
        GMC K25/K2500 Suburban Base 1967
        GMC K25/K2500 Suburban Base 1968
        GMC K2500 Base 1979
        GMC K2500 Base 1980
        GMC K2500 Suburban Base 1979
        GMC K2500 Suburban Base 1980
