        Exhaust Header - 28146

        Part Number:FBLG-28146
        Hedman Hedders

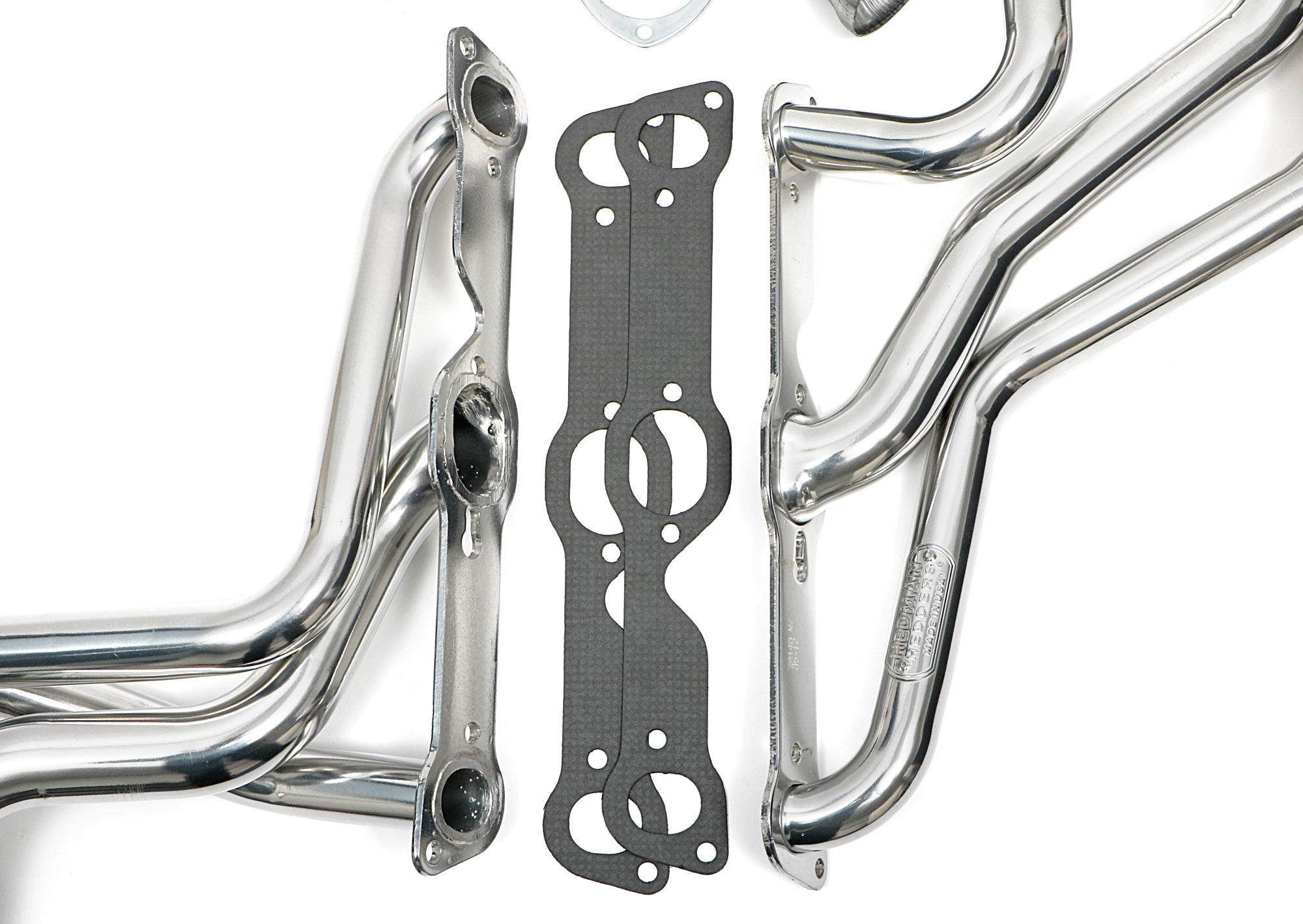

        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Pontiac models for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Firebird, GTO, Lemans, Grand Prix or Tempest exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>The LONG-TUBE design of these headers provides ample exhaust flow to let your 326-455 Pontiac engine breathe easy, and produce maximum horsepower and torque. These headers have a high temperature POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.</p><p>Each set includes a pair of header gaskets, header flange bolts and collector bolts. No collector gasket is needed. Due to the location of the oil filter on these vehicles, relocation of the oil filter may be required to provide header tube clearance. We recommend the use of a Trans-Dapt Performance Products' #1120 (cast aluminum), or Hamburger's Performance Products #3365 (billet aluminum) oil filter relocation kit. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Retail price
        • $790.88
        Overview
        <p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Pontiac models for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Firebird, GTO, Lemans, Grand Prix or Tempest exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>The LONG-TUBE design of these headers provides ample exhaust flow to let your 326-455 Pontiac engine breathe easy, and produce maximum horsepower and torque. These headers have a high temperature POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.</p><p>Each set includes a pair of header gaskets, header flange bolts and collector bolts. No collector gasket is needed. Due to the location of the oil filter on these vehicles, relocation of the oil filter may be required to provide header tube clearance. We recommend the use of a Trans-Dapt Performance Products' #1120 (cast aluminum), or Hamburger's Performance Products #3365 (billet aluminum) oil filter relocation kit. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>
        • Handcrafted, Mild Steel Construction.
        • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
        • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
        • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
        • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
        • Proud To Say, Made In The USA, Since 1954!
        Features
          • SKU
            FBLG-28146
          • Brand
            Hedman Hedders
          • Air Conditioning
            Yes
          • Alternate Variation Part Number
            28140
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Diameter
            3.0 in.
          • Collector Style
            Ball and Socket (Gasketless)
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Cylinder Head Port Shape
            Oval
          • Exhaust System Diameter
            2.5 in.
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Finish
            HTC Polished Silver Ceramic-Metallic
          • Fitment Note
            Fits Stock Profile Heads
          • Fitment Note
            64-81 Various Pontiac Cars 326-455
          • Fitment Note
            Modification To Reverse Lockout (Back Drive) Mechanism May Be Required.
          • Fitment Note
            Some Heads May Require Drilling and Tapping of End Bolt Holes.
          • Flange Style
            Standard
          • Flange Thickness
            0.3125 in.
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Header Style
            Long Tubes
          • Includes Bolts/Studs
            Yes
          • Includes Collector Bolts
            Yes
          • Includes Crossover Pipe
            No
          • Includes Gasket/Seal
            Yes
          • Includes Header Fasteners
            Yes
          • Includes Motor Mounts
            No
          • Includes Y-Pipe
            No
          • Material
            Standard-Duty Mild Steel
          • Material
            Mild Steel
          • Material
            Mild Steel

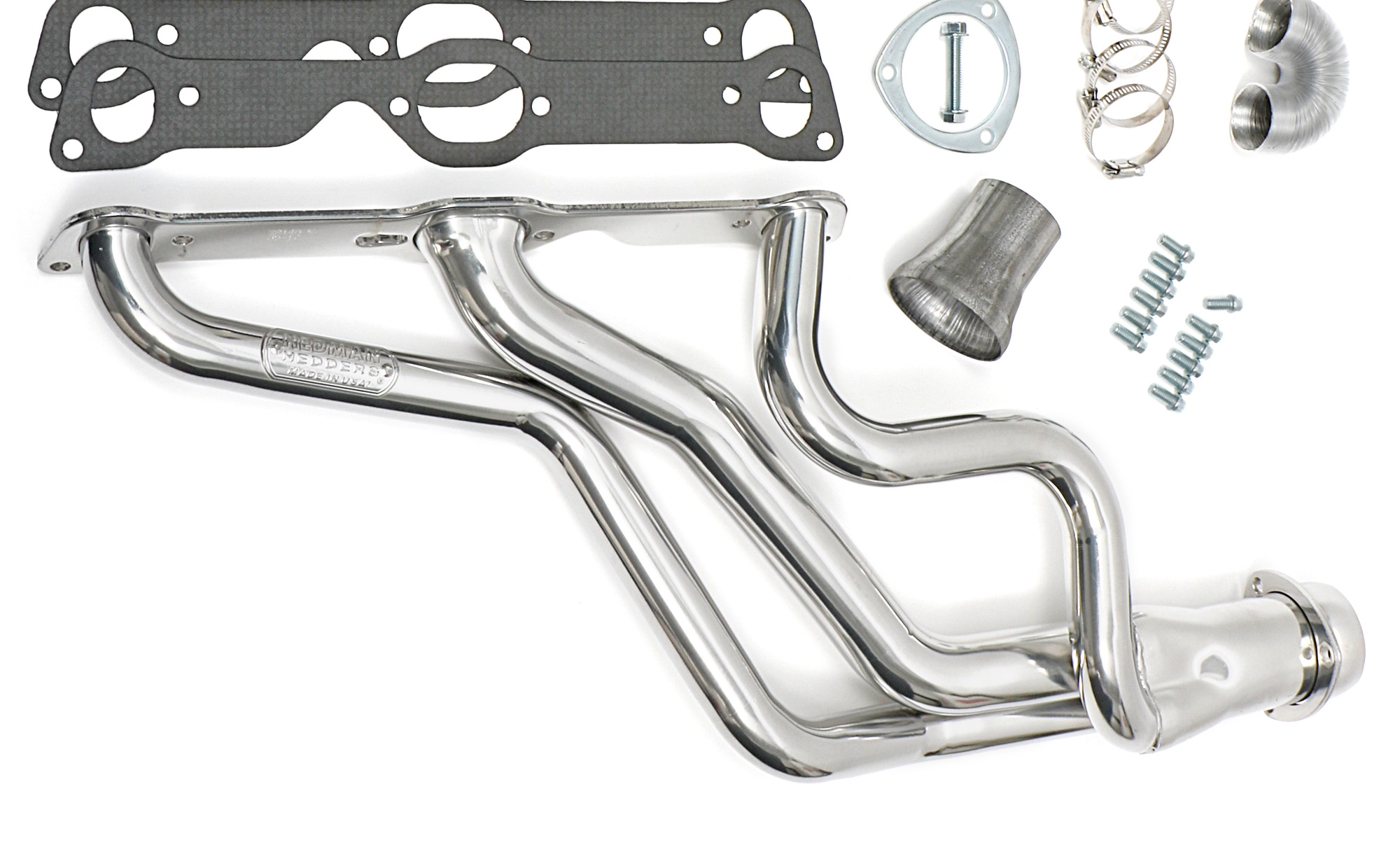

          • Package Contents
            Headers, Collector Flange Gaskets, Collector Bolts.
          • Package Contents
            Headers, Ball and Socket Reducers (Exhaust Adapters), Gaskets, Mounting Hardware
          • Primary Tube Diameter
            1.625 in. x 2.0 in.
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Reducer Outlet Size
            2.5 in.
          • Reducers Included
            Yes
          • Replacement Head Flange Gasket
            27600
          • Replacement Manifold Gasket Part Number
            27600
          • Sold As
            Pair
          • Tube Design
            Standard
          • Tube Diameter
            1.625 in. x 2.0 in.
          • Tube Size
            1.625 in. x 2.0 in.
          • Tube Thickness
            16 ga
          • Tube Thickness
            16 ga
          • Tuned
            No
          • Weld-Up
            No
          • With A.I.R. System
            No
          • With EGR
            No
          • With Power Steering
            Yes
        Fitment
        Make Model Submodel Year
        Pontiac Firebird Base 1967
        Pontiac Firebird Base 1967
        Pontiac Firebird Base 1968
        Pontiac Firebird Base 1969
        Pontiac Firebird Base 1969
        Pontiac Firebird Base 1970
        Pontiac Firebird Base 1970
        Pontiac Firebird Base 1971
        Pontiac Firebird Base 1972
        Pontiac Firebird Base 1972
        Pontiac Firebird Base 1973
        Pontiac Firebird Base 1973
        Pontiac Firebird Base 1974
        Pontiac Firebird Base 1974
        Pontiac Firebird Base 1975
        Pontiac Firebird Base 1975
        Pontiac Firebird Base 1975
        Pontiac Firebird Base 1975
        Pontiac Firebird Base 1976
        Pontiac Firebird Base 1976
        Pontiac Firebird Base 1976
        Pontiac Firebird Base 1976
        Pontiac Firebird Base 1977
        Pontiac Firebird Base 1978
        Pontiac Firebird Base 1979
        Pontiac Firebird Base 1977
        Pontiac GTO Base 1964
        Pontiac GTO Base 1965
        Pontiac GTO Base 1966
        Pontiac GTO Base 1967
        Pontiac GTO Base 1968
        Pontiac GTO Base 1969
        Pontiac GTO Base 1970
        Pontiac GTO Base 1970
        Pontiac GTO Base 1971
        Pontiac GTO Base 1971
        Pontiac GTO Base 1972
        Pontiac GTO Base 1972
        Pontiac GTO Base 1973
        Pontiac GTO Base 1973
        Pontiac Grand Am Base 1973
        Pontiac Grand Am Base 1974
        Pontiac Grand Am Base 1974
        Pontiac Grand Am Base 1975
        Pontiac Grand Am Base 1975
        Pontiac Grand Prix Base 1972
        Pontiac Grand Prix Base 1973
        Pontiac Grand Prix Base 1973
        Pontiac Grand Prix Base 1974
        Pontiac LeMans Base 1964
        Pontiac LeMans Base 1965
        Pontiac LeMans Base 1966
        Pontiac LeMans Base 1967
        Pontiac LeMans Base 1972
        Pontiac LeMans Base 1972
        Pontiac LeMans Base 1973
        Pontiac LeMans Base 1973
        Pontiac LeMans Base 1974
        Pontiac LeMans Base 1974
        Pontiac LeMans Base 1975
        Pontiac LeMans Base 1976
        Pontiac LeMans Base 1976
        Pontiac LeMans Base 1976
        Pontiac LeMans Base 1977
        Pontiac Tempest Base 1964
        Pontiac Tempest Base 1965
        Pontiac Tempest Base 1966
        Pontiac Tempest Base 1967
        Pontiac Tempest Base 1968
        Pontiac Tempest Base 1968
        Pontiac Tempest Base 1969
        Pontiac Tempest Base 1969
        Pontiac Tempest Base 1970
        Pontiac Tempest Base 1970
