Suspension Shock Absorber 33-269610

        Suspension Shock Absorber 33-269610

        Part Number:33-269610
        Bilstein

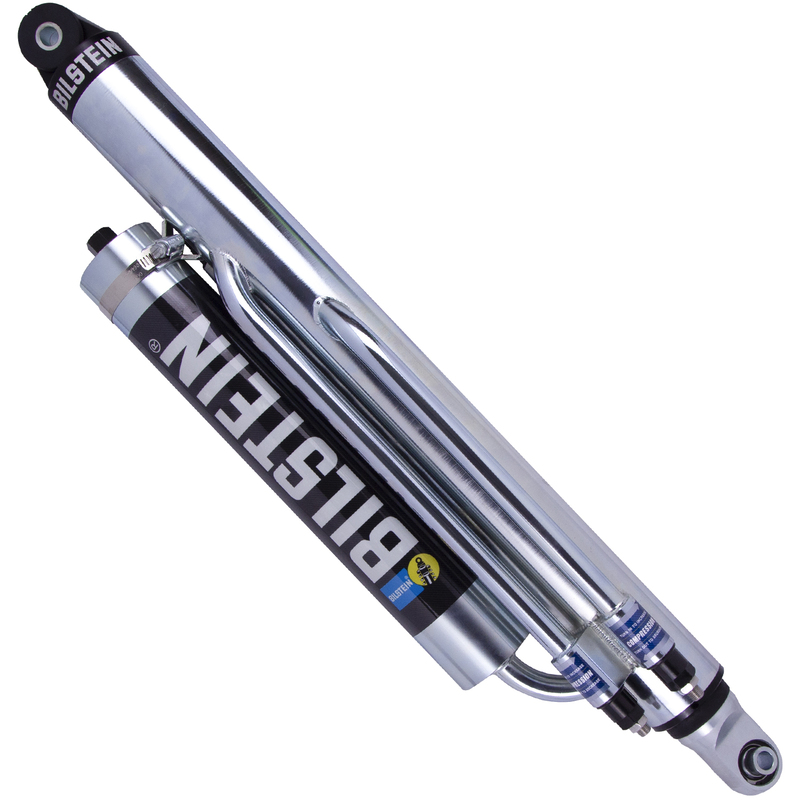

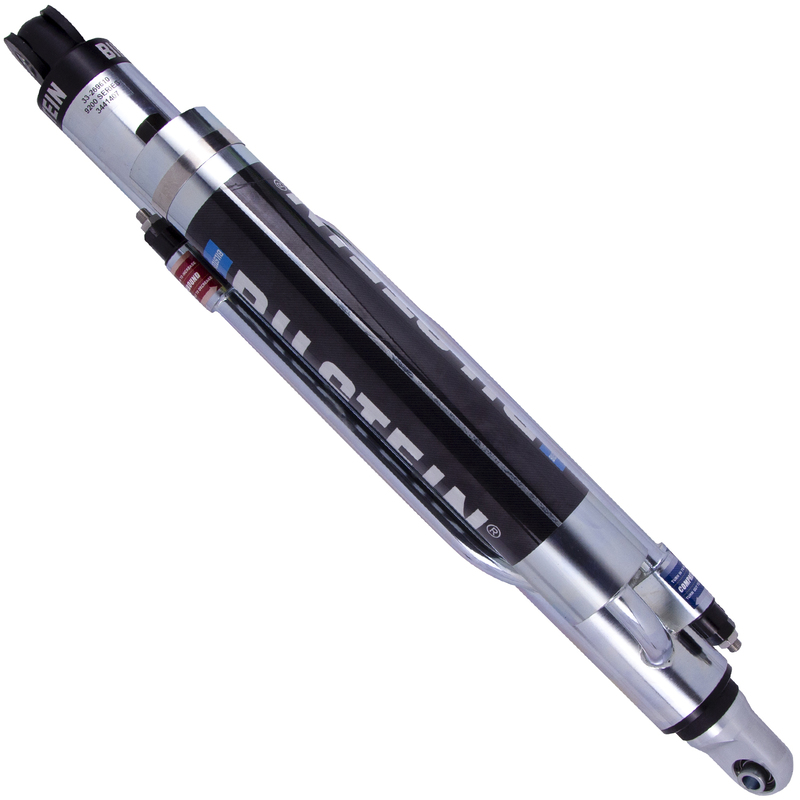

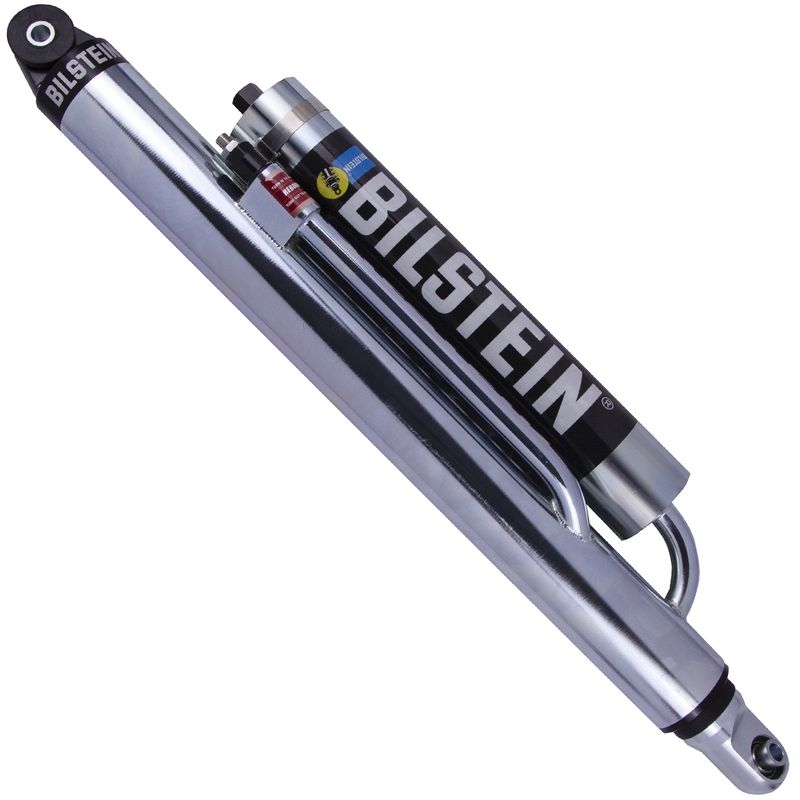

        Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
        • Available in 60mm, 70mm and 83mm monotubes
        • 4-tube, position sensitive with adjustable rebound and compression
        • Multiple stroke lengths available ranging from 8" to 18"
        Retail price
        • $1,059.00
        Features
          • SKU
            33-269610
          • Brand
            Bilstein
          • Body Inside Diameter
            60.0 mm
          • Bypass Type
            3-Tube
          • Collapsed Length
            673.1 mm
          • Collapsed Length
            27.0 in.
          • Collapsed Length
            26.5 in.
          • Compression at 0.52 m/s
            Custom
          • Extended Length
            1,079.5 mm
          • Extended Length
            42.5 in.
          • Extended Length
            43.0 in.
          • Finish
            Zinc Plated
          • Includes Reservoir
            Yes
          • Includes Spring Seat
            No
          • Internal Design
            Monotube
          • Lower Mount Type
            Eye 12.7 x 38.1 mm
          • Mount End Type
            Eye-To-Eye
          • Position
            Right
          • Rebound at 0.52 m/s
            Custom
          • Series
            M 9200 (Bypass)
          • Shock Cap Type
            Screw Top
          • Upper Mount Type
            Eye 12.7 x 38.1 mm
